Wisycom LNNA2
MPN #WSY-LNNA2
Wideband UHF LPDA antenna with 6dB gain, 90 beam-width, 470"870 MHz range, integrated booster (0"16dB), N-type connector, rugged epoxy fiberglass design.

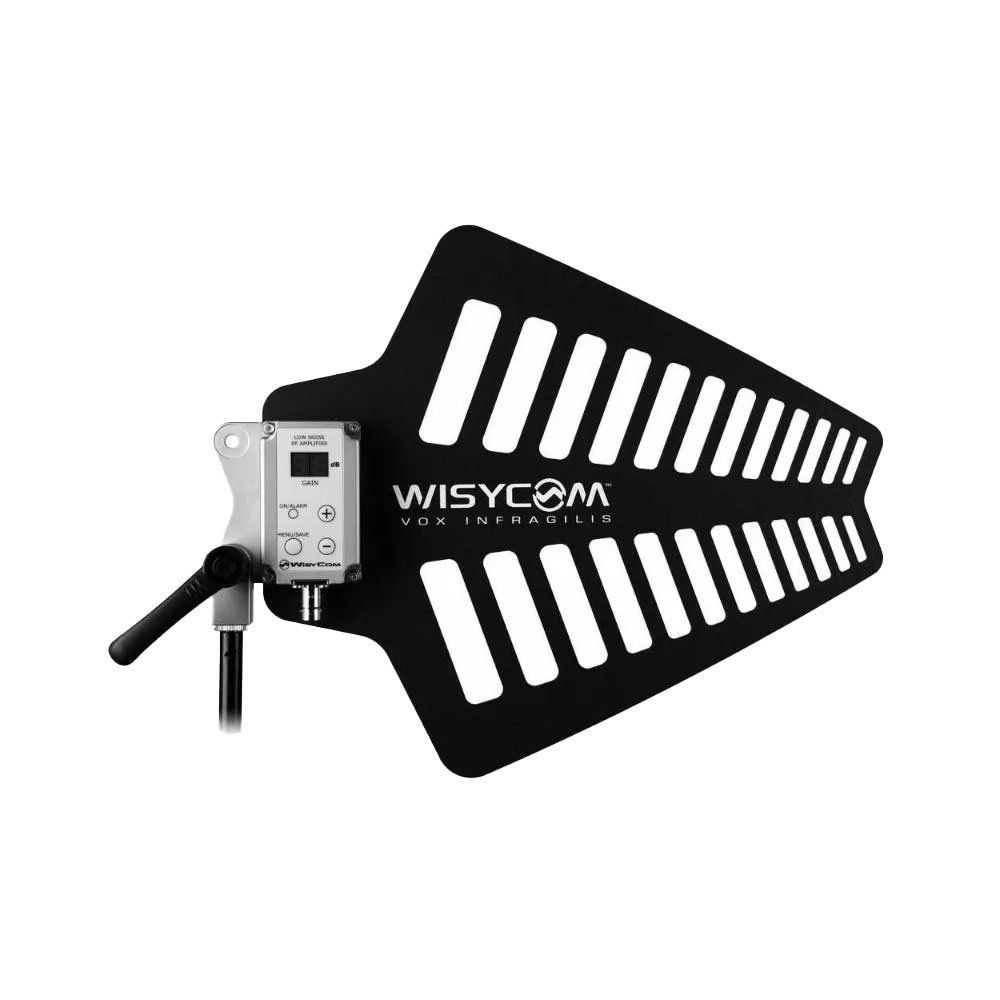

The LNNA2 UHF Wideband Active Antenna is a professional-grade LPDA (Log Periodic Dipole Array) antenna designed to enhance UHF signal reception with outstanding reliability and clarity. Covering a frequency range of 470-960 MHz, the LNNA2 delivers approximately 6 dB of gain with a typical 90 degree beam-width, optimizing signal capture for demanding broadcast and live sound applications.
Equipped with an integrated booster, it provides up to 16 dB of adjustable gain in 1 dB steps, ensuring strong signal integrity even over long cable runs. Constructed with epoxy fiberglass and copper-clad materials, the antenna is rugged and finished in black matte for durability. Its N-female connector, 50-ohm impedance, and support for 5/8" or 3/8" mounting make it versatile and easy to integrate into any setup.
Lightweight at 560g and compact with dimensions of 336 mm x 276 mm x 61 mm, the LNNA2 is ideal for both mobile and stationary installations, providing powerful signal performance with minimal interference.
Features
10 independent battery slots for simultaneous recharging
Fast charging: less than 2 hours to charge up to 10 batteries
LED indicators (Charge and Fault) under each slot for real-time status monitoring
Ultra-lightweight and compact 1U 19" rack design
Aluminum black varnish case for durability and sleek appearance
DC connector XLR-4M, 10"28 VDC, 60W max power supply
Temperature range: 0 to +45 degree C for reliable operation
Easy to mount and dismount from rack modules
Weighs only 1.60 kg with a depth of 120mm
Specifications
General Specifications
Model: LNNA2Type: UHF Wideband Active Antenna (LPDA - Log Periodic Dipole Array)Frequency Range: 470 " 870 MHz (Rev.4 supports 470 " 960 MHz)Gain: Approximately 6 dBBeam Width: 90 degreesPolarization: VerticalRadiation Pattern: Directional
Booster Specifications
Booster Gain: 0 -16 dB, selectable in 1 dB stepsGain Flatness: +/-1 dB across the entire frequency rangeOIP3 (Output 3rd Order Intercept Point): +43 dBm typicalSWR (Standing Wave Ratio): < 1:1.5, typical 1:1.4Power Supply: +12 V, 100 mA
Connectivity
Connector Type: N female (for LNNA2)Impedance: 50 ohm
Physical Specifications
Material: Epoxy fiberglass (copper-clad)Finishing: Black matteMounting: 5/8" Withworth or 3/8" with adapterDimensions: 336 mm (L) x 276 mm (H) x 61 mm (D)Weight: 585 g
