Wisycom MTP61-CA-DP
MPN #WSY-MTP61-CA-DP
Ultra-comfort harness for heavy audio gear, adjustable aluminum spine, 3D memory foam, roller waist buckles, fits waist sizes 60 to 130 cm.

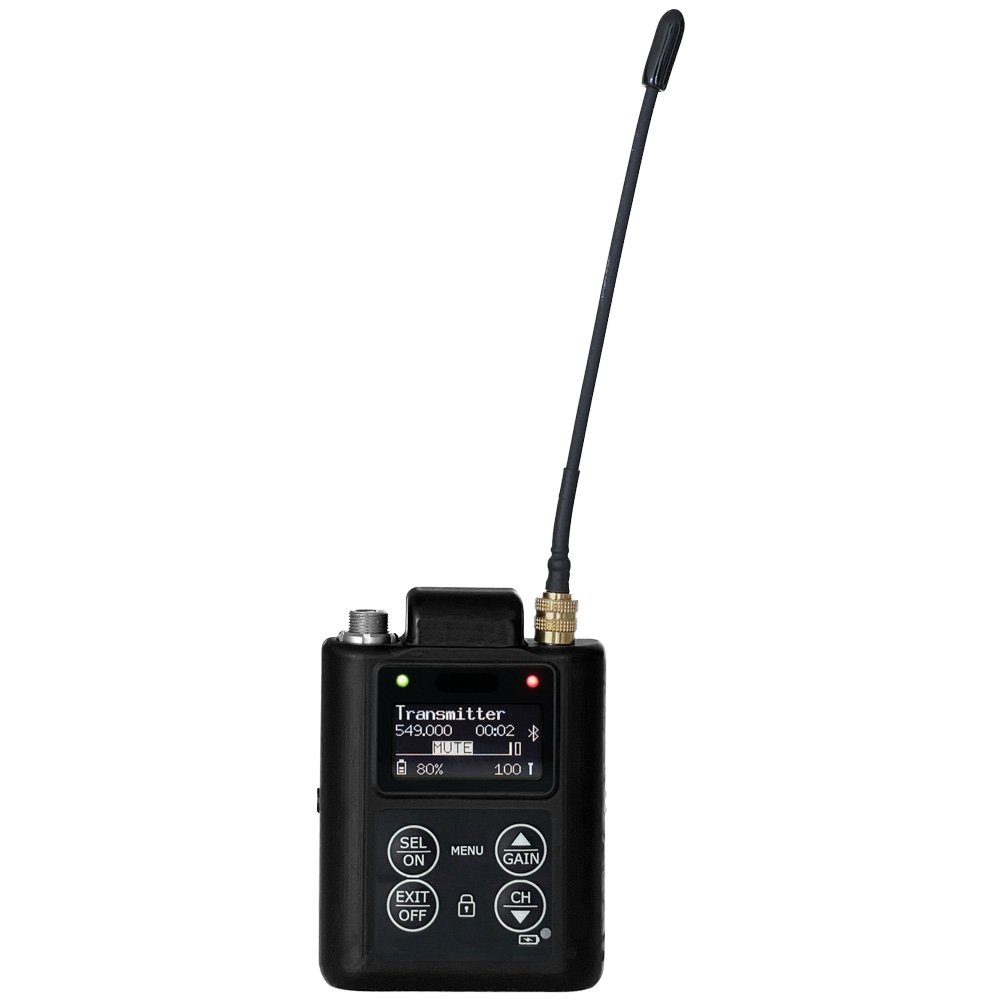

The Wisycom MTP61-CA-DP is a cutting-edge miniature pocket transmitter, purpose-built for professional location sound, broadcast, theater, and live performance applications where stealth, flexibility, and top-tier audio performance are essential. Outfitted with a DPA MicroLock connector, this model integrates seamlessly with DPA lavalier microphones, offering a secure and reliable connection for high-quality audio capture.
Despite its incredibly compact size, the MTP61-CA-DP delivers unmatched wireless versatility with the industry's widest tuning range-470 to 1260 MHz-and selectable output power up to 100 mW (in select configurations). Thanks to advanced linear technology and digital signal processing, the transmitter provides pristine sound with ultra-low distortion and no intermodulation artifacts, even when used in dense RF environments. The internal 64 GB microSD card allows for 32-bit float audio recording, complete with timecode synchronization and embedded metadata. With Bluetooth control via the Wisycom app or Wisycom Manager, real-time adjustments and status monitoring are just a tap away-making it an invaluable tool for demanding production workflows.
Features
Ultra-Compact Design: One of the smallest transmitters available, ideal for film, theater, and stealth applications.DPA MicroLock Connector: Seamless integration with DPA lavalier microphones for a secure, professional-grade connection.Wide Tuning Range: Covers 470 to 1260 MHz (region dependent), with up to 362 MHz switching window for flexible frequency planning.32-Bit Internal Recorder: Records directly to a built-in 64 GB microSD card with support for Linear Timecode decoding.Bluetooth Control: Adjust settings wirelessly via mobile app or Wisycom Manager, including gain, filters, and RF power.DSP-Based Audio Processing: Easily switch between wideband and narrowband modes, with clear, distortion-free ENS compander audio.High Dynamic Range Input: Handles levels from -40 dBu to +10 dBu with limiter protection and adjustable gain in 1 dB steps.Selectable RF Power: Switchable output power (10 to 100 mW on supported configs) for optimized performance and battery life.Built for Long Shoots: Up to 8 hours of battery life on a rechargeable lithium-ion battery, with precise battery/time readout.Robust and Lightweight: Rugged design at only 94g with battery, including a clear OLED display and status LEDs for monitoring.
Specifications
General Specifications
Model MTP61CADPConnector DPA MicroLockApplication Location sound theater AV productionDesign Ultra compact pocket transmitterDisplay OLED white 128 x 64 pixelsDimensions 583 mm x 47 mm x 17 mm H x W x D without clipWeight 72 g without battery 94 g with batteryOperating temperature minus10C to plus55C
Frequency and Tuning
Frequency range 470 MHz to 1260 MHz country dependentSwitchable channels 2400 in 40 groups of 60 user programmableSwitching window Up to 362 MHz band dependentFrequency generation Quartz PLL synthesizer 5 kHz stepFrequency accuracy plus minus25 ppm
RF Transmission
RF power levels 10 mW L10 mW 20 mW L20 mW 50 mW 100 mW configuration dependentAntenna connector SSMAModulation Wideband and Narrowband DSP processedNominal deviation plus minus40 kHz WB plus minus25 kHz NBPeak deviation plus minus56 kHz WB plus minus35 kHz NBSpurious emissions less than 2 nWTelemetry Sub carrier for tone squelch remote monitoring PTT support
Audio Performance
Noise reduction ENS companderAudio bandwidth NB mode 45 Hz to 17 kHz 3dB WB mode 45 Hz to 20 kHz 3dBTotal harmonic distortion less than 03 percent typically 015 percentSNR analog WB 115 dB at 40 kHz 121 dB at 56 kHz NB 115 dB at 25 kHz 121 dB at 35 kHz
Audio Input
Connector LEMO 3 pin with DPA MicroLock terminationInput level range minus40 dBu to plus10 dBu adjustable in 1 dB stepsMax input level plus10 dBuInput impedance 2 k ohms or moreIntegrated limiter YesPTT function Supported on pin 3
Recording and Media
Storage Internal 64 GB microSD industrial gradeRecorder EmbeddedFile format WAV BWFBit depth 24 bit 32 bitSample rate 48 kHzTimecode Linear Timecode decoding
Power and Battery
Battery Cameron Sino CS BCE10 CGA S008E 37V 1050 mAhBattery life Approx 8 hours at 10 mWPower input USB C via 5 pin waterproof magnetic connectorPower options Li ion battery USB bus powerBattery status display Percentage or time
Connectivity and Control
Wireless control Bluetooth 52 Low EnergyControl interface Wisycom Manager iOS Android mobile appsLED indicators 3 RGB LEDs for audio RF battery and charging statusAudio filtering Integrated low pass filter against ultrasonic interferenceFront panel buttons Menu access via shortcut combinations
Included Features
DPA MicroLock input connectorOLED status displayScrew locking LEMO connectorMagnetic waterproof USB data power timecode connector
