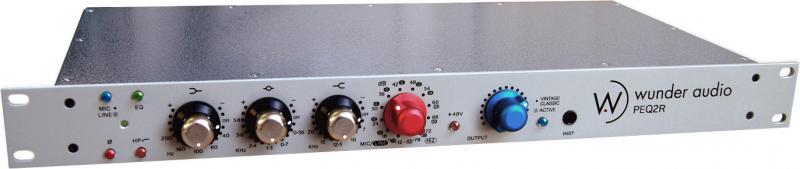

The Wunder Audio PEQ2R is the 19" rack mount version of the PEQ2.
It has a conductive plastic logarithmic taper output level potentiometer, which acts as an output fader, a 48V phantom power switch and a quarter inch instrument input jack. We've taken the PEQ1R and enhanced it to make it even better!
NEW output stage added to the tail end, just before output transformer, for greater maximum gain. Upgraded "NICO" transformers (Nickle/Iron/Colbalt). Improved Gain switches with over 3 x the gold contact area per switch position. Improved EQ switches with over 3 x the gold contact area per switch position. Light pipe pushbuttons, as used in the Wunderbar Console. Discrete, active high pass filter. LED metering with Green signal indicator and Red clip light. 1/4" instrument input is selectable from Active or Classic Input on PEQ2R. Gain knob now has one extra counter clockwise position to achieve -6db less gain (-24dB instead of -18dB like on old units). Totally redesigned enclosure with thicker gauge metal for superior shielding and better RF protection. Thicker faceplate on PEQ2R. 1% Metal Film resistors for lower noise floor and better matching from channel to channel. Sturdier amp compensation or RF rejection capacitors. New PCB with revised and optimized component layout with beefier traces. RF filtering.
