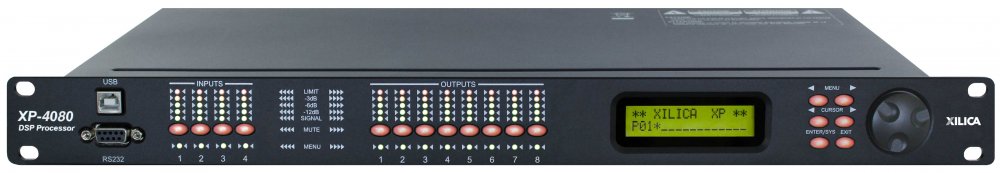

The XP-40800 is a 4 input/8 output fixed architecture, fully programable, digital, audio system processor.
Offering a choice of four I/O combinations, 2x4, 4x8 and 8x8, XP Series products provide a cost-effective footprint for a range of channel counts. Models feature XLR or Phoenix connectors, whilst inputs can be matrixed or routed to any and all outputs.
XP products additionally feature Ethernet, USB and RS232 connectivity for configuration, control and monitoring, whilst many command features can be accessed through the DSP's front-panel, or with a computer running the user-intuitive XConsole software. In fact, XConsole can work in tandem with an Ethernet switch to control multiple X Series devices from a single location.
For end-user control, XP products are compatible with an Android or iOS device running the complimentary XTouch App, or the XPanel LCD display.
XConsole is Windows-compatible only. To configure your X Series products using a Mac, please use Xilica Designer.
Cost-effective product featuring advanced processing algorithms, sophisticated connectivity options including Phoenix and XLROffers a range of flexible control options including front-panel, touch-screen, computer-based, smartphone and wall-plateAn evolution of the legendary Classic DLP family, with 40-bit floating-point DSP engine and 24-bit AD/DA convertersSimple, easy-to-configure software guarantees a quick setup and low training time - backed by Xilica's global support offices
Input impedance: >10k Ohms
Output impedance: 50 Ohms
Maximum level: +20dBu
Mic/Line: Mic (+40dB Fixed gain)/Line (0dB)
Type: Electronically balanced
Frequency response: +/- 0.1dB (20 to 30kHz)
Dynamic range: 115dB typ (unweighted)
CMRR: >60dB @ 1kHz
Crosstalk: <-80dB @ 1kHz
Distortion: 0.002% (1kHz @ +4dBu)
Processor: 40-bit Floating Point
Sampling rate: 96kHz
Analog converters: High-performance 24-bit
Propagation delay: 1.5ms
Connectors: Phoenix Plug-in 3.5mm, XLR, USB, RS232, RJ45 Ethernet, IEC power socket
Power: 90-240 VAC (50-60Hz)
Dimensions: 19"x1.75"x9" (483x44x229mm)
Rack mount: 1RU, with vent between units
Weight: 11lbs / 5kg
Manufacturer Part Number : XP-4080
