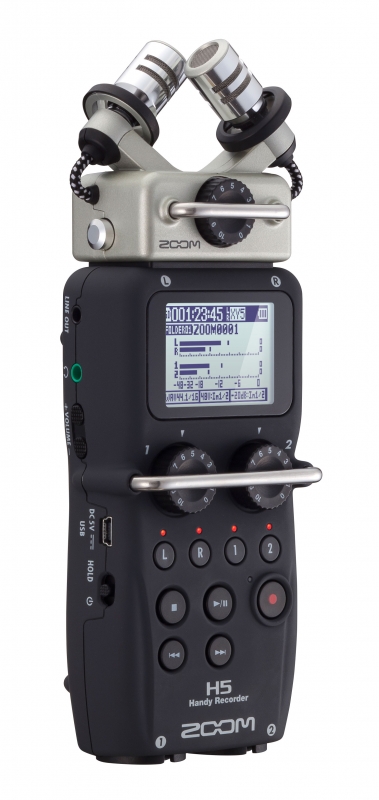

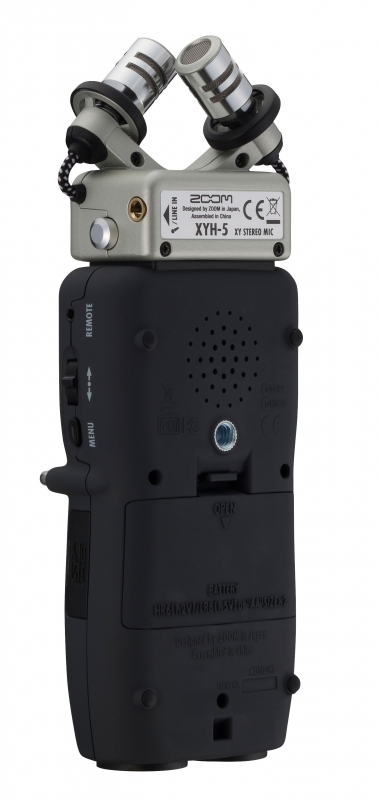

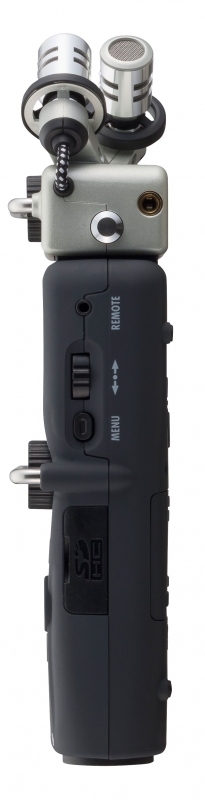

Zoom H5
UPC/EAN #4515260013203
MPN #ZH5
The flexible & powerful H5 provides everything you need to create multitrack recordings, audio for video, and state-of-the-art podcasting, broadcasting and electronic newsgathering
Louder. Closer. Cleaner.

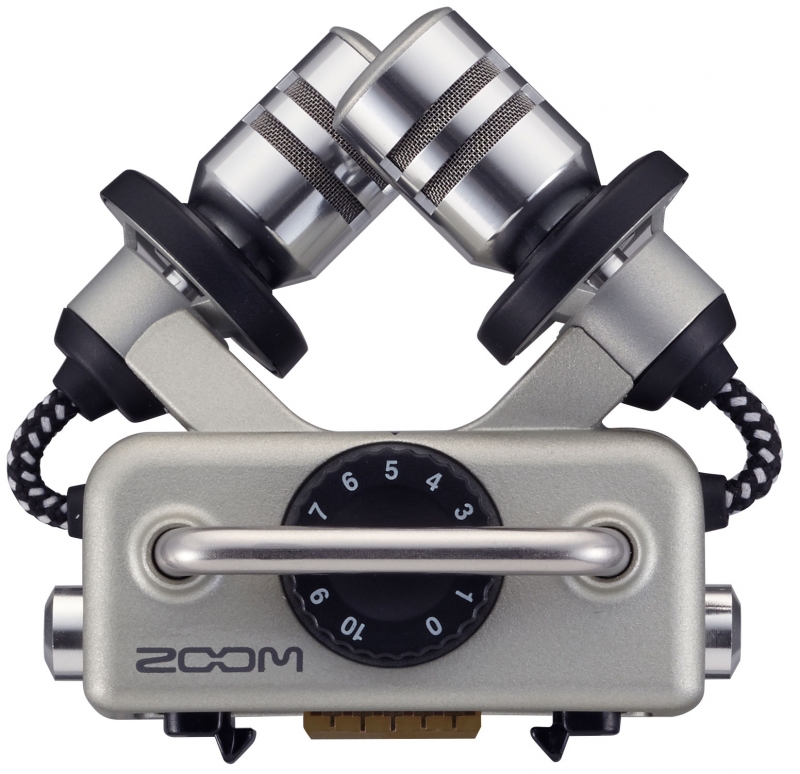

X/Y recording allows you to cover a wide area yet still capture sound sources in the center with clarity and definition, making it ideal for all types of live stereo recording. The XYH-5 X/Y microphone capsule included with the H5 provides two matched unidirectional condenser microphones set at a 90 degree angle. These are housed within an advanced shockmount that employs rugged external mic wires and rubberized material to isolate the unit from the H5 body and thus minimize vibration and handling noise. The design of the XYH-5 also allows the H5 to handle louder sounds than any other Handy Recorder model: 140 dB SPL, to be precise-equivalent to the sound of a jet aircraft from less than 200 feet away-enabling you to capture sounds louder, closer, and cleaner than you ever could before.
Features
Uses a system of interchangeable input capsules that can be swapped out as easily as the lens of a cameraIncludes detachable X/Y capsule (XYH-5) with extended signal capacity and shockmounted mics for reduced handling noiseCompatible with all Zoom input capsulesFour-track simultaneous recordingLarge backlit LCD displayRecords directly to SD and SDHC cards up to 32 GBUp to 24-bit/96 kHz audio in BWF-compliant WAV or a variety of MP3 formatsTwo mic/line inputs with XLR/TRS combo connectors, each with selectable phantom power and -20 dB padAnalog-style gain controls for each inputProtective "roll-bar" type covers prevent accidental movement of gain controlsPlug-in power (2.5 volts)Built-in effects, including low-cut filtering, compression, and limitingChromatic tuner and metronomeAuto-record, Pre-record, and Backup-record functions mean that you'll never miss that perfect takeMS decodingMultitrack to stereo internal mixdownNormalize, Divide, and Trim editingVoice memo and up to 99 marks per recordingA/B loop playbackVariable playback speed and variable pitch without affecting playback speedMultichannel and stereo USB audio interface for PC/Mac/iPad with loop back functionMountable to DSLR or camcorder with optional HS-01 Hot Shoe Mount adapterUses two standard AA alkaline or NiMH rechargeable batteriesOver 15 hours of operation with alkaline batteries
Here's what comes included with the H5:
Operation manualXYH-5 X/Y mic capsuleAA size (LR6) battery x 2USB cableFoam windscreenCaseSteinberg WaveLab LE software downloadSteinberg Cubase LE software download
Optional Accessories
PCH-5 Protective Case for H5 Handy RecorderSGH-6 Shotgun Mic CapsuleSSH-6 Stereo Shotgun Mic CapsuleEXH-6 Dual XLR/TRS Combo CapsuleXYH-6 X/Y Mic CapsuleMSH-6 Mid-Side Mic CapsuleECM-3 Extension Cable for Zoom Microphone CapsulesHS-1 Hot Shoe Mount AdapterMA-2 Tripod to Mic Stand Adapter for Handy RecordersWSU-1 Universal WindscreenAPH-5 Accessory Pack includes RCH-5 wired Remote Controller,AD-17 USB-type AC adapter, and Hairy Windscreen
Specifications
General
Recording media: SD card: 16MB to 2GB , SDHC card: 4GB to 32GBDisplay: Backlit LCD (128 x 64 pixels)
Inputs
INPUTS L/R [XYH-5 X/Y mic]
Mic type: UnidirectionalSensitivity: -45 dB, 1 kHz at 1 PaInput gain: - to 52 dBMax sound pressure input: 140 dB SPL
MIC/LINE IN
Connector: 1/8" stereo mini jackInput gain: - to 52 dBInput impedance: 2 k or morePlug-in power: 2.5V supportedBackup recording: -12dB lower than set L/R input gain
INPUTS 1/2
Connectors: XLR / TRS combo jacks (XLR: Pin 2 hot / TRS: Tip hot)Input gain (PAD OFF): - to 55.0 dBInput gain (PAD ON): - to 35.0 dBInput impedance: 1.8 k or moreMax input level: +22 dBu (PAD ON)Phantom power: +12V /+24V /+48VEquivalent Input Noise (EIN): -120 dBu or less
Outputs

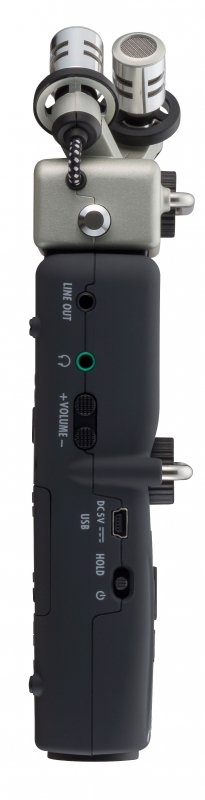

LINE OUT
Connector: 1/8" stereo mini jackRated output level: -10 dBmOutput load impedance: 10k or more
PHONE OUT
Connector: 1/8" stereo mini jackOutput Level: 20 W +20 W into 32 loadBuilt-in speaker400mw 8 mono
Recording formats
STEREO MODE
WAV (BWF-compliant)Sampling frequency: 44.1/48/96 kHzBit rate: 16/24 (Stereo)Maximum simultaneous recording tracks: 2
MP3
Sampling frequency: 44.1kHzBit rate: 48/56/64/80/96/112/32/160/192/224/256/320kbps
MULTITRACK MODE
WAV (BWF-compliant)Sampling frequency: 44.1/48 kHzBit rate: 16/24 (Mono/Stereo)Maximum simultaneous recording tracks: 6 (L/R + INPUT 1/2 + L/R backup)
USB
Mass Storage Class operationClass: USB 2.0 High Speed
Audio Interface operation (Multitrack mode)
Class: USB 2.0 High SpeedSampling frequency: 44.1/48kHzBit rate: 16/24 bitInputs / Outputs: 4 / 2
Audio Interface operation (Stereo mode)
Class: USB 2.0 Full SpeedSampling frequency: 44.1/48kHzBit rate: 16 bitInputs / Outputs: 2 / 2
USB bus powered operation possible
(iPad operation supported in Stereo mode only)
Power Requirements
AA size (LR6) battery x 2AC adapter: AD-17 (DC5V/1A/USB-type) (optional)USB bus power
