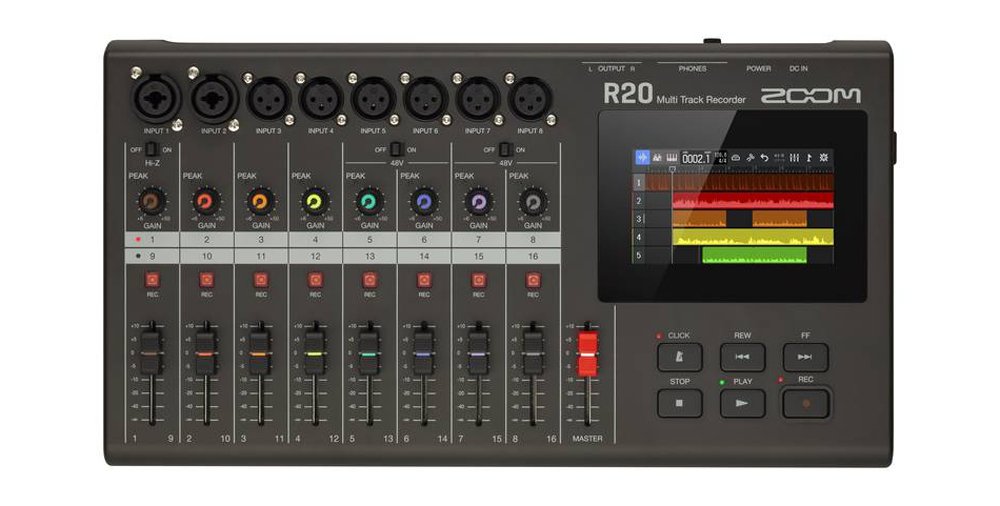

Zoom R20
UPC/EAN #4515260025893
MPN #ZR20
16-track, multi track recorder with touchscreen editing. Includes ZAD-1220 AC adapter, Steinberg Cubase LE recording software
The R20 has the best preamps and noise floor of any multi track recorder Zoom has ever designed. With six XLR inputs, two combo inputs, and 16 tracks of recording, the R20 is perfect for singer-songwriters to full bands.
Features
4.3? Full-color LCD touchscreen displayEasy-to-use DAW-inspired interfaceRecord up to 16 tracks (8 simultaneously)Eight XLR mic preamps, including two mic/line/instrument combo jacksHi-Z available on input 1 and 48V phantom power available on inputs 5-8Onboard editing and built-in effectsPre-loaded drum loopsOptional BTA-1 Bluetooth enables wireless control via the R20 Control AppUSB-C audio interface (Multi Track Mode : 8-in / 2-out, Stereo Mode : 2-in / 2-out)Records directly to SDHC cards up to 32GB and SDXC cards up to 1TBNew locking-type AC Adapter (ZAD-1220)Up to 24-bit /44.1kHz audio in BWF-compliant WAVCompatible with Guitar Lab software for Mac/Windows PC
Specifications
INPUTS / OUTPUTS
INPUTS MIC/LINE (mono): 8
OUTPUTS: MASTER OUT 1
PHONES: 1
INPUTS
MIC/LINE (MONO)
Connectors: XLR/TRS combo jacks - 2 XLR - 6 (XLR: 2 HOT/TRS: TIP HOT?
Input gain: +6 ~ +50 dB
Input impedance: XLR: 3.9 k? TRS: 5.3 k?/1 M? (when Hi-Z is ON, for INPUT 1 only)
Maximum input level: +4 dBu (@0 dBFS)
Phantom power: +48 V (INPUTS 5"8, switchable in pairs)
Equivalent input noise: "121 dBu or less (IHF-A) with +50dB/150? input
Frequency response: "1.0 dB: 20 Hz " 20 kHz
OUTPUTS
MASTER OUT
Connectors: 2 TRS phone jacks (balanced)
Maximum output level: +14 dBu
Output impedance: 200 ?
PHONES
Connector: 1 standard stereo phone jack
Maximum output level: 20 mW + 20 mW (into 32? load)
Output impedance: 33 ?
TRACK SETTINGS
Pan
EQ High: 10 kHz, ±12 dB, shelving
Middle: 2.5 kHz, ±12 dB, peaking
Low: 100 Hz, ±12 dB, shelving
Send Effect
Stereo Link
Comp/Limiter/Gate
RECORDER
Maximum simultaneous recording tracks: 8
Maximum simultaneous playback tracks: 16
Recording format: 44.1kHz, 16/24-bit, mono/stereo WAV
Recording media: 4"32GB cards compatible with the SDHC specification
64"1TB cards compatible with the SDXC specification
EFFECTS
Maximum number of simultaneous effects: 3 effects (One insert effect on one channel or one send effect available to all tracks)
Patch memories: 50
TUNER: Chromatic/Guitar/Bass/Open A/Open D/Open E/Open G/DADGAD
METRONOME
Time signatures: 3/4, 4/4, 6/8
Tempo range: 40.0"250.0 BPM
RHYTHM LOOPS
Sound source format: PCM
Number of loops: 150
SYNTH
Polyphony 8
Sound source format: FM
Number of sound types: 18 + PCM drum kit
DISPLAYL: 4.3" (480-272) full-color touchscreen LCD
USB
CONNECTOR: USB Type-C
? Use a USB cable that supports data transfer. USB bus power is not supported.
AUDIO INTERFACE OPERATION:
Stereo mix: USB 2.0 Full Speed
44.1kHz, 16/24-bit
2-in/2-out
Multitrack: USB 2.0 High Speed
44.1 kHz, 16/24-bit
8-in/4-out
MASS STORAGE OPERATION Host/Device: USB 2.0 High Speed (5V/500mA power supplied when host)
GUITAR LAB CONNECTION USB 1.1 Full Speed
USB MIDI KEYBOARD CONNECTION USB 1.1 Full Speed (5V/500mA power supplied)
DAW CONNECTION (CONTROL SURFACE) FUNCTION USB 1.1 Full Speed
MISC
REMOTE: Dedicated wireless adapter (ZOOM BTA-1)
POWER: AC adapter (ZOOM ZAD-1220): 12 V/2.0 A
Power consumption: 11 W maximum
External dimensions: 378 mm (W) - 206 mm (D) - 58 mm (H)
Weight (unit only): 1.33 kg
Note: 0 dBu = 0.775 V
