Zoom U-24

The U-24 is a compact, 2-in/4-out audio interface that provides all of the essential tools you need for recording and performing with high resolution, 24-bit/96 kHz audio anywhere

Get incredible sound quality thanks to high-quality, low-noise preamps-the same ones found on our acclaimed H5 and H6 Handy Recorders. Connect to your PC, Mac, or iPad via USB and record mics, instruments, and more. The U-24 delivers the same great sound as our U-44 interface, with a more streamlined feature set.

The Go-Everywhere Interface

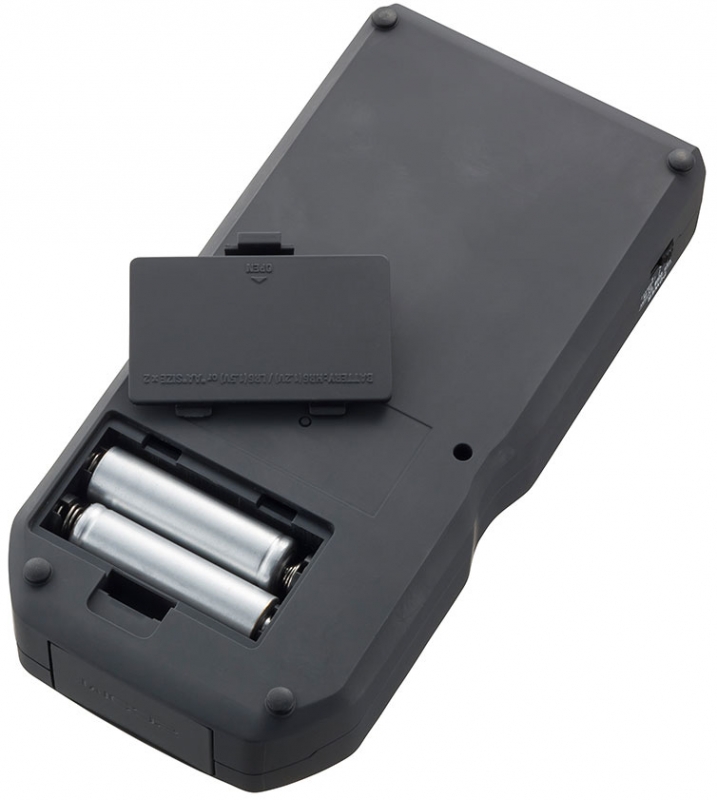

The bus-powered U-24 packs all the essential tools into a compact form factor that fits in the palm of your hand. Record with mics, instruments, and more at home or on the go-the U-24 is iPad* compatible and small enough to take anywhere. It can even run on just two AA batteries for recording in the most remote locations.
* Requires 2 AA batteries or optional AC adapter for power, plus an Apple iPad Camera Connection Kit or Lightning-to-USB Camera Adapter for connection to iPad.

Pristine Recording and Playback
Inspired by our Zoom H-series recorders, the U-24 is equipped with high-performance, low-noise mic preamps (-119.5 dB EIN) that enable recording and playback at resolutions up to 24-bit/96 kHz. You can also use U-24 as a studio-quality headphone amp and listen to your favorite music in full fidelity.

Get Connected with the U-24

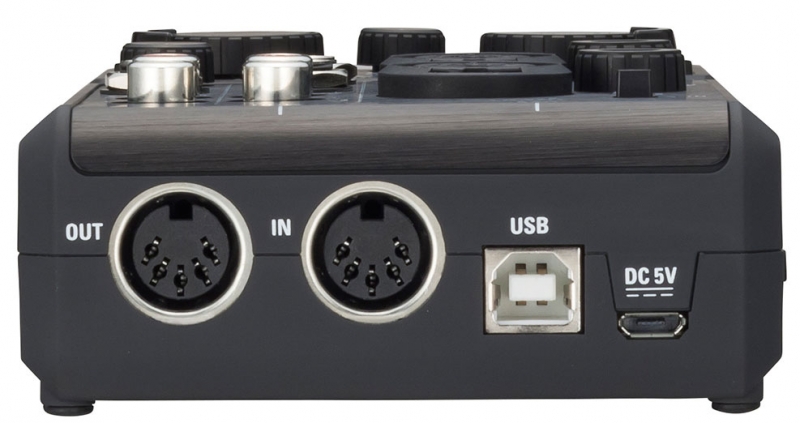

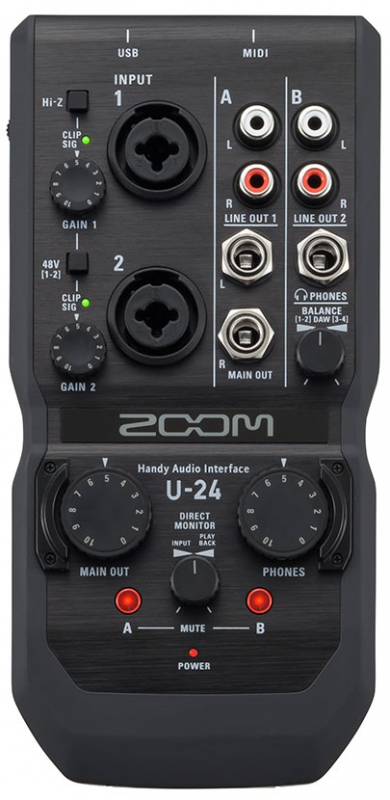

The U-24 is equipped with an essential collection of inputs and outputs for streamlined recording. Two combo inputs with independent gain knobs and multi-color level indicators allow you to connect mics, keyboards, mixers, and more. 48V phantom power can be supplied to both inputs, and input 1 supports Hi-Z for connecting guitars, basses, or other passive instruments. MIDI input and output jacks allow you to use devices like keyboards, controllers, synthesizers, and drum machines.

Separate TRS and RCA output jacks provide multiple options for connecting DJ mixers, monitors, and other gear. Finally, an independent headphone output with dedicated volume control gives you complete flexibility while monitoring.

Your Mix, Your Way
The U-24 has flexible monitoring options for dialing in the perfect mix with zero latency. Balance the cue and main out signals when you're DJ'ing, or create a mix of click track and main out signals during live performances. Each connector and knob is strategically positioned for fast access, so you can set up and control the U-24 with ease.

Includes Ableton Live 9 Lite
When you combine the U-24 with Ableton Live 9 Lite, you have everything the modern music creator needs. Record your tracks quickly and intuitively, enhancing them with studio-quality effects like EQ, compression, reverb, delay, chorus, filter, and more
Features
  • Multi-channel and stereo USB audio interface for PC/Mac/iPad
  • Connect to iPad with Apple iPad Camera Connection Kit or Lightning-to-USB Camera Adapter (sold separately), plus 2 AA batteries or optional AC adapter for power
  • Two mic/line inputs with high performance mic preamps
  • High quality recording and playback at resolutions up to 24-bit/96 kHz
  • Approximately 4 hours of operation with 2 AA alkaline batteries
  • Includes download code for Ableton Live 9 Lite
  • Two-channel simultaneous inputs
  • Hi-Z support (input 1)
  • Zero-latency direct monitoring
  • Two TRS phone jack outputs
  • Dedicated RCA L/R and headphone outputs
  • MIDI I/O
  • Gain control knobs for each input
  • +48V phantom power for inputs 1 and 2
  • Accepts standard AA alkaline or NiMH rechargeable batteries

  • Here's what comes with the U-24
  • Operation manual
  • Ableton Live 9 Lite software download code
  • USB Cable

  • Optional U-24 accessories
  • Zoom AD-17 power supply
  • Specifications
    ANALOG IN: Input 1/2
  • Connector: TRS/XLR combo jacks (XLR: 2 hot, TRS: TIP hot)
  • Input gain: 0 - 43 dB
  • Input impedance: 2.6 k (MIC IN) 1.1 M (when Hi-Z ON)
  • Maximum input level: +2.7 dBu (MIC IN) /+20.7 dBu (TRS IN)
  • Phantom power: +48V

  • ANALOG OUT: Main Out L/R
  • Connector: TRS phone jacks (unbalanced)
  • Maximum output level: +10 dBu (at 0 dBFS)
  • Output impedance: 330

  • ANALOG OUT: Line Out 1/2
  • Connector: RCA (coaxial)
  • Maximum output level: +8 dBu (at 0 dBFS)
  • Output impedance: 1k

  • ANALOG OUT: Phones
  • Connector: Standard stereo phone jack
  • 30 mW x 2 (into 32 load)
  • Maximum output level: +10 dBu (at 0 dBFS)
  • Output impedance: 33

  • Frequency characteristics:
  • At 44.1 kHz: -1.0 dB: 20 Hz - 20 kHz
  • At 96 kHz: -3.5 dB: 20 Hz - 40 kHz

  • Input conversion noise
  • Measured EIN: -119.5 dB (IHF-A) at 43 dB, 150 input

  • Number of audio recording and playback channels:
  • Recording: 2 channels
  • Playback: 4 channels
  • Sampling frequencies: 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
  • Bit depth: 24-bit
  • Interface: USB 2.0
  • MIDI IN/OUT: 5-pin DIN jack

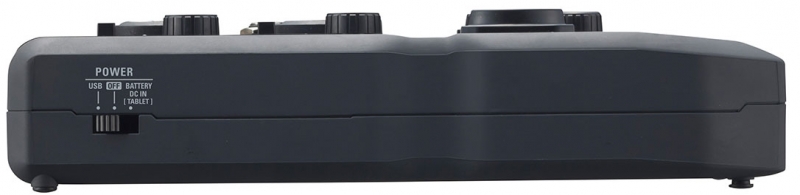

  • Power Source:
  • USB bus power (Type B)
  • Zoom AD-17 (Micro-B)
  • DC 5V power supply (Micro-B)
  • 2 AA batteries (4 hours continuous operation with phantom power off)

  • Power consumption: 5W maximum
    Dimensions: 191.8 mm (D) x 92.3 mm (W) x 42.7 mm (H)
    Weight (main unit only): 285 g
    *0dBu=0.775Vrms
    Reviews
    Price *

    $199.99
    Eligible for free shipping in Canada. Learn more
    Additional information
    For more information about the U-24, please visit the website of Zoom
