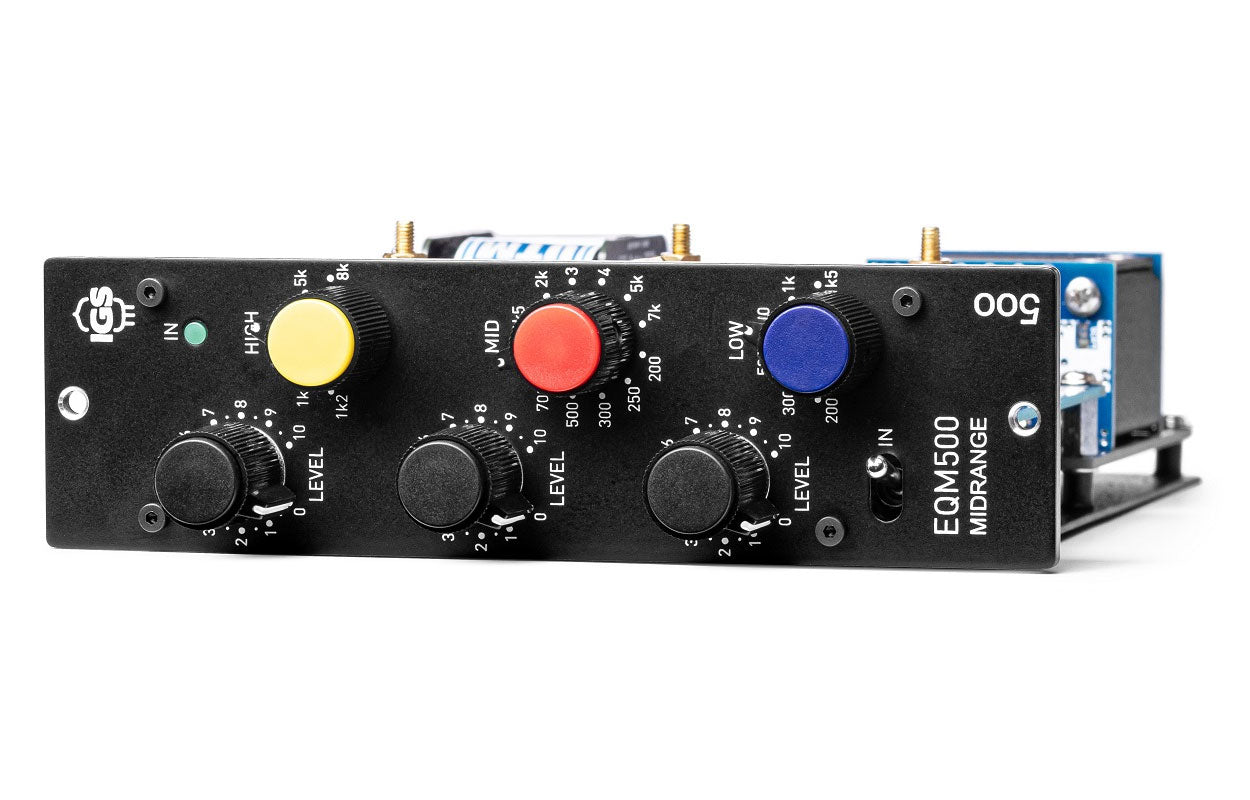

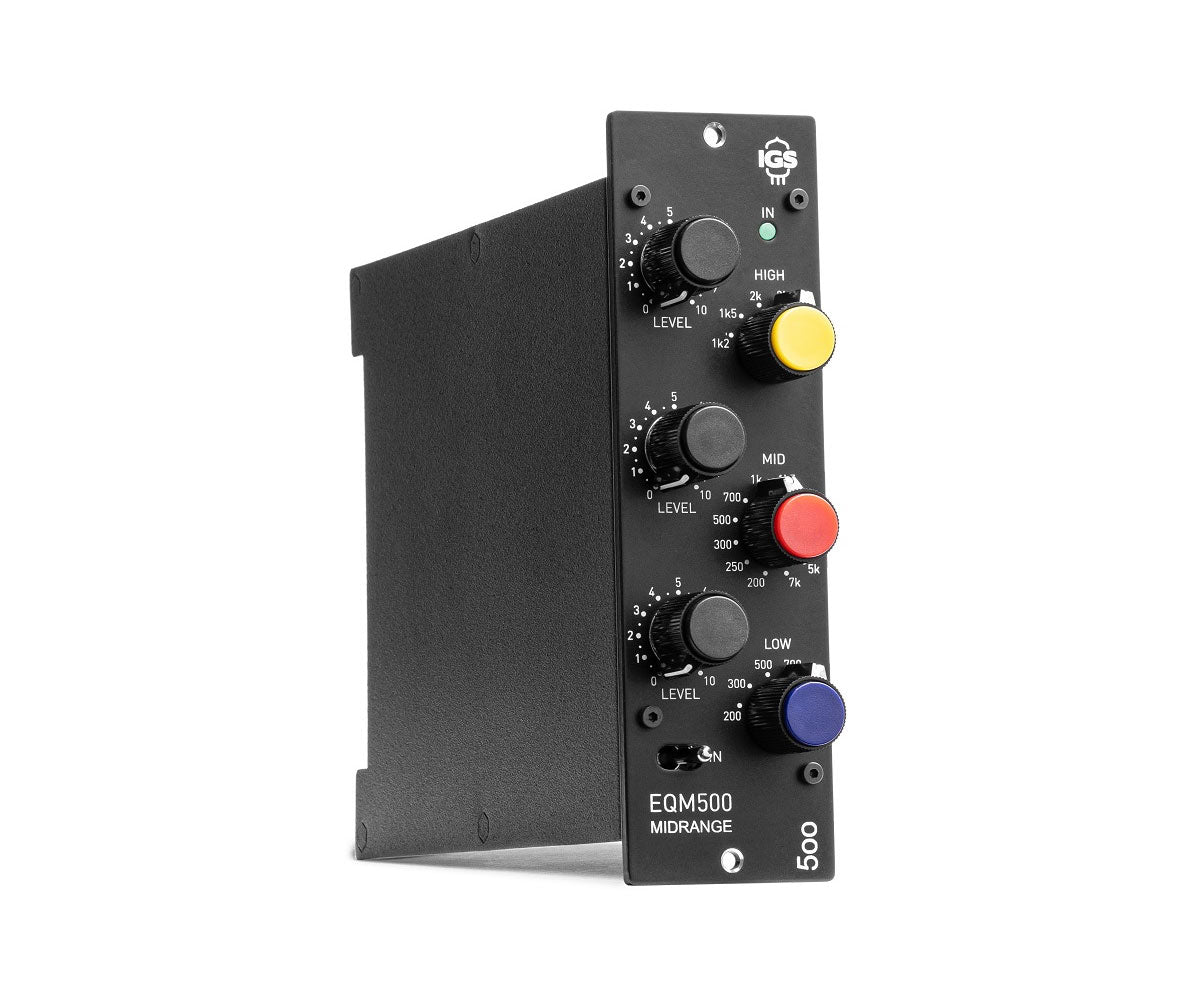

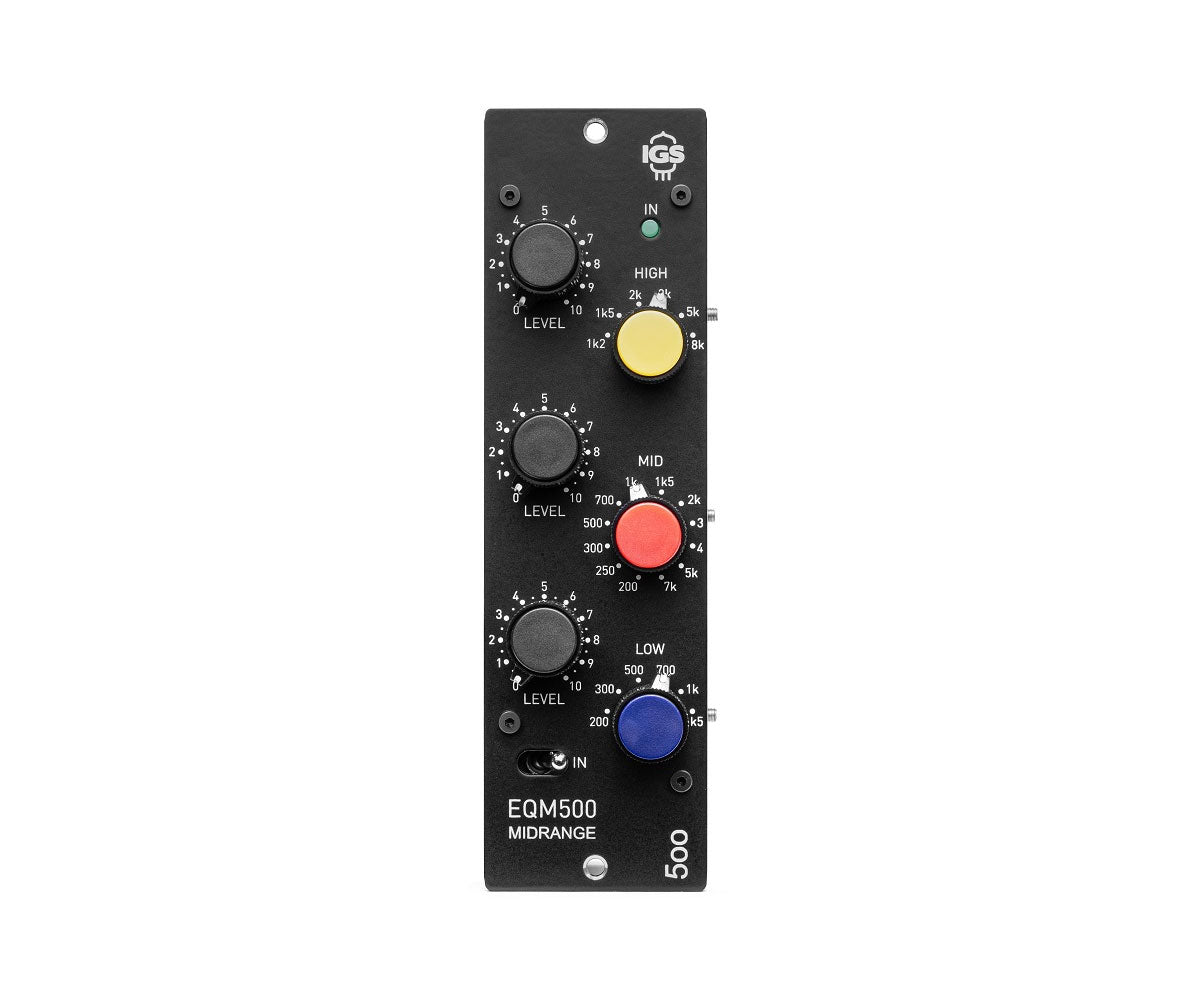

IGS AUDIO

EQM500

500 Series EQs/Compressors

3-band passive EQ, 500-series format, stepped controls, 12dB boost/cut, LC resonant circuits, transformer-balanced I/O, 20Hz–20kHz ±0.1dB, ideal for vocal shaping

$1,265.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The EQM500 is a meticulously crafted 500-series passive equalizer that brings classic analog tone shaping into modern workflows with precision and musicality. Drawing its inspiration from the legendary designs of the 1950s particularly the iconic Pultec EQ the EQM500 embraces simplicity, tone, and warmth. It's built to add body, presence, and subtle contouring to everything from vocals to grouped instrument tracks, making it an ideal tool for both mixing and mastering engineers who value character and control.

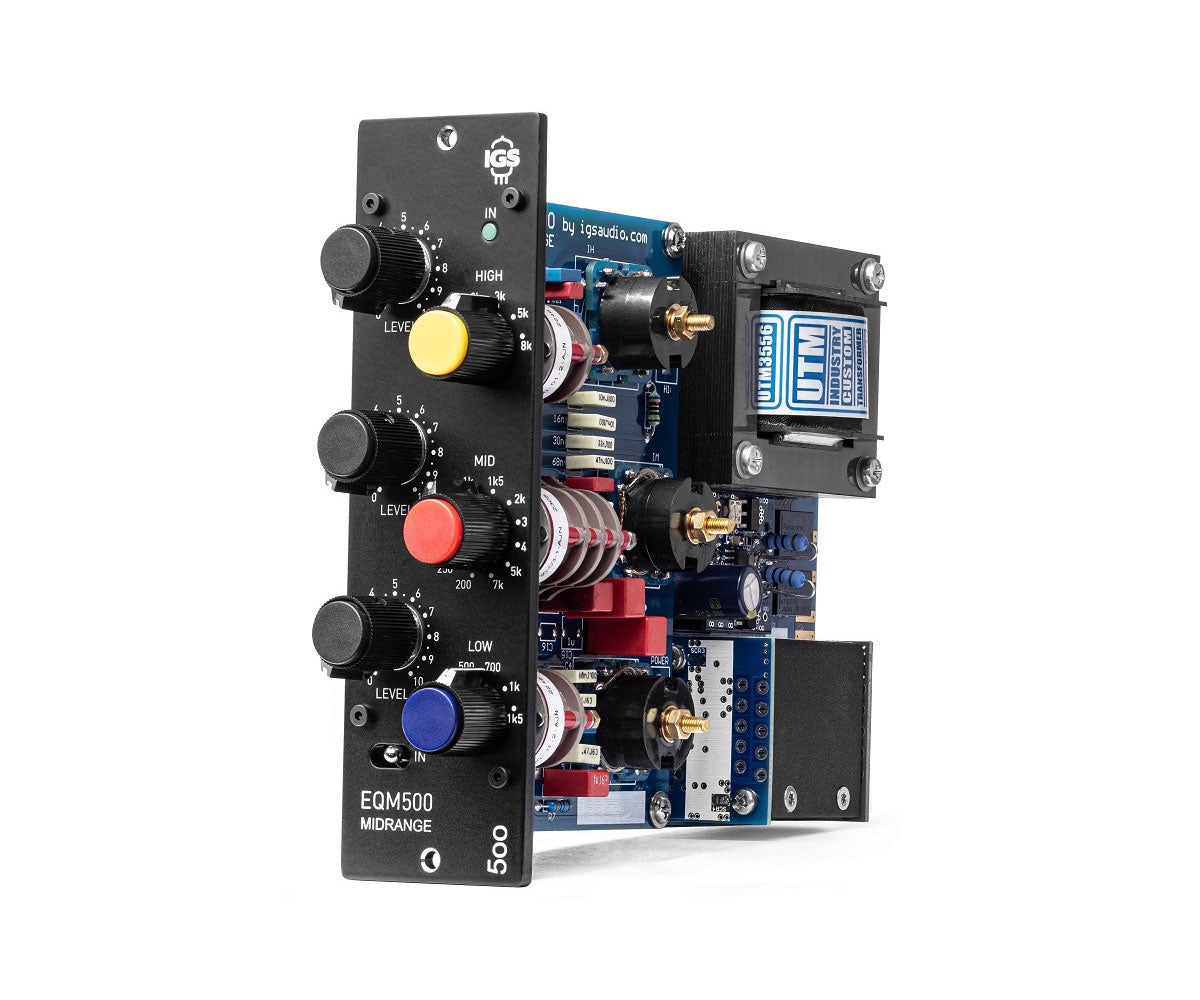

Housed in a single-slot 500-series format, the EQM500 features three frequency bands LOW, MID, and HIGH, each powered by high-precision LC resonant circuits using 1% tolerance inductors from UTM Industry. Frequency selection is handled via stepped Grayhill switches, ensuring recallable, reliable adjustments. The LOW and HIGH bands each offer six boost frequencies, while the MID band offers twelve attenuation points between 200 Hz and 7 kHz, ideal for taming boxy resonances or bringing clarity to a crowded mix. Transformer-balanced input and output stages also from UTM ensure that every adjustment is smooth, musical, and full of analog depth.

With +22 dBu max output, 18 dB of headroom, and ultra-low distortion (THD+N of just 0.012%), the EQM500 provides the sonic finesse required in high-end audio environments, whether you’re enhancing individual instruments or rounding out final mix elements. The result is a tool that adds warmth, punch, and presence without sounding clinical, helping you shape sound with confidence and style.

Features

Classic-Inspired Midrange EQ
Built on vintage design principles for warm, musical tone shaped after legendary passive EQs of the 1950s.

3-Band Precision Control
Low, mid, and high frequency bands let you boost or cut with clarity and intention across key tonal areas.

Extended Midrange Shaping
Fine-tune critical vocal and instrument frequencies from 200Hz to 7kHz to remove harshness or enhance presence.

Transformer-Balanced Sound
Input and output are transformer-balanced for rich analog character and professional-grade signal integrity.

Stepped Controls for Recall
All knobs are stepped for consistent, repeatable settings which is ideal for studio mix workflows.

Smooth, Musical Enhancements
Shape audio with up to 12dB of boost or cut without harshness which is perfect for adding body, warmth, or sparkle.

High-Quality Components
Uses premium inductors and switches for accuracy and durability in every adjustment.

Fits Any 500-Series Rack
Compact 500-series format offers powerful equalization in a space-saving, modular form.

Specifications

General Specifications
Device Type: 500-Series Passive Equalizer
Configuration: Monophonic Unit
Chassis Format: 500-Series
Filter Type: LC Resonant Circuits with UTM 1% Tolerance Inductors
Frequency Bands: 3 (LOW, MID, HIGH)
Control Type: Stepped Frequency Selectors with Grayhill Switches
Transformers: UTM Custom Input and Output Transformers
Bypass: Hard Wire Bypass
Q Factor: 0.7
Boost/Cut Range: ±12 dB

Frequency Ranges
LOW Band: 6 Selectable Frequencies (Boost)
MID Band: 12 Selectable Frequencies (Attenuation, 200 Hz – 7 kHz)
HIGH Band: 6 Selectable Frequencies (Boost)

Input/Output
Input Type: Transformer-Balanced
Output Type: Transformer-Balanced
Input Impedance: 10 kΩ Balanced
Output Impedance: 50 Ω Balanced

Levels
Operating Level: +4 dBu
Maximum Input Level: +20 dBu
Maximum Output Level: +22 dBu
Headroom (@ +4 dBu): 18 dB
Noise Level: –99 dBA

Performance
Frequency Response: 20 Hz – 20 kHz, ±0.1 dB
Total Harmonic Distortion + Noise (THD+N): 0.012% (20 Hz – 20 kHz)

Power
Power Consumption: 4 W

Physical
Shipping Weight: 1.5 kg
