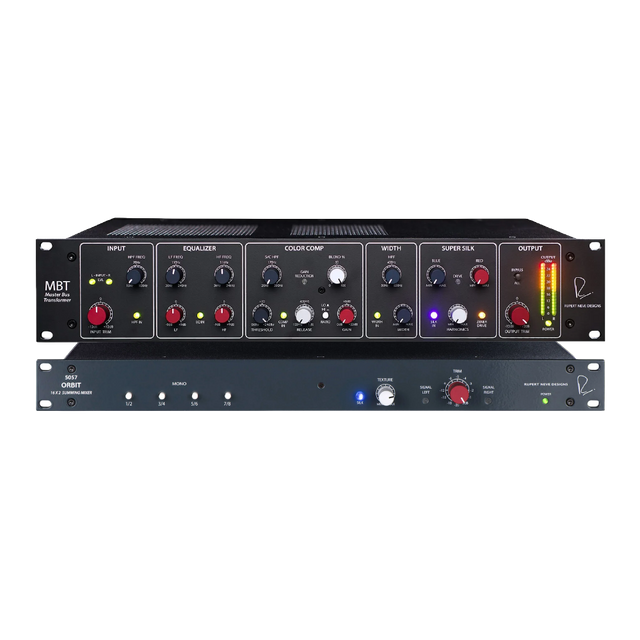

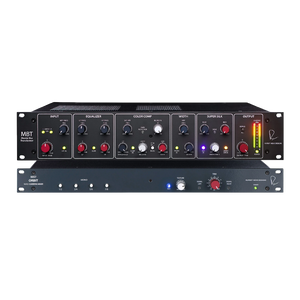

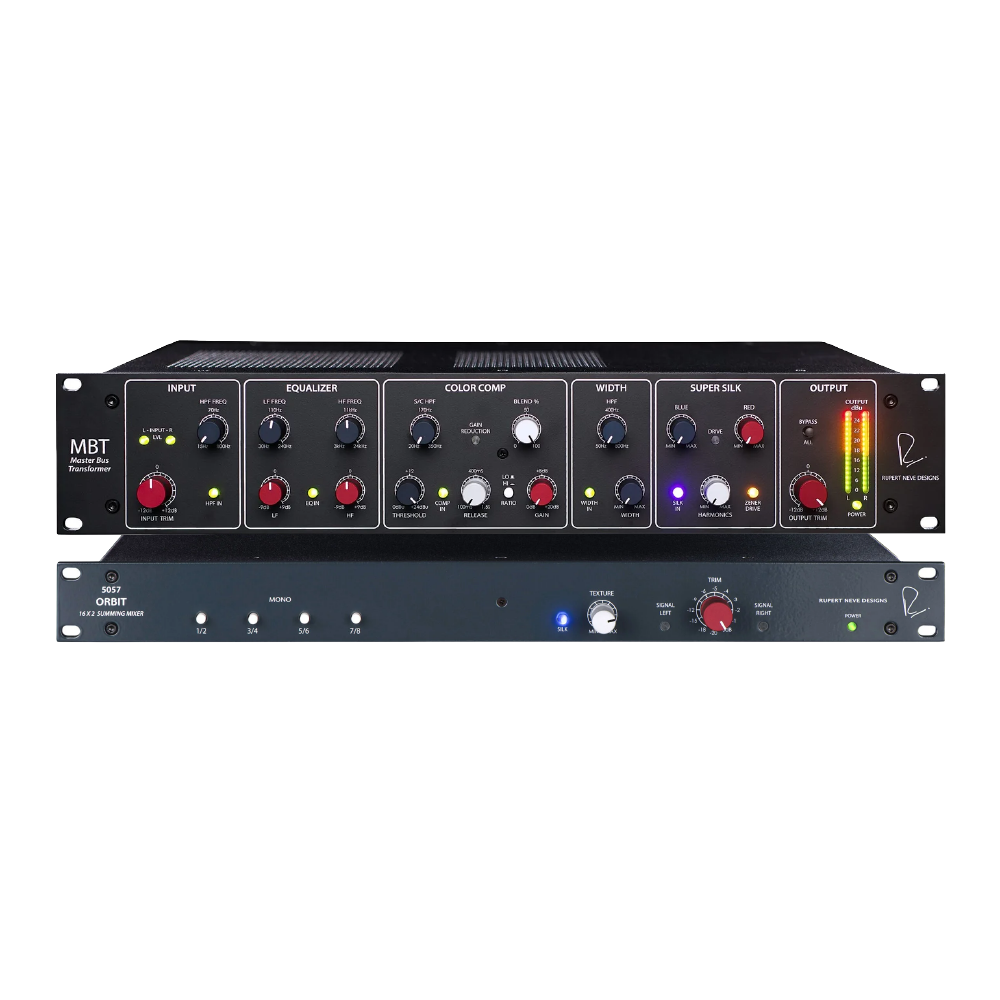

Mix Bus Bundle - MBT / 5057 Orbit Summing Mixer

Complete Analog Mix Bus Workflow
Combine analog summing and master bus processing in one streamlined signal chain, taking a mix from individual stems through final stereo enhancement.

Rich Analog Summing
Bring multiple tracks or stems together through the ORBIT’s Class-A analog signal path for a more cohesive and dimensional mix.

Advanced Mix Bus Processing
Shape the summed stereo mix with the MBT’s EQ, compression, stereo width, filtering, and harmonic processing.

Custom Transformer Character
Both units use Rupert Neve Designs transformer technology, adding musical harmonic character and analog depth throughout the mix path.

Flexible Tonal Color
Use Silk and transformer saturation controls across the signal chain to add warmth, presence, weight, or additional harmonic texture.

Mix Glue and Dynamic Control
The MBT’s Color Comp can help bring the summed mix together while maintaining control over punch, movement, and overall dynamics.

Powerful Tone Shaping
Fine-tune the overall balance with musical low- and high-frequency EQ, helping add body, clarity, or polish to the finished mix.

Enhanced Stereo Image
Expand the perceived width of the mix while keeping lower frequencies focused for a spacious yet controlled stereo presentation.

Creative Saturation Options
Combine the ORBIT’s transformer coloration with the MBT’s Super Silk and Zener Drive processing for everything from subtle enhancement to more pronounced analog character.

Mix and Master with One Hardware Chain
Create a complete analog finishing path that can handle summing, coloration, compression, EQ, stereo enhancement, and final output control before returning the mix to the recording system.

5057 ORBIT — General Specifications
Device Type: 16 x 2 Analog Summing Mixer
Signal Path: Fully Class-A analog
Input Channels: 16 balanced
Mix Bus: Stereo
Mono Summing: Channels 1/2, 3/4, 5/6, 7/8
Mono Gain: Unity gain
Output Transformer: Custom transformer-coupled
Output Attenuation: 12-position stepped trim
Trim Accuracy: ±0.1 dB
Silk Modes: Off, Red, Blue
Texture Control: 31-detent

5057 ORBIT — Audio Performance
Input Impedance: 16 kΩ
Frequency Response: 10 Hz to 50 kHz, ±0.1 dB typical
Frequency Response -3 dB Point: 150 kHz typical
Noise: -90 dBu typical, 22 Hz–22 kHz bandwidth, unterminated
Maximum Input Level: +26 dBu typical at 1 kHz
Maximum Output Level: +26 dBu typical at 1 kHz
THD+N at 0 dBu: 0.003% typical at 1 kHz, 22 Hz–22 kHz bandwidth
THD+N at +20 dBu: 0.0006% typical at 1 kHz, 22 Hz–22 kHz bandwidth
Crosstalk at 1 kHz: -103 dBu typical
Crosstalk at 10 kHz: -93 dBu typical

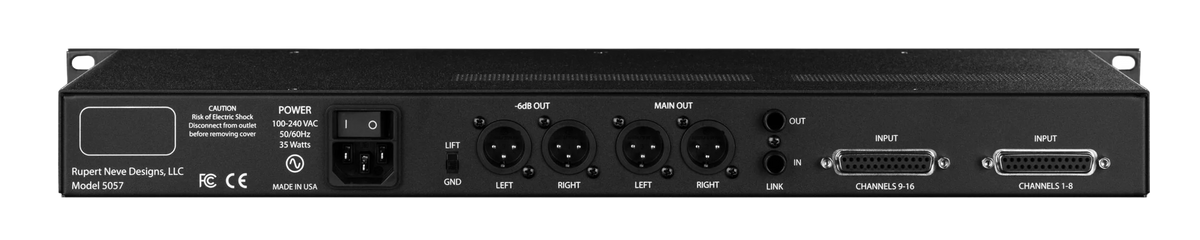

5057 ORBIT — Inputs and Outputs
Channels 1–8 Input: Female DB25, balanced
Channels 9–16 Input: Female DB25, balanced
Main Outputs: Balanced XLR
Secondary Outputs: Balanced XLR, -6 dB
Link Input: 1/4 in TRS
Link Output: 1/4 in TRS
Link Bus: Unbalanced stereo, Tip Left / Ring Right
Ground Lift: XLR output Pin 1 lift

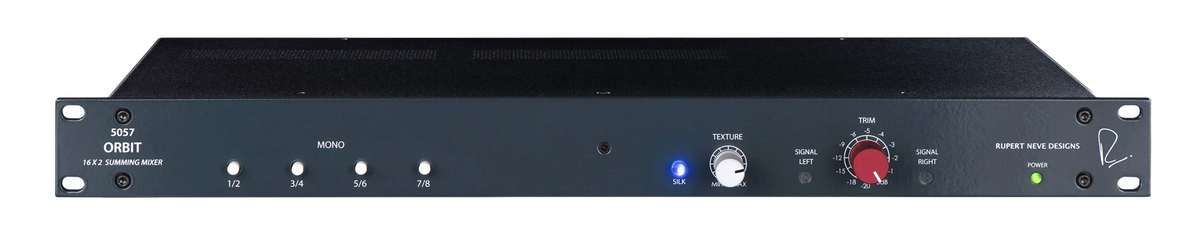

5057 ORBIT — Controls and Metering
Main Output Trim Range: 0 dB to -20 dB
Trim Steps: 0, -1, -2, -3, -4, -5, -6, -9, -12, -15, -18, -20 dB
Signal Present Threshold: -20 dBu
Overload Indication: +24 dBu
Clip Margin Above Overload Indication: 2 dB
Texture Control: 31 detents
Mono Controls: 4 push-button switches

5057 ORBIT — Electrical
AC Input: 100–240 VAC
Maximum Power Consumption: 35 W
Power Connector: IEC 3-pin grounded inlet
Construction: Class I

5057 ORBIT — Dimensions and Weight
Width: 19 in (48.3 cm)
Depth: 9 in (22.9 cm)
Height: 1.75 in (4.4 cm)
Shipping Dimensions: 24 x 13 x 4 in (61 x 33 x 10.2 cm)
Shipping Weight: 10 lb (4.5 kg)

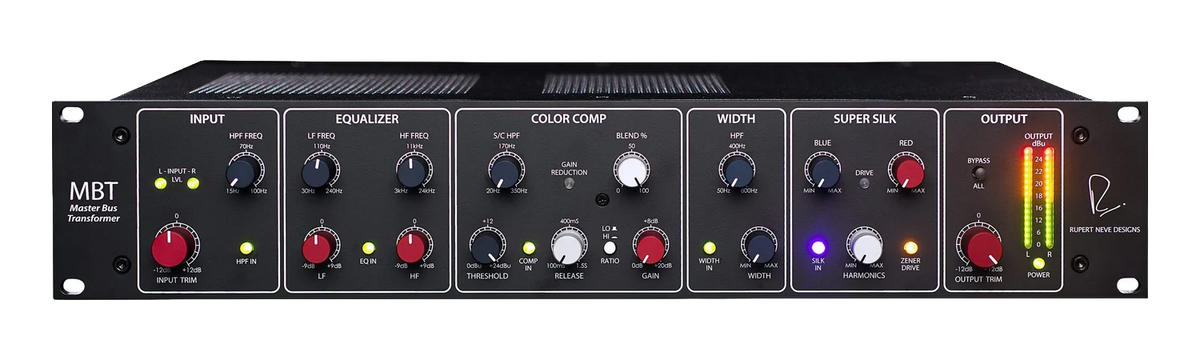

MBT Master Bus Transformer — General Specifications
Device Type: Stereo Master Bus Processor
Processing Sections: Input, High-Pass Filter, Equalizer, Color Compressor, Stereo Width, Super Silk, Zener Drive, Output
Input Amplifier: Fully Class-A
Output Transformers: Custom transformer-coupled
Hard-Wire Bypass: Yes
Control Type: 31-detent potentiometers

MBT Master Bus Transformer — Input Section
Input Trim Range: -12 dB to +12 dB
High-Pass Filter Range: 15 Hz to 100 Hz
Input Meter Signal Threshold: -20 dBu
Input Meter Overload Threshold: +23 dBu

MBT Master Bus Transformer — Equalizer
Low-Frequency EQ Type: Shelving
Low-Frequency Range: 30 Hz to 240 Hz
Low-Frequency Gain Range: -9 dB to +9 dB
High-Frequency EQ Type: Shelving
High-Frequency Range: 3 kHz to 24 kHz
High-Frequency Gain Range: -9 dB to +9 dB
EQ Bypass: Switchable

MBT Master Bus Transformer — Compressor
Compressor Type: Stereo optical
Threshold Range: 0 dBu to +24 dBu
Release Range: 100 ms to 1.5 s
Ratio Low: 2:1
Ratio High: 5:1
Make-Up Gain Range: 0 dB to +20 dB
Side-Chain High-Pass Filter Range: 20 Hz to 350 Hz
Blend Range: 0% to 100%
Gain Reduction Metering: LED

MBT Master Bus Transformer — Stereo Width
Width Processing: Variable
Width High-Pass Filter Range: 50 Hz to 800 Hz
Width Bypass: Switchable

MBT Master Bus Transformer — Harmonic Processing
Silk Processing: Switchable
Blue Silk Control: Variable low-frequency pre-emphasis
Red Silk Control: Variable high-frequency pre-emphasis
Harmonics Control: Variable transformer saturation
Silk Drive Indication: LED
Zener Drive: Switchable soft-clip circuit

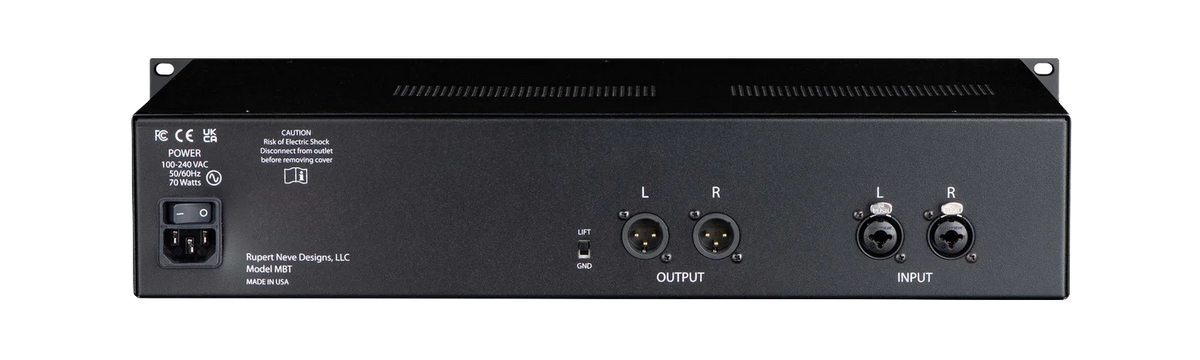

MBT Master Bus Transformer — Inputs and Outputs
Analog Inputs: 2 balanced XLR/TRS combo
Input Impedance: 10 kΩ
Analog Outputs: 2 balanced XLR
Output Coupling: Custom transformers
Ground Lift: XLR Pin 1 lift

MBT Master Bus Transformer — Output and Metering
Output Trim Range: -12 dB to +12 dB
Output Metering: Dual 16-segment LED
Output Meter Scale: 0, 6, 12, 16, 18, 20, 22, 24 dBu
Hard-Wire Bypass Indicator: Red LED
Power Indicator: Green LED

MBT Master Bus Transformer — Electrical
AC Input: 100–240 VAC
AC Frequency: 50/60 Hz
Power Connector: IEC AC inlet with power switch
