ACCSOON  |  SKU: 24661

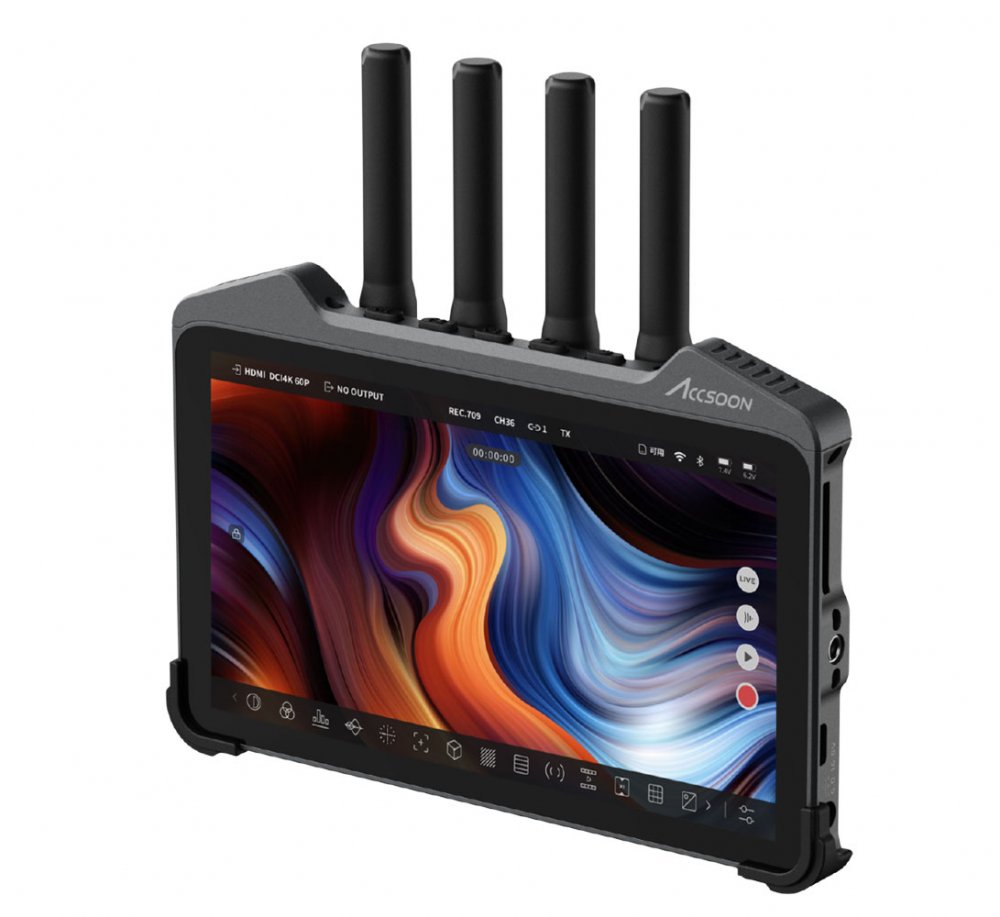

Cineview M7 Pro

Screens

7in 1080p wireless monitor, 1000 nits, HDMI SDI I/O, built-in TX/RX, 4K60 via HDMI, 3D LUT, dual-band 350m range, NP-F/USB-C power, smart cooling, aluminum body

$1,249.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The CineView M7 Pro is the ultimate wireless production monitor, combining a professional-grade 7" display, 8K-capable processing, and integrated wireless transmission-all in a compact, rugged aluminum housing. Designed for high-end cinematography and on-set flexibility, it offers real-time monitoring, recording, and LUT application with unmatched color precision and ultra-low latency wireless transmission up to 350 meters.

Built to simplify complex workflows, the M7 Pro acts as a transmitter, receiver, and monitor in one, supporting Accsoon's patented Dual-Band wireless system for seamless connection to CineView TX/RX devices. With support for up to DCI 4K60 (HDMI), 961+ format combinations, and professional tools like waveforms, false color, and a powerful 3D LUT box, this monitor puts precise creative control at your fingertips-on any set, anywhere.

Features

All-in-One Wireless Monitoring: Combines wireless transmitter, receiver, and professional monitor in a single device.

Integrated Long-Range Wireless: Supports wireless video up to DCI 4K60 using Accsoon's dual-band technology with up to 350m range and ultra-low 60ms latency.

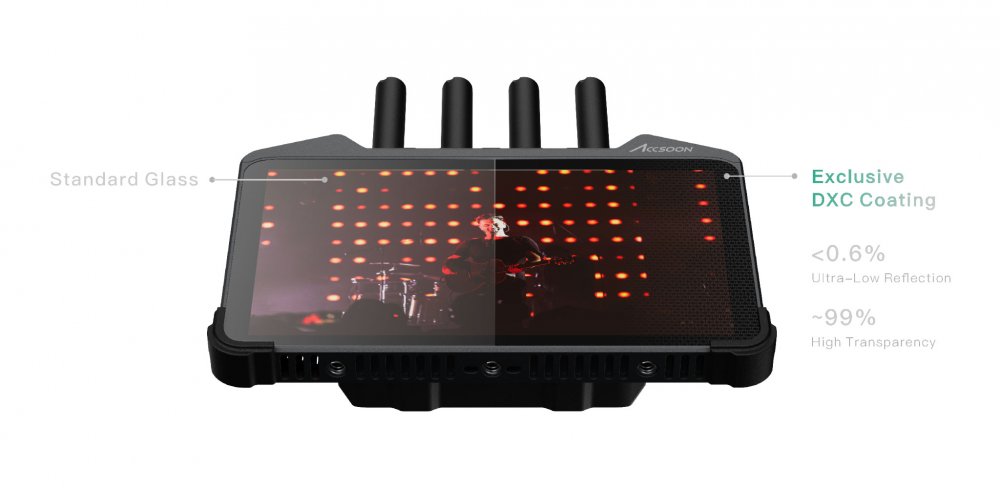

Cinematic 7" Display: Color-accurate, fully laminated screen visible in direct sunlight with factory-calibrated precision.

Advanced Color Workflow Tools: Includes real-time 3D LUT box, false color, waveform, and custom screen calibration.

Smart Monitoring Platform: Powered by high-performance 8K processors and a smart OS for seamless operation.

Flexible Format Support: Handles over 961 video format combinations, with SDI/HDMI cross-conversion and different frame rate outputs.

Compact Yet Powerful: Cinema-grade display in a lightweight body with aerospace-grade aluminum build.

Custom Recording & Playback Options: Offers flexible media workflow with recording, reviewing, and LUT burn-in features.

Professional I/O & Power Options: Includes HDMI/SDI in/out, USB-C, 3.5mm audio, and support for NP-F batteries or DC input.

Cool and Quiet: Features smart dual-mode cooling for efficient thermal management.

Specifications

General Specifications

Screen size 7 inch LCD

Resolution 1920 x 1080 pixels

Pixel density 323 PPI

Aspect ratio 16:9

Brightness 1000 nits

Contrast ratio 1000 to 1

Viewing angle 176 degrees horizontal and vertical

Backlight type Edge-Lit ultra-transparent LED

Screen calibration supported

Color and LUTs

LUT support 1D and 3D Cube LUTs

1D LUT resolution up to 4096 points

3D LUT resolution up to 127 points

Video Input

HDMI 2.0 input

4K DCI 4096x2160 at 23.98 24 25 29.97 30 50 59.94 60 fps

4K UHD 3840x2160 at 23.98 24 25 29.97 30 50 59.94 60 fps

1080p at 23.98 24 25 29.97 30 50 59.94 60 fps

1080i at 50 59.94 60 fps

720p at 50 59.94 60 fps

3G-SDI input

1080p at 23.98 24 25 29.97 30 50 59.94 60 fps Level A and B

1080i at 50 59.94 60 fps

Video Output

HDMI 2.0 output

4K DCI 4096x2160 at 23.98 24 25 29.97 30 50 59.94 60 fps

4K UHD 3840x2160 at 23.98 24 25 29.97 30 50 59.94 60 fps

1080p at 23.98 24 25 29.97 30 50 59.94 60 fps

1080i at 50 59.94 60 fps

720p at 50 59.94 60 fps

3G-SDI output

1080p at 23.98 24 25 29.97 30 50 59.94 60 fps Level A

1080i at 50 59.94 60 fps

Wireless Transmission

Transmission technology Accsoon Dual-Band

Wireless latency 60 ms

Wireless range up to 350 meters

Audio

Microphone input 3.5mm TRS

Headphone output 3.5mm CTIA

Audio sampling 16bit 48kHz

Power and Connectivity

DC input 6.0 to 16.8V 5.5mm x 2.1mm center positive

USB-C power input PD3.0 9V 3A 12V 3A 15V 3A

USB-C power output 5V 2A max

Battery compatibility NP-F550 NP-F750 NP-F970

Construction and Environment

Housing Aircraft-grade aluminium alloy

Cooling system Active and passive

Power consumption 12W to 28W

Operating temperature -10 to 40 degrees Celsius

Dimensions 182.2 x 120.7 x 31.5 mm (antennas excluded)

Weight 494.3 g (antennas excluded)
