AEA  |  SKU: 23376

1029

Dual Compressors

Compact stereo VCA compressor with discreet op-amp design, XLR I/O, variable threshold, ratio, and makeup gain. Features dry/wet control, LED meters and true bypass.

$2,075.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

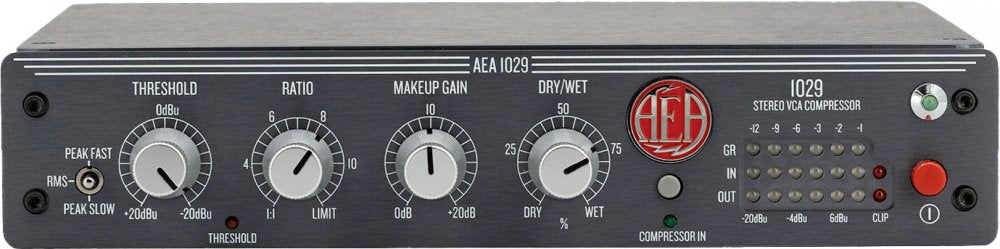

The AEA 1029 Stereo VCA Compressor is a high-quality, precision-engineered audio compressor designed to complement AEA's TRP and RPQ series preamps. Built with a proprietary discrete op-amp design by Fred Forssell, this unit delivers smooth and transparent compression, making it ideal for recording and mixing stereo microphone sources. The half-rack form factor makes it easy to integrate into any studio setup, while its true bypass relay switching ensures an uncolored signal path when needed.

The AEA 1029 features two channels of XLR in and out, a variable threshold (-20dBu to +20dBu), and a variable ratio (1:1 to Limit), giving users precise control over compression settings. It offers three selectable peak sensing times (Fast, RMS, Slow), up to 20dB of makeup gain, and a dry/wet mix knob for parallel compression. The six-segment LED meters provide clear visual feedback for gain reduction, summed input, and summed output levels. With an exceptionally low noise floor and a wide frequency response (10Hz - 200kHz dry, 10Hz - 110kHz wet), this compressor ensures pristine audio quality. Whether you need subtle dynamic control or aggressive limiting, the AEA 1029 is a versatile tool for professional engineers.

Features

Half-rack form factor

2 channels of XLR in and out

3 position Peak Fast, RMS, and Peak Slow sensing times

Variable threshold from -20dBu to 20dBu

Variable ratio from 1:1 - Limit

Up to 20dB of makeup gain

Dry/Wet percentage control knob

True bypass relay switching

Gain reduction, summed Input, and summed output 6 segment LED meters

Specifications

Audio Performance

Noise Floor (22 Hz - 22 kHz, unweighted): -90 dBu (Dry signal path), -86 dBu (Wet signal path)

Frequency Response: ±0.1 dB (10 Hz to 200 kHz, Dry signal path), ±1 dB (10 Hz to 110 kHz, Wet signal path)

THD+N (Dry Signal Path): 1 kHz - 0.001% @ 0 dBu, 600 Ω load; 1 kHz - 0.0008% @ +26 dBu, 600 Ω load

THD+N (Wet Signal Path): 1 kHz - 0.01% @ 0 dBu, 600 Ω load; 1 kHz - 0.07% @ +20 dBu, 600 Ω load

Input Impedance: 20 kΩ balanced

Output Impedance: 52 Ω balanced

CMRR: > 80 dB (22 Hz to 22 kHz)

Crossstalk: -100 dB @ 10 Hz, -80 dB @ 20 kHz

IMD (SMPTE 4:1): 0.002% @ 0 dBu, 600 Ω load; 0.001% @ +24 dBu, 600 Ω load

Maximum Input Level: +26 dBu

Maximum Output Level: +26 dBu (600 Ω minimum load impedance)

Power

Power Consumption: +15.6 VDC @ 180 mA, -15.6 VDC @ 110 mA

Physical Dimensions

Dimensions: Half-rack wide (8.5 in), 1 rack unit high (1.8 in), 8 in deep (measured with knobs)

Metric Dimensions: 21.59 cm x 20.32 cm x 4.6 cm

Weight: 2 lb (~893 g)

Power Supply

Power Supply Weight: 1 lb 1 oz (0.483 kg)

Power Supply Length: 7 ft 8.5 in (2.3 m); length may be supplemented with a longer IEC cable
