500 Series Preamps

Classic microphone preamp in a 500 Series module featuring a discrete circuit design with 2520 Op Amp and proprietary AP2516 input transformer

$1,055.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The 312 is one of API's most sought after and famous mic preamps. First introduced in the 1970s, it is well known and respected throughout the recording industry, and is the building block of the modern 3124 rack unit.

Based on API co-founder Saul Walker's original designs, the API 312 Mic Pre combines our 2520 op-amps and proprietary transformers. It delivers the analog warmth, massive headroom and unmistakable sound for which API is known, in a convenient 500 Series format.

Following the success of the hand wired 312 50th Anniversary Edition, this standard production version offers the classic API sound at an affordable price. Like all API products, the 312 is backed by API's unique Five Year Warranty.

Features

API's Classic 312 Microphone Preamp in a 500 Series module

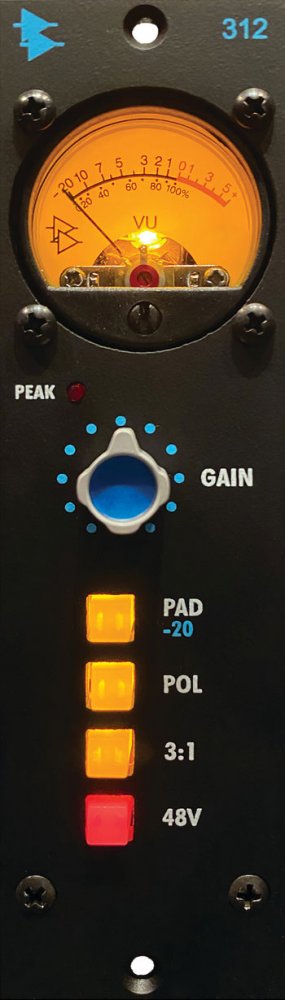

Vintage Style Analog VU Meter

Maximum 69dB of gain

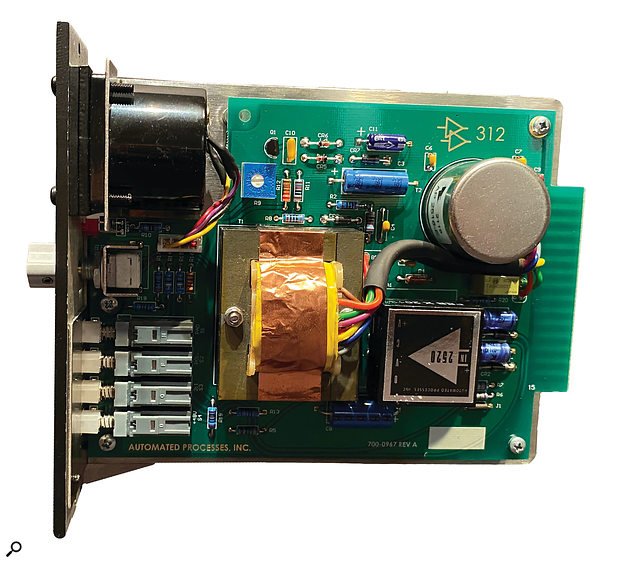

Traditional API fully discrete circuit design with 2520 Op Amp

Proprietary AP2516 Input Transformer

20 dB pad switch

3:1 Output Transformer Tap Selection

Switchable 48V phantom power

Peak LED

API's Five Year Warranty

Specifications

Gain Range: +34 dB to +69 dB (+14 dB to +49 dB with pad)
Maximum Input Level: -4 dBu (+16 dBu with pad)
Maximum Output Level: +31 dBu
Peak LED: Set to +18 dBu output level
Output Impedance: Less than 75 Ohms, transformer balanced
Frequency Response: ±0.5 dB, 20 Hz to 40 kHz
Signal to Noise Ratio: 120 dB
Connections: 15 position .156" sp. edge connector
Power Consumption: ±16 Volts/DC @ 55 mA
Size: 1.5" x 5.25" x 6.75" deep
Weight: 1.5 lbs.
