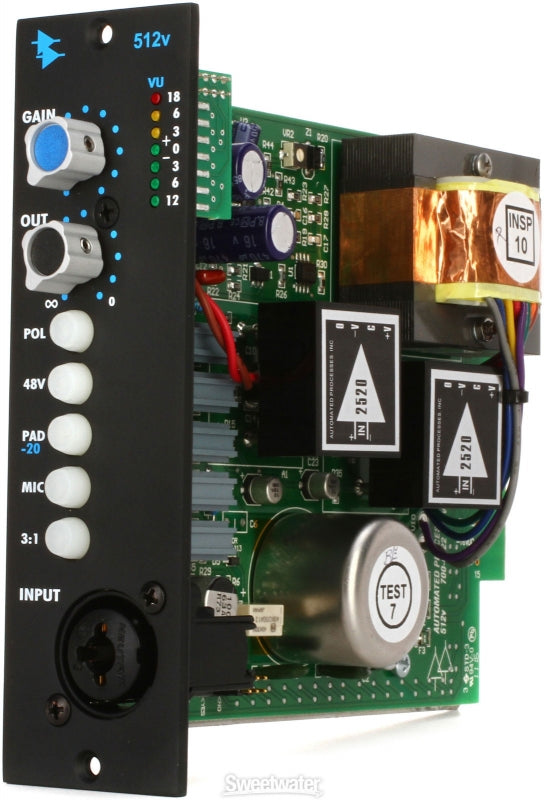

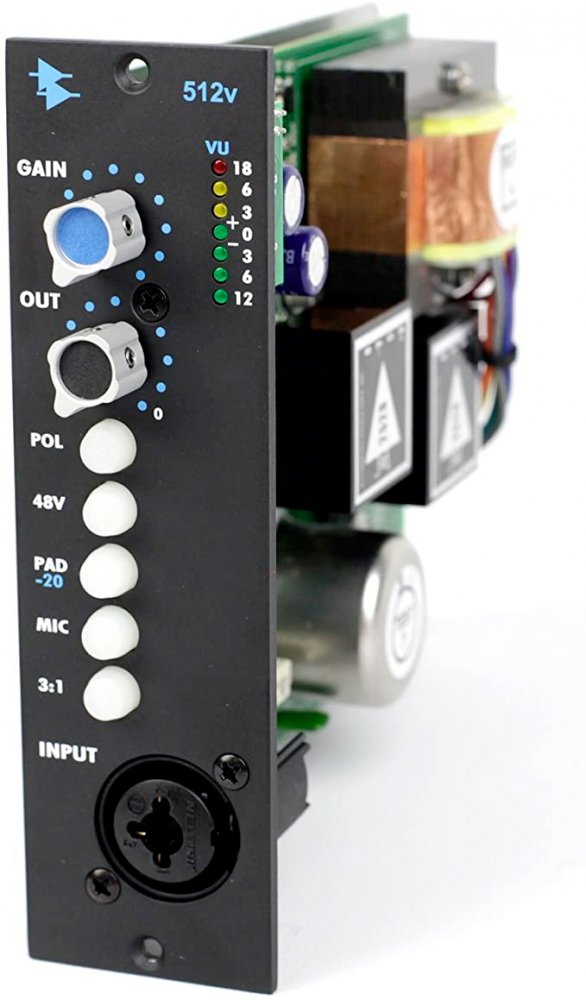

API  |  SKU: 13225

512V

500 Series Preamps

500 series mic/line/instrument preamp based on the 512c with added variable output level control and 3:1 output transformer tap selection

$1,325.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Sonically, it delivers the instantly recognizable API sound at an affordable price, and in the scalable API 500 Series format. Offering an impressive 65 dB of gain, the 512v includes front panel Variable Output control, switchable 3:1 output transformer selection, phantom power, switchable polarity, -20 dB pad, and Mic or Instrument/Line selector. The front panel Combo-style XLR and 1/4 inch connector combined with rear panel mic access allows for additional flexibility when installed into an API lunchbox, API's 10 position 500V vertical rack, or into an API console.

The API 512v remains faithful to the circuit designs of API's founder Saul Walker. Artfully combining those circuits with API's proprietary transformers and the incomparable 2520 op-amp, the 512v is a highly musical and rich-sounding analog mic pre, equally at home in commercial recording spaces as it is in smaller home studios. Fully featured and still hand assembled, the 512v exhibits the reliability, long life, and uniformity which are characteristic of all API products.

Features

Mic Preamp with 65 dB of gain

Variable Output Level Control

3:1 Output Transformer Tap Selection

Front and Back Panel Mic Input Access

Line/Instrument Preamp with 45 dB of gain

Front Panel Combo-style XLR + 1/4 inch Line/Instrument Input

LED VU meter for Gain Level indication

20 dB pad switch, applies to mic/line/instrument

48v Phantom switchable power

Traditional API fully discrete circuit design with 2520 Op Amp

Specifications

Rear Connector:

Output on edge connector, MIC Input on edge connector, can be defeated

Front Connectors:

XLR MIC Input, HI-Z 1/4" Unbal Input

Gain Range

MIC: 34dB to 65dB (14dB to 45dB w/PAD)

HI-Z: 14dB to 45dB (-6dB to 25dB w/PAD)

Maximum Input Levels

MIC, +8 dBu

Unbal HI-Z Input, +36 dBu

Input Impedance:

MIC Input, 1500 Ohms (150 Ohm mic), HI-Z Unbal Input, 400 K Ohms (20 K Ohms with pad)

Output Impedance:

Less than 75 Ohms, Transformer Balanced

Clipping Level:

+30 dBu

Frequency Response:

+0, -.3, 30 to 20 kHz

Noise:

Equivalent Input Noise: -129, Mic In. -125, Un-Balanced In.

Actual Metered Noise:

Mic, -95 dBu, Un-Bal., -90 dBu

Distortion:

Less than .05% @ +4 Out, Less than .1% @ +28 Out

Power Consumption:

12/18 Volts/DC, @40 ma.

Size:

1.5" X 5.25" X 7" Deep

Size (Boxed for Shipping):

4.5" X 6.5" X 10.25"

Actual Weight:

1.41 lbs.

Shipping Weight:

1.94 lbs.
