API  |  SKU: 22776

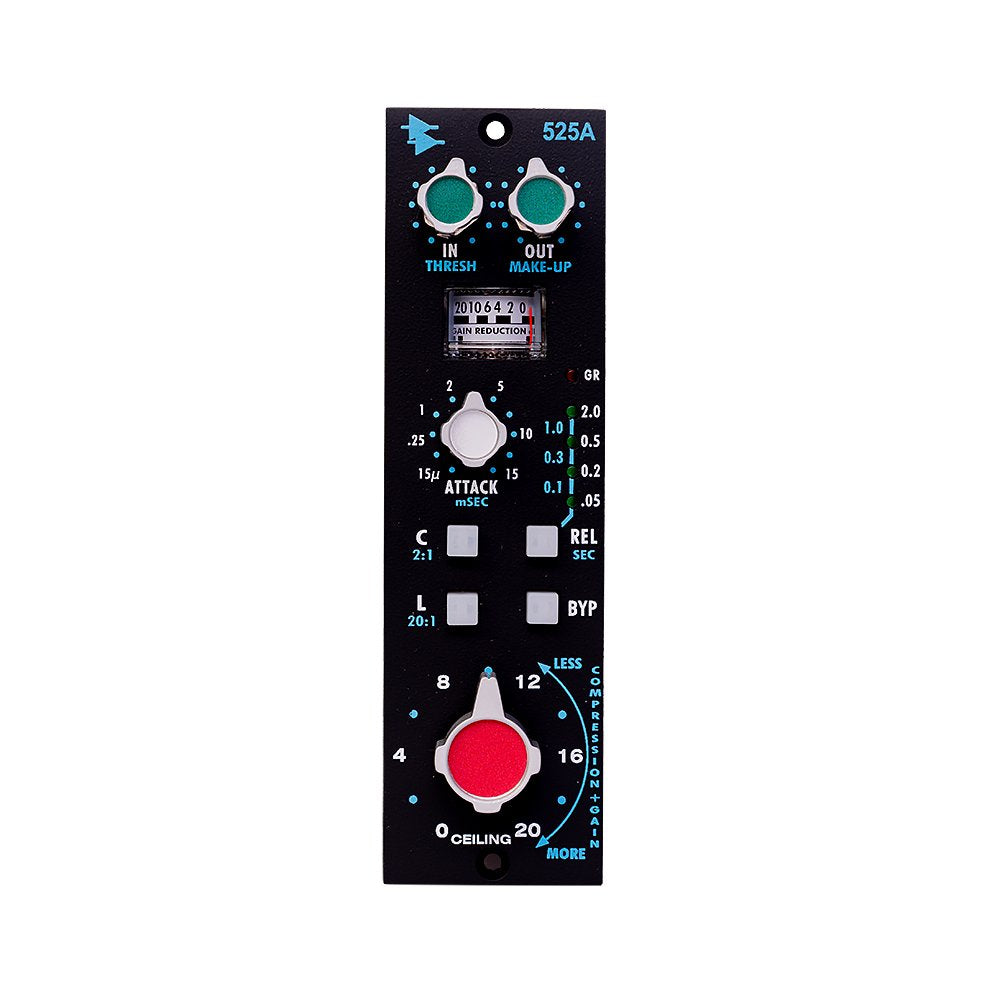

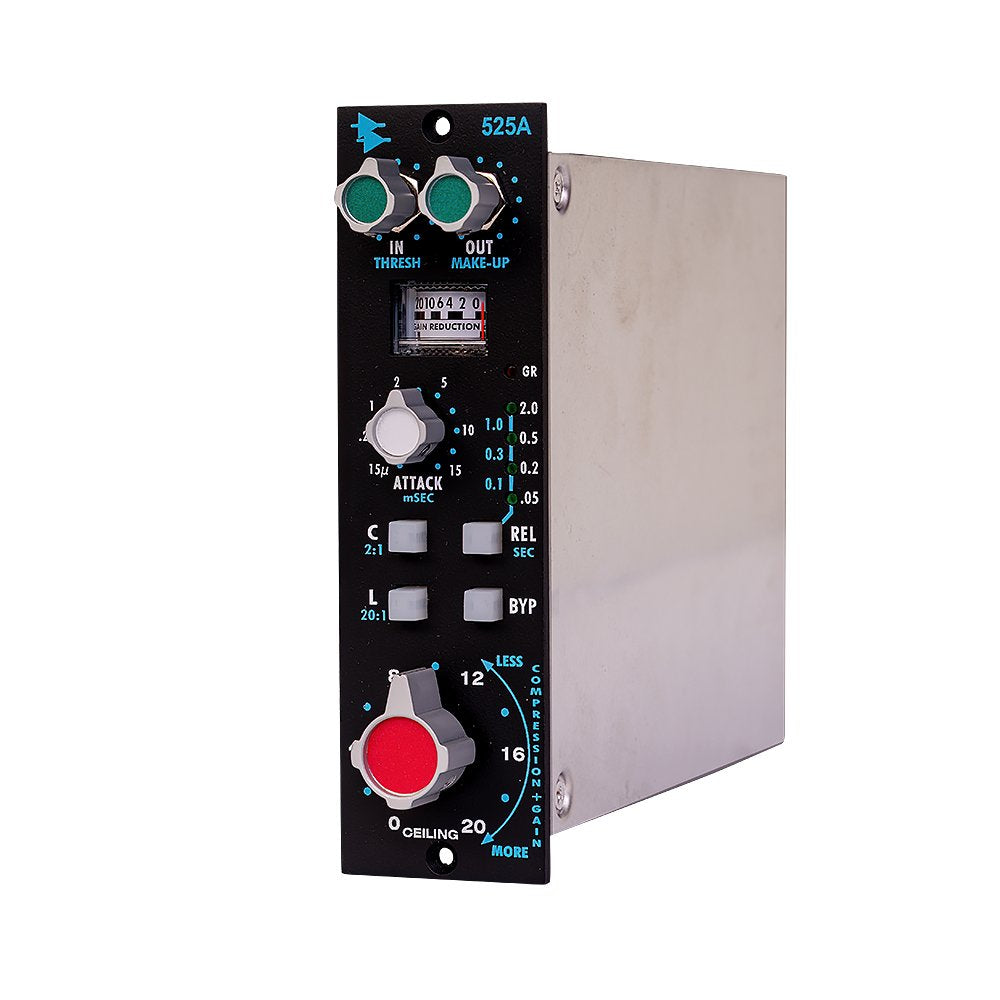

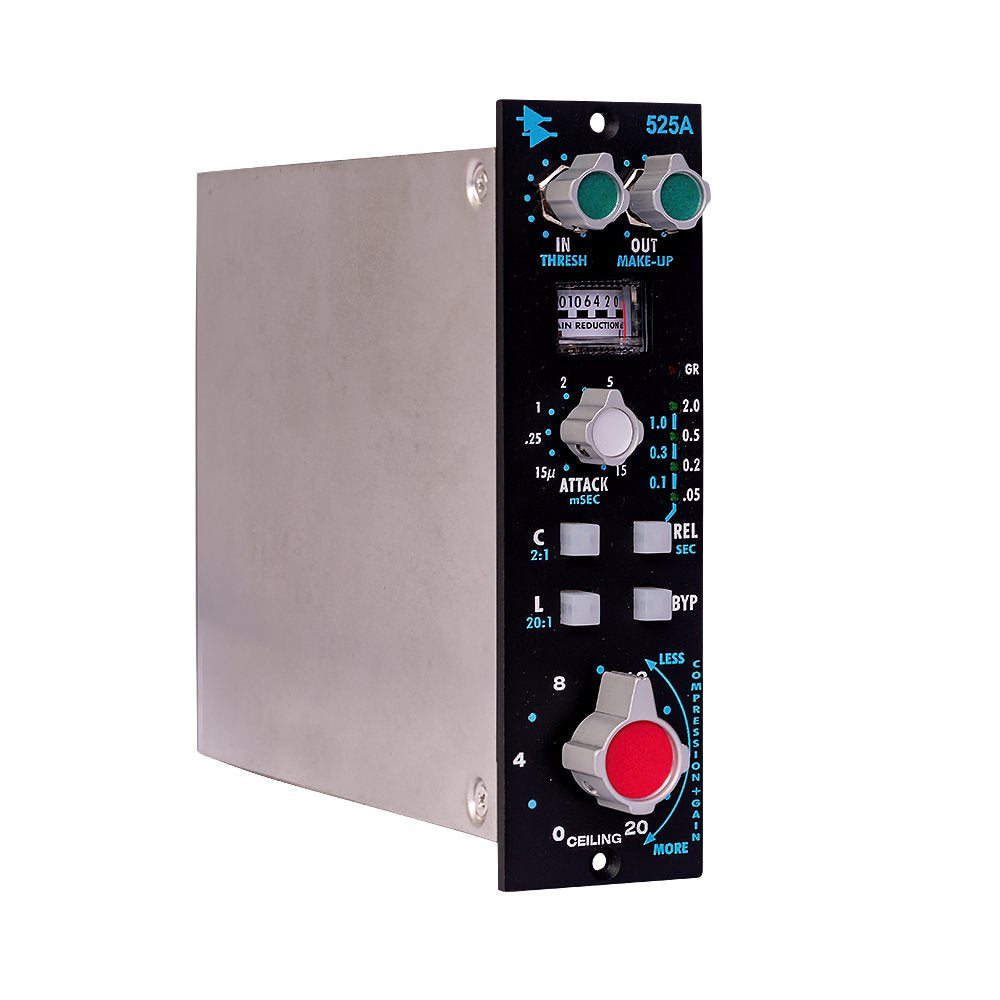

525A

500 Series EQs/Compressors

Series-500 device with variable attack, seven selectable release modes, a unique ceiling control, analog gain reduction meter and balanced input/output for precise performance

$1,675.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Since the early 1970s and the subsequent re-issue over 20 years ago, the 525 Discrete Compressor has become one of the most trusted vintage-style compressors in the industry. Building on the powerful core circuitry of the original 525, the new 525A maintains the discrete audio path and expands the feature set for even more applications in the modern studio. It artfully combines API's proprietary transformers, 2510 and 2520 opamps, retaining the sonic characteristics of the original while exhibiting the reliability, long life, and uniformity which is characteristic of all API products.

Features

NEW " Variable Attack adjustable from 15 microseconds to 15 milliseconds

NEW " 7 selectable Release Modes (.05 to 2.0 Seconds)

Unique Ceiling Control simultaneously combines Threshold and Make-up Gain

Classic 1970s style analog gain reduction VU meter

Traditional API discrete audio path circuit design

Equipped with 2520 and 2510 opamps

Proprietary API output transformer

Balanced Input/Output

Hardware Bypass

Specifications

Connector: API 500 Edge Connector - VPR Alliance Compliant
Input Impedance: 60K Ohms, Balanced
Output Impedance: 75 Ohms, Transformer coupled, Balanced
Maximum Input Level: +27 dBu
Maximum Output Level: +28 dBu
Attack Time: 15 micro seconds
Release Time: 0.1, 0.5, 2.0, 2.5 seconds
Slopes: Compression 2:1, Limit 20:1
Maximum Gain Reduction: 25 dB
Metering: Illuminated Analog Gain Reduction dB meter
Frequency Response: ±0.5 dB, 20 Hz to 40 kHz
Signal to Noise Ratio: 112 dB
Power Consumption: 3 Watts - VPR Alliance Compliant
Unit Size: 1.5" X 5.25" X 7"
Shipping Size: 4.5" X 6.5" X 10"
Unit Weight: 1.8 lbs.
Shipping Weight: 2.2 lbs.
