API  |  SKU: 18149

Select SR24

Stereo EQs

Dual channel 4 band equalizer modelled after the classic APSI model 562 EQ

$1,725.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

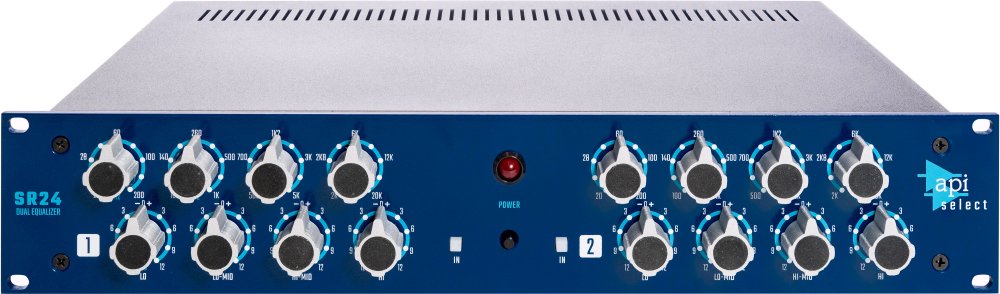

The SR24 is a two channel, four band equalizer in a two rack-space chassis. With a dedicated knob and/or switch for each control function, the SR24 is easy to use; by utilizing continuously-variable controls for both the frequency and boost/cut, the SR24 can be very precise in applying equalization to the selected audio material.

The SR24 circuit design is deeply rooted in API's history. From the late 1970's to the early 1980's, an audio company called "APSI" manufactured consoles and equalizers. Their 562 module was a 4-band, fully parametric equalizer which was designed by APSI and sold through API. Over the last several decades, these EQ modules remained a favorite among many studio engineers, but have become increasingly difficult to find. The SR24 is a faithfully re-engineered version of the original 562, offering the user 2 channels of classic analog EQ in one rackmount unit.

Features

4 bands of equalization modelled after the classic APSI model 562 EQ

Each band offers continuously variable control of frequency and gain, using separate knobs

12 dB of boost/cut per band

All 4 bands are peak/dipping parametric configuration

Custom transformer balanced output

Fully balanced ¼" and XLR input and output

Massive headroom +24 dB clip level

Specifications

Inputs: Balanced XLR and 1/4" parallel jacks
Outputs: Transformer Balanced XLR and 1/4" parallel jacks (All measurements with 600 Ohm output load)
Input Impedance: 12k Ohms
Output Impedance: 300 Ohms Transformer Balanced
Bandwidth: +/- 0.5dB, 20Hz - 20kHz
THD+N @ 1kHz, +4dBu: 0.01%
Maximum Level: +23dBu
Signal-to-Noise Ratio: -100dB
EQ Bands: 4 bands, all +/-12dB Peak/Dip type

Lo: 20Hz - 200Hz

Lo-Mid: 100Hz - 1kHz

Hi-Mid: 500Hz - 5kHz

Hi: 2kHz - 20kHz

Power Consumption: 10 Watts
Dimensions: 2U EIA 19" Rack
Size: 19" x 3.5" x 10" Deep
Weight: 13 lbs
