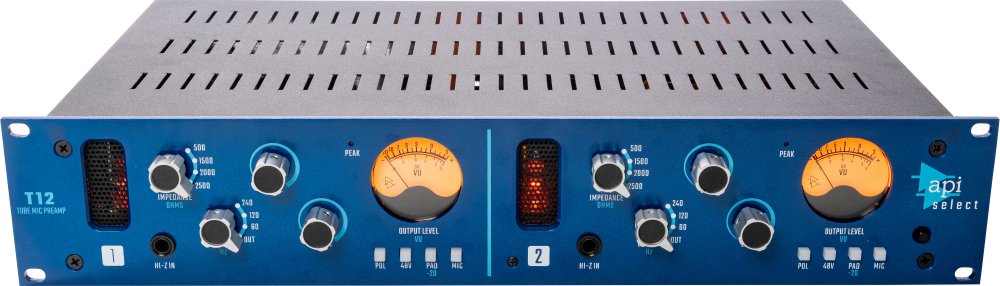

API  |  SKU: 18146

Select T12

Dual Mic-Preamps

2 Channel all-tube, Class-A microphone preamp with proprietary AP2516 input transformer

$2,920.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The API Select T12 is a classic 2-channel, all-tube, Class-A microphone preamplifier designed with API's proprietary AP2516 transformer in the input stage and a custom API transformer on the output stage. Built with 12AT7WC and 12BH7 dual-triode vacuum tubes, the T12 represents a new and exciting variation in API's preamplifier technology and provides the user with unique tonal options. The T12 can handle a wide range of production applications including stereo operation. Carefully engineered to deliver classic tube performance and sound, the T12 delivers API's famous warmth, punch and clarity in an all-new way and features our industry-exclusive Five Year Warranty.

Features

All-tube, Class-A microphone preamplifier

Proprietary AP2516 input transformer

Audio circuit uses 12AT7WC and 12BH7, dual-triode vacuum tubes

Custom API output transformer

Variable microphone input impedance

Switchable 48-volt phantom power

High-impedance, unbalanced ¼" instrument input

MIC/HI-Z input switch

11-step detented preamp gain control

Low-cut filter with 3 fixed frequencies

11-step detented output trim with 0.5dB steps for precise control

Detented controls for accurate recall and channel matching

LED peak indicator

Classic analog VU meters for output

XLR and ¼" TRS output connections

Specifications

Input Impedance: Microphone: 500W, 1500W, 2000W, & 2500W (variable) - HI-Z: 500kW
Output impedance: 75 ohms, can drive 600 ohm loads
Maximum input level: +24dBu with -20dB PAD engaged and gain set to 20dB
Gain Range: 0db to +70dB
Maximum output level: +24dBu
SNR: 98dB
Frequency Response: 20Hz - 30kHz (+0dB / -1dB)
Power Consumption: 40W
Size: 19" x 3.5" x 12" Deep
Size (Boxed for Shipping): 21" x 9" x 15"
Actual Weight: 14 lbs.
Shipping Weight: 17 lbs.
