API  |  SKU: 18151

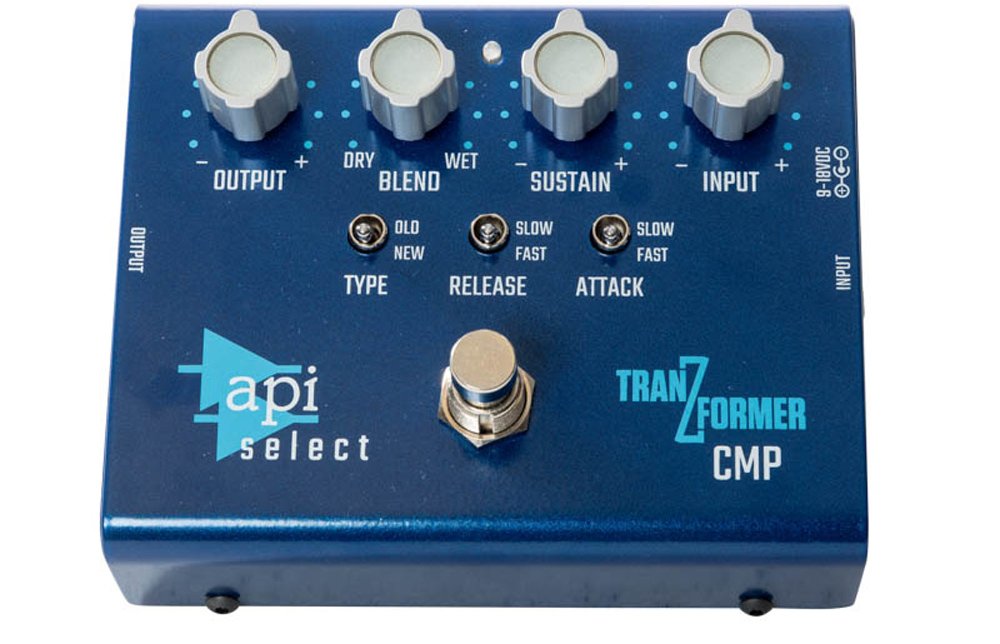

Select TranZformer CMP

Guitar/Bass Effects

Compressor Pedal with proprietary API 2510 opamp and signature API output transformer

$395.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The API Select TranZformer CMP provides unsurpassed sonic sculpting by incorporating key elements of a legendary API 527 VCA-type compressor circuit into a versatile and robust guitar effects pedal. Features include a buffered bypass in/out footswitch, adjustable attack and release times, wet/dry blend control, selectable "feedback" and "feedforward" compressor styles, transformer output, and of course the classic API sound.

Features

Proprietary API 2510 OpAmp

Signature API output transformer

Adjustable attack and release times

Wet/dry blend control

Selectable feedback/feedforward compressor styles

Buffered bypass

Specifications

Input connection: 1/4" Hi-Z unbalanced instrument input
Input Impedance: 1M
Bypass: Yes, buffered, 0dB
Output connections: 1/4" Hi-Z unbalanced output
Output Impedance: Hi-Z output: Less than 1k
Input Gain Control: 9dB - 30dB, Variable
Output Level Control: -inf. to 0dB, Variable
Maximum output level before clipping: +15dBu (9VDC), +22dBu (18VDC)
Frequency Response: +0dB, -1dB, 20-20kHz
Compressor:
Ratio (Sustain): Varies from 1:1 to 20:1 depending on compressor control setting. Attack (switched): FAST (1ms) or SLOW (10ms) Release (switched): FAST (300ms) or SLOW (1s)
TYPE (switched): New (Feed-forward), OLD (Feed-back)
Power Supply: 9-18VDC @ 100mA
Size: 4.6" x 3.8" x 3"
Size (Boxed for Shipping): 6" x 4.5" x 4.5"
Actual Weight: 1.5 lbs.
Shipping Weight: 2 lbs.
