API  |  SKU: 19341

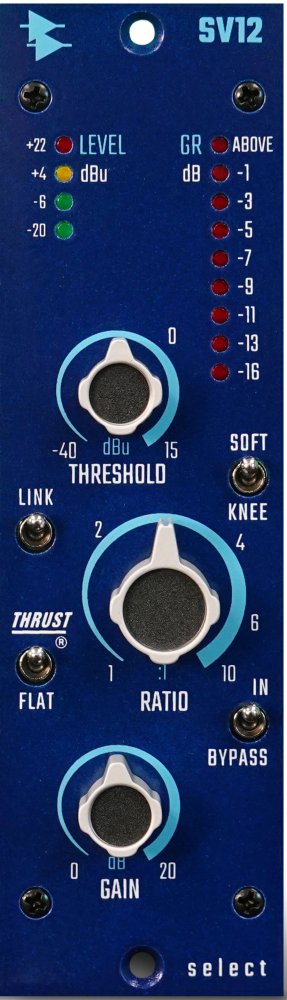

SV12

500 Series EQs/Compressors

Analog compressor with the original ATI Paragon Console compressor circuit re-engineered for the 500 series format with variable Threshold, Ratio, and Make-up Gain controls

$790.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The API Select SV12 features the original compressor circuit designed for the ATI Paragon live analog mixing consoles. Re-engineered for the 500 Series format, the SV12 provides comprehensive, easy-to-use compression with full LED metering of both output and gain reduction. The unit also includes API's patented THRUST circuitry which protects sensitive high frequency content of the audio signal even under the most vigorous of compression ratios. Two channels can be linked for use as a stereo compressor with true RMS power summing of the left and right signals.

Features

Original analog compressor circuit designed for the ATI Paragon Console

Variable Threshold, Ratio, and Make-up Gain controls

Individual metering of output level and gain reduction

Above threshold LED indication

Patented THRUST circuit

Switchable Hard or Soft Knee compression

Switchable In or Bypass mode

Linkable for stereo operation with true RMS power summing

Specifications

Connectors: API 500 Edge Connector VPR Alliance Compliant
Input Impedance: >20KOhms Balanced
Bandwidth: +/- 0.5dB, 20Hz - 30kHz
THD+N @ 1kHz, + 4dBu: <0.03%
Maximum Level: +24dBu
Signal-to-Noise Ratio: 112dB
Meter: -20 to +22 dBu Output Level, 0 to -16 dB Gain Reduction
Compressor Controls:
Threshold Range: -40dBu to +15dBu
Ratio Range: 1:1 to 10:1
Makeup Gain Range: 0dB to +20 dB
Hard or Soft Knee switchable
Flat or Thrust side chain filter switchable
Attack Time: Program and Control Adaptive, 10mSec to 40mSec
Release Time: Program and Control Adaptive, 30mSec to 400mSec
Power Consumption: +/- 16 VDC @ 100mA
Unit Size: 1U 500 Module, 1.5" X 5.25" X 7.0"
Shipping Size: 4.5" X 6.5" X 10"
Unit Weight: 1.0 lbs
Shipping Weight: 1.5 lbs
(Specifications subject to change without notice)
