API  |  SKU: 19342

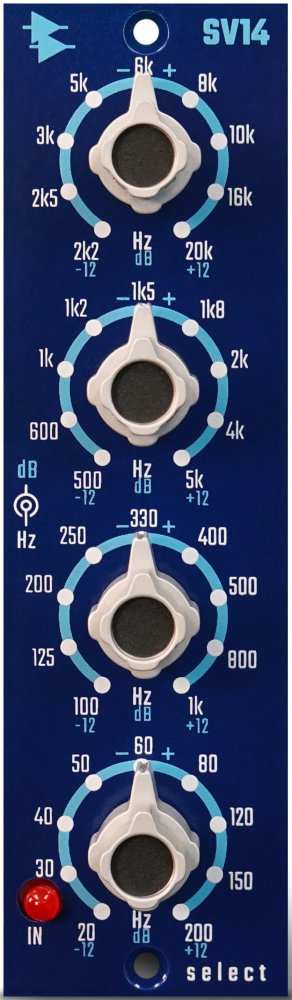

SV14

500 Series EQs/Compressors

4-Band EQ based on the APSI 562 with 12dB of boost cut and continuously variable frequency and gain on each band

$790.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The API Select SV14 EQ circuit design is likewise rooted in API's history. Faithfully re-engineered from the highly sought-after APSI 562 EQ's which were distributed by API during the 1970's and 1980's, the SV14 provides parametric equalization at an affordable price point. The SV14 also features an EQ in/out switch, transformer balanced output, and dual concentric knobs which provide continuously variable control of boost/cut and frequency selection.

Features

4 Band EQ based on the classic APSI 562 EQ

Each band offers continuously variable control of frequency and gain

12 dB of boost/cut per band

All 4 bands are peak/dipping parametric configuration

Custom transformer balanced output

High headroom +24 dB clip level

Designed to fit API's 500 VPR Rack or lunchbox

Specifications

Connectors: API 500 Edge Connector VPR Alliance Compliant
Input Impedance: 15KOhms Balanced
Output Impedance: 75 Ohms, Transformer Balanced
Bandwidth: +/- 0.5dB, 20Hz - 50kHz
THD+N @ 1kHz, +4dBu: <0.02%
Maximum Level: +24dBu
Signal-to-Noise Ratio: 115dB
EQ Bands: 4 bands, all +/-12dB Peak/Dip type
Lo: 20Hz - 200Hz
Lo-Mid: 100Hz - 1kHz
Hi-Mid: 500Hz - 5kHz
Hi: 2kHz - 20kHz
Power Consumption: +/- 16 VDC @ 35 mA
Unit Size: 1U 500 Module, 1.5" X 5.25" X 7.0"
Shipping Size: 4.5" X 6.5" X 10"
Unit Weight: 1.5 lbs
Shipping Weight: 2.0 lbs
(Specifications subject to change without notice)
