AUDIENT  |  SKU: 16404

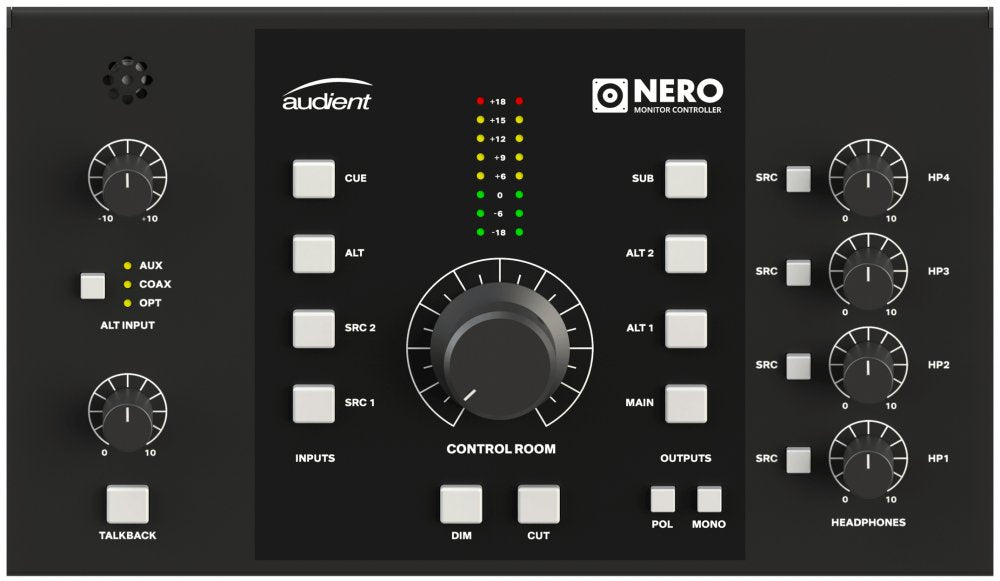

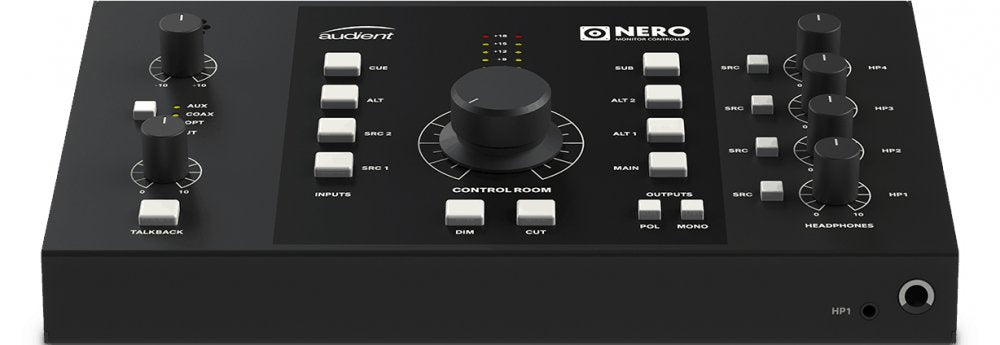

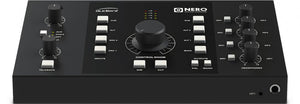

Nero

Monitoring Controls

Smart Touchpoints enable you to customise your workflow on the fly. Easily route and configure Nero's outputs and monitor controls to create monitoring combinations

$799.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Simply hold down a Smart Touchpoint to put it into setup mode, select your routing options and press it again to save.

Inputs As your studio grows it becomes harder to control. Nero enables you to centralise, connect and control all your monitoring needs from your desktop using Nero's array of stereo inputs.

Outputs Reference your mixes on up to three sets of speakers, independently set and match volume for all speakers and audition and assign your sub to any monitor path. Nero also provides one dedicated monitor grade headphone amp and three foldback grade headphone amps, making sure you're ready to take on the loudest of sessions with crystal clear headphone mixes.

Assignable Sub Easily assign a sub to activate when switching to a monitor path of choice but maintain the ability to switch it on and off without losing your saved preset. Nero also lets you audition the sub on any alternative set of speakers without forcing you to assign it permanently

User Defined Dim Set your attenuation using the volume knob

Latching buttons Activate Dim, Mono or Talkback with either a tap (latch) or a tap and hold

Tactile Speaker Select Audition your mixes by quickly switching between monitors

Cue Mix Monitoring Reference what your artist is hearing and fix problems fast

Sum and Difference Use this classic trick to quickly hear your stereo information

Smart Mono Mode Permanently assign a mono speaker without preventing mono functionality on other sources

Features

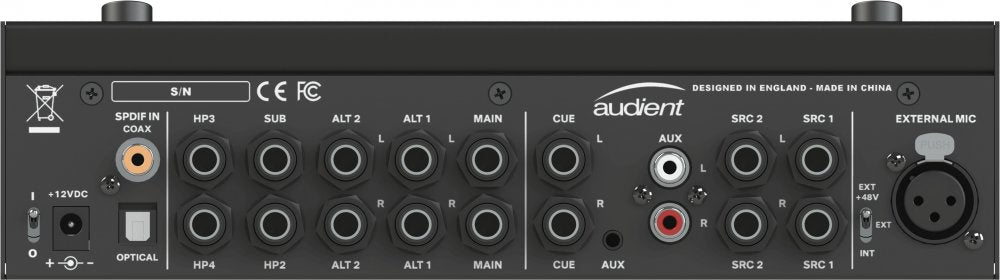

4x Stereo Analogue sources

2 x Line Level Inputs

1 x Dedicated Cue Mix Input

1 x Aux Input (RCA or Mini Jack)

Optical & Coaxial S/PDIF Inputs

3 x Stereo Speaker Outputs

1 x Assignable Sub Output

4x Headphone Outputs with flexible routing

Smart Touchpoints for user customisation

Talkback Input

Internal Microphone

External Talkback Input

Dim, Cut, Mono & Polarity Monitor Controls

Specifications

BALANCED LINE INPUTS


NOMINAL INPUT LEVEL: +4dBu
MAX INPUT LEVEL: +18dBu
CMRR: > 50dB
MIC EIN: -128dBu
CMRR: >80dB @ 1kHz

UNBALANCED AUX INPUTS


NOMINAL INPUT LEVEL: -10dBV
MAXIMUM INPUT LEVEL (minimum trim): +27dBu
TRIM RANGE: ±12dB

DIGITAL INPUTS


INPUTS: TOSLINK and Coaxial
FORMAT: S/PDIF
SAMPLE RATES: 44.1kHz - 192kHz
BIT DEPTH: up to 24bit

TALKBACK INPUTS


MAXIMUM IPUT LEVEL: 2dBu
GAIN: 4-44dB
PHANTOM POWER: +48V

SPEAKER OUTPUTS


MAXIMUM OUTPUT LEVEL: +12dBu

HEADPHONE OUTPUTS


MINIMUM LOAD: 12.8Ohms

PERFORMANCE

SPEAKER OUTPUTS


THD+N: 0.0015% 0dBu 1k input
SNR: 100dBu
CROSSTALK (SPEAKERS): >100dB
FREQUENCY RESPONSE: 20Hz - 22kHz ±0.5dB
ATTENUATION AT MIN VOLUME (SPEAKER OUTPUTS): >110dB

DAC:


THD+N: <0.0017%
DYNAMIC RANGE: 113dB
FREQUENCY RESPONSE: 20Hz - 22kHz ±0.5dB

HEADPHONE OUTPUTS


THD+N @ 0dBu (output level): 0.009% - 30Ohm
0.009% - 60Ohm
0.008% - 600Ohm
PEAK POWER OUTPUT: 90mW - 30Ohm
56mW - 60Ohm
7.35mW - 600Ohm
CROSSTALK: >62dB
ATTENUATION AT MIN VOLUME: >96dB
POWER SUPPLY: 12VDC Centre Positive DC Adapter - 2Amps
Weight: Unit: 2kg
Dimensions: Unit: 255mm (w) x 75mm (h) x 155mm (d)
