AUDIOROOT

DYAD-CC-X

Batteries & Power Distribution

Two battery cup inputs, XLR4 output, passive power combining with no telemetry, ideal for compact audio setups requiring extended runtime, hotswapping, or AC backup without SMBus integration.

Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

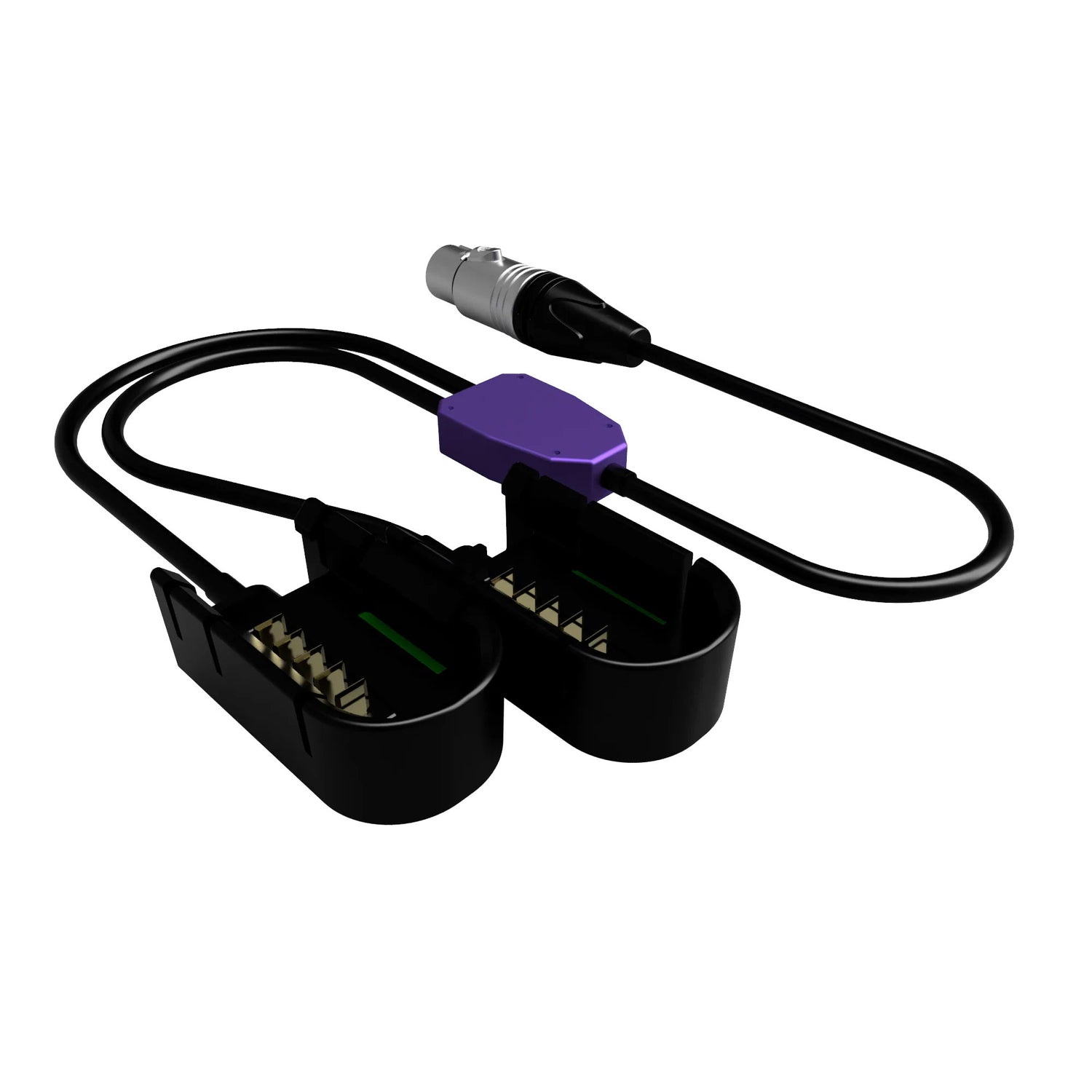

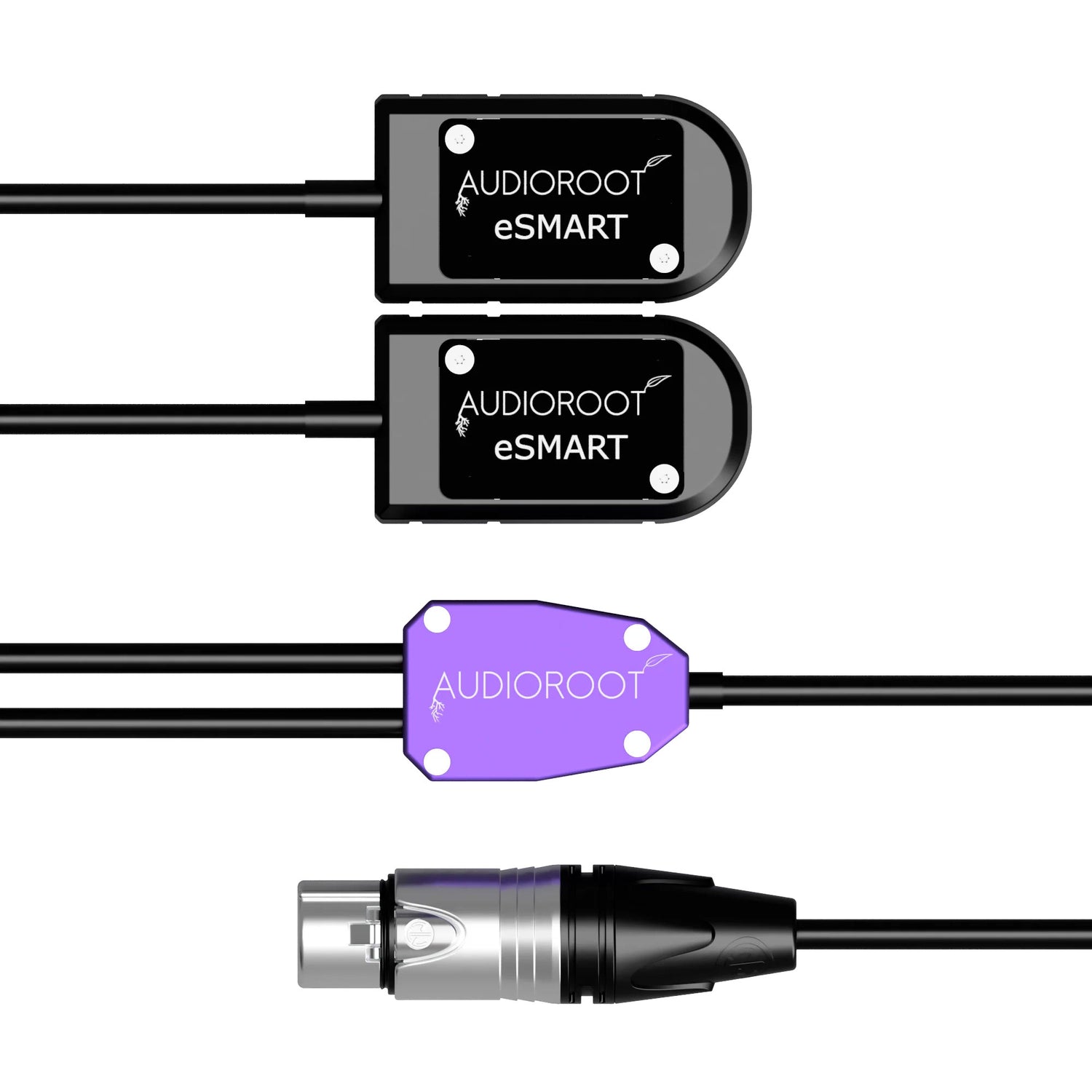

The AudioRoot DYAD-CC-X is a compact, passive power combiner designed to deliver reliable, redundant DC power without the complexity of SMBus data communication. With two battery cup inputs and a single XLR4 output, this cable is ideal for portable and bag-based audio setups that require extended runtime, battery hot-swapping, or AC/DC hybrid power configurations.

Unlike the BCC series, the DYAD-CC-X features no telemetry, making it a perfect fit for non-smart battery systems or when used with Audioroot's vmDBOX and other compatible passive power distributors. The passive design merges power from both inputs but does not combine or transmit battery data.

The XLR4 output offers a secure, professional-grade connection standard across many audio devices, ensuring compatibility and stability in critical production environments. Whether you're powering a sound bag in the field or setting up a lean backup system, the DYAD-CC-X gives you power flexibility without complexity.

Features

Dual Battery Combiner with XLR4 Output (No Telemetry)
Passively merges two battery cup inputs into one XLR4 output for stable, redundant power so no smart battery data required.

Reliable Passive Design
Ideal for extending runtime, enabling battery hot-swapping, or adding backup power to non-SMBus systems.

Standard XLR4 Output
Delivers secure, professional-grade power connection compatible with most field audio gear and power distributors.

Perfect for Simpler Power Rigs
Works with Audioroot vmDBOX and other non-telemetry power systems where intelligent monitoring is not needed.

Durable, Field-Tested Construction
Built with robust cabling and high-quality connectors for dependable use in production and mobile environments.

Straightforward Power Redundancy
A clean, compact solution for those who prioritize reliable power delivery over advanced monitoring features.

Specifications

General Specifications
Device Type: Passive Power Combining Cable (No Telemetry)
Model: DYAD-CC-X
Series: DYAD (2 Inputs, Non-SMBus)
Application: Redundant Power Supply or Extended Runtime for Compact Audio Systems
Telemetry Support: None (Passive Power Only)
Compatibility: Audioroot vmDBOX Series, Non-Telemetry Third-Party Power Distributors
Use Cases: Battery Hotswapping, Capacity Expansion, AC Backup Integration

Input/Output
Input Connectors: 2 × Battery Cups
Output Connector: XLR4
Maximum Recommended Output Current: 5.0 A

Physical
Cable Length: 60 cm (Custom Lengths Available Upon Request)
Cable Type: Durable, Professional-Grade
Connector Quality: High-Reliability Components

Included
Contents: 1 × DYAD-CC-X Power Combining Cable
