AUDIOROOT

DYAD-CT-U

Batteries & Power Distribution

Battery cup and TA4M inputs, USB-C output, passive combining, no telemetry, ideal for AC backup or extended power, compact durable design

Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

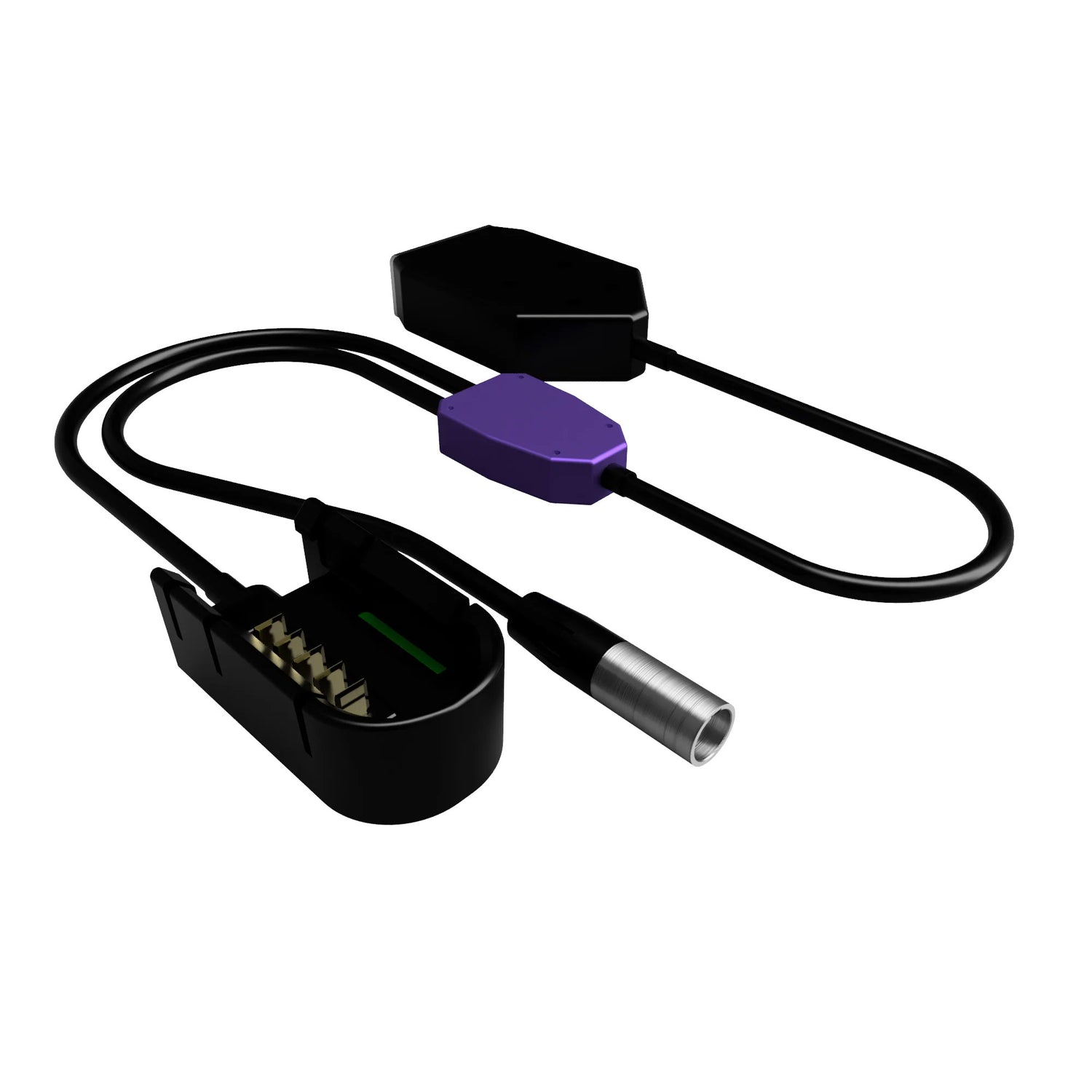

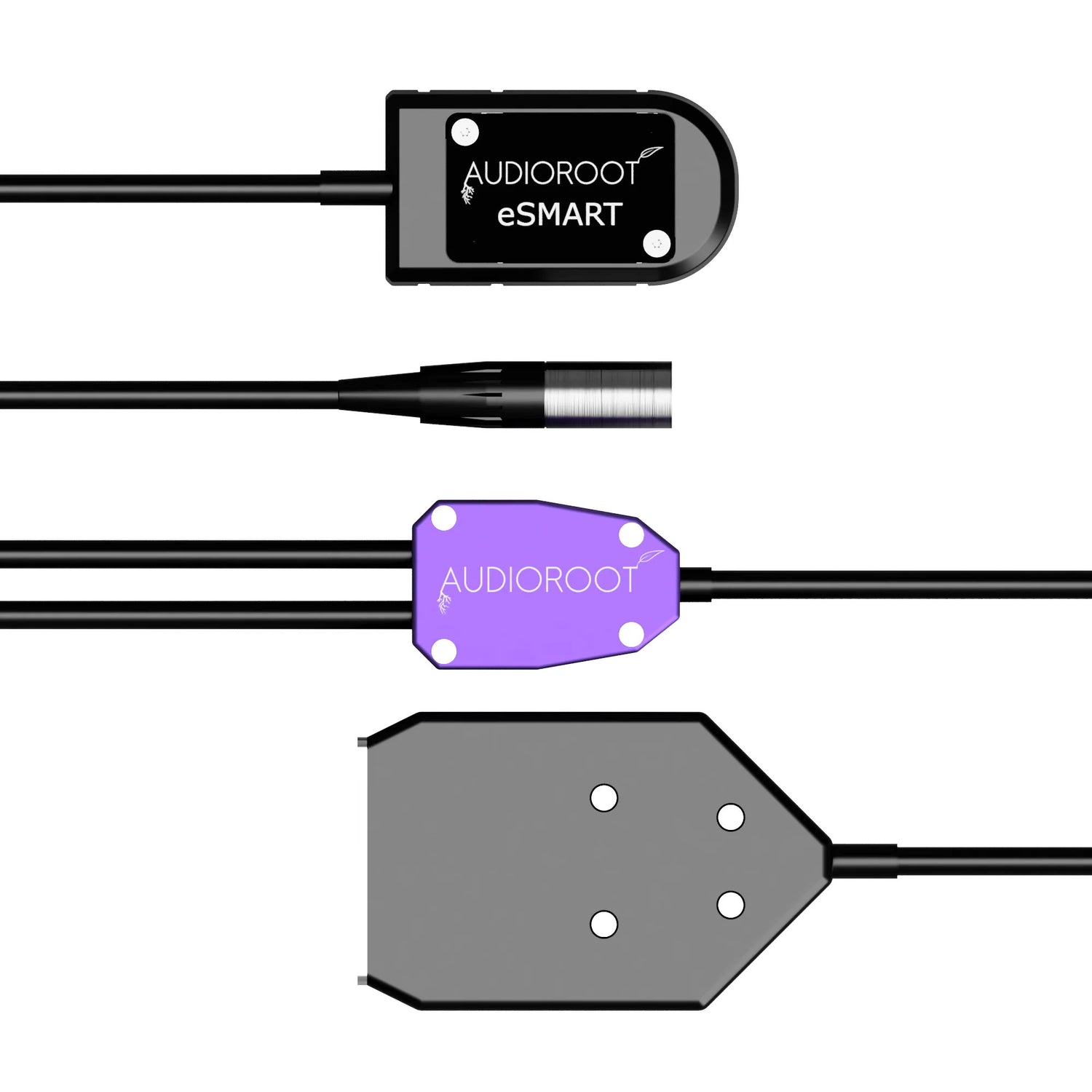

The AudioRoot DYAD-CT-U is a passive, dual-input power combining cable purpose-built for compact and mobile audio setups that require redundant power without telemetry. With one battery cup input, one TA4M input, and a USB-C output, this cable is ideal for scenarios where reliable DC power delivery is needed but smart battery communication isn't required.

Perfect for hot-swapping between battery and external DC (such as AC adapters), the DYAD-CT-U offers peace of mind during long productions or field work. Its passive design means it simply merges available voltage sources without any SMBus data handling which makes it highly compatible with Audioroot vmDBOX systems and non-telemetry third-party distributors.

The USB-C output is particularly well-suited for modern gear that accepts USB-C power, such as select recorders, wireless receivers, or mobile power banks. When used with a PPS-compatible USB-C PD adapter, the DYAD-CT-U allows you to run equipment directly from AC power, with a battery backup ready to take over if needed.

Features

Battery + TA4M Power Combiner with USB-C Output (No Telemetry)
Combines one battery cup and one TA4M input into a single USB-C output for flexible, passive power delivery without SMBus data.

Passive Design, No Telemetry
Ideal for simple power setups where battery monitoring is not required, just efficient, reliable power combining.

USB-C Output for Modern Gear

Delivers power to USB-C-compatible devices and accessories in compact or portable production setups.

Hybrid Power Option
Use the TA4M input with a PSU and the battery input for hot-swapping or AC backup in field applications.

Durable and Compact
Built with high-quality cabling and connectors for dependable use in tight or mobile setups.

Perfect for Non-SMBus Audio Rigs
A straightforward solution for powering USB-C devices using dual power sources in professional workflows.

Specifications

General Specifications
Device Type: Passive Power Combining Cable (No Telemetry)
Model: DYAD-CT-U
Series: DYAD (2 Inputs, Non-SMBus)
Application: Redundant Power Supply or Extended Runtime for Compact Audio Systems
Telemetry Support: None (Passive Power Only)
Compatibility: Audioroot vmDBOX Series, Non-Telemetry Third-Party Power Distributors
Use Cases: Battery Hotswapping, Capacity Expansion, AC Backup Integration

Input/Output
Input Connectors: 1 × Battery Cup, 1 × TA4M
Output Connector: USB-C
Recommended TA4M Input Voltage: ≥16.8V DC
Recommended USB-C Input Device: PPS-Compatible USB-C PD Adapter (when used as an input)
Maximum Recommended Output Current: 5.0 A

Physical
Cable Length: 60 cm (Custom Lengths Available Upon Request)
Cable Type: Durable, Professional-Grade
Connector Quality: High-Reliability Components

Included
Contents: 1 × DYAD-CT-U Power Combining Cable
