AUDIOROOT

DYAD-CT-X

Batteries & Power Distribution

Battery cup and TA4M inputs, XLR4 output, passive combining, no telemetry, ideal for redundant power or hot-swaps, compact and rugged build

Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

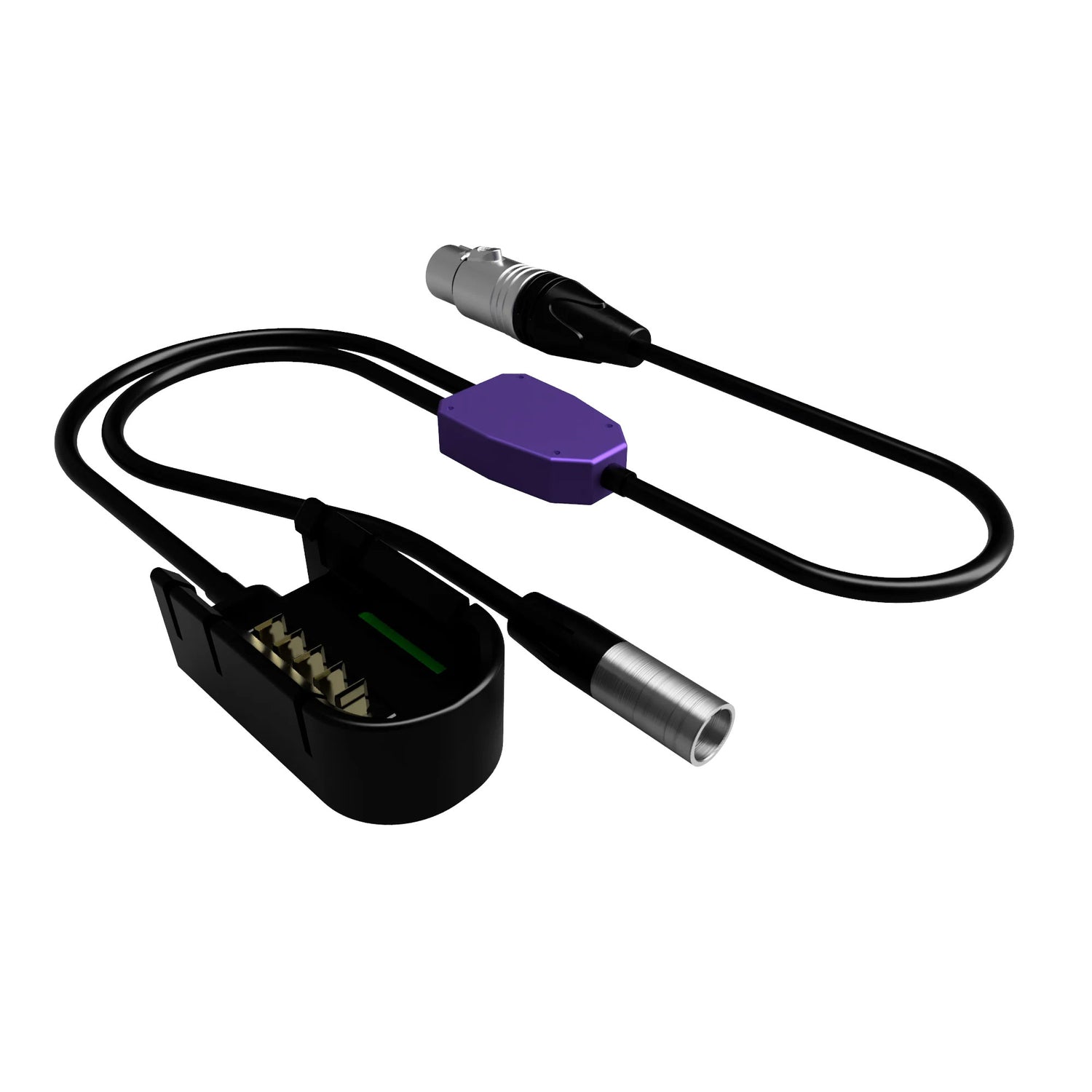

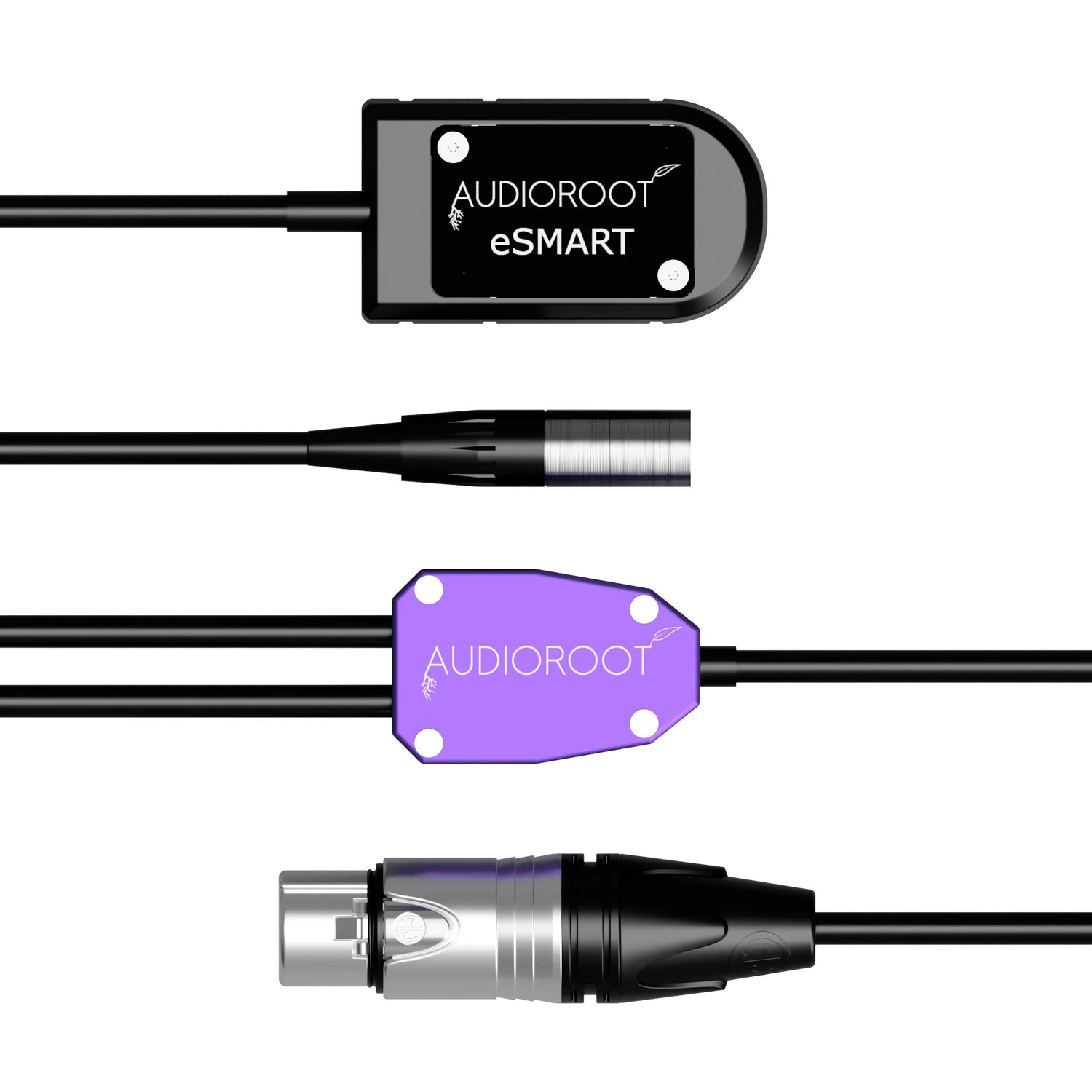

The AudioRoot DYAD-CT-X is a rugged, passive power combining cable designed for compact audio systems that require redundant power input without telemetry. With one battery cup and one TA4M input, the DYAD-CT-X merges power sources into a single XLR4 output, enabling hot-swapping or extended runtime without the complexity of smart battery communication.

This cable is ideal for users operating in field or mobile environments who need simple, reliable power redundancy for devices using XLR4 inputs, such as mixers, recorders, or power distribution units. The passive design makes it compatible with Audioroot’s vmDBOX systems and a wide range of non-SMBus (non-telemetry) gear.

Perfect for use with a DC power supply (via TA4M) and a battery backup, the DYAD-CT-X allows seamless switching between power sources ensuring uninterrupted operation during AC power loss or battery swaps.

Features

Battery + TA4M Power Combiner with XLR4 Output (No Telemetry)
Combines one battery cup and one TA4M input into a single XLR4 output, offering reliable, passive power distribution without smart battery data.

Passive, No-Telemetry Design
Merges DC power from two sources without SMBus communication—ideal for simple or legacy systems.

Standard XLR4 Output
Provides a secure and professional-grade power connection, widely used across audio and broadcast gear.

Hybrid Power Flexibility
Use the TA4M input with an AC PSU and the battery input for redundancy, extended runtime, or hot-swapping in the field.

Field-Ready Build Quality
Constructed with high-grade cabling and durable connectors for dependable use in mobile and production environments.

Ideal for Non-SMBus Setups
Perfect for powering small rigs where monitoring isn't required but consistent, dual-source power is critical.

Specifications

General Specifications
Device Type: Passive Power Combining Cable (No Telemetry)
Model: DYAD-CT-X
Series: DYAD (2 Inputs, Non-SMBus)
Application: Redundant Power Supply or Extended Runtime for Compact Audio Systems
Telemetry Support: None (Passive Power Only)
Compatibility: Audioroot vmDBOX Series, Non-Telemetry Third-Party Power Distributors
Use Cases: Battery Hotswapping, Capacity Expansion, AC Backup Integration

Input/Output
Input Connectors: 1 × Battery Cup, 1 × TA4M
Output Connector: XLR4
Recommended TA4M Input Voltage: ≥16.8V DC
Maximum Recommended Output Current: 5.0 A

Physical
Cable Length: 60 cm (Custom Lengths Available Upon Request)
Cable Type: Durable, Professional-Grade
Connector Quality: High-Reliability Components

Included
Contents: 1 × DYAD-CT-X Power Combining Cable
