AUDIOROOT

TRIAD-CCT-X

Batteries & Power Distribution

Two battery cup inputs, one TA4M input, XLR4 output, passive combining, no telemetry, ideal for hot-swaps or AC backup, rugged compact cable for pro audio setups

Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

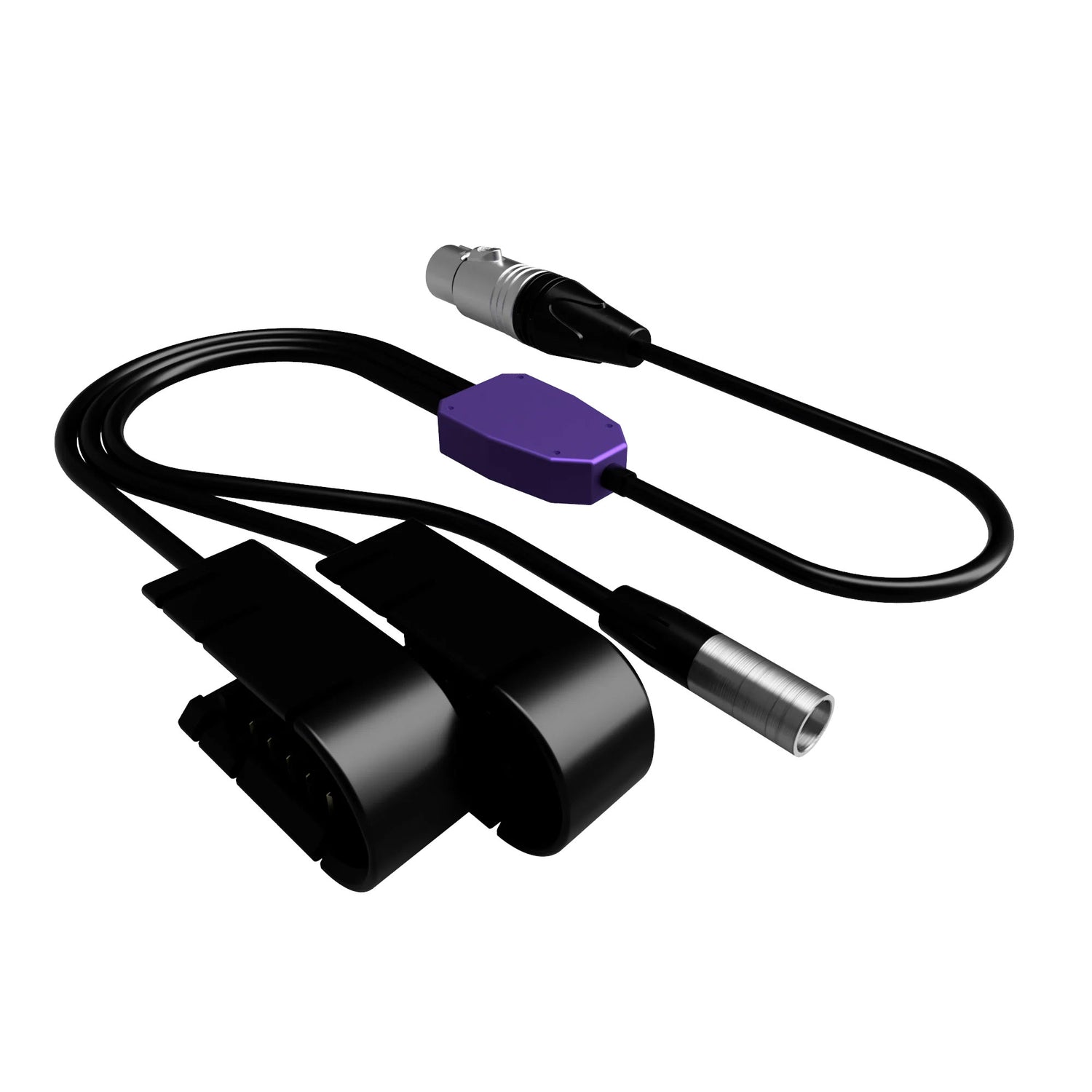

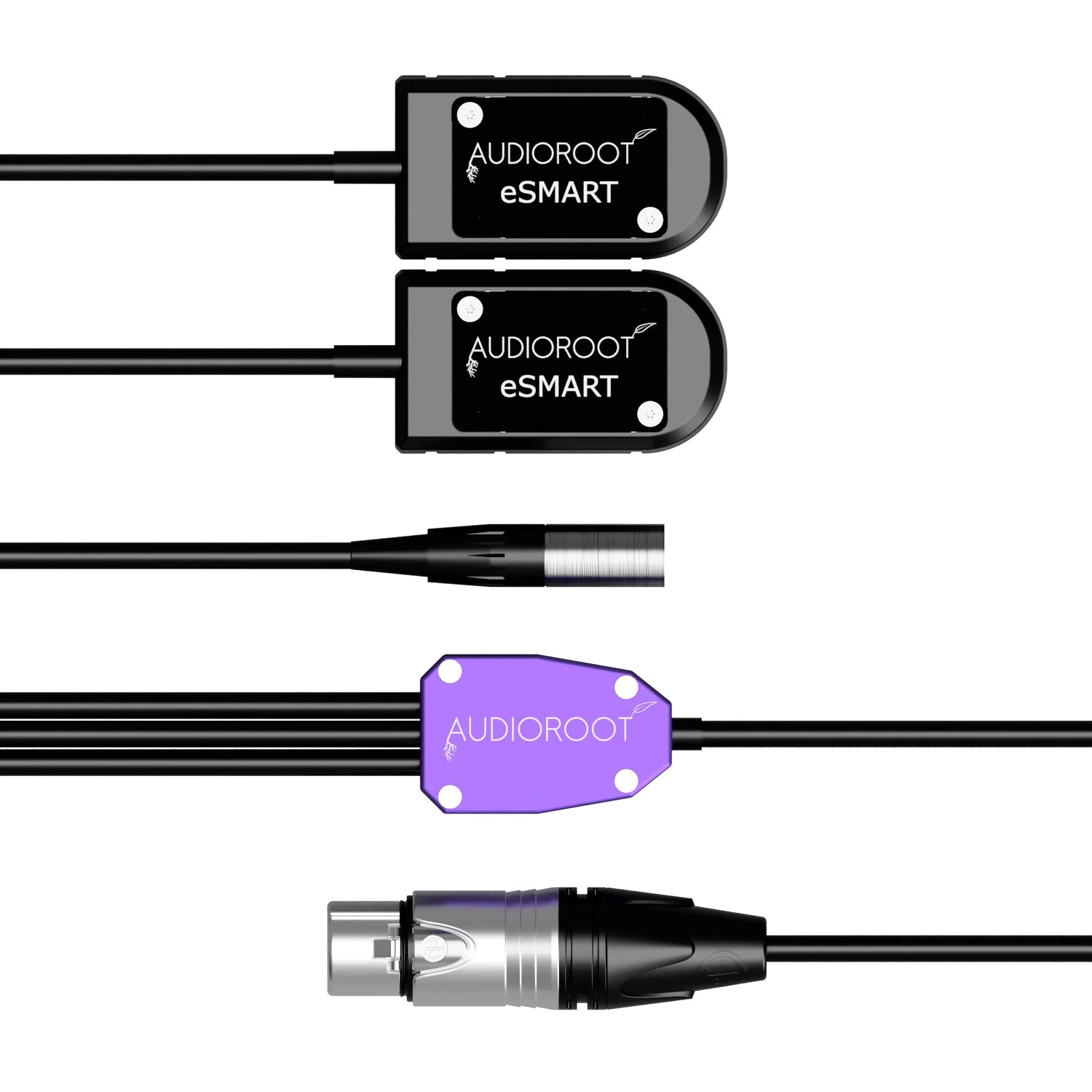

The AudioRoot TRIAD-CCT-X is a passive power-combining cable designed to deliver seamless, uninterrupted DC power by merging up to three independent sources into a single XLR4F output. Ideal for powering recorders, distribution systems, or other professional audio equipment, this cable allows for runtime extension, hot-swapping, or integration of an AC-powered USB-C backup, all without involving any smart battery communication. Its non-telemetry (non-SMBus) design ensures wide compatibility with Audioroot’s vmDBOX series and third-party power distributors that do not require data merging.

Perfect for high-capacity or mission-critical setups, the TRIAD-CCT-X is built with rugged materials and a 60 cm cable length, offering flexibility and durability in compact field or studio environments. The robust XLR4F output is a standard in professional audio powering, and the flexible input options including, USB-C and TA4M, make this cable an essential part of a modern, redundant power strategy. For AC integration using USB-C, pairing with a PPS-compatible PD adapter is highly recommended to ensure stable power delivery and battery protection. The TRIAD-CCT-X keeps your gear reliably powered, with no interruptions and no telemetry required.

Features

Three DC Inputs for Power Merging
Combines up to three batteries or DC sources into a single output for extended use or backup.

Passive Operation with No Telemetry
Designed for non-smart battery systems with no data or SMBus communication.

XLR4 Output with TA4M Input
Features a TA4M connector as one input and delivers power through an XLR4 output.

Supports Hot-Swapping and Redundancy
Enables seamless battery swaps or AC power integration without interruptions.

Flexible Setup Options
Works with a mix of connectors including battery cups, TA4M, and USB-C.

Custom-Built Per Order
Available in adjustable lengths and connector configurations.

Handles Professional Power Loads
Supports up to 5A output so it is reliable for high-demand audio and video gear.

Specifications

General Specifications
Device Type: Passive Power-Combining Cable
Design: Passive, Non-Telemetry (No SMBus Communication)
Use Case: Redundant Power Supply, Hot-Swap, Extended Runtime
Compatibility: Audioroot vmDBOX Series and Non-Telemetry Third-Party Power Distributors
Input Connectors: 2 × Battery Cup, 1 × TA4M
Output Connector: XLR4F
Cable Length: 60 cm (Default)
Construction: Durable Cabling and Connectors
Build Type: Built to Order

Electrical Specifications
Maximum Recommended Output Current: 5.0 A

Input Requirements
Battery Cup Inputs: Accept Standard 16.8V Li-ion Batteries
TA4M Input: Requires ≥ 16.8V DC Power Supply (e.g., Audioroot DUO-PSU)

Output Specifications
Output Connector Type: XLR4F
Output Voltage: Follows Input Voltage (Passive Pass-Through)
