AVIOM  |  SKU: 19372

A640

Headphone Systems

Personal mixer for monitoring with 36-channel mix engine for up to 18 mono or stereo sources and Per-channel volume, treble, bass, reverb, and pan plus Master EQ with Enhance

$1,349.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

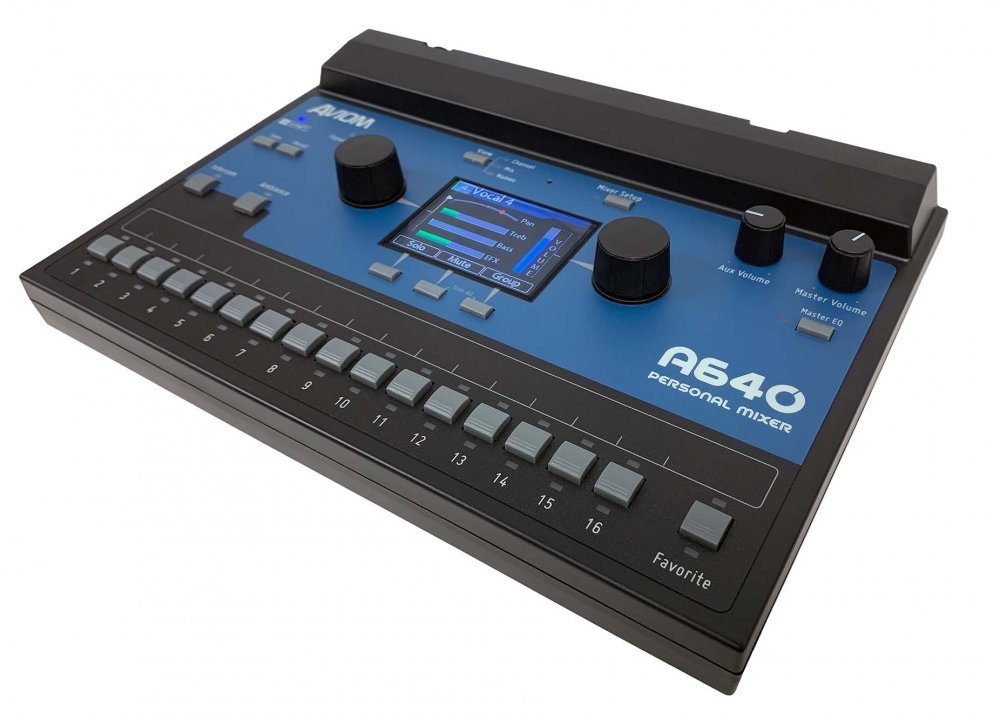

Aviom's Personal Mixers are the worldwide industry-standard for personal mixing on stage and in the studio. The A640, Aviom's new flagship personal mixer, brings an unparalleled level of control, performance, and fidelity to personal mixing that exemplifies Aviom's core brand sensibilities.

With more mix channels, powerful features and an intuitive, streamlined user-interface, the A640 helps musicians hear better than ever before. It's compatible with all existing Aviom systems using Dante networking, digital console cards, or analog inputs, and can be used simultaneously with the A360, A320 and/or A-16II Personal Mixers.

Features

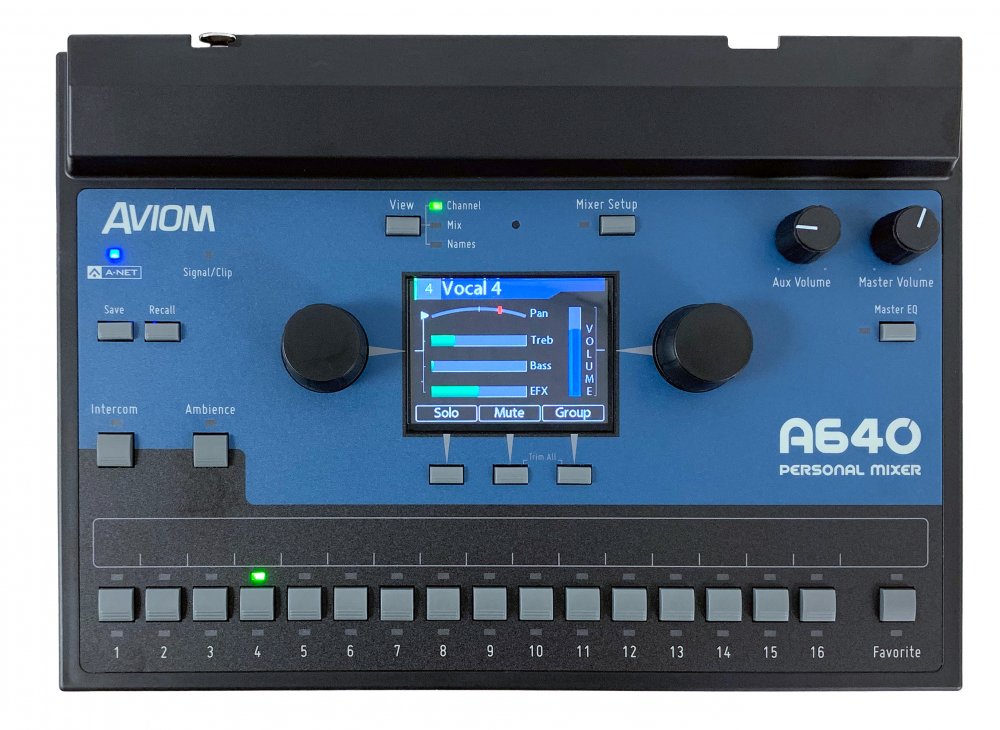

Intuitive user interface featuring high-res color multi-mix-view display

Customizable channel selection from up to 64 network channels

36-channel mix engine for up to 18 mono or stereo sources

Per-channel volume, treble, bass, reverb, and pan plus Master EQ with Enhance

One-Touch Ambience using network audio or the internal mic

Intercom for communicating with other A640 users

Favorite Channel holds each musician's most important channel

USB for easy archiving and loading custom mixer configurations

1/4" and 1/8" stereo mix out plus XLR mono Aux mix out

Support for Network Mix Back (requires a D800)

Specifications

Audio Output


1/4" TRS stereo, headphone or line level;
1/8" TRS stereo, headphone or line level;
XLR balanced mono, line level

Stereo Mix Outputs, Headphone/Line


Tip: Audio Left; Ring: Audio Right; Sleeve: Ground

Mono Mix Output


Pin 2: Hot, Pin 3: Cold; Pin 1: Ground

A-Net


1 A-Net In, locking RJ45 connector;
Supports Power Over A-Net

D/A Conversion


44.1/48kHz, 24-bit

Stereo Operation


Stereo Link, per mixer channel and A-Net channel pair
Set at the input device;
Variable pan per mono channel or pan/spread per stereo channel pair

USB Storage


Save/load mix configuration data and mixer presets;
Firmware updates
Requires USB compliant mass storage device, formatted for PC

Headphone Output


1.0 watt at 100 ohms
(Line/Headphone output)

Output Impedance


32 ohms

Frequency Response


2-22kHz +0.2dB/-3dB

THD+N


< 0.003%

Signal to Noise (unweighted)


-106dB (measured with zero data into all channels)

Latency


<0.680 msec (measured from analog input to analog output)
A-Net Cables Use unshielded Cat-5e UTP (or better) cable;
Maximum 400 ft (122 m) between devices;

Power Supply


Input Voltage
Plug Size Optional
24 VDC, 0.5 amp
2 mm

Dimensions


10.76 in. (273.3mm) wide x 7.6 in. (193.04mm) deep;
2.212 in. (56.18mm) high

Weight


2 lb (0.907 kg); packaged weight 3 lb. (1.36 kg)

Options


MT-1a Mic Stand Mount (uses 6-32 1/4-inch screws)
EB-1 Extension Bracket
PS-120/PS-240 Power Supply
