CLEAR-COM  |  SKU: 14868

KB-701

IFB/IEM Accessories

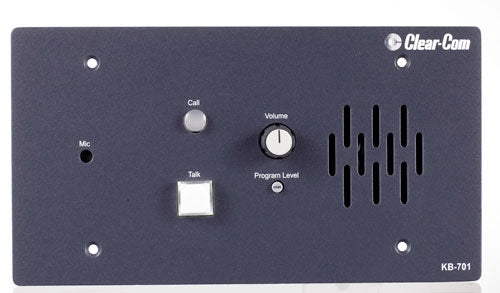

1-Channel Flush-Mount Push-To-Talk Speaker W/Built-In Microphone Station

$1,068.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The KB-701 remote speaker station connects to a single channel of party-line intercom and operates in half-duplex mode. It features both an integral speaker and a flush mount electrets microphone with mic limiter and a push-to-talk button.

Features

Half-duplex, push-to-talk functionality

Four modes of operation that are internally programmable

Microprocessor controlled logic and switching

Balanced local program input with separate level control

Visual and audible call signaling

Optional 4-wire daughter board for flexibility

Wall or console mountable, or optional V-Box for portable or desktop use

Built-in speaker

Specifications

Program Line Input

Maximum Level before Clipping: >= 20dBu

Input Impedance: >= 5K

Speaker Output

Load Impedance: >= 4

Max Output Level before 1% Distortion: 20dBu ± 2dBu

Party-line Output

Off Noise: < -74dBu

Output Impedance: >10K

Party-line Input

Crosstalk: < -60dB

Max level before Clipping: >= 12dBu

Frequency Response

Program Input - Speaker Out: 200 - 18KHz ± 3dB

Party-line - Speaker Out: 200 - 18KHz ± 3dB

Max Distortion

Program Input - Speaker Out: <= 0.5%

Party-line - Speaker Out: <= 0.5%

Noise

Program Input - Speaker Out: < -60dBu

Party-line - Speaker Out: < -50dBu

Max Gain

Program Input - Speaker Out: >= 24dB

Party-line - Speaker Out: >= 40dB

Power

Input Voltage Range: 20-30 VDC

Input Current (Idle): <= 90mA

Input Current (Max): <=110mA

Internal Connectors and Jumpers

Intercom: Line Five terminal connector

Program Input: Three terminal connector

Option Switches: Three DIP switches

Front Panel Controls & Indicators

(1) Program level control

(1) Intercom level control

(1) Talk button

(1) Call button

(1) Integral microphone

Environmental

32 - 122o F (0 - 50o C)

Dimensions

8.5 in. W x 4.5 in. H x 1.75 in. D

(210 mm x 114 mm x 44 mm)

Weight

1.04 lbs. (0.47 Kg)
