DRAWMER

D Clock R

Master Clocks

Dual redundant clock distributor with 16 BNC outputs, auto-sensing word clock/AES3id inputs, 2ppm LCD readout, and dual PSU for live, studio, and broadcast reliability.

$1,965.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Drawmer D-Clock-R is a rugged, professional-grade dual redundant word clock distribution amplifier, engineered for maximum reliability in mission-critical environments such as broadcast facilities, live venues, and studios. Building on the foundation of the original D-Clock, the D-Clock-R introduces full redundancy for both power and clock inputs, ensuring uninterrupted operation even in the event of a fault or power failure which makes it ideal for any application where stability is non-negotiable.

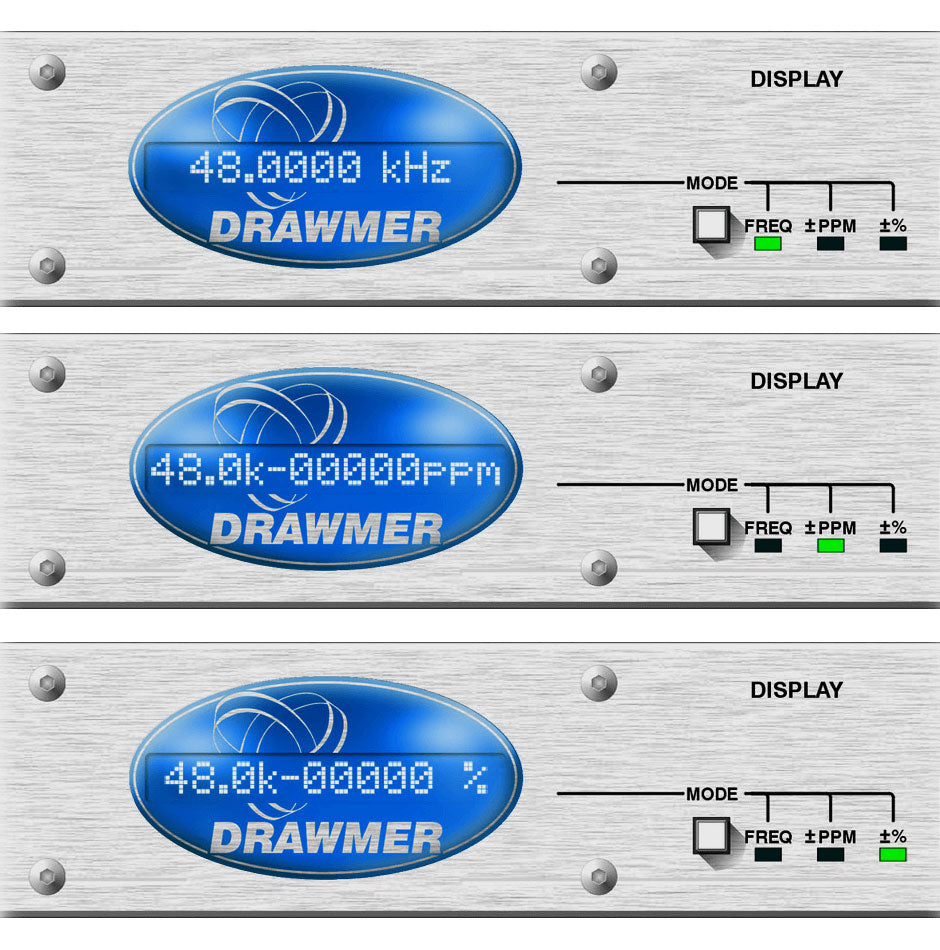

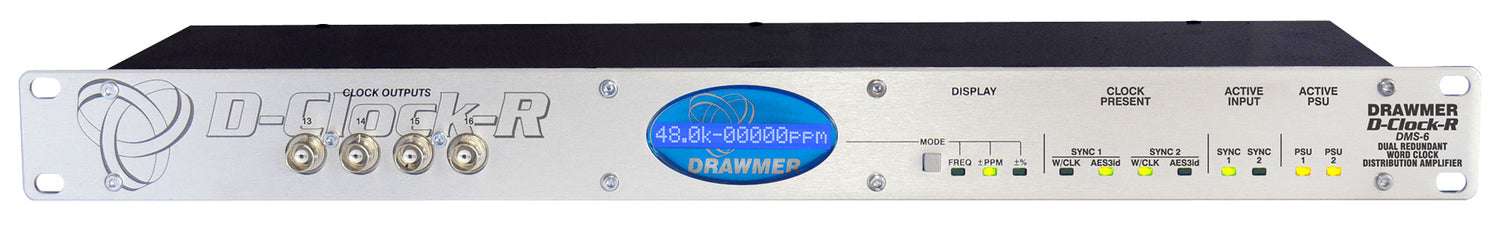

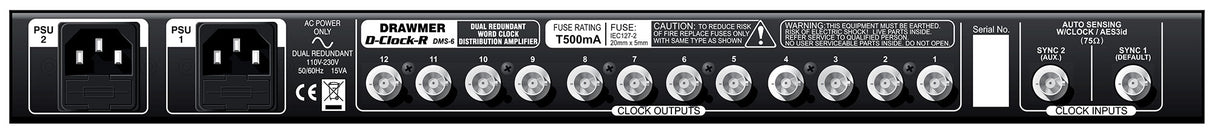

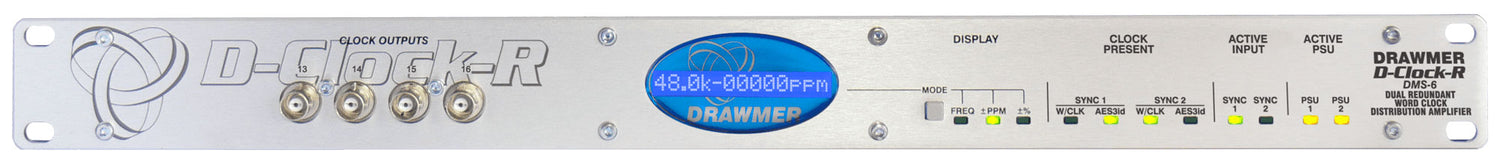

At its core, the D-Clock-R features two auto-sensing BNC clock inputs that accept either word clock or AES3id signals, automatically switching between the default and auxiliary sources as needed. It provides 16 re-buffered BNC outputs 12 on the rear panel and 4 on the front to distribute clock signals across complex digital setups with ease. The front panel includes a high-precision 16-character LCD display, offering three display modes: actual frequency, ±ppm error, and % pull-up/down, all with an accuracy of 2 ppm.

The dual internal universal-voltage power supplies work in parallel under normal conditions and offer instant automatic failover if one supply fails, guaranteeing seamless operation. With classic Drawmer build quality, a 1U rackmount form factor, and an aluminium front panel, the D-Clock-R delivers dependable, high-performance clock distribution in a compact, road- and studio-ready unit, designed and handmade in the UK for the highest standards of reliability and precision.

Features

Drawmer D-Clock-R – Dual Redundant Word Clock Distribution Amplifier
Designed for mission-critical digital audio systems in studios, live venues, and broadcast environments.

Dual Redundant Power Supply
Features two independent universal-voltage inputs that share the load and auto-switch in case of power failure.

Auto-Sensing Clock Redundancy
Two BNC inputs automatically detect and lock to either word clock or AES3id signals for uninterrupted performance.

16 Word Clock Outputs
Distributes clock signals through 12 rear-panel and 4 front-panel BNC outputs with low impedance for stable syncing.

Precision LCD Display
Shows incoming sample rate in three selectable modes actual frequency, ppm error, or percentage pull up/down with 2ppm accuracy.

Visual Status Indicators
Front-panel LEDs display clock presence, active input, and PSU status at a glance.

High-Resolution Clock Monitoring
Measures sample rates up to >768 kHz with 0.1 Hz increments at 48 kHz for fine accuracy.

Robust and Rack-Ready

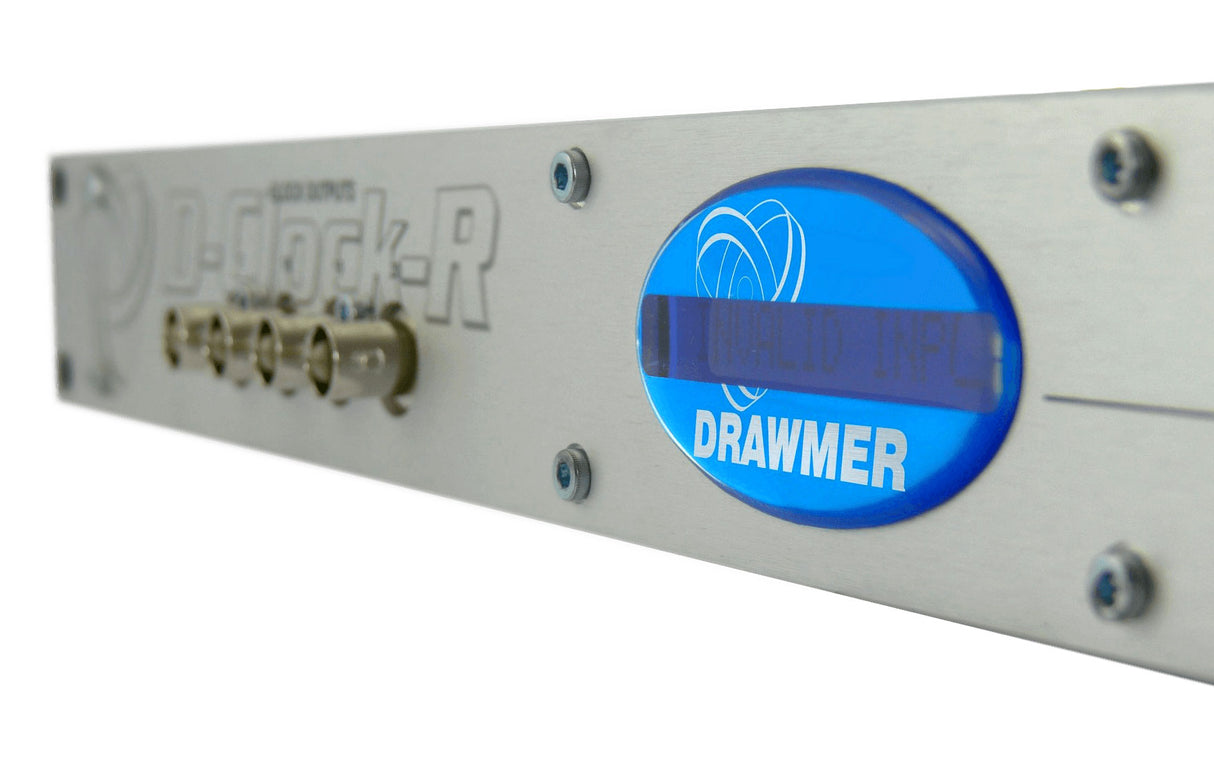

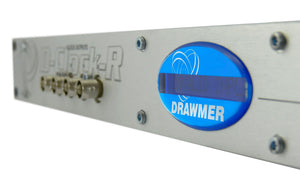

Compact 1U steel chassis with aluminium front panel ensures reliability and durability in professional environments.

Ideal for Redundancy-Critical Systems
Ensures continuous clock distribution even if one power or clock source fails which is perfect for broadcast, live sound, and complex studio setups.

Specifications

General Specifications
Device Type: Dual Redundant Word Clock Distribution Amplifier
Use Case: Studio, Live Sound, Broadcast
Design: 1U Rackmount
Chassis: Rugged Steel with Aluminium Front Panel
Weight: 1.7 kg
Dimensions: 482 mm (W) × 44 mm (H) × 145 mm (D)
Construction: Designed and Handmade in the UK

Clock Inputs

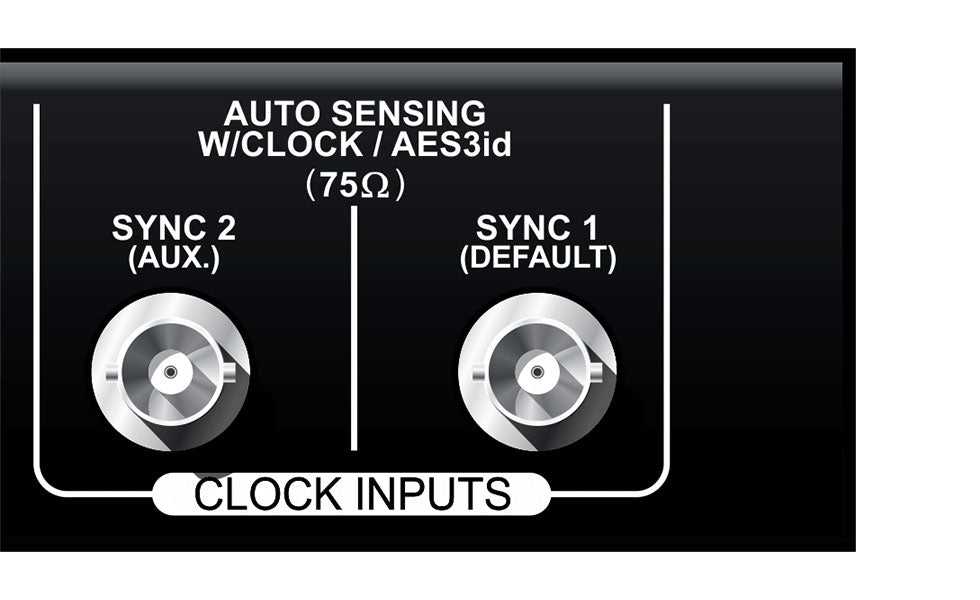

Input Type: 2 × Auto-Sensing BNC (Word Clock / AES3id)
Input Impedance: 75 Ω
Redundancy: Primary and Auxiliary Inputs with Automatic Switching
Clock Source Compatibility: Word Clock, AES3id

Clock Outputs
Output Type: 16 × Simultaneous Re-Buffered BNC Word Clock Outputs
Output Impedance: 33 Ω
Front Panel Outputs: 4 × BNC
Rear Panel Outputs: 12 × BNC

Display
Type: Blue/White LCD, 16-Character
Display Modes:
– Actual Frequency (up to >768 kHz)
– ± ppm Deviation from Nominal (32, 44.1, 48, 96, 192 kHz)
– ± % Pull Up/Down (32, 44.1, 48, 96, 192 kHz)
Accuracy: 2 ppm (0.1 Hz Increments @ 48 kHz)

Indicators
Clock Present: Word Clock / AES3id
Active Input: Primary / Auxiliary
PSU Status: Independent PSU LEDs

Power

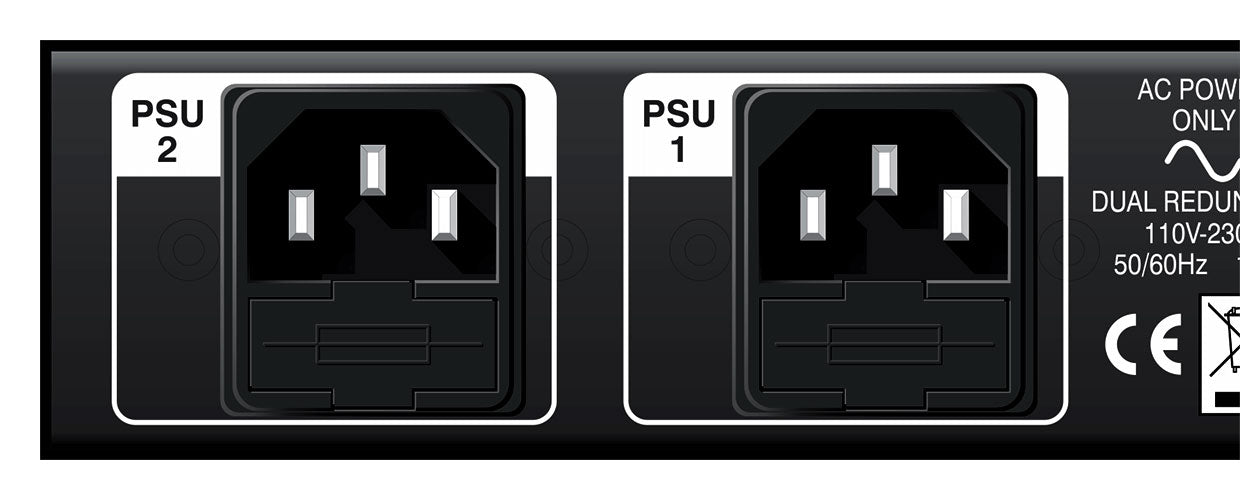

Power Supply: Dual Internal Identical Universal Input Supplies (10 W each)
Power Requirement: <6 W
Redundancy: Load-Sharing with Instant Failover
Fuse Type: 20 mm × 5 mm, Class 3 Timed-Blo, 250 V
Fuse Rating: T500 mA (All Voltages)
