GEFEN  |  SKU: 18554

EXT-USB2.0-SR

Extenders (Digital)

4K Ultra HD HDMI KVM over IP - Receiver Package. Extend USB 2.0 up to 50 meters/165 feet, over a single CAT-5

$604.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Gefen EXT-USB2.0-SR extends high-speed USB devices over a single CAT-5e cable, up to 50 meters/165 feet.

It works with all major operating systems " Windows, macOS and Linux. No software drivers are required.

The Sender and Receiver units install in minutes without any configuration, and support USB versions 2.0 and 1.1 " essential for high-performance applications such as digital imaging and interactive gaming.Â

The full-size Type-A USB connector on the Receiver unit can supply up to 2 Amps of current at 5V, ensuring sufficient power for practically any USB device.

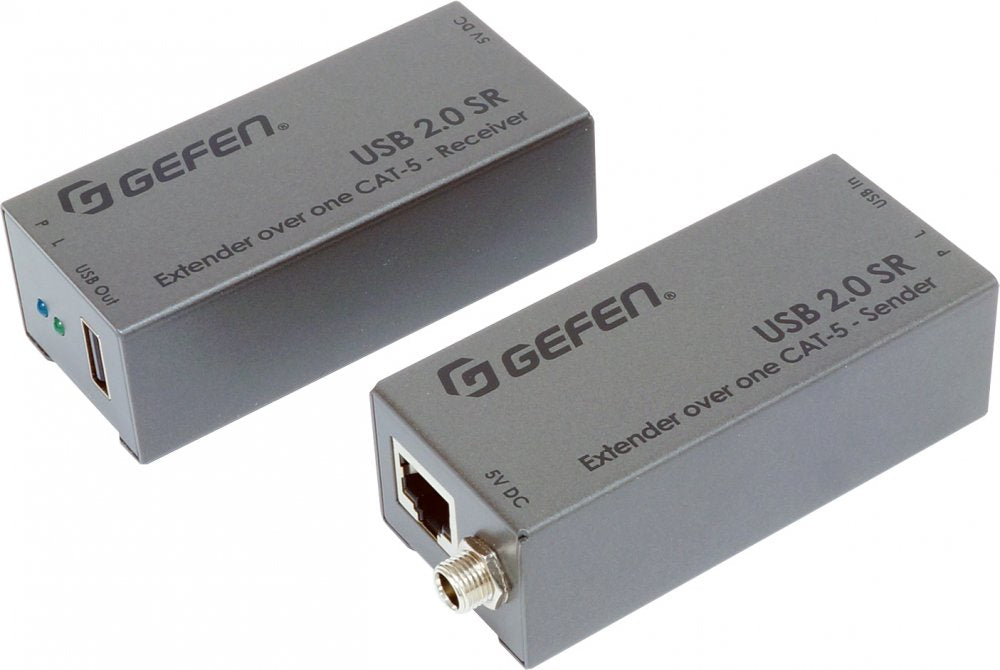

Sender and Receiver are compact in size, easy to install, and can be hidden away. Their sturdy metal enclosures ensure best possible performance by providing insulation against electromagnetic interference from other devices nearby.

The Gefen USB 2.0 Extender is ideal for remotely accessing laser printers, scanners, external hard drives, optical disc burners, flash drives, and standard resolution web cams.Â

A powered USB hub may be connected to the USB 2.0 SR Receiver to allow for the connection of additional USB devices.

Applications such as Remote Desktop (keyboard/mouse/touchscreen), security, industrial control, digital signage control, and scient(more...)

Features

Extends USB 2.0 peripherals up to 165ft (50m) away from a computer

Supports USB 1.1 and 2.0

Uses industry-standard CAT-5e or better cable

Supports all major operating systems " Windows, macOS and Linux

True plug-and-play, 100% hardware solution with no drivers required

Can support the full 480 Mbps speed of USB 2.0

Receiver supports a powered USB connection up to 2A at 5V

Sturdy metal construction of the enclosures help provide immunity against Electro-Magnetic Interference (EMI) and radiated noise (RFI)

Compact enclosures are easy to install and can be hidden away

Specifications

USB 2.0 Speed: Up to 480 MbpsÂ
Link Connectors (Sender/Receiver): Â RJ-45, Shielded
USB Connector (Sender): (1) USB type B
USB Connector (Receiver): (1) USB type A

USB Port Current Capability (Receiver): 2A at 5V DC

Link Indicator (Sender/Receiver): Â (1) LED, green
Power Indicator (Sender/Receiver): Â (1) LED, blue
Power Supply Connectors (Sender/Receiver): Â Locking-type, 5.5mm barrel/2.5mm pin
Power Supply Voltage (Sender/Receiver): 5V DC
Power Consumption (Sender/Receiver): 0.65W/0.8W (maximum)
Operating Temperature: Â +32ÂF to +122ÂF (0ÂC to +50ÂC)
Storage Temperature: -4ÂF to 158ÂF (-20ÂC to 70ÂC)
Operating Humidity: 5% to 90% relative humidity, non-condensing
Storage Humidity: Â 0% to 95% relative humidity, non-condensing
MTBF: Â 50000 hours
Dimensions (W x H x D) (Sender/Receiver):  3.4� x 1.1� x 1.5� (85mm x 28mm x 38mm)
Net Weight (Sender/Receiver): Â 0.3 lbs. (0.13 kg)
Shipping Weight: Â 2.2 lbs. (1 kg)
