GML  |  SKU: 714

8200 EQ with 8355 PSU

Stereo EQs

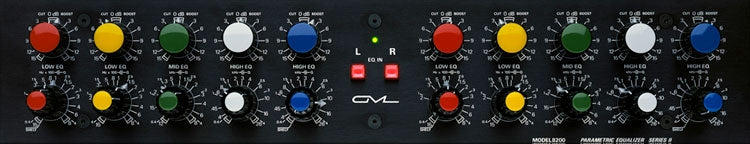

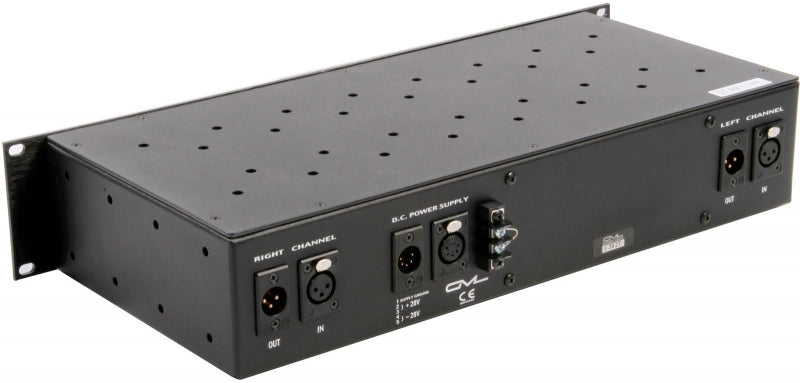

GML 8200 is a Two-channel five-band parametric EQ. Includes 8355 Power Supply.

$11,550.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Brought to you from the man who invented the term "Parametric Equalization", the GML 8200 has been an industry standard for over twenty years, and can be found on virtually every major recording studio's stereo bus. Each of the five broadly-overlapping bands offers 15dB of Boost or Cut and adjustable bandwidth (or "Q") from 0.4 to 4. The lowest and highest bands also can be switched to Shelf mode. Quite simply, the 8200 is the archetype Stereo Parametric Equalizer. Its extraordinary resolution, benchmark transparency, generous headroom, and surgical precision have been the reference for many other equalizers, but exceeded by no other. The 2U 8200 includes 8355 external power supply.

Specifications

INPUT

20 kOhm balanced bridging

32 dB common mode rejection at 20kHz

+27.4 dBv maximum before clipping (+ 28 VDC supplies)

THROUGHPUT

+ 0.1 dB, 10 Hz to 80 kHz response (controls set flat)

0.002% Harmonic distortion at any frequency 20 Hz - 20 kHz1

0.002% SMPTE Intermodulation distortion2

30 v/usec discrete low noise, high performance amplifiers

no tantalum or electrolytic interstage or output coupling capacitors

noise -97.5 dBv bypassed, -78 dB or better typical (control position dependent)

rolloff: 3 dB down at 260 kHz

FORM FACTOR - 2 CHANNELS, 5 BANDS: FULLY PARAMETRIC

1) 15 Hz - 800 Hz, Q of .4 - 4 or shelving, 15 dB boost/cut

2) 15 Hz - 800 Hz, Q of .4 - 4, 15 dB boost/cut

3) 120 Hz - 8 kHz, Q of .4 - 4, 15 dB boost/cut

4) 400 Hz - 26 kHz, Q of .4 - 4, 15 dB boost/cut

5) 400 Hz - 26 kHz, Q of .4 - 4 or shelving, 15 dB boost/cut

OUTPUT

+27.4 dBv clipping

3 mv output offset, stabilized by D.C. servo correction

OTHER

external power supply: +28 volts

separate ground and chassis connections at rear

19" x 3 1/2" rack case, black anodized aluminium, silver legend, 8 1/2" deep

weight: 6 lbs
