Description

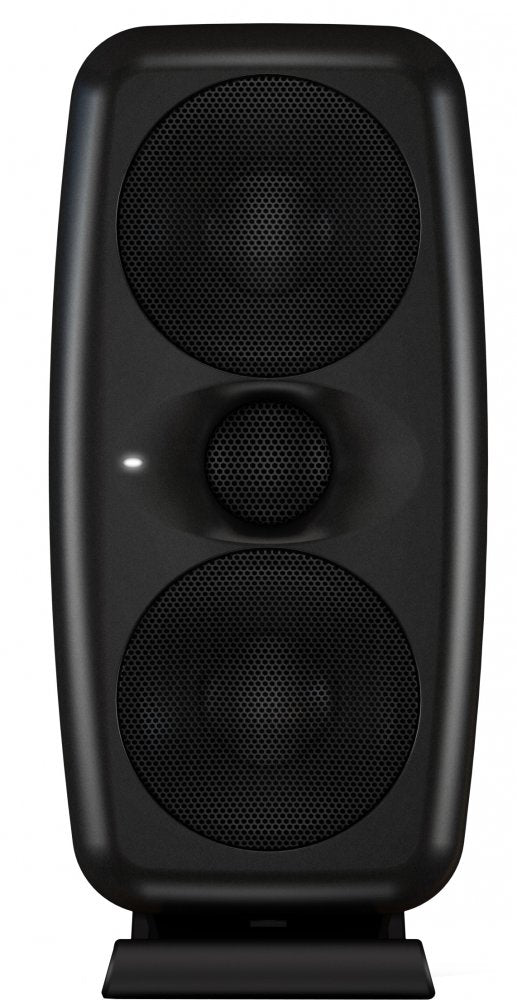

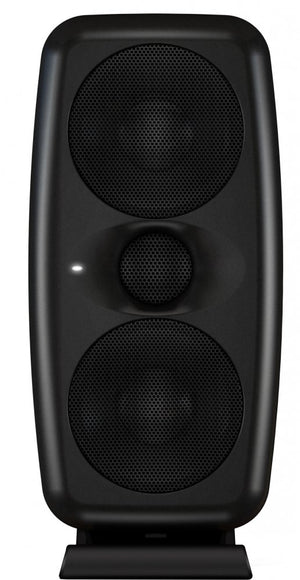

Styled in a black finish, the IK Multimedia iLoud MTM is a compact, high-resolution studio monitor designed to deliver accurate, uncolored sound for professional recording studios, project studios, and broadcast applications. IK Multimedia's patent-pending Physical Response Linearization (PRL) system uses a precise model of the enclosure's design, construction, and materials, combined with electro-mechanical measurements of the real units, to correct the system's performance in real time, which results in a flat frequency response, accurate phase relationships, and a firm, balanced bass output that competes with other monitors that are twice the size.

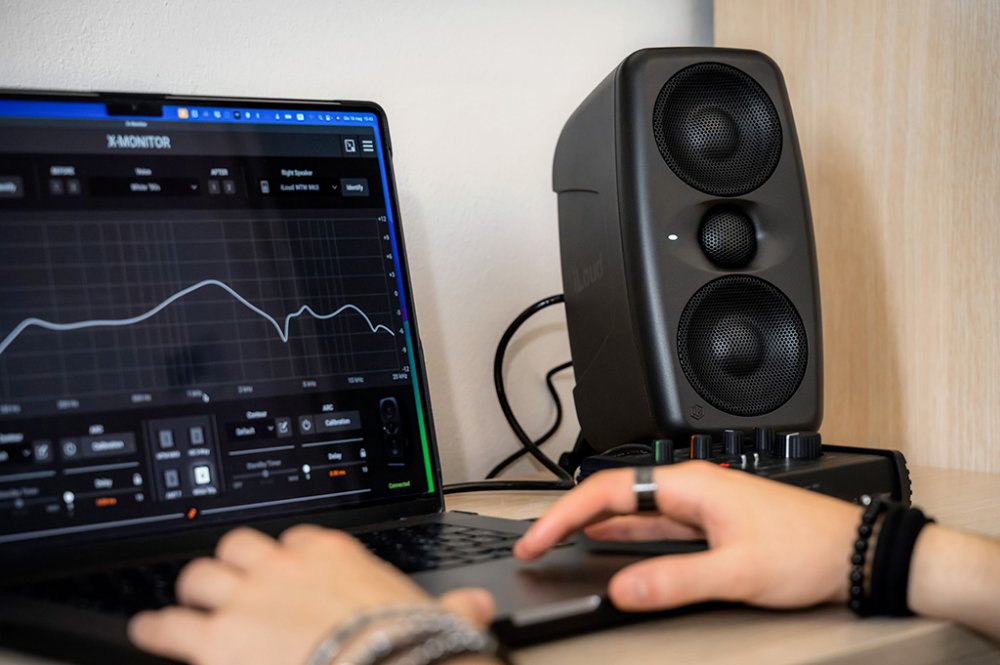

The MTM features a 100W Class-D biamplifier which drives 70W to the two 3.5" high-performance woofers and 30W to the single, back-chambered silk-dome tweeter, which combine for a frequency response of 40 Hz to 24 kHz and a maximum SPL output of 103 dB. The iLoud MTM offers built-in acoustic self-calibration via the included ARC reference microphone, which automatically adjusts the built-in DSP for true phase-coherency and precise, defined, point-source sound. The rear panel also offers options to further customize user settings including LF extension, LF boost/cut, and HF boost/cut.

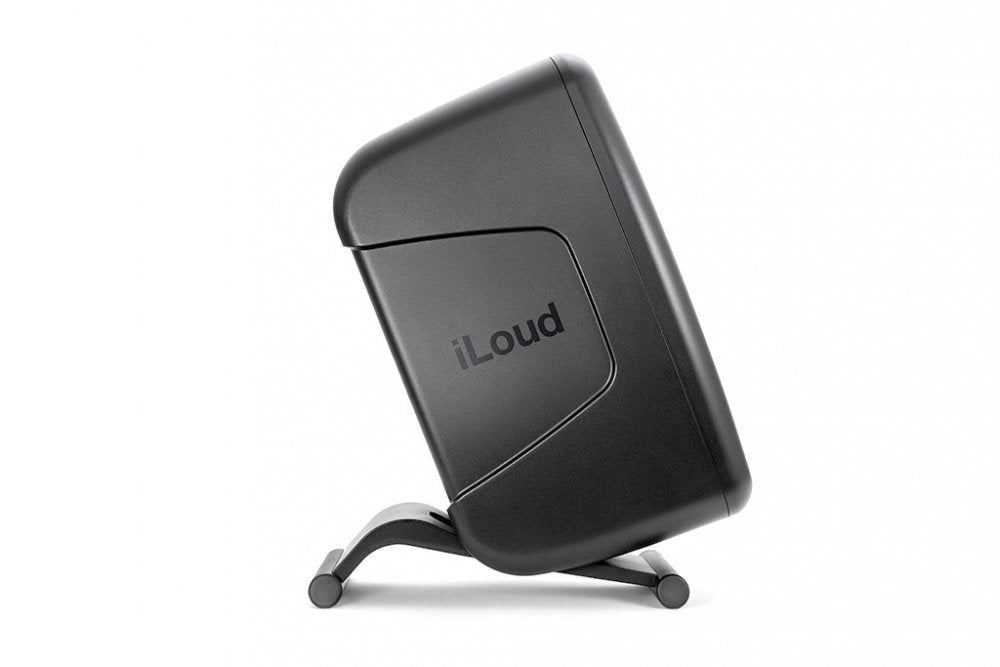

The included tilt mount allows you to set an angle from 0 to 20, which helps isolate the dispersion away from flat surfaces such as desktops or mixing boards. Horizontal support feet are provided and the base includes a thread to mount to mic stands for more installation options. The IK Multimedia iLoud MTM Monitor includes the ARC microphone, an ARC mic cable, a power cord, a tilt stand, a horizontal support, and a locking key.

Features

Ultra-flat frequency response

Phase-coherent sound

Extended, controlled low end

Superior sound at short distances

Perfect for desks and small spaces

ARC self-calibration adjusts to any room

DSP-controlled for superior performance

100W RMS total power per speaker

40 Hz to 24 kHz frequency response

0 - 20 tilting stand for ideal positioning

Specifications

Type: 2-Way/3-speakers bi-amped, digitally controlled studio monitor
LF Drivers: 2 x 3.5" polypropylene custom made mid-woofers
HF Driver: 1" low distortion, back chambered silk dome tweeter
Acoustic Design: DSP tuned bass reflex
Number of amps per speaker: 2
Amplifiers type: High efficiency Class-D
Total power: 100W RMS
LF power: 70W RMS
HF power: 30W RMS
Crossover Type: Linear Phase Variable Order
Crossover Frequency: 3.1kHz
Frequency response: from 50 Hz to 24 kHz +/- 2dB (40 Hz -6dB when uncal, -3 dB when cal)
Phase response: System remains coherent within +/- 15 from 200Hz to 20kHz
Sensitivity at +4dBu: 0dBu signal generates a 100 dB SPL @ 1 m
Sensitivity at -10dBV: -11dBu signal generates a 100 dB SPL @ 1 m
Maximum SPL @ 1m, one speaker playing, on axis: 103dB from 200Hz up sine wave, 95dB at 100Hz sine, 93dB pink noise
Placement setup: Manual switches for LF Extension, LF trim, HF trim, Desk position
LF extension: switch Sets -3dB point of the frequency response at 40, 50 or 60 Hz
LF switch: Low shelf, +2dB or -3dB from 100Hz down
HF switch: high shelf, +2dB or -2dB from 8kHz up
Desk switch: -4dB at 160Hz and +1dB at 1.8kHz
Calibration: Fully automatic and built-in digital calibration, microphone included
Measurement Microphone: Omnidirectional, Mems based precision measurement microphone
Full DSP control

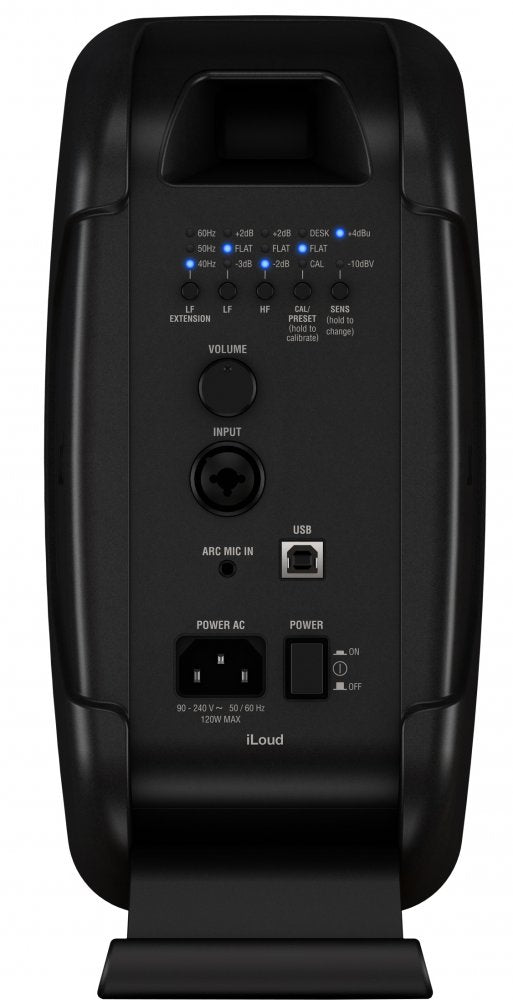

Connectors: 1x combo XLR-1/4" TRS balanced input; 1/8" TS ARC microphone input, 1 x USB type-B (service use only), AC POWER socket
Power requirement: 90 to 240 V AC, auto-ranging, 50 or 60Hz, 120W max power consumption
