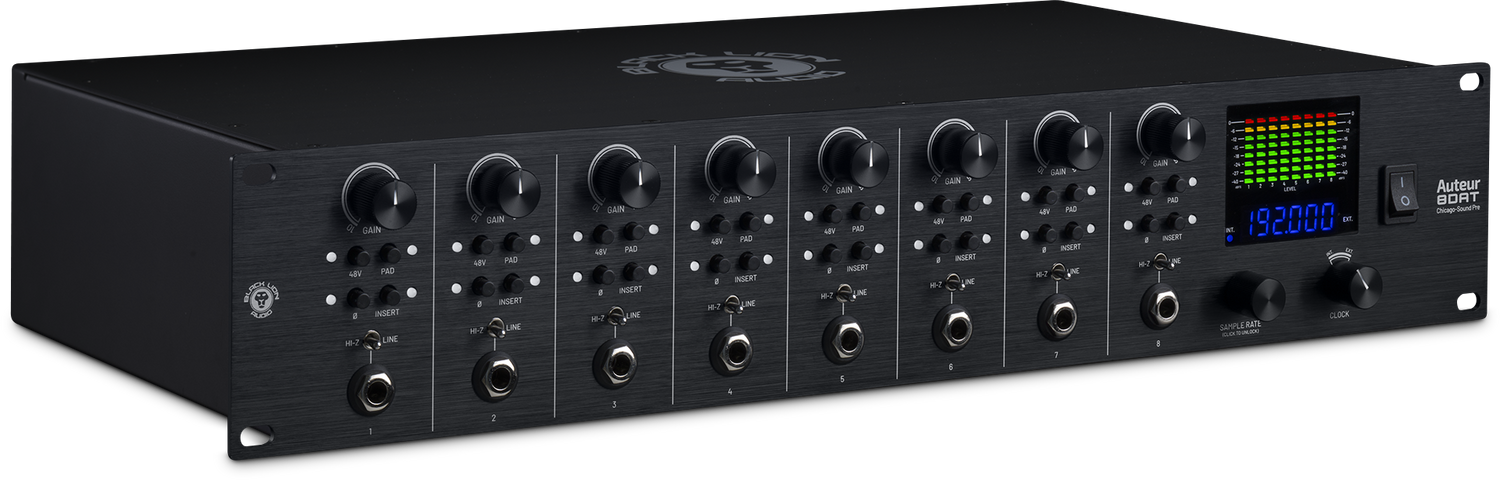

Auteur 8DAT

8-Channel Auteur Preamps
Get eight channels of Black Lion Audio’s acclaimed Auteur sound in a compact 2U rack unit. The hybrid design delivers clean detail with the option for rich analog color and warmth.

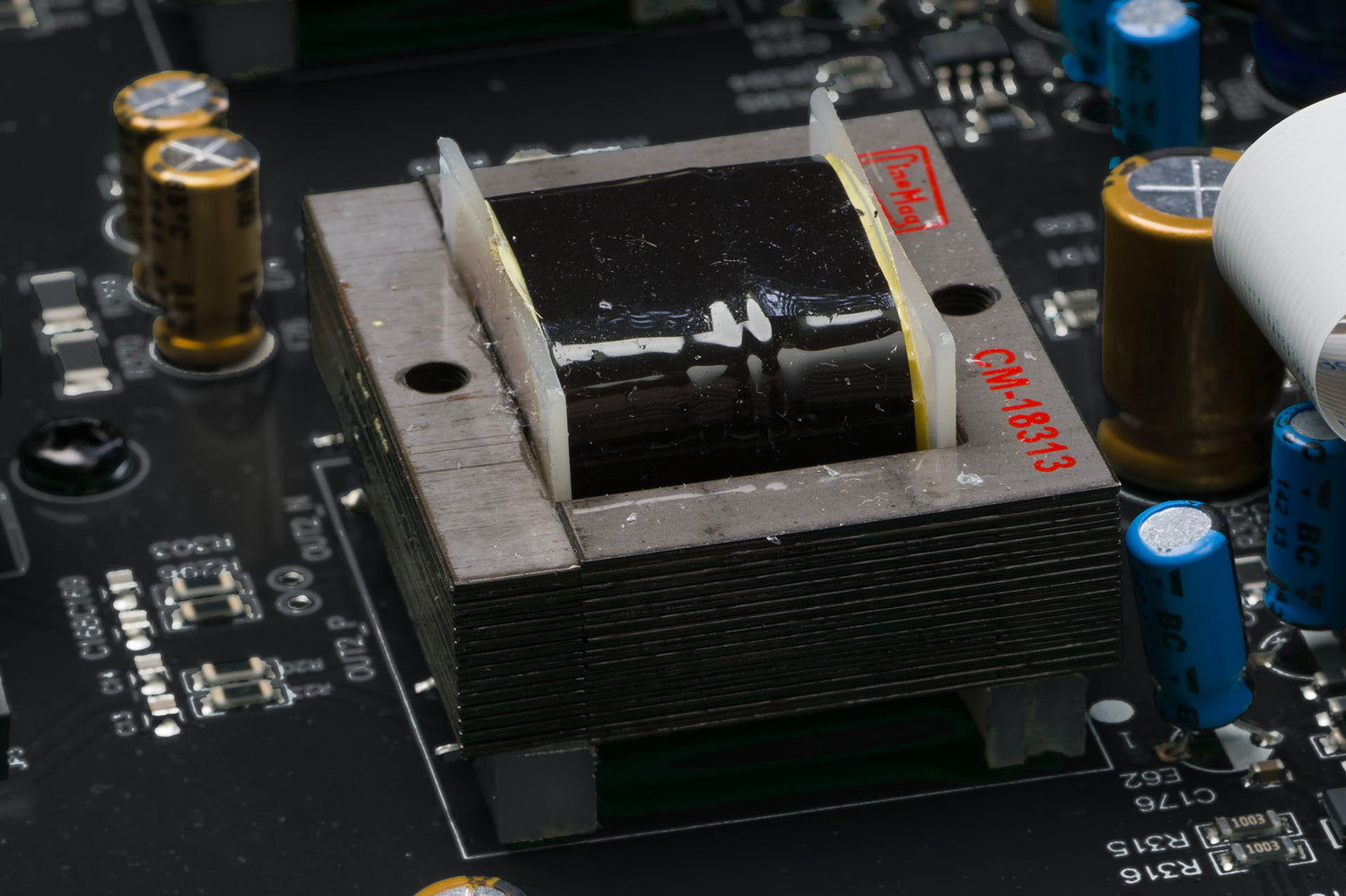

Cinemag Transformer Design
Each preamp combines a transparent front end with Cinemag transformers for added depth and musical character. Perfect for drums, vocals, guitars, and other dynamic sources.

ADAT Expansion
Instantly add eight premium preamp channels to any ADAT-compatible audio interface. A simple way to expand your studio without replacing your existing setup.

Premium Black Lion Conversion
Built-in high-end converters capture every detail with clarity and low noise. The same converter technology used in Black Lion’s Revolution interfaces ensures professional-quality recordings.

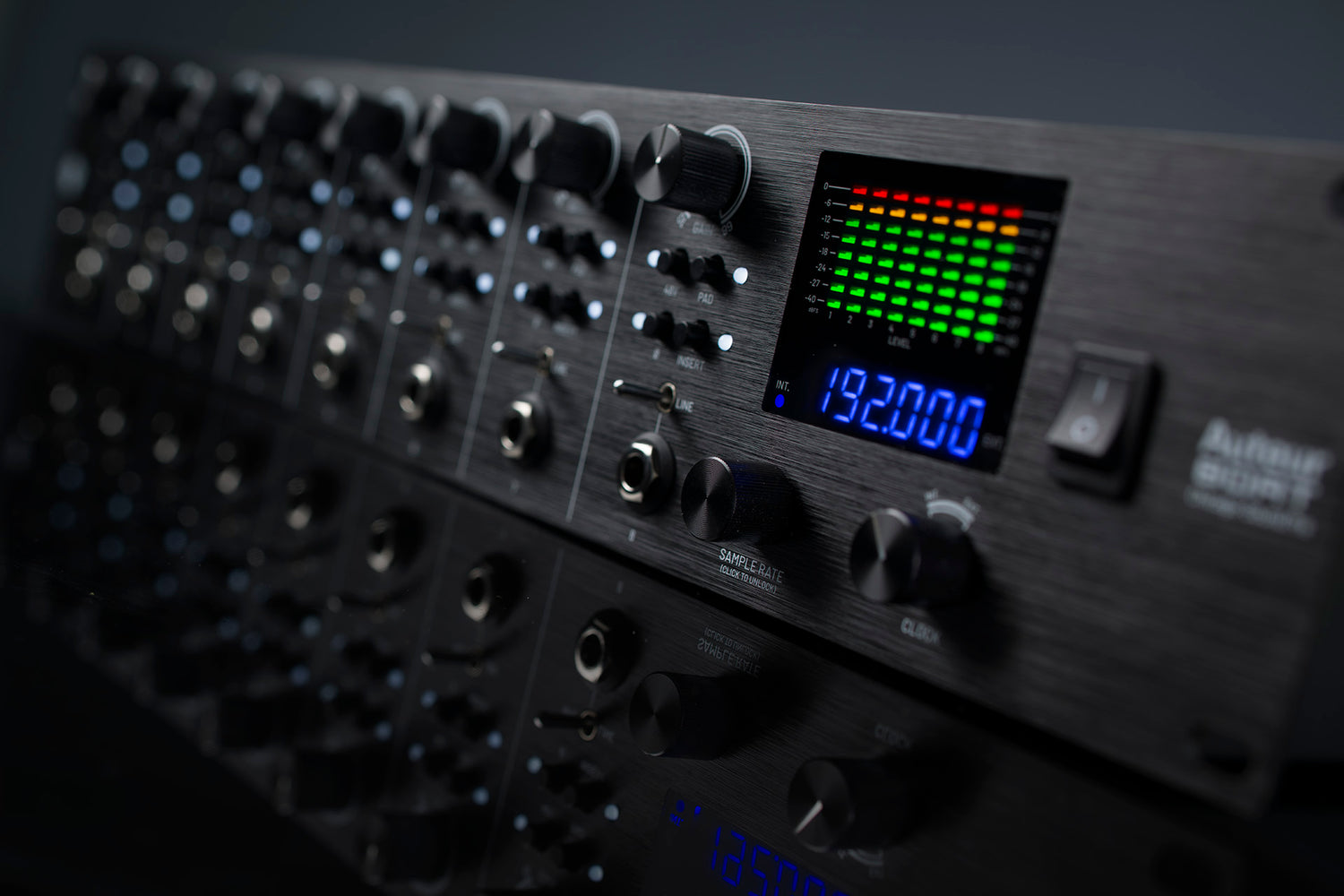

Macro-MMC Word Clocking
Patented Macro-MMC clocking keeps your entire recording setup tightly synchronized. The result is improved stereo imaging, cleaner transients, and reduced jitter.

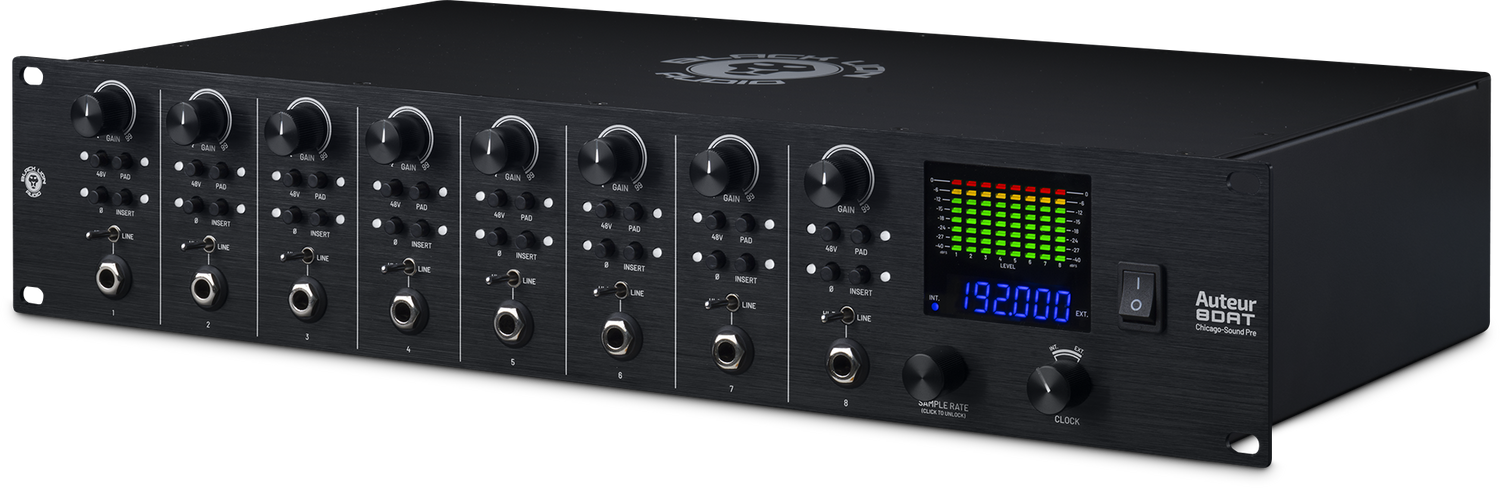

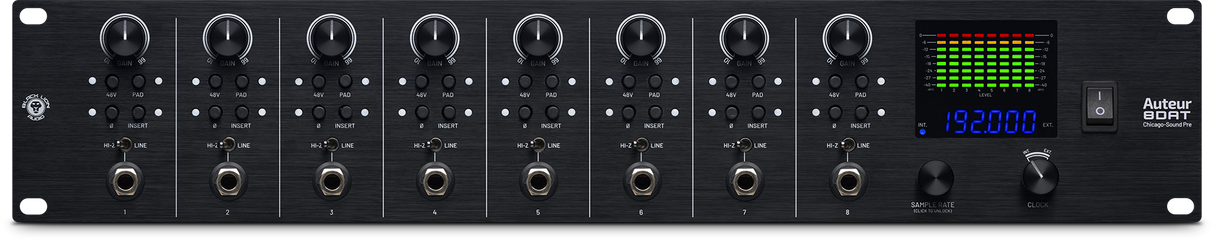

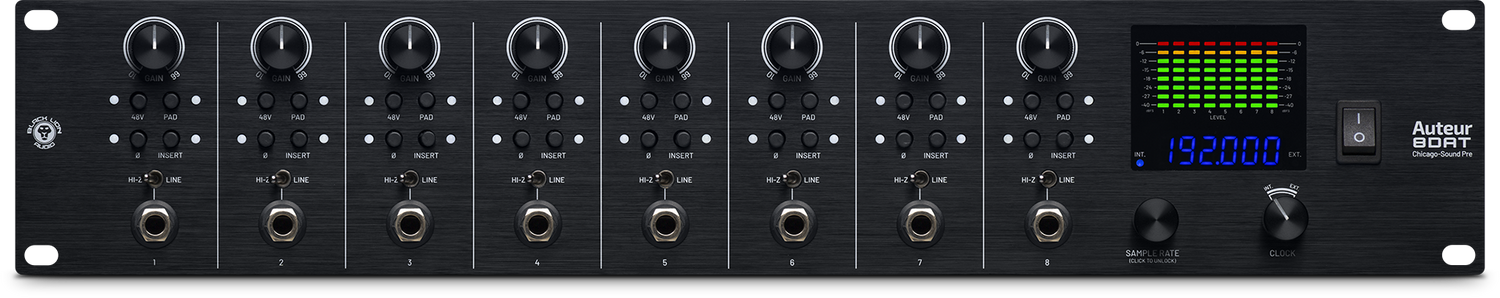

Front-Mounted Hi-Z and Line Inputs
Quickly connect guitars, basses, synths, and other line-level gear directly from the front panel. Great for fast workflow in both studio and live environments.

Flexible Hardware Inserts
DB25 send and return connections make it easy to integrate external compressors, EQs, and other outboard gear. Front-panel switching allows instant A/B comparison of processed and unprocessed signals.

Independent Channel Controls
Every channel includes dedicated phantom power, polarity reverse, pad, and insert controls. This gives you precise flexibility for any microphone or instrument setup.

Eight-Stage Metering
Clear metering on every channel helps you monitor signal levels accurately during recording sessions. Easy visual feedback keeps your gain staging under control.

Built for Low Noise Performance

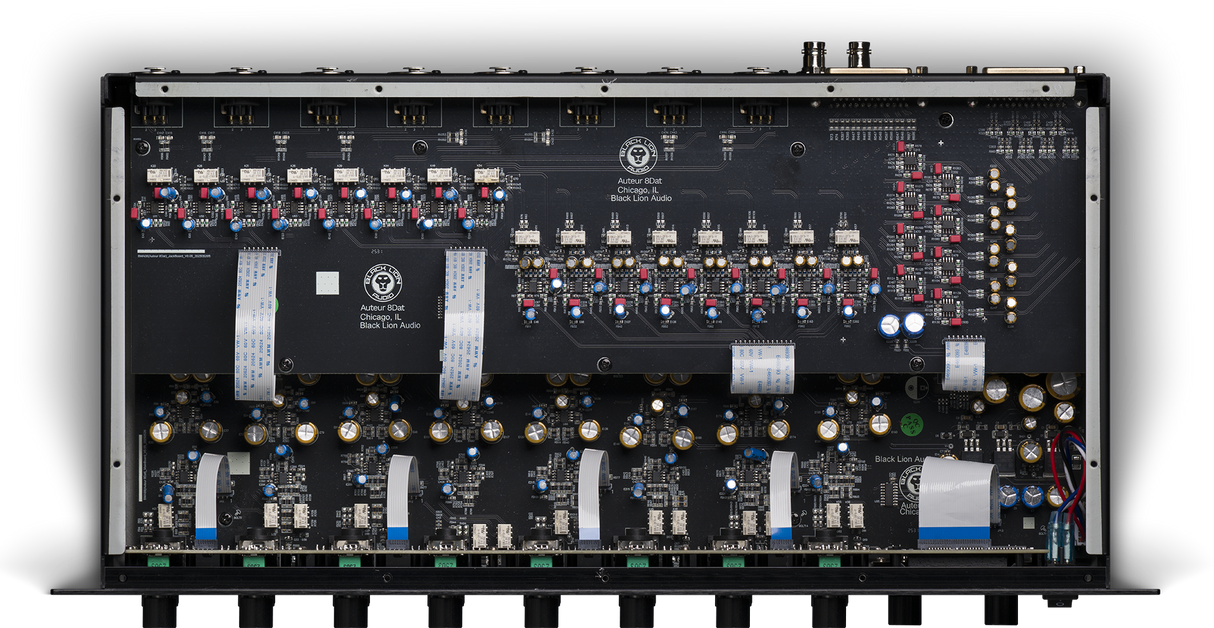

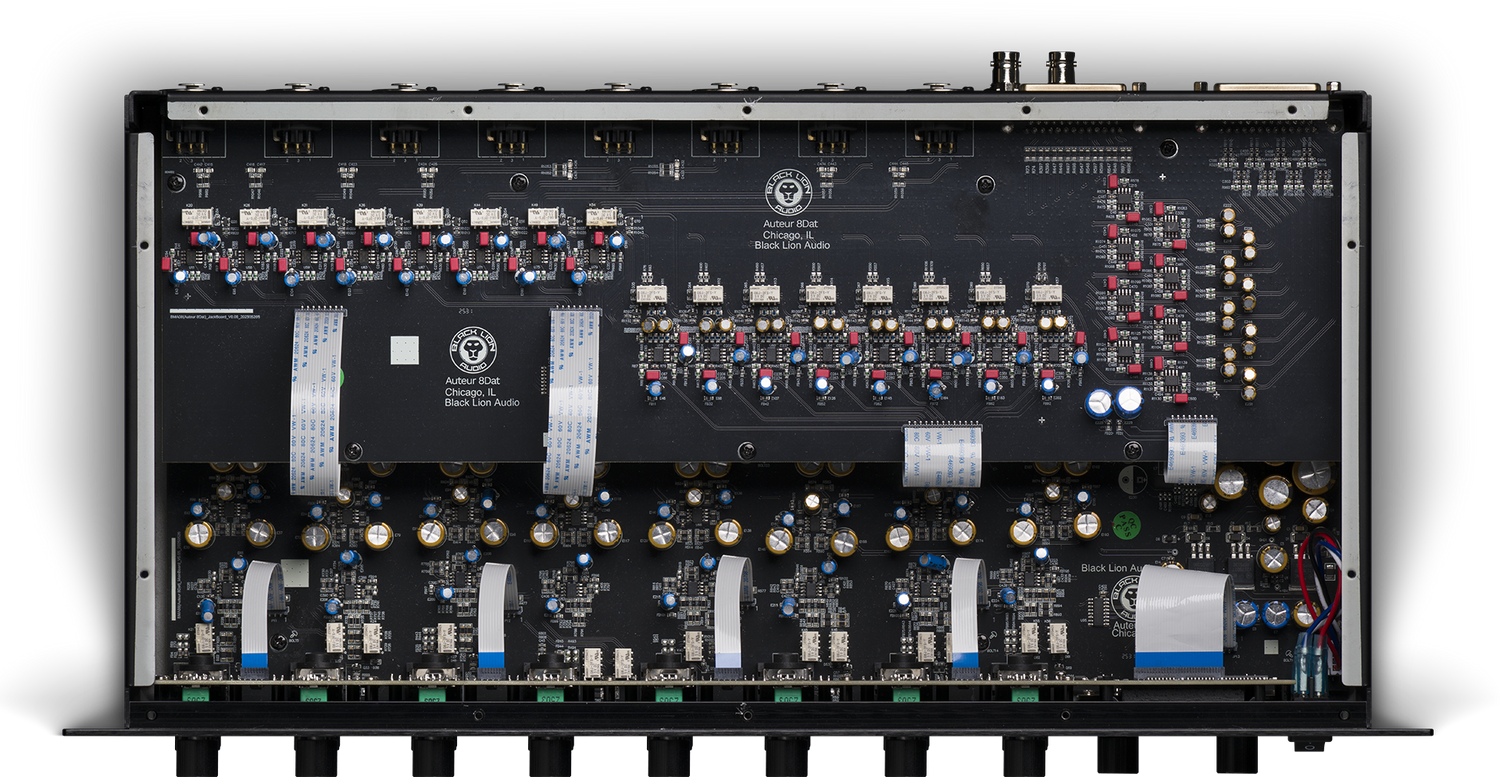

High-end Vishay, Nichicon, and Wima components help deliver exceptionally clean audio. Fully balanced and decoupled I/O further reduces unwanted noise and interference.

Road-Ready Construction

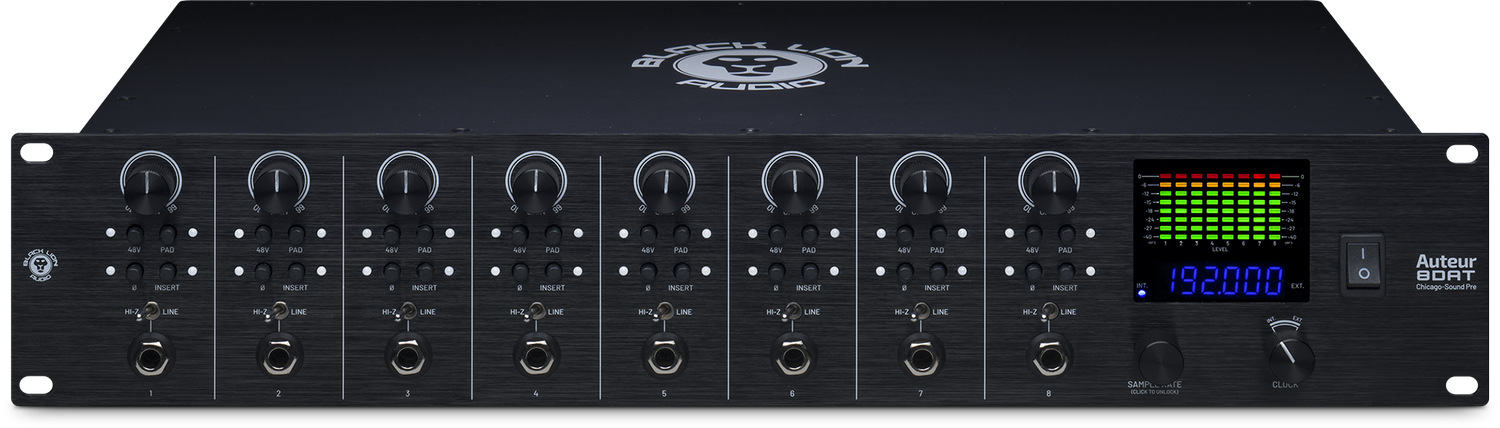

The black-anodized aluminum chassis is built for professional studio use and touring reliability. Durable construction pairs with a sleek, premium appearance.

General Specifications
Device Type: 8-channel microphone preamp / word clock with ADAT
Form Factor: 2U rackmount
Compatibility: ADAT-compatible audio interfaces
Converter Type: Black Lion Audio high-end converters
Clocking Technology: Macro-MMC word clock
Word Clock I/O: BNC input/output
Metering: 8-stage LED metering per channel
Insert Connections: DB25 send/return
Insert Functions: Hardware integration, signal multing, parallel processing, mid-side routing
Front Panel Inputs: 8 x Hi-Z / Line inputs
Pad: -10 dB per channel
Polarity Reverse: Per channel
Phantom Power: Independent +48V per channel
Transformer Type: Cinemag transformers
Construction: Black-anodized aluminum faceplate
Analog I/O Design: Fully balanced and decoupled

Digital Specifications
Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Bit Depth: 24-bit
Digital Reference Level: +16 dBu = 0 dBFS

Microphone Input Specifications
Input Type: XLR female, balanced
Gain Range: +10 dB to +66 dB
Frequency Response: 20 Hz – 20 kHz ±0.1 dB
THD+N: 0.003%
Noise Floor: -90 dBu
Maximum Input Level: +19 dBu

Hi-Z Input Specifications
Input Type: 1/4" TRS female
Gain Range: +10 dB to +65 dB

Line Input Specifications
Input Type: 1/4" TRS female
Gain Range: -6 dB to +50 dB
Maximum Input Level: +16 dBu
Digital Reference Level: +16 dBu = 0 dBFS

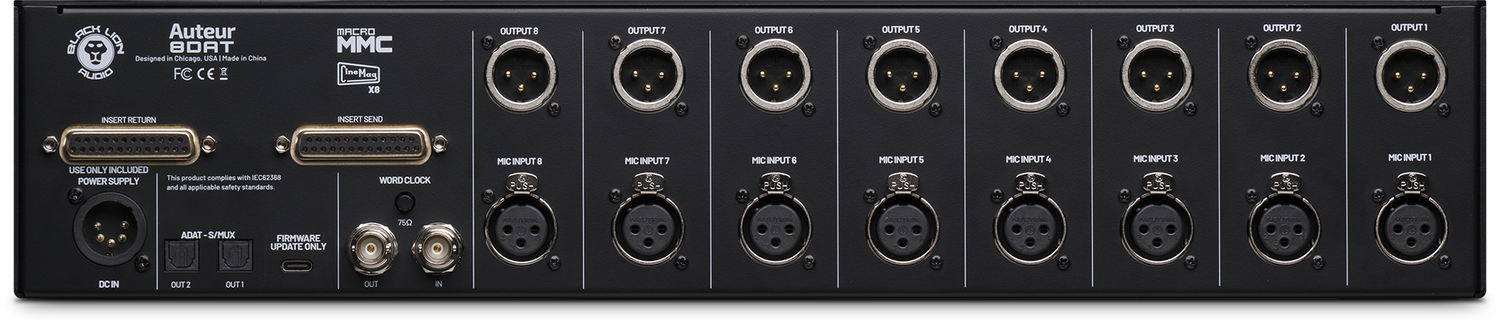

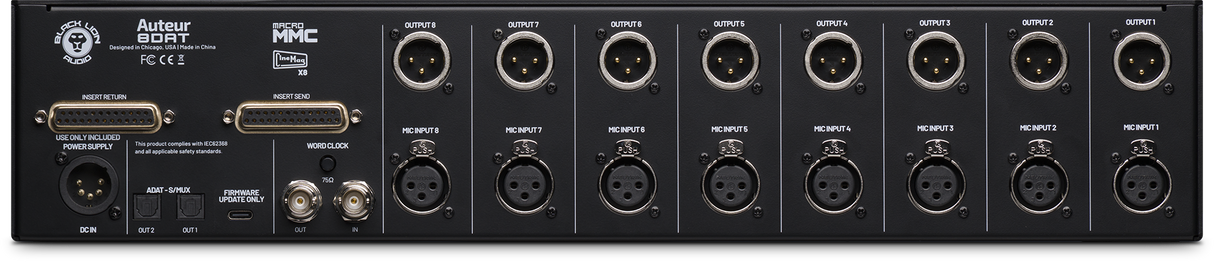

Line Output Specifications
Output Type: XLR male balanced / DB25
Maximum Output Level: +29 dBu

Power Specifications
Line Voltage: ±21 volts
Current Draw: 1.52 amps

Physical Specifications
Width: 19" (483 mm)
Height: 3.4" (86 mm)
Depth: 9" (229 mm)
Weight: 13 lbs
