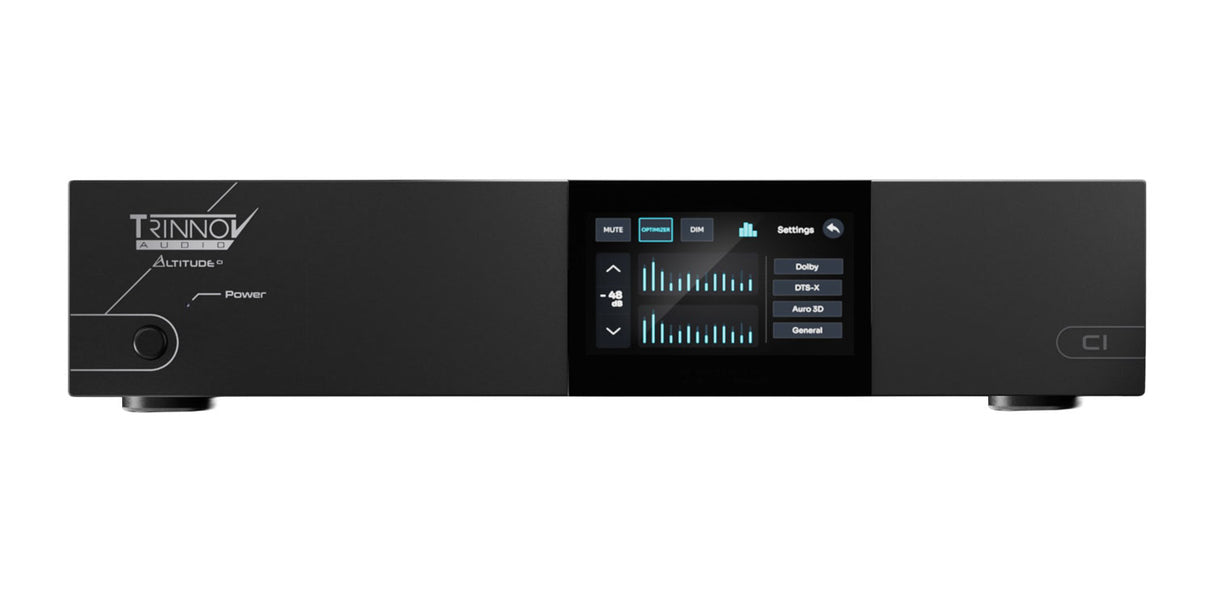

Altitude CI 24

Immersive Audio Processing
Delivers high-end decoding for formats like Dolby Atmos, DTS:X Pro, Auro-3D, and IMAX Enhanced. Creates precise, three-dimensional sound for advanced home cinema setups.

Flexible Channel Configuration
Supports scalable audio layouts that can grow with your system. Easily adapts from smaller setups to large multi-speaker environments.

Native Audio over IP
Built with integrated Dante and AES67 support for seamless networked audio. Enables clean, efficient signal distribution without extra hardware.

Hybrid Audio Connectivity
Combines analog, digital, and networked audio outputs in one system. Allows easy integration with a wide range of equipment and system designs.

Advanced Acoustic Optimization
Includes Trinnov’s proprietary technologies for room correction and speaker alignment. Enhances clarity, balance, and spatial accuracy in any environment.

High-Bandwidth HDMI Support
Equipped with HDMI 2.1 for modern video formats and high-resolution playback. Supports advanced features like 4K, 8K, and HDR formats.

Customizable Network Architecture
Features multiple Ethernet ports for flexible and reliable network setups. Supports isolated, redundant, or combined network configurations.

Seamless Control Integration
Works with major automation platforms and control systems. Enables easy operation through apps, remotes, or smart home interfaces.

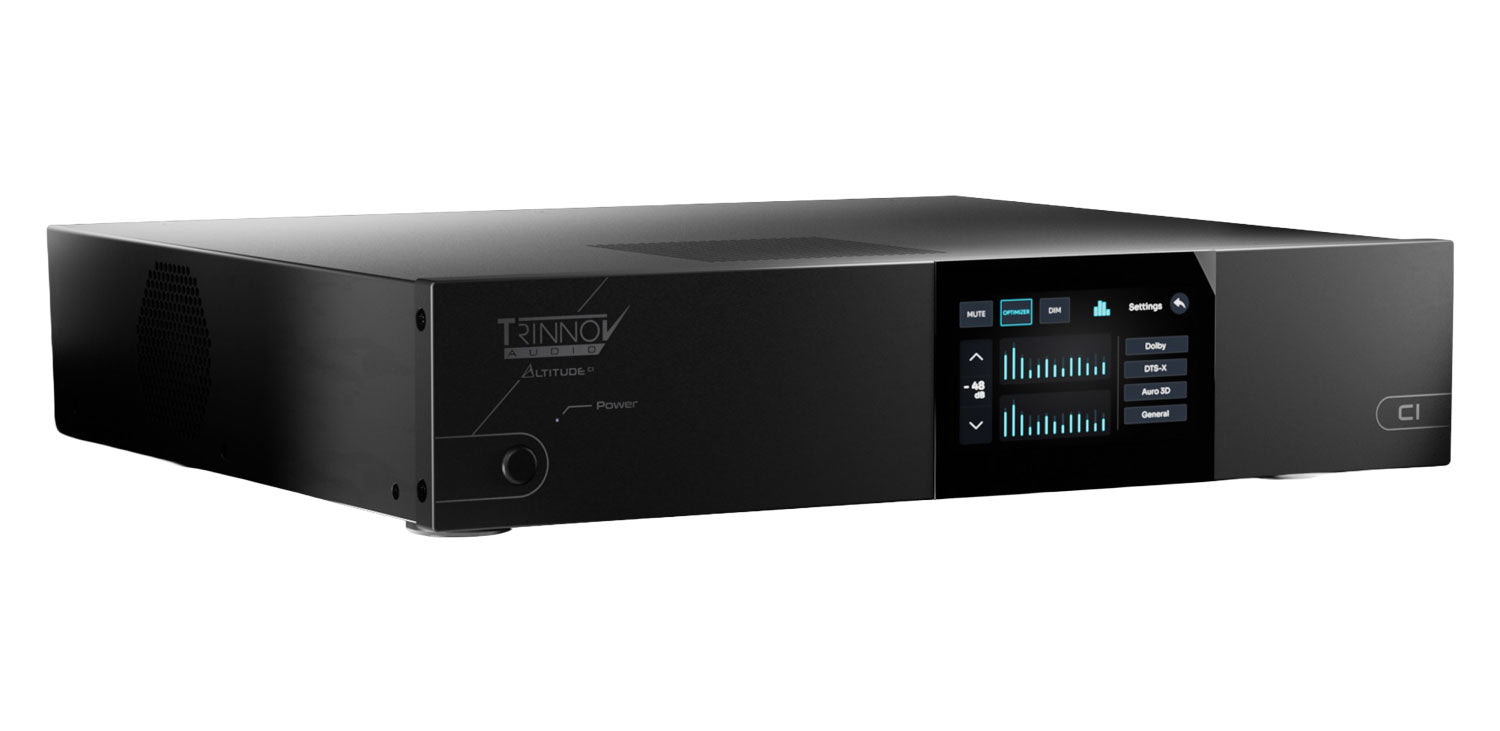

Front-Panel Touchscreen
Includes a built-in display for quick system access and monitoring. Makes on-site control and diagnostics simple and efficient.

Compact Rack-Mount Design
Housed in a space-saving chassis for clean installations. Fits easily into professional racks while maintaining a premium look.

Upgradeable and Future-Ready
Designed with software-based upgrades for long-term flexibility. Allows expansion and feature updates without replacing hardware.

Optimized for Digital Signal Chains
Pairs perfectly with compatible amplifiers for fully digital workflows. Reduces signal conversions and preserves audio quality throughout the system.

General Specifications
Device Type: Audio video processor
Compatibility: Dolby Atmos, DTS:X Pro, Auro-3D, IMAX Enhanced

Audio Processing
Decoding Channels: 24
Channel Count: 8 to 32 outputs configurable in 2-channel increments
Future Channel Capacity: Up to 64 channels
Processing Architecture: 64-bit floating point
Sample Rate: Up to 192 kHz

HDMI Connectivity
HDMI Inputs: 4
HDMI Outputs: 2
HDMI Version: 2.1 with HDCP 2.3
Max Bandwidth: 40 Gbps
8K Support: Up to 8K60 (4:2:0)
4K Support: Up to 4K120 (4:4:4)
HDR Formats: HDR10, HDR10+, Dolby Vision, HLG
Gaming Features: VRR, ALLM, FRL
ARC Support: ARC and eARC
Other Features: On-screen display, full pass-through

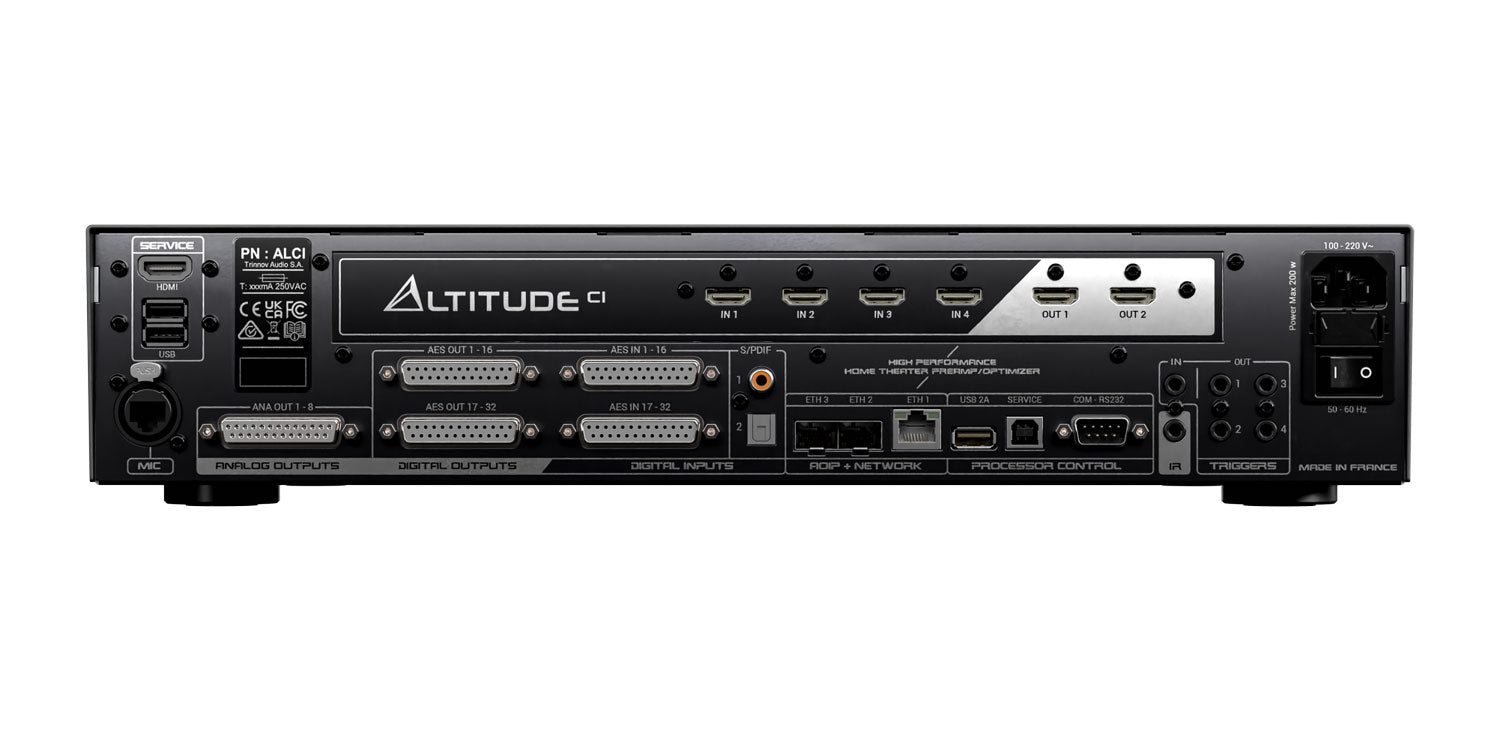

Audio Inputs
Dante Inputs: Up to 32 channels
AES/EBU Inputs: Up to 32 via 2x DB25
S/PDIF Inputs: 1 coaxial, 1 optical
3D Microphone Input: 1 Ethercon with power
Future AoIP Inputs: Up to 64 channels

Audio Outputs
Dante Outputs: Up to 32 channels
AES/EBU Outputs: Up to 32 via 2x DB25
Analog Outputs: 8 balanced via DB25
Analog Output Level: +18 dBu max
THD+N: 110 dB
Dynamic Range: 115 dB A-weighted
Routing: Any channel to any output
Output Types: Analog, digital, AoIP

Network & AoIP
AoIP Protocols: Dante, AES67
Ethernet Ports: 3 Gigabit
Port Types: 1 RJ45, 2 SFP
Networking Modes: Integrated switch, isolated, redundant
Dolby Server Compatibility: AES67 supported

Control & Integration
Control Interfaces: RS-232, IP, IR
IR Input: 3.5 mm jack
Trigger Outputs: 4 programmable
Trigger Input: 1
Control Platforms: Crestron, Control4, Savant, RTI, AMX, Nice, AVA
User Interface: Web UI, macOS, Windows
Mobile Apps: iOS, Android
Front Panel: 5-inch touchscreen
Remote Management: Cloud access

Audio Optimization
Technologies: Optimizer, WaveForming, Remapping
Calibration: Guided setup workflow
Microphone Support: 3D measurement microphone

Streaming & Playback
Roon: Ready
UPnP Formats: FLAC, WAV, MP3, OGG
Audirvana: Supported

Power & Thermal
Power Supply: 100 to 240 V auto-switching
Max Power Consumption: 140 W
Idle Power Consumption: 0.5 W
Cooling: Temperature-controlled fans
Heat Output: 480 BTU/hr
Fuse: 2x T800 mA

Chassis & Dimensions
Form Factor: 2RU rack mount
Width: 482 mm
Height: 97 mm
Depth: 371 mm
Weight: 8.6 kg
Construction: Aluminum with glass front panel
