TRINNOV AUDIO

NOVA Bundle 4

Monitoring Controls

Digital audio processor bundle, 4-channel room optimization, 3D Ethernet microphone, remote controller, Dante 16x16 audio interface

$8,420.00 CAD
Shipping calculated at checkout.
Want an alert when this item is on sale?

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Flexiti

Enjoy flexible financing options, including 0% financing on selected products. Quick application and convenient payment plans available.
Click here for more info.


Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.


Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

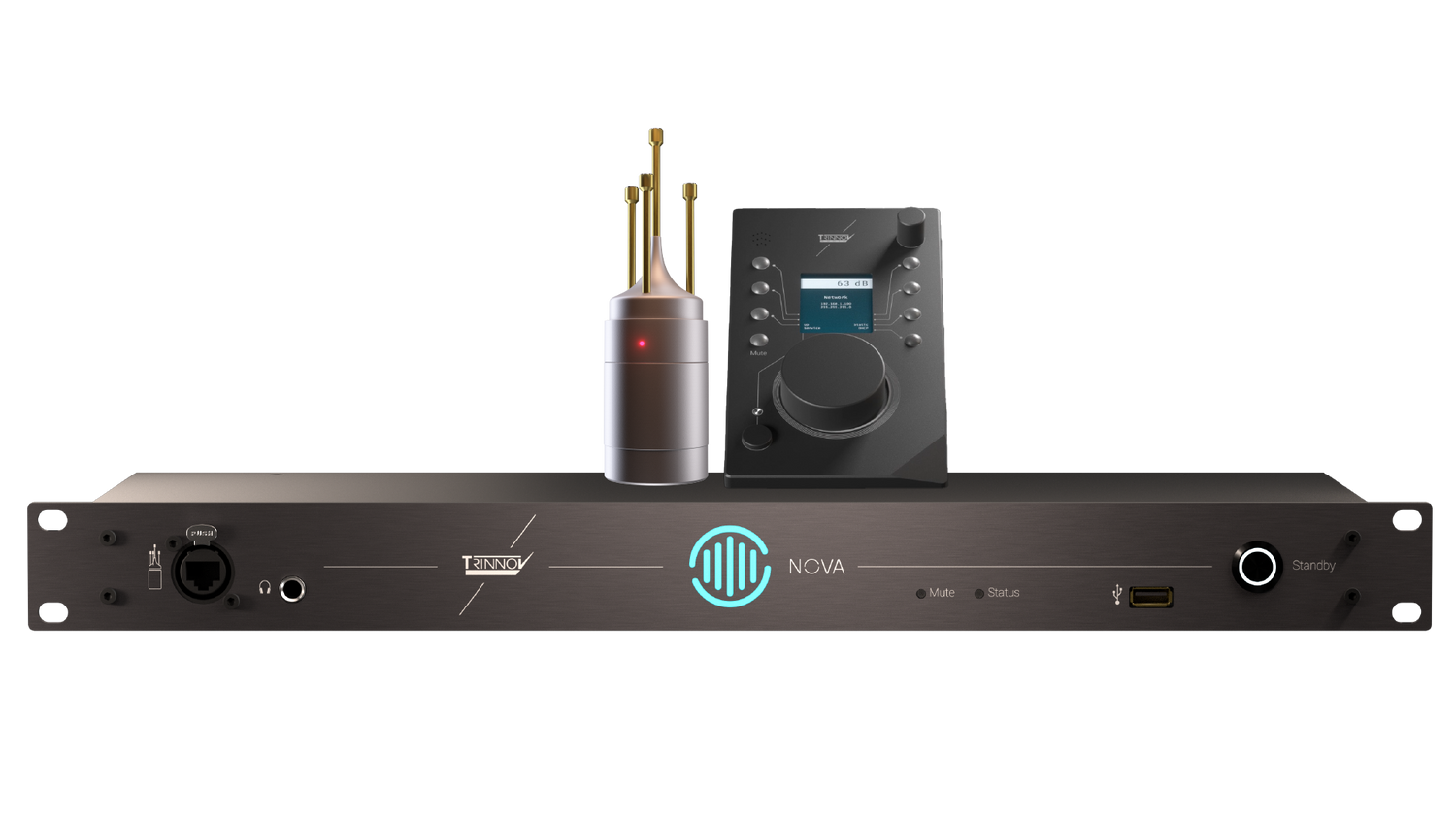

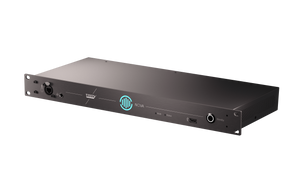

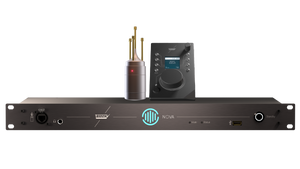

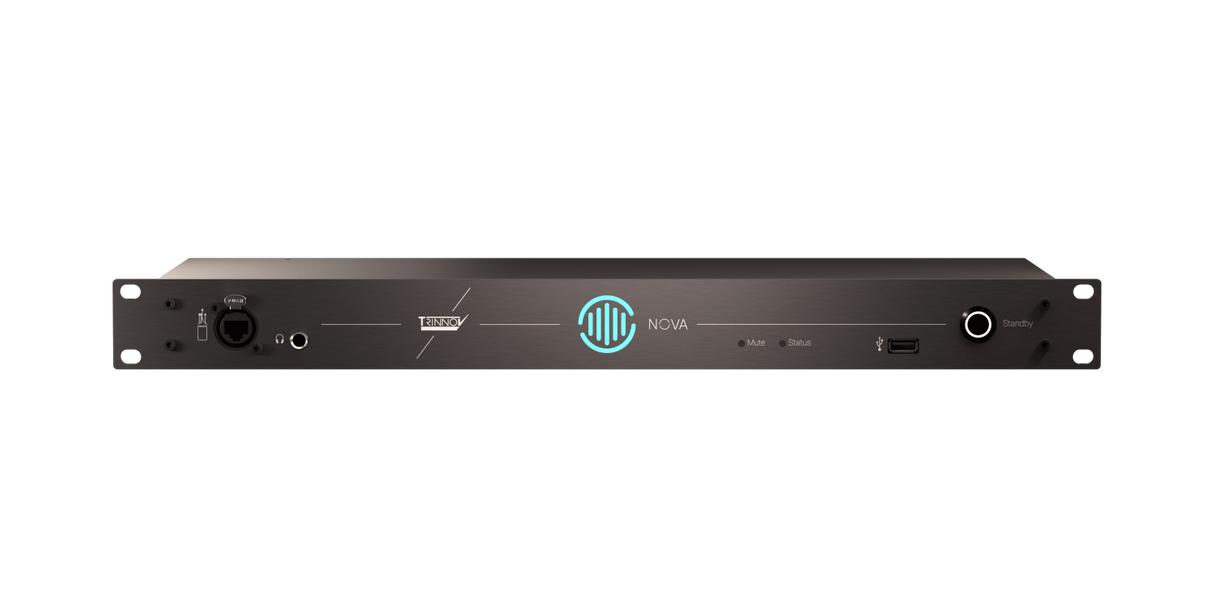

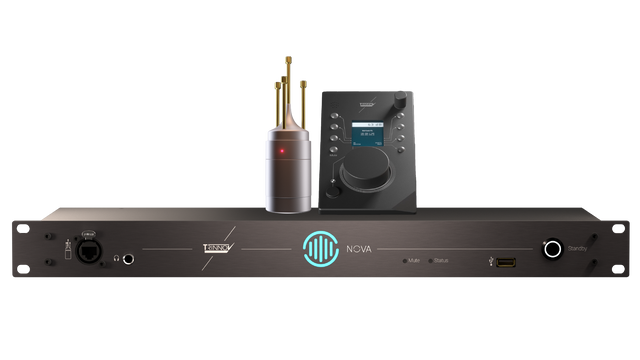

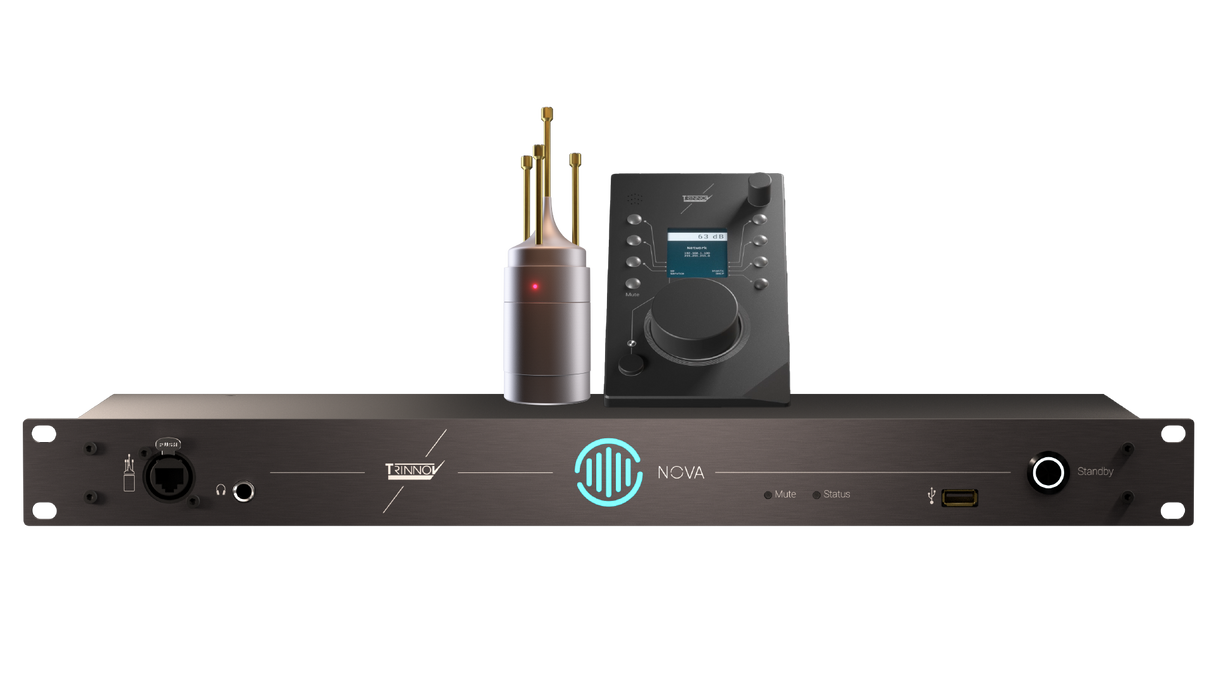

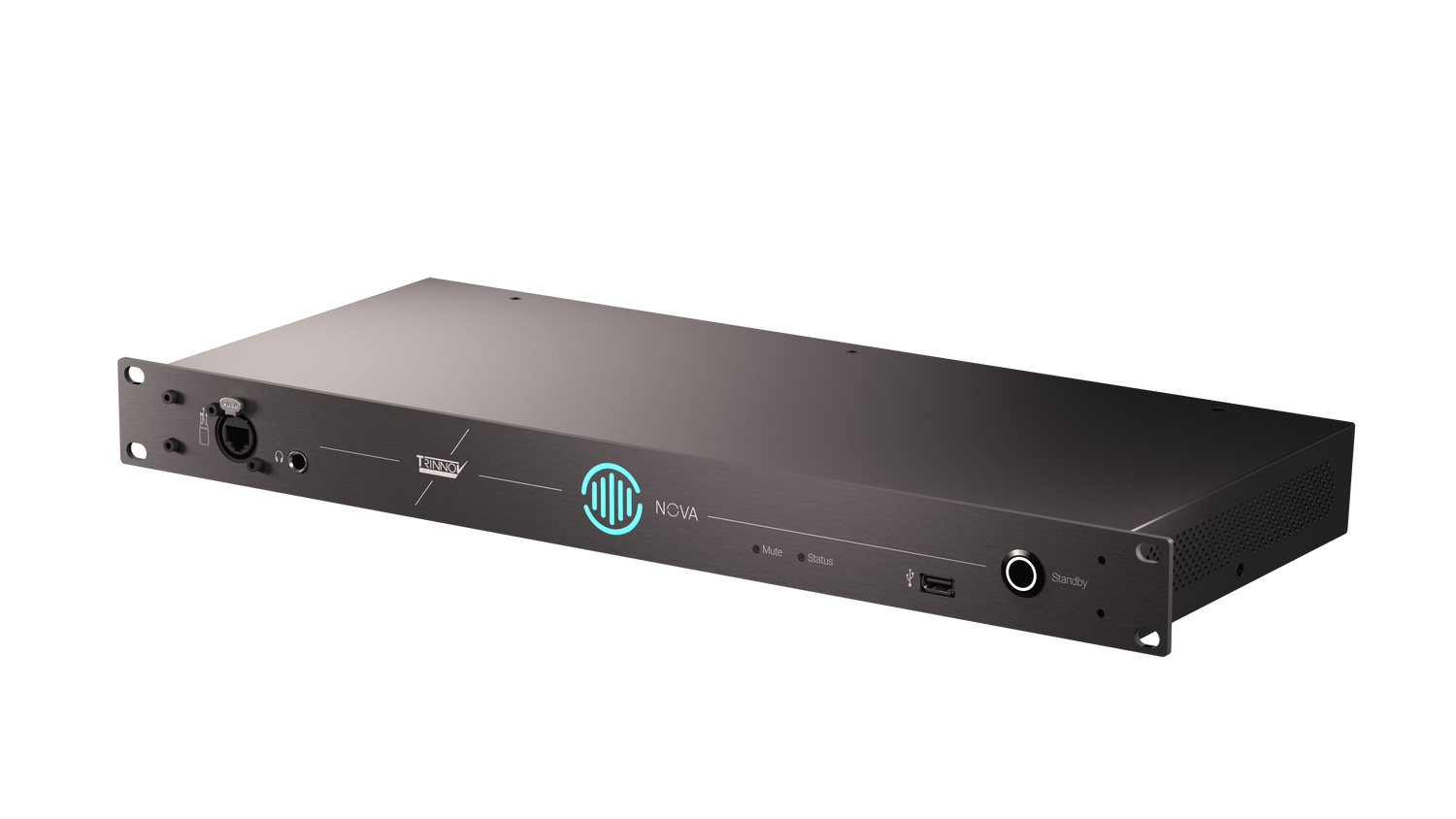

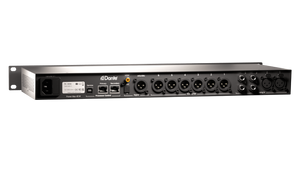

The Trinnov NOVA Bundle 4 is a complete monitoring and room-optimization package for studios that need precise control over up to four optimized loudspeaker channels. It combines the NOVA processor, a 3D Microphone ETH, La Remote, and one pair of additional OPT channels, expanding NOVA from its standard two-channel Optimizer license to four channels. NOVA brings Trinnov’s loudspeaker and room correction technology together with comprehensive analog and digital connectivity, a 16-in/16-out Dante interface, monitor control, headphone monitoring, source management, downmixing, and flexible routing in a compact 1U format.

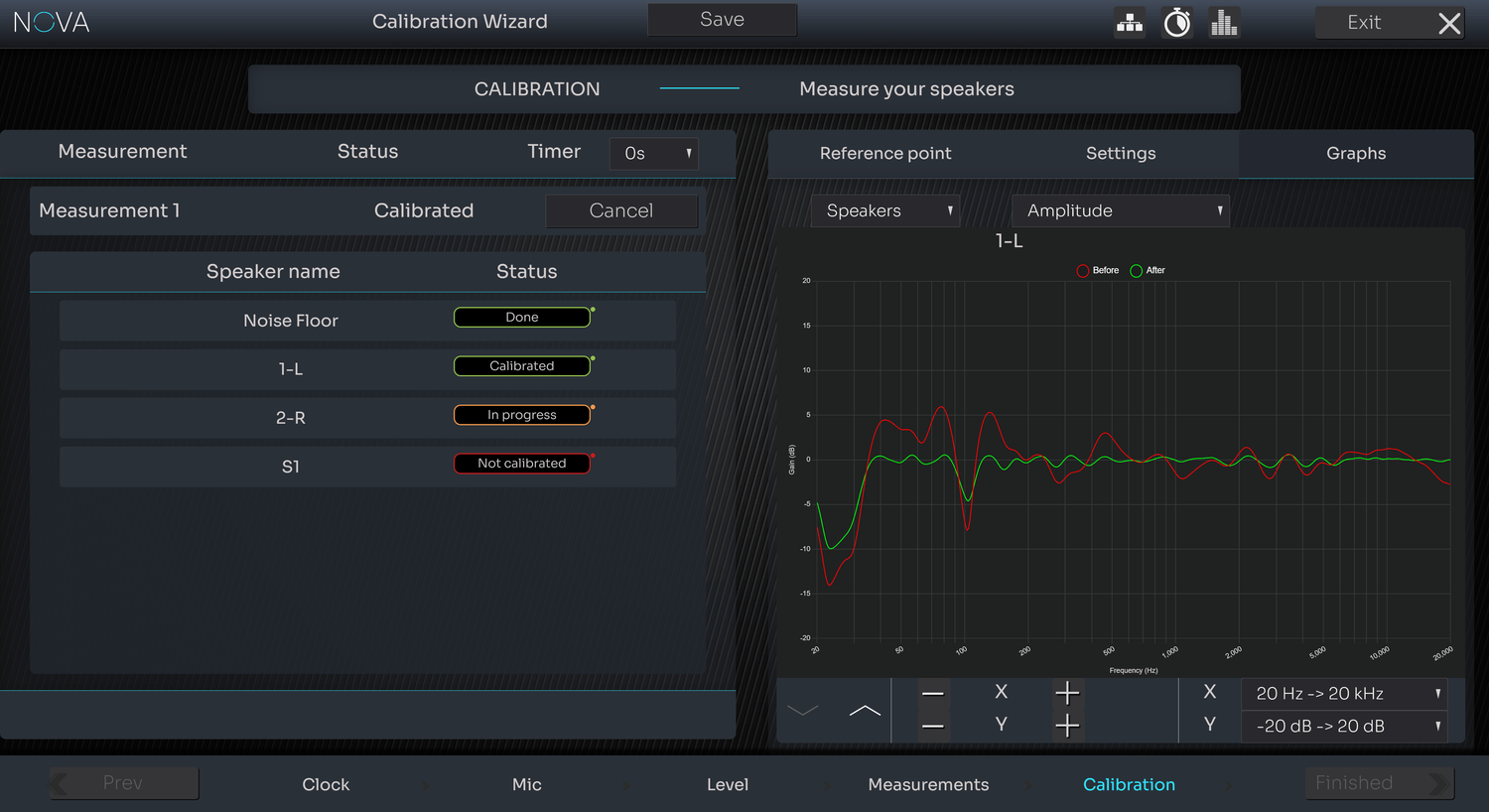

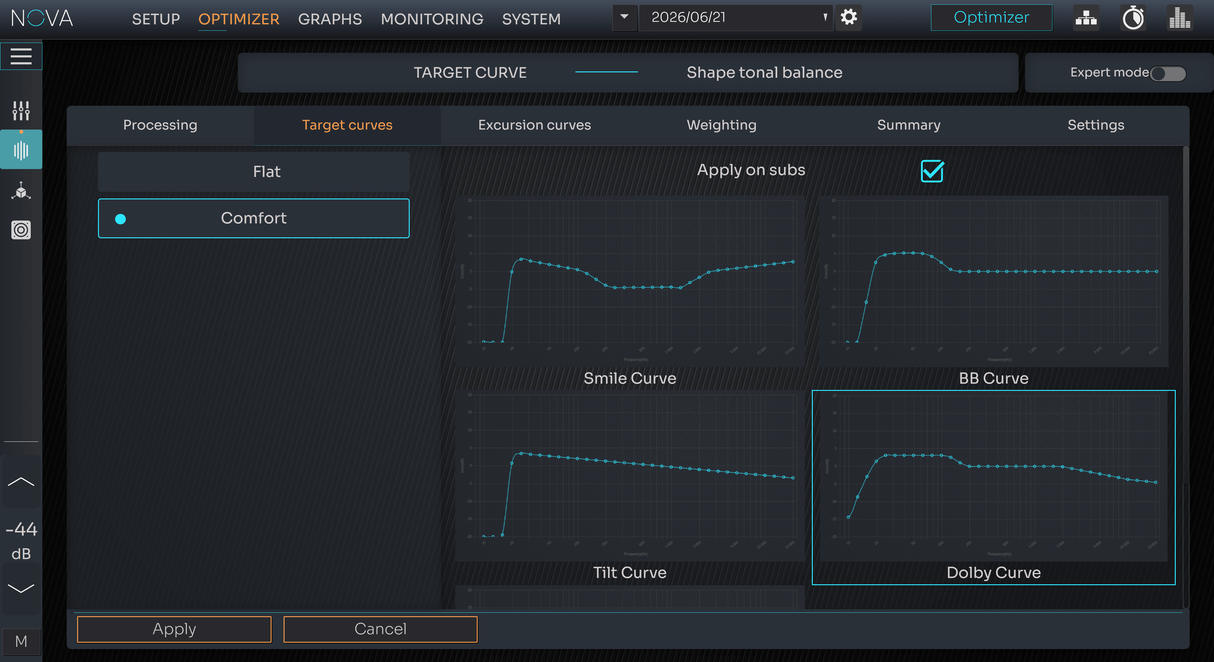

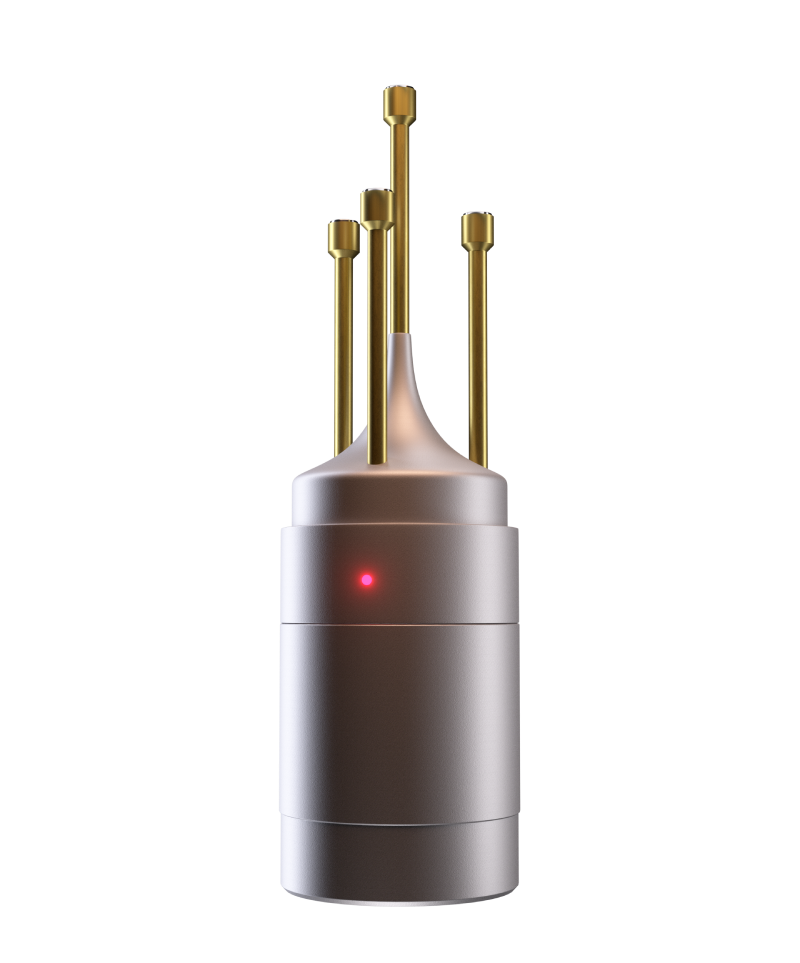

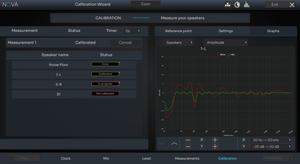

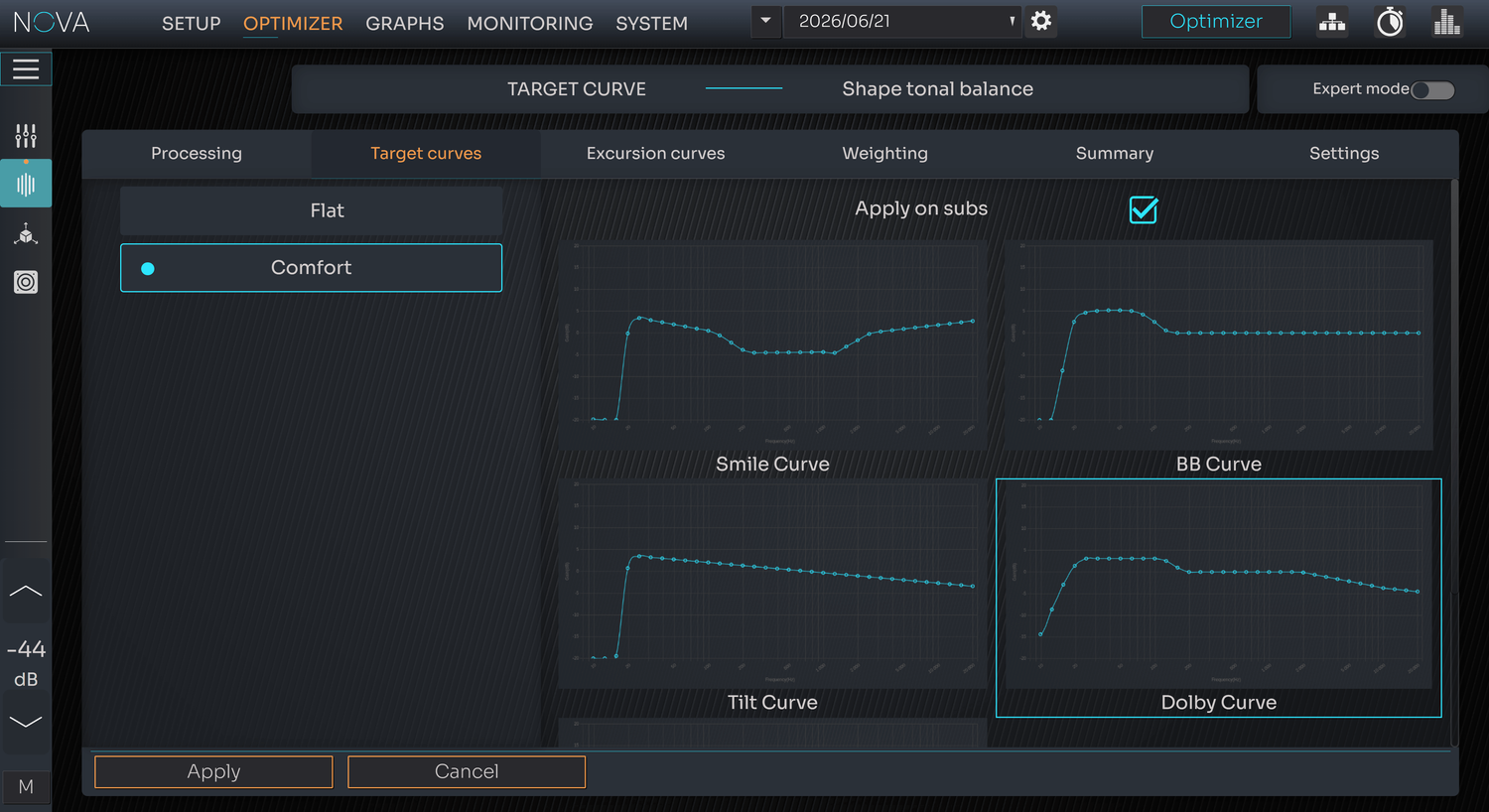

Calibration is handled with the included Trinnov 3D Microphone ETH, which connects directly to NOVA and allows the system to measure loudspeaker position, level, timing, phase, and room response before applying Trinnov Optimizer correction. Guided configuration and calibration workflows in the Trinnov App help make setup approachable, while more advanced controls allow users to refine target curves, bass management, filtering, and other optimization parameters as needed.

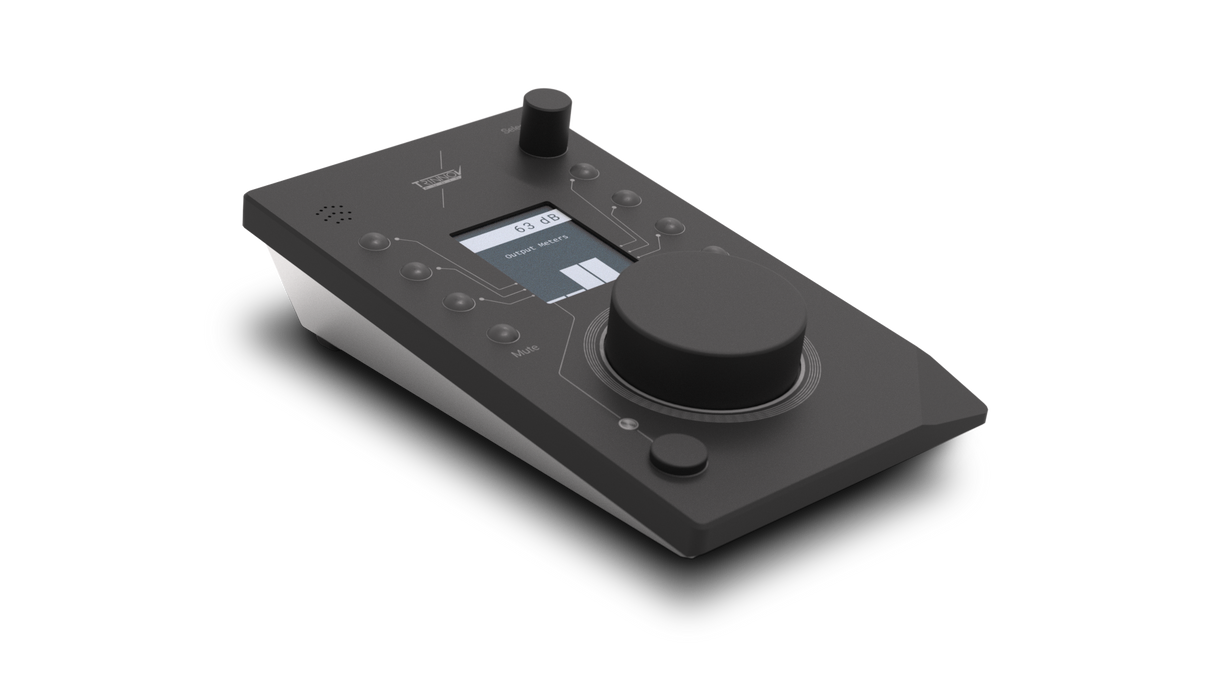

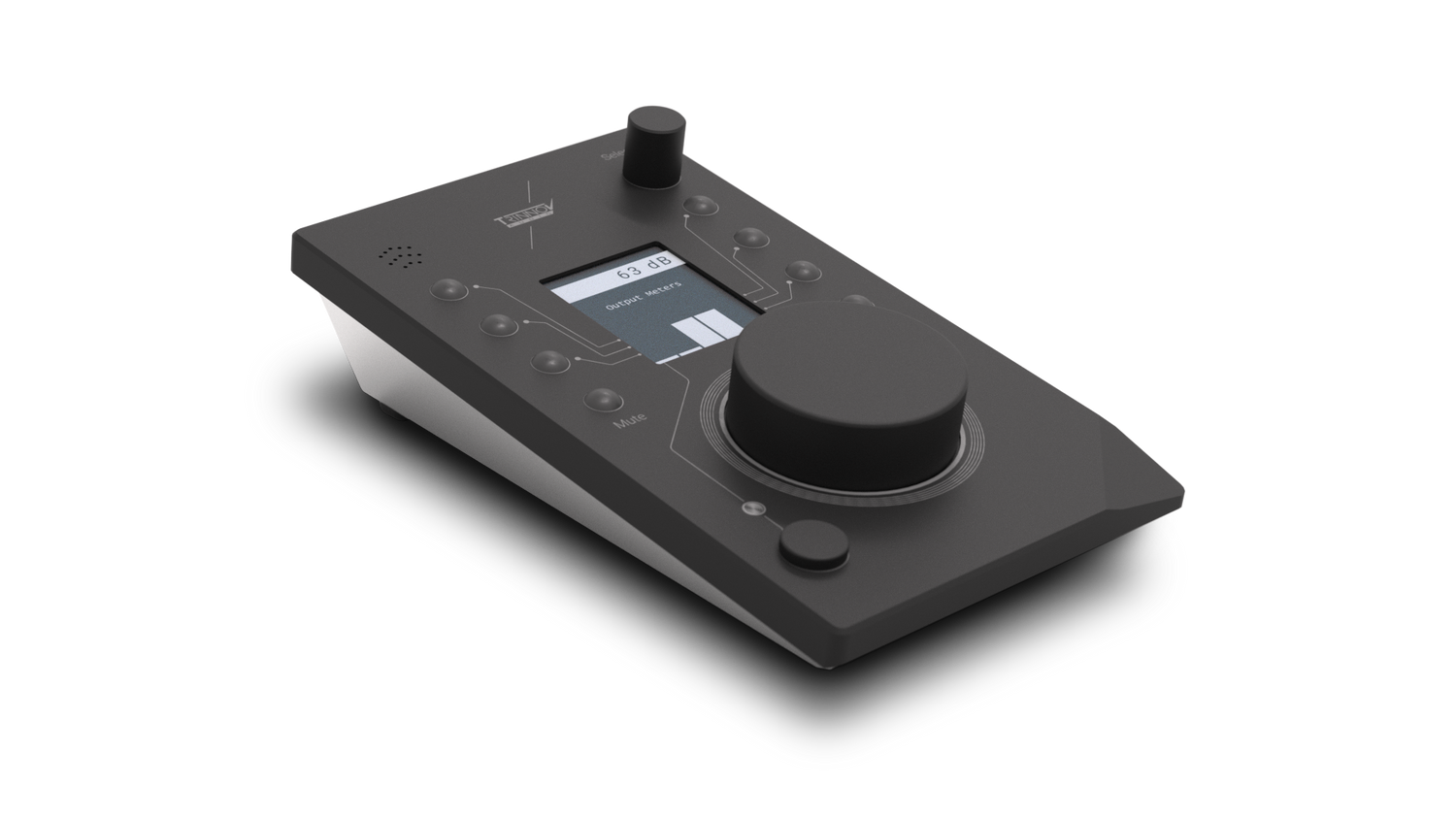

The included La Remote provides hands-on access to everyday monitoring functions without relying on a computer screen. Its central volume control and dedicated mute button are complemented by eight assignable buttons and multiple customizable layers, allowing frequently used NOVA functions such as source selection, speaker control, presets, headphone level, and monitoring commands to stay close at hand. Together, the components in the NOVA Bundle 4 provide an integrated solution for accurate monitoring, room correction, calibration, and day-to-day studio control.

Features

Complete Monitoring Bundle
Combines the NOVA processor, Trinnov measurement microphone, La Remote, and expanded Optimizer capability in one integrated package.

Trinnov Room Optimization
Analyzes the loudspeakers and room together to improve tonal balance, timing, imaging, and overall monitoring accuracy.

Expanded Speaker Optimization
Adds additional Optimizer capability beyond the standard NOVA configuration, making it suitable for more advanced monitoring setups.

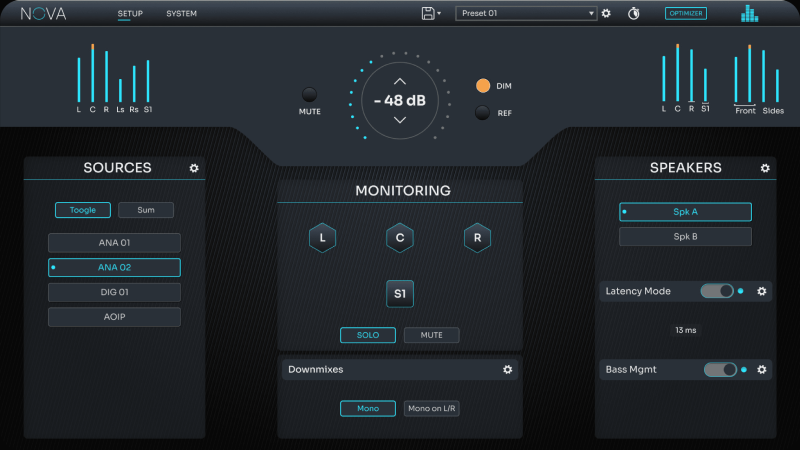

Professional Monitor Control
Manage sources, speaker sets, volume, mute, dim, reference levels, solo, and other essential monitoring functions from one system.

3D Acoustic Measurement
The included Trinnov microphone captures detailed room and loudspeaker information for precise calibration and correction.

Dedicated Hardware Remote
La Remote provides immediate hands-on access to monitoring controls without relying on a computer interface.

Customizable Remote Controls
Assign NOVA functions to La Remote buttons and organize them across different control layers to match your workflow.

Flexible Audio Connectivity
Supports analog, digital, and network audio sources for easy integration into modern studio environments.

Dante Integration
Connect NOVA to Dante-based studio networks for flexible audio routing between compatible devices.

Headphone Monitoring
Provides dedicated headphone monitoring with independent source and level control.

Speaker and Source Switching
Quickly move between configured monitoring systems and audio sources from the NOVA interface or La Remote.

Downmix Monitoring
Check how your work translates to simpler playback formats without changing your main mix.

Guided Setup and Calibration
Built-in setup and calibration workflows simplify configuration and help get the monitoring system optimized quickly.

Preset Management
Save and recall complete monitoring configurations for different rooms, workflows, or production requirements.

Quiet Studio Operation
The fanless processor design helps keep the listening environment free from unnecessary mechanical noise.

Specifications

General Specifications
Device Type: Compact digital audio processor bundle
Rack Format: 1U, 19-inch
Loudspeaker/Room Optimization Channels: 4
Optimization Technology: Trinnov Optimizer
Monitoring Functions: Integrated
Bass Management: Supported
Fan Cooling: Fanless

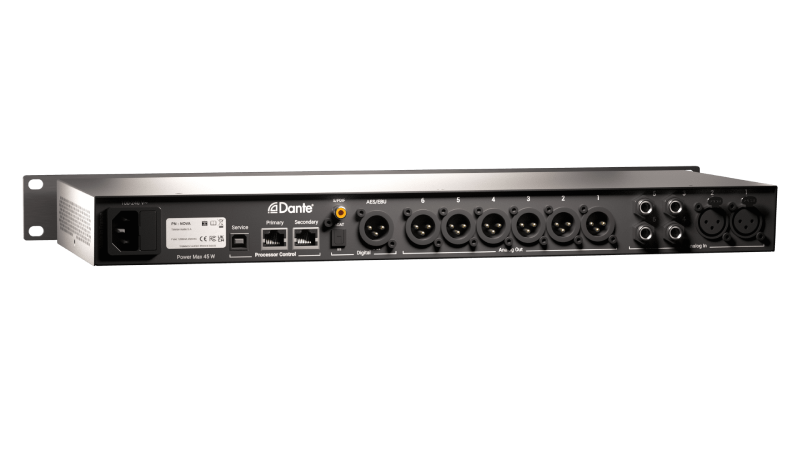

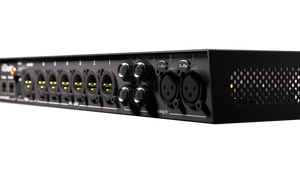

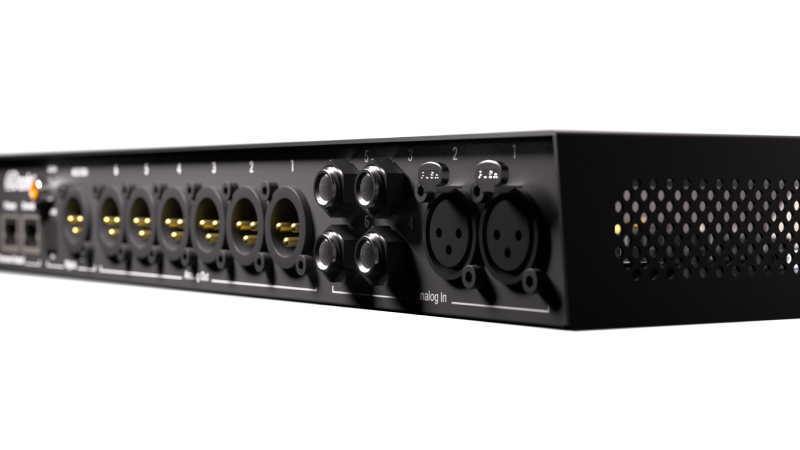

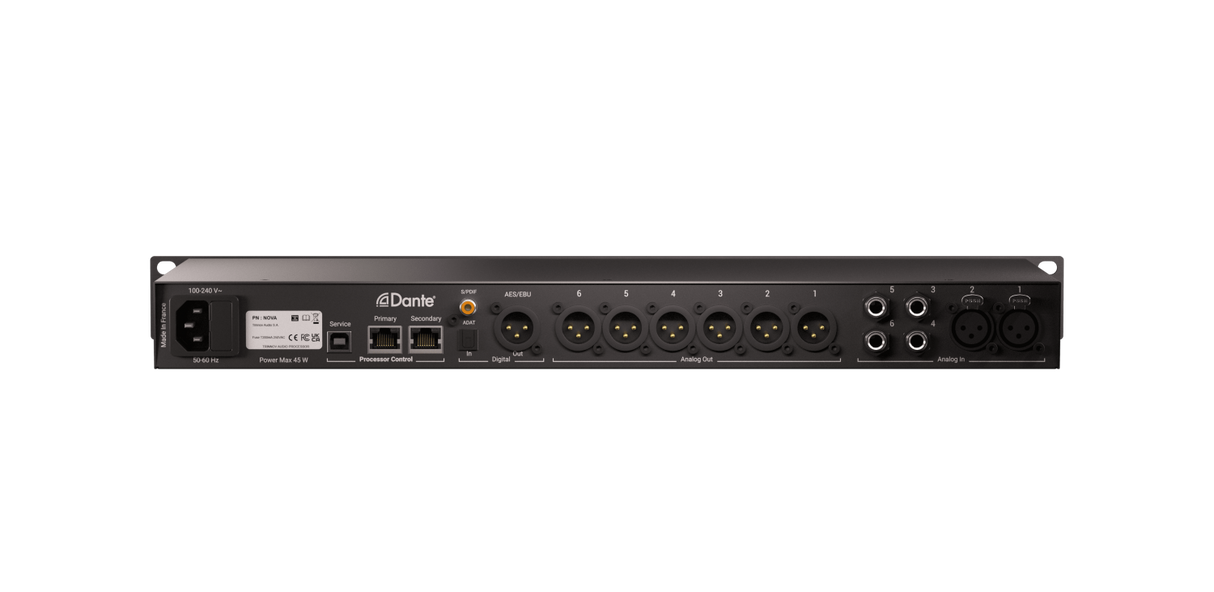

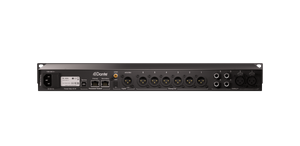

Audio Inputs and Outputs
Analog Inputs: 2 x XLR, 4 x TRS
Analog Outputs: 6 x balanced XLR
Digital Inputs: Coaxial S/PDIF, Optical S/PDIF/ADAT
Digital Output: AES/EBU
Headphone Output: Dedicated front-panel output
Measurement Microphone Input: Front-panel etherCON
La Remote Connection: Front-panel USB
Service Connection: USB-A
Optical Input Modes: S/PDIF, ADAT
ADAT SMUX: Up to 96 kHz

Dante and Networking
Dante Audio Interface: 16 inputs x 16 outputs
Ethernet Ports: 2 x RJ45
Ethernet Speeds: 100 Mbps, 1000 Mbps
Network Modes: Switched, Redundant, Isolated
Maximum Ethernet Cable Length: 100 m with Cat 6e

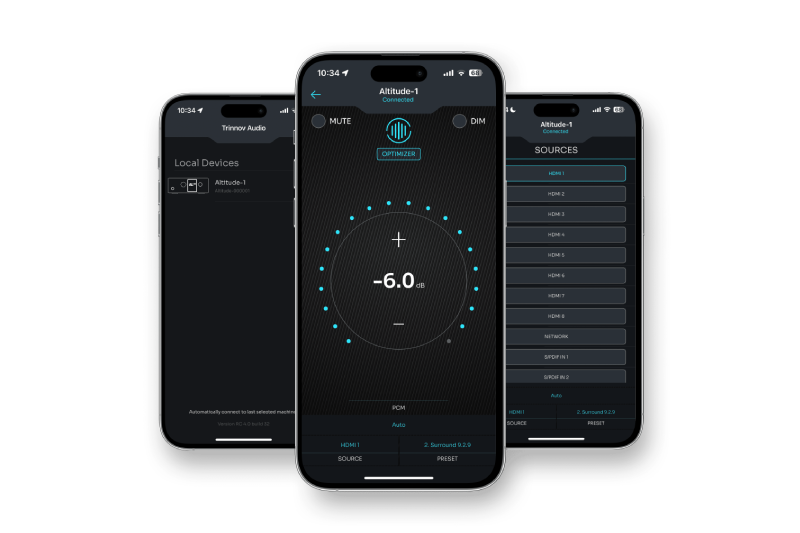

Network Control: Trinnov App
Dante Audio over IP: 1 Gbps network required

Digital Audio
Supported Internal Sample Rates: 44.1 kHz to 192 kHz
Default Sample Rate: 48 kHz
Calibration Sample Rate: 48 kHz
Clocking: Internal or external
External Clock Behavior: Automatic sampling-rate synchronization

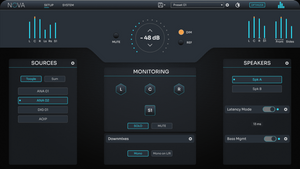

Monitoring and Control
Speaker Set Control: Supported
Speaker Solo/Mute: Supported
Downmixes: Supported
Reference Level Recall: Supported
Dim: Supported
Presets: Supported
Direct Outputs: Zero-processing-delay, unity-gain, unprocessed
Control Compatibility: La Remote, Trinnov App, EuCon, Stream Deck plugin
La Remote Configuration: Fully customizable buttons and layers

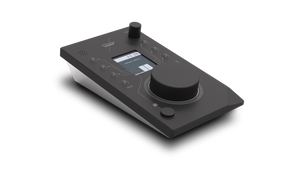

La Remote
Main Controls: Central volume knob, selection knob, fixed mute button
Assignable Controls: 8 buttons
Control Layers: Multiple user-definable layers
Connection: USB
Power: USB powered
Maximum Current Consumption: 200 mA
USB Standard: USB 1.1 Full Speed
Recommended Maximum USB Cable Length: 3 m
Built-in Microphone: Talkback microphone

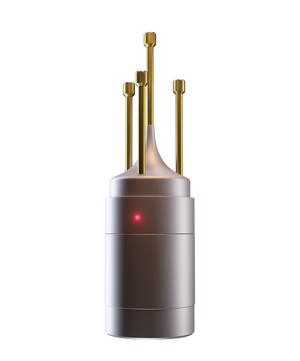

Measurement Microphone
Microphone Type: 3D Microphone ETH
Processor Connection: etherCON
Cable Length: 10 m
Automatic Detection: Supported
Automatic Compensation Profile Import: Supported
Microphone Stand Adapter: Included
Shock Mount: Included

Electrical
AC Input: 100–240 V AC
Power Inlet: IEC C14
Power Supply: Internal switch-mode
Power Supply Filtering: Built-in inline filter
Voltage Regulation: Supported
Mains Interference Suppression: Supported
Fuse Type: T500mA

Environmental Requirements
Operating Temperature: 0 °C to 40 °C
Relative Humidity: 20–65%
Maximum Internal Temperature Threshold: 85 °C

Dimensions and Weight
Processor Width: 440 mm
Processor Depth: 192 mm
Processor Height: 44 mm
Processor Net Weight: 2.5–2.6 kg
Processor Gross Weight: 4 kg
Processor Box Dimensions: 59 x 9 x 31 cm
Microphone Net Weight: 0.8 kg
Microphone Gross Weight: 1 kg
Microphone Box Dimensions: 24 x 16 x 8 cm
La Remote Net Weight: 1.0 kg
La Remote Gross Weight: 1.2 kg
La Remote Width: 105 mm
La Remote Length: 187 mm
La Remote Maximum Height: 62.38 mm

Included Components
Digital Audio Processor: 1
3D Microphone ETH: 1
La Remote: 1
Optimization Channel Pairs: 1
Processor Protection Bag: 1
Power Cord: 1
Cat5e Network Cable: 1
Quick Start Guide: 1
Microphone Cable: 10 m
Microphone Stand Adapter: 1
Microphone Shock Mount: 1
