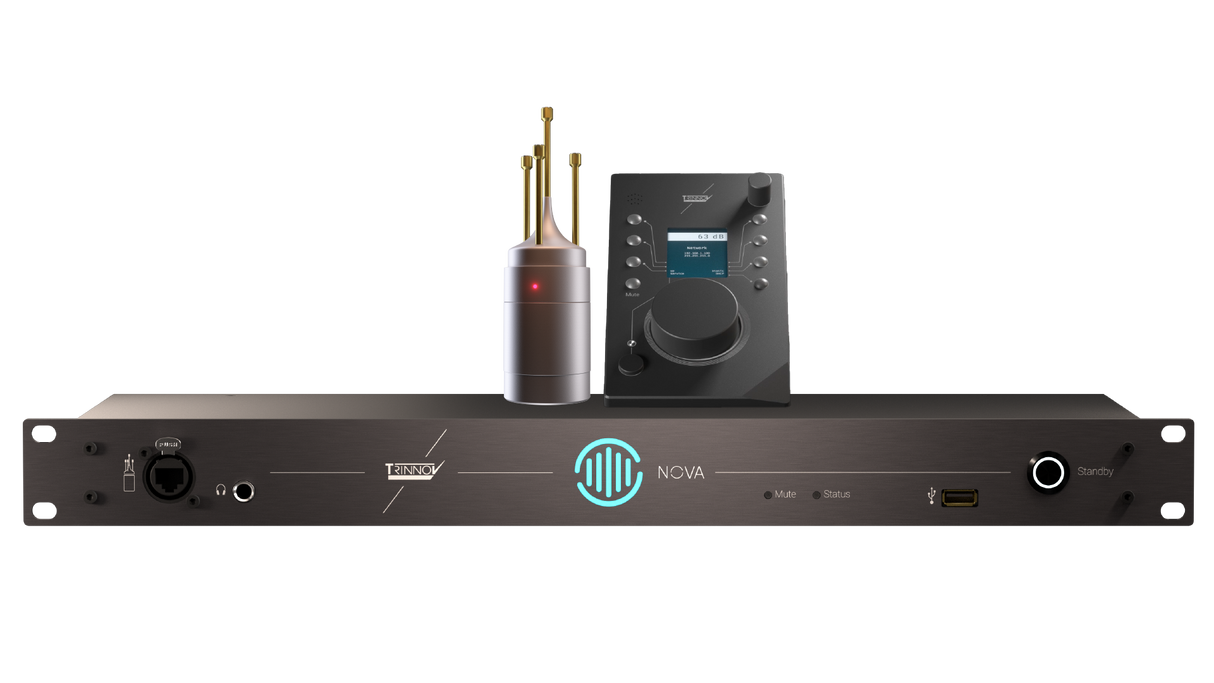

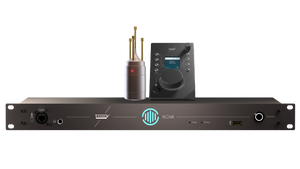

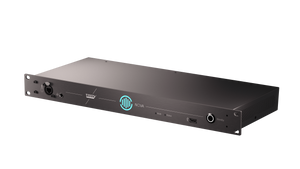

NOVA Bundle 6

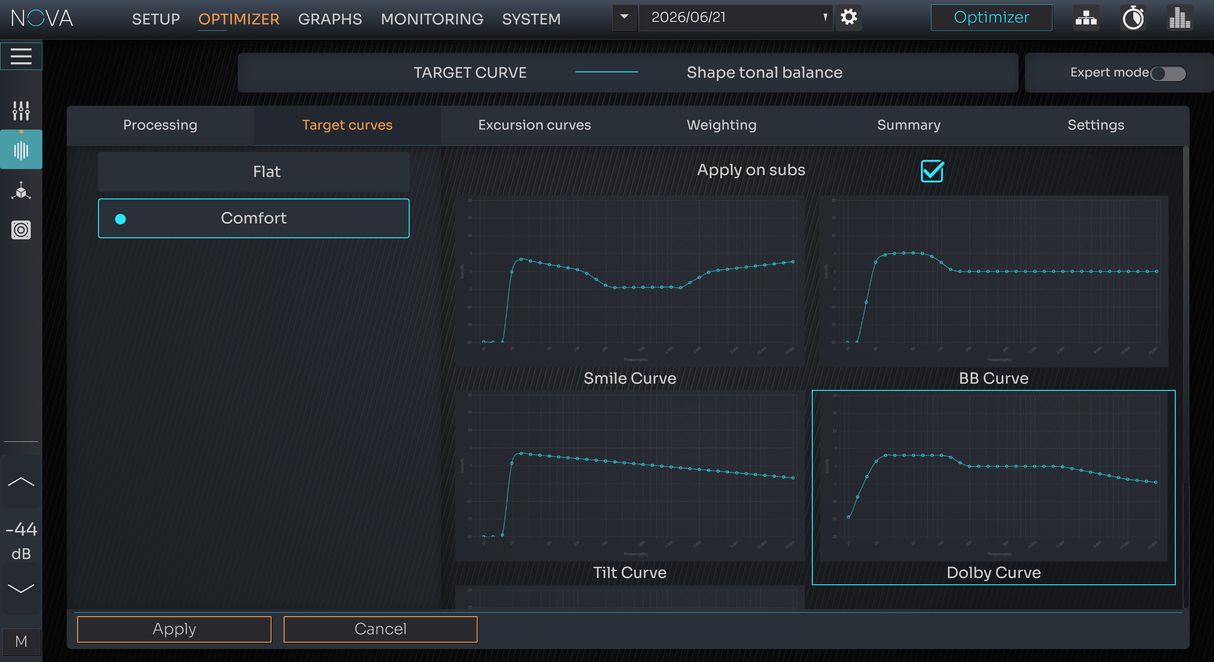

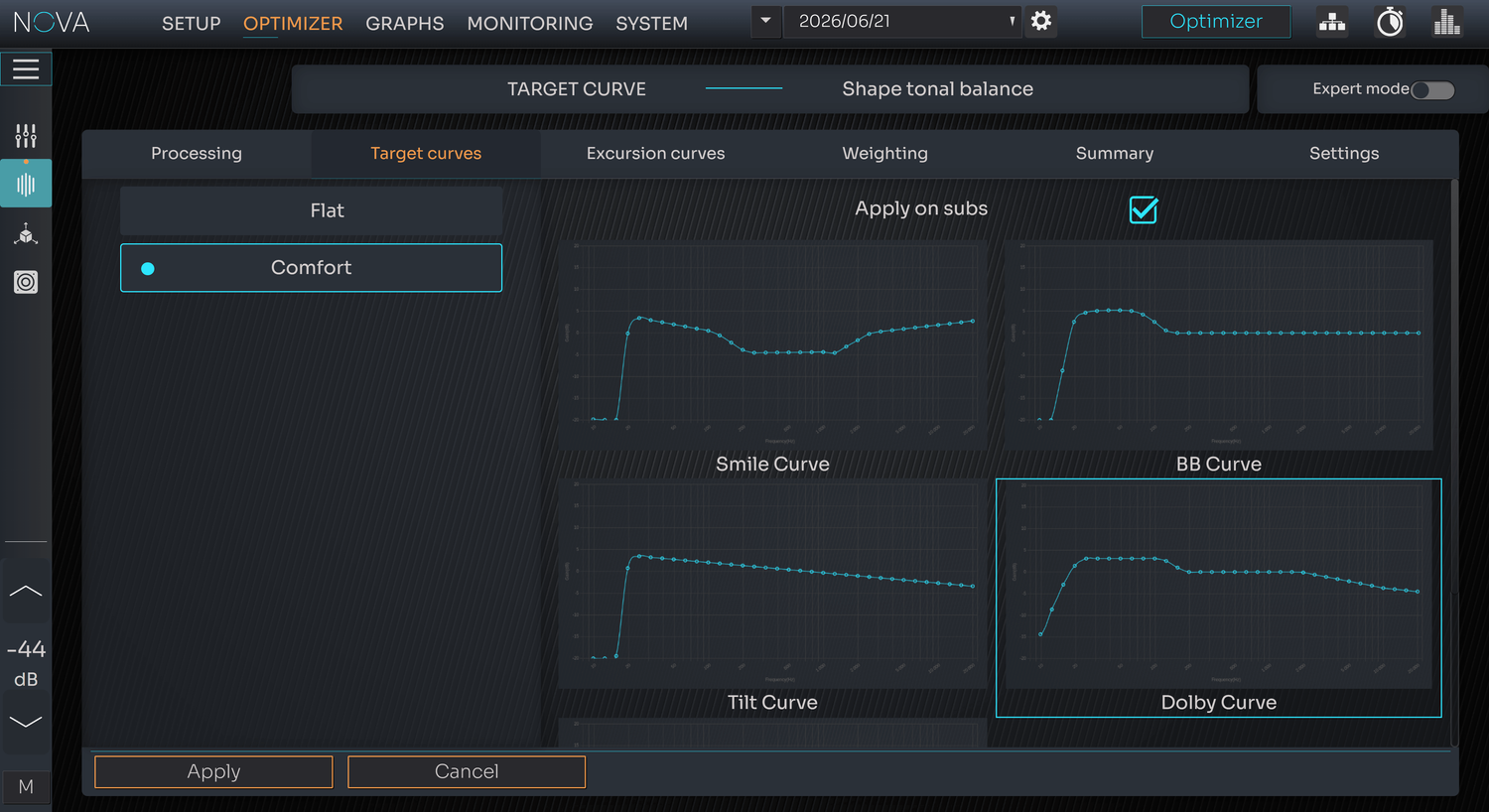

Trinnov Optimizer
Automatically analyzes and corrects loudspeaker and room behavior to provide more accurate, consistent monitoring.

Expanded Speaker Optimization
Provides additional Optimizer capability for larger monitoring systems and more advanced studio configurations.

3D Acoustic Calibration
The included Trinnov measurement microphone captures detailed acoustic information for precise speaker and room calibration.

Automatic Microphone Recognition
NOVA detects the measurement microphone and applies its calibration profile automatically for a streamlined setup process.

Integrated Monitor Control
Manage listening levels, mute, dim, reference level, sources, speaker sets, and other everyday monitoring functions from one system.

Flexible Source and Speaker Management
Quickly switch between configured sources and monitoring systems without changing your studio workflow.

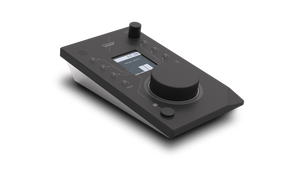

La Remote Control
The included hardware controller provides immediate hands-on access to volume, mute, monitoring functions, and customizable shortcuts.

Customizable Remote Layouts
Assign NOVA functions to La Remote buttons and create multiple control layers for different workflows.

Analog and Digital Connectivity
Connect a wide range of studio equipment through NOVA’s integrated analog, digital, and network audio connections.

Dante Audio Integration
Connect NOVA to compatible network-based audio systems for flexible studio routing and integration.

Headphone Monitoring
Use the dedicated headphone output with independent source and level control for convenient personal monitoring.

Speaker Solo and Mute
Quickly isolate or mute individual speakers to inspect channels and troubleshoot a mix.

Downmix Monitoring
Check how a mix translates to simpler playback formats directly from the monitoring controls.

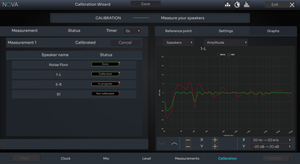

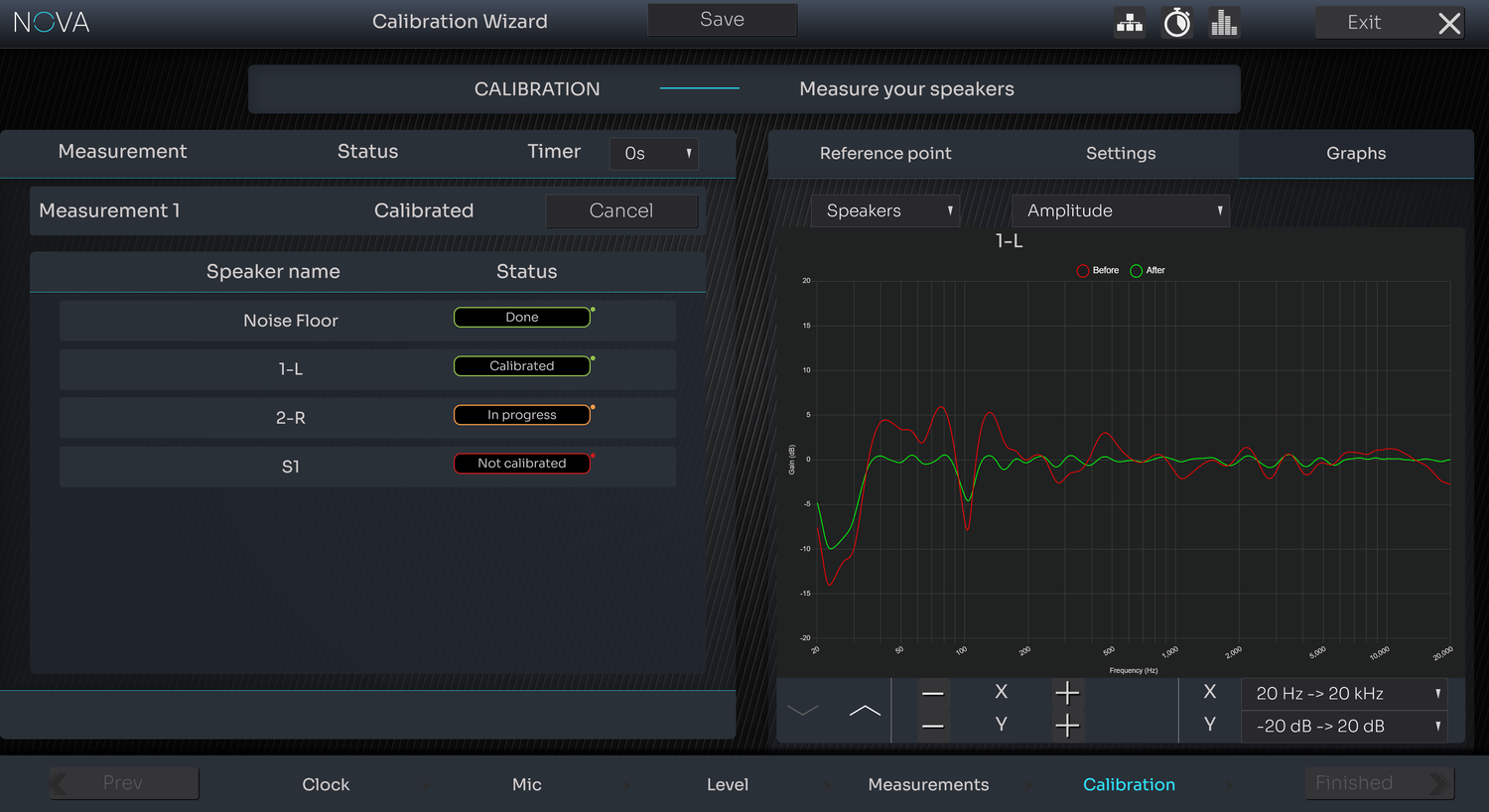

Guided Setup and Calibration
Step-by-step configuration and calibration tools simplify initial setup and help get the monitoring system optimized quickly.

Preset Management
Save and recall complete monitoring configurations, including routing, calibration, and Optimizer settings.

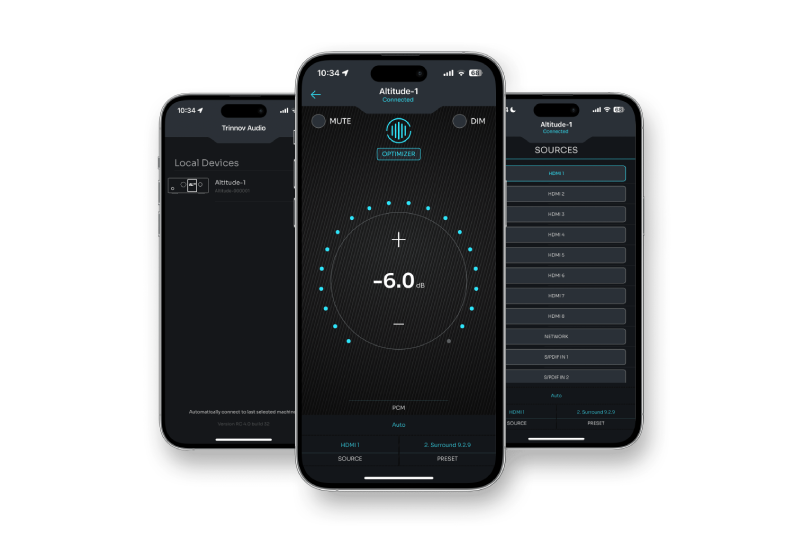

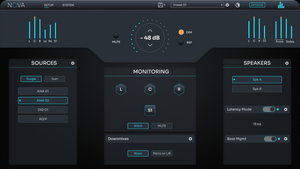

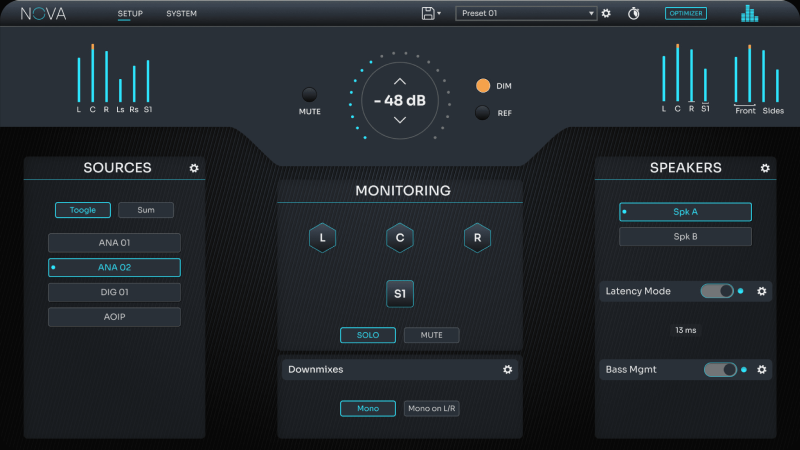

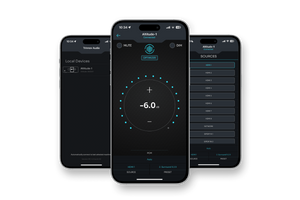

App-Based Control
Control and configure NOVA through the Trinnov application for an intuitive software-based workflow.

Professional Control Integration
Works with supported studio control platforms for easier integration into established production environments.

Quiet Studio Operation
The fanless design helps keep mechanical noise out of critical listening environments.

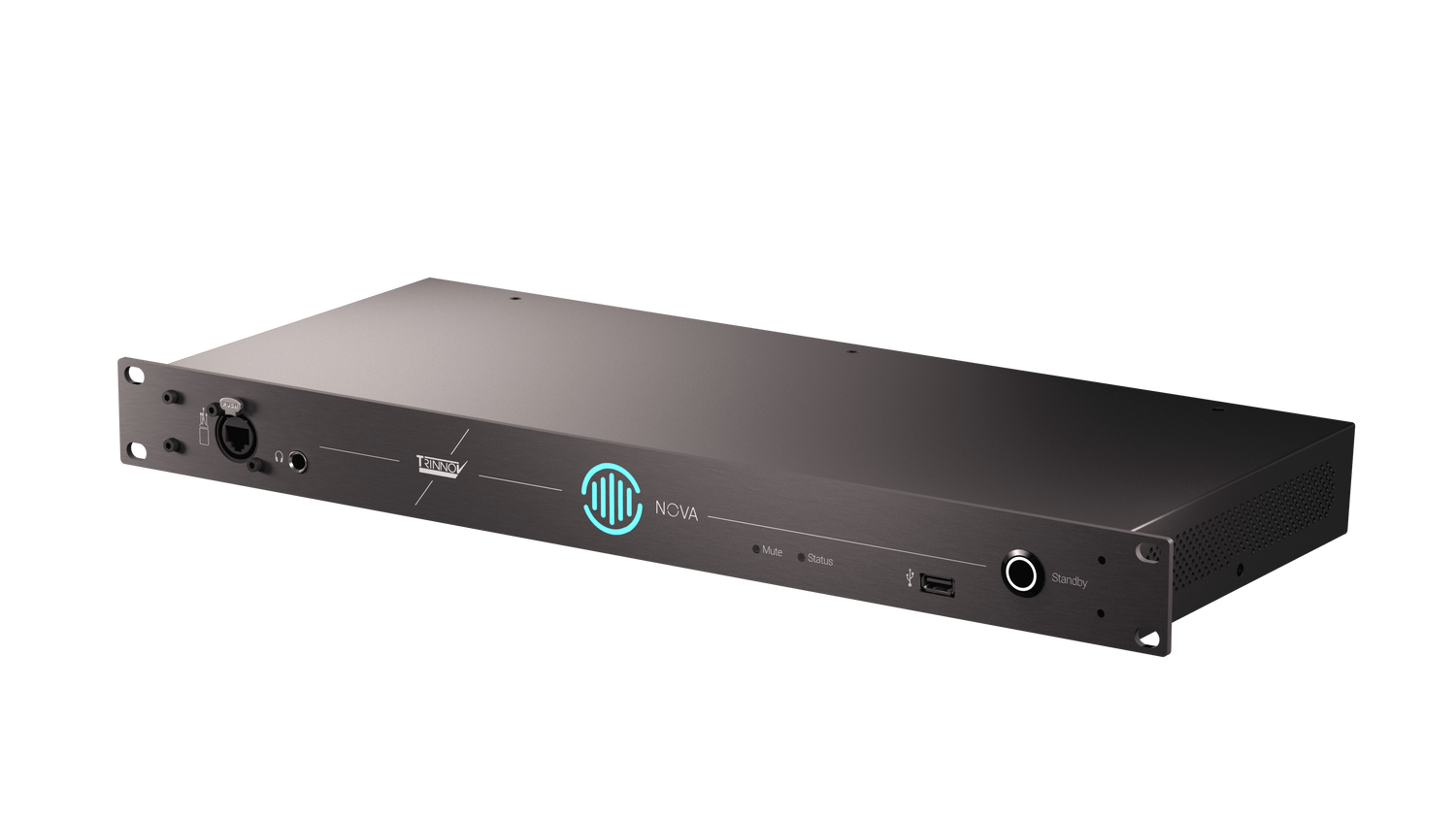

General Specifications
Device Type: Compact digital audio processor bundle
Rack Format: 1U, 19-inch
Loudspeaker/Room Optimization Channels: 6
Optimization Technology: Trinnov Optimizer
Monitoring Functions: Integrated
Bass Management: Supported
Fan Cooling: Fanless

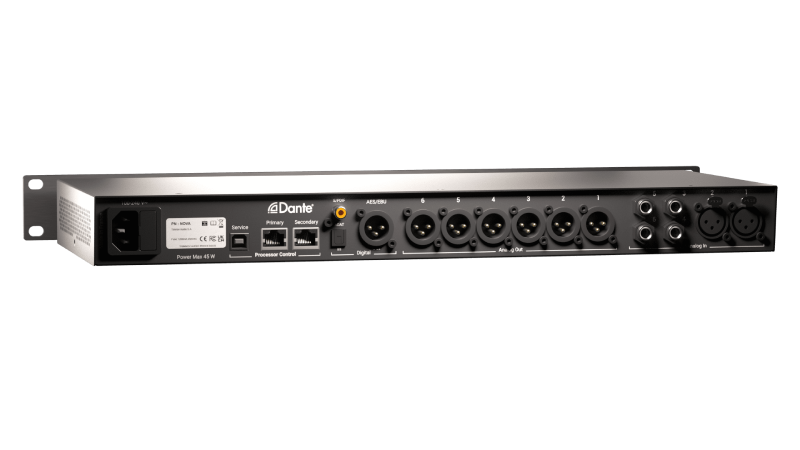

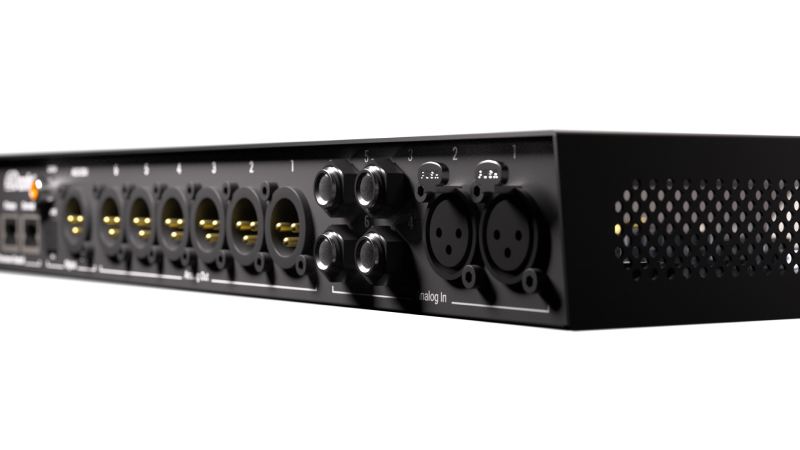

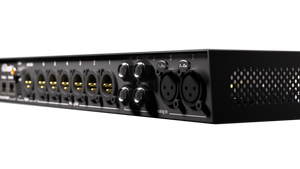

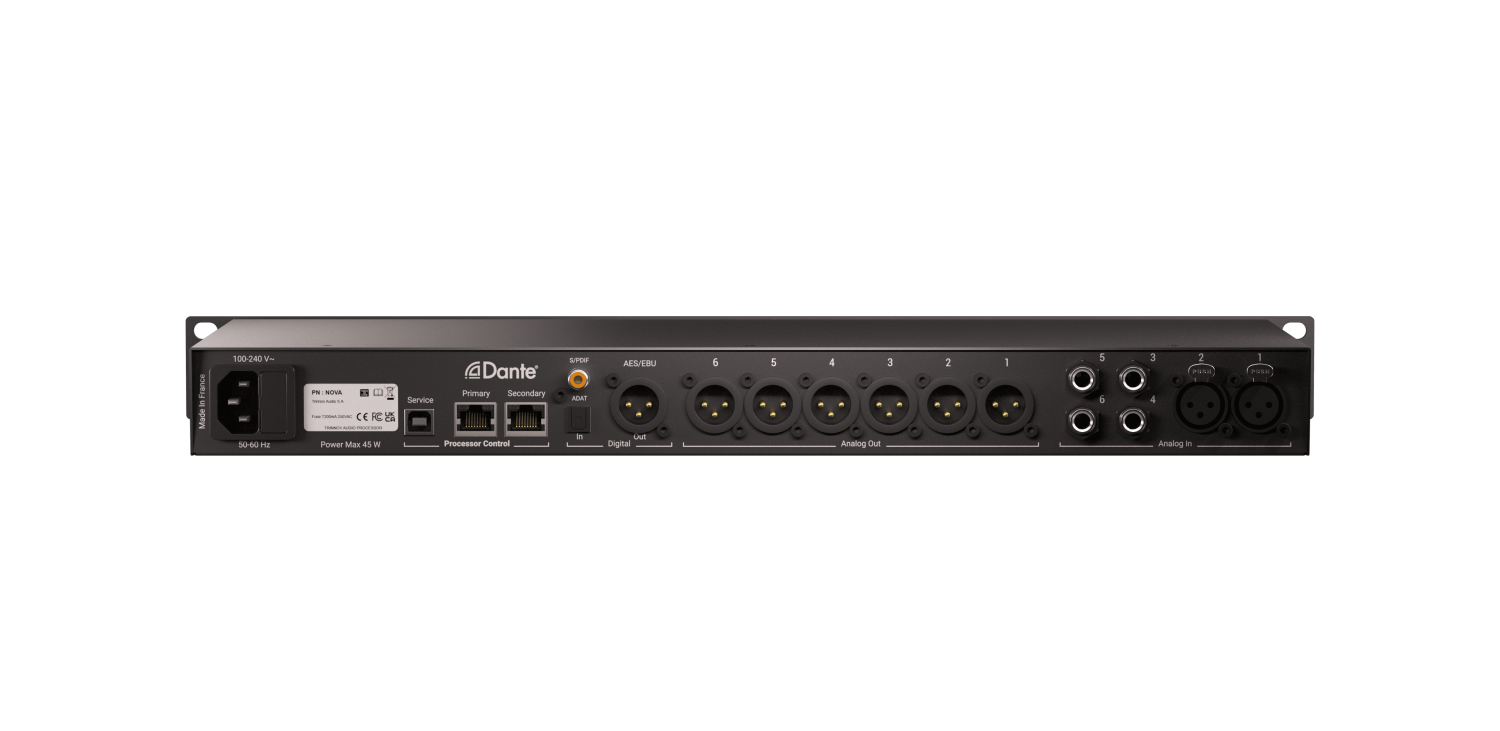

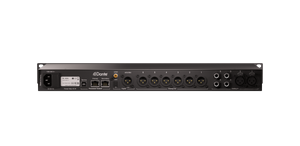

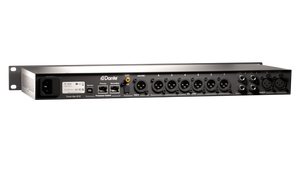

Audio Inputs and Outputs
Analog Inputs: 2 x XLR, 4 x TRS
Analog Outputs: 6 x balanced XLR
Digital Inputs: Coaxial S/PDIF, Optical S/PDIF/ADAT
Digital Output: AES/EBU

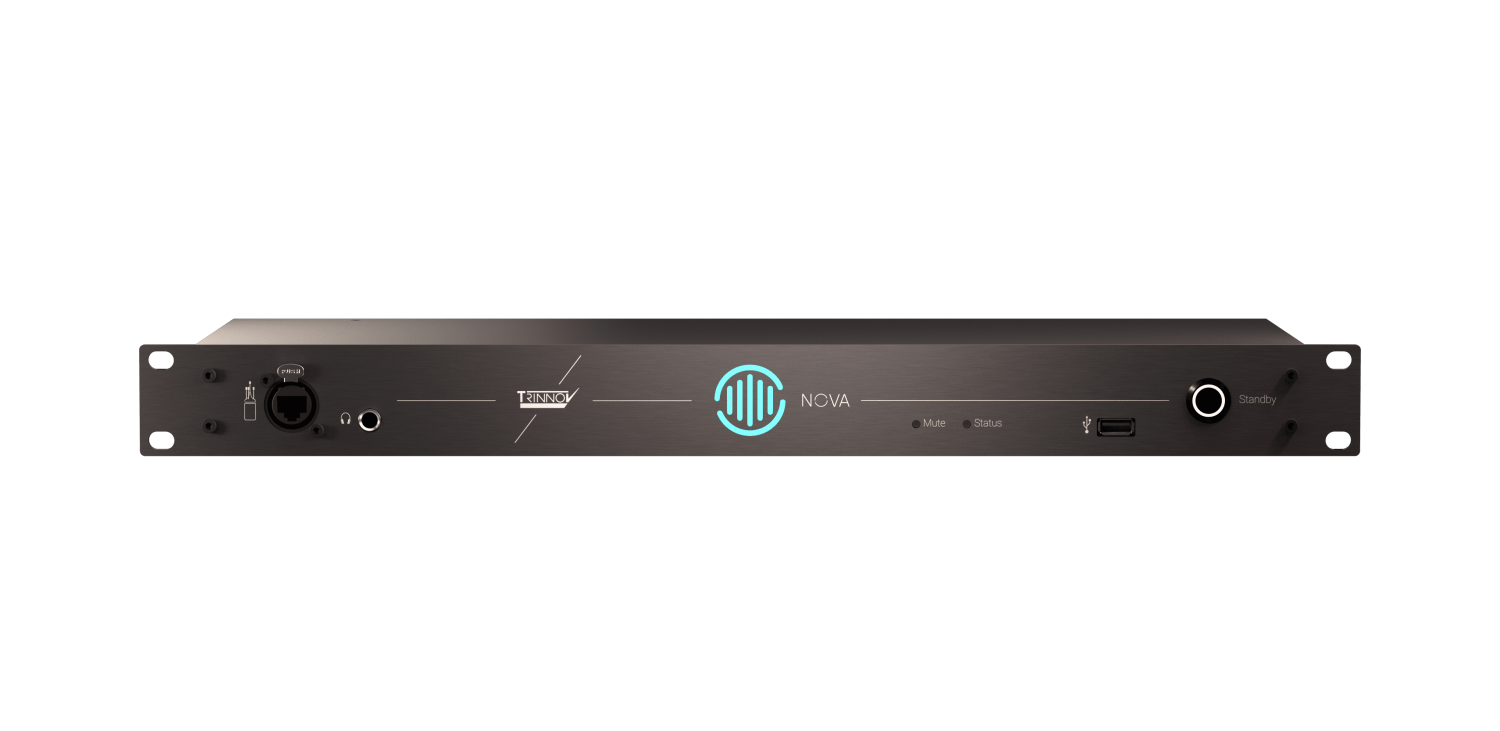

Headphone Output: Dedicated front-panel output
Measurement Microphone Input: Front-panel etherCON
La Remote Connection: Front-panel USB
Service Connection: USB-A
Optical Input Modes: S/PDIF, ADAT
ADAT SMUX: Up to 96 kHz

Dante and Networking
Dante Audio Interface: 16 inputs x 16 outputs
Ethernet Ports: 2 x RJ45
Ethernet Speeds: 100 Mbps, 1000 Mbps
Network Modes: Switched, Redundant, Isolated
Maximum Ethernet Cable Length: 100 m with Cat 6e
Network Control: Trinnov App
Dante Audio over IP: 1 Gbps network required

Digital Audio
Supported Internal Sample Rates: 44.1 kHz to 192 kHz
Default Sample Rate: 48 kHz
Calibration Sample Rate: 48 kHz
Clocking: Internal or external
External Clock Behavior: Automatic sampling-rate synchronization

Monitoring and Control
Speaker Set Control: Supported
Speaker Solo/Mute: Supported
Downmixes: Supported
Reference Level Recall: Supported
Dim: Supported
Presets: Supported
Direct Outputs: Zero-processing-delay, unity-gain, unprocessed
Control Compatibility: La Remote, Trinnov App, EuCon, Stream Deck plugin
La Remote Configuration: Fully customizable buttons and layers

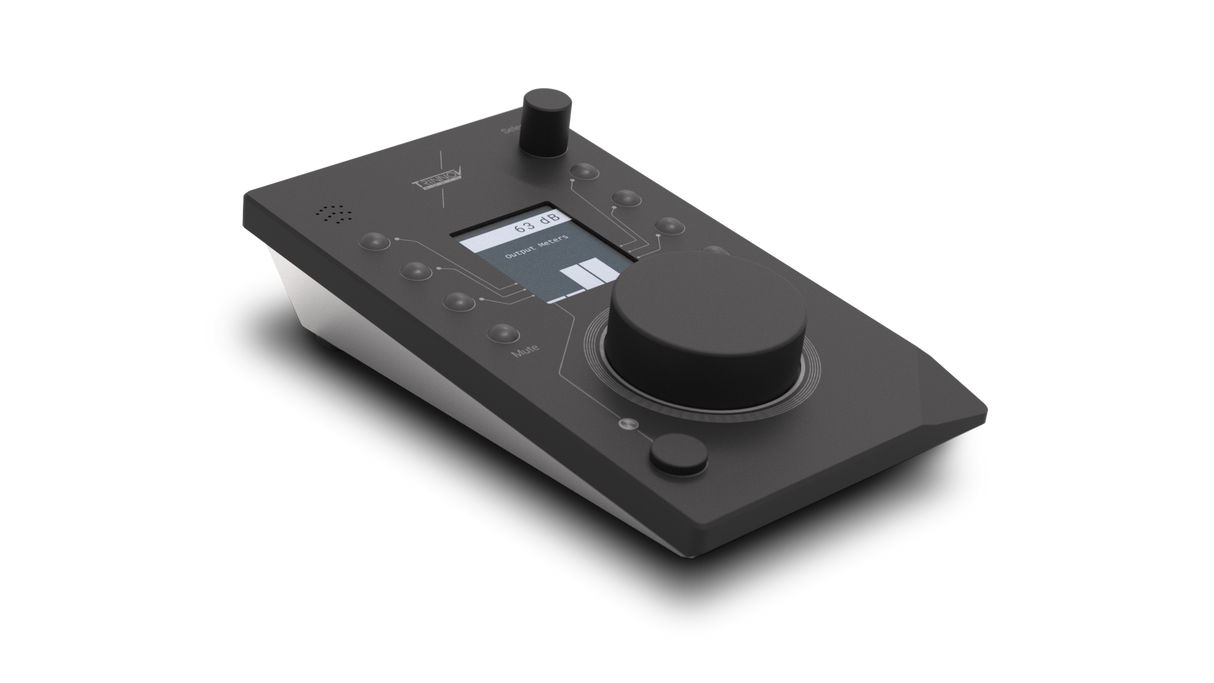

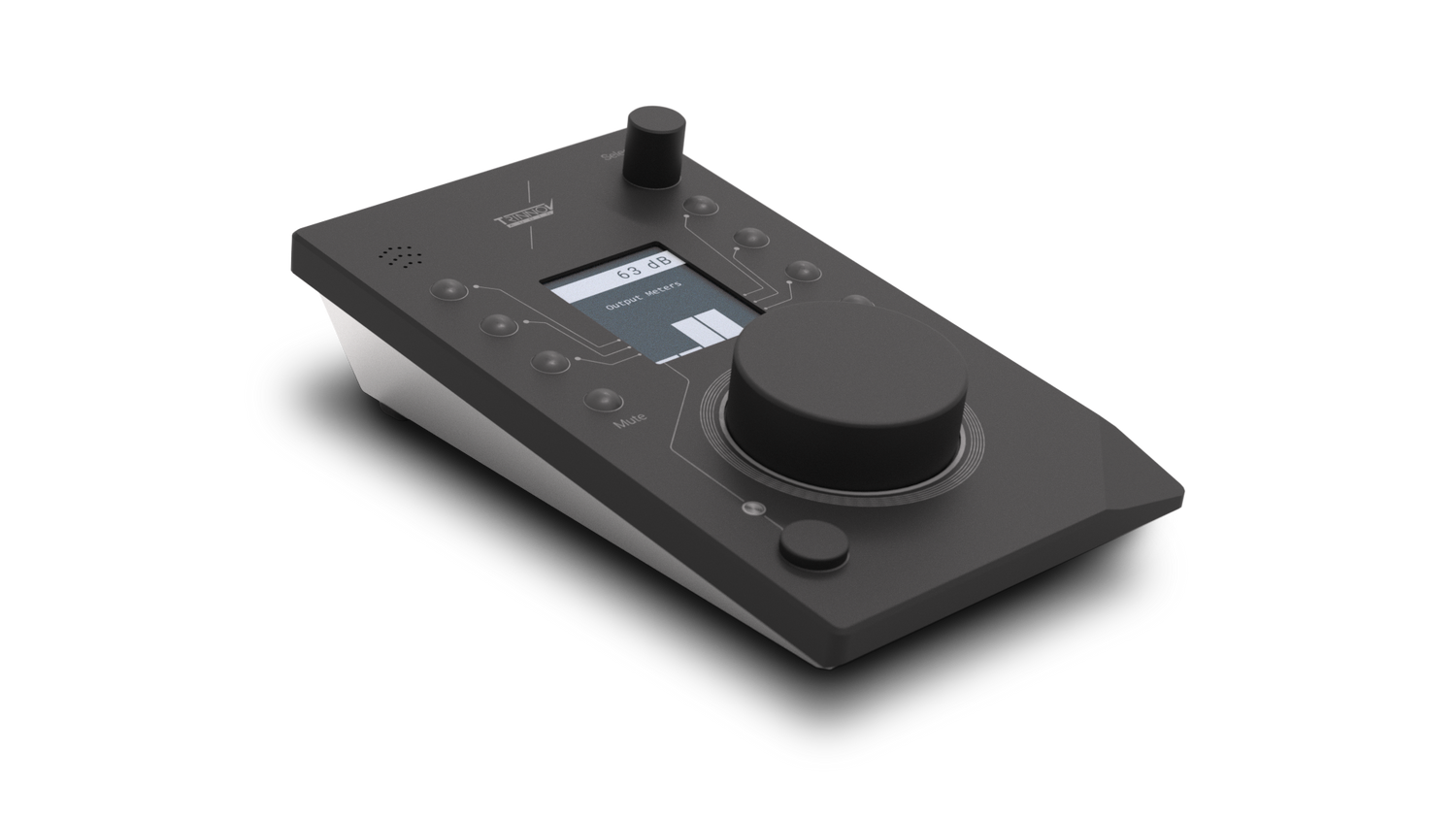

La Remote
Main Controls: Central volume knob, selection knob, fixed mute button
Assignable Controls: 8 buttons
Control Layers: Multiple user-definable layers
Connection: USB
Power: USB powered
Maximum Current Consumption: 200 mA
USB Standard: USB 1.1 Full Speed
Recommended Maximum USB Cable Length: 3 m
Built-in Microphone: Talkback microphone

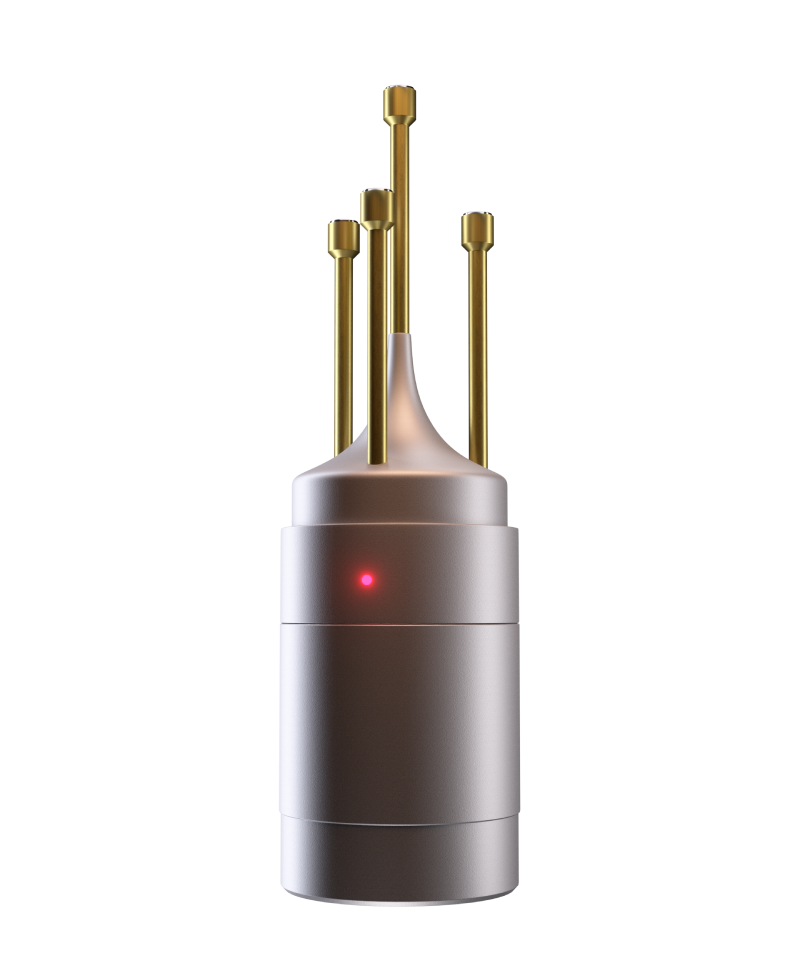

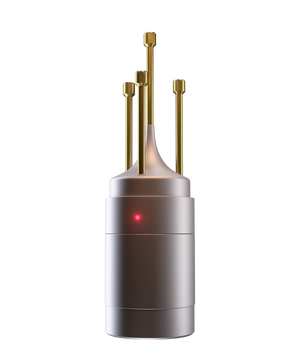

Measurement Microphone
Microphone Type: 3D Microphone ETH
Processor Connection: etherCON
Cable Length: 10 m
Automatic Detection: Supported
Automatic Compensation Profile Import: Supported
Microphone Stand Adapter: Included
Shock Mount: Included

Electrical
AC Input: 100–240 V AC
Power Inlet: IEC C14
Power Supply: Internal switch-mode
Power Supply Filtering: Built-in inline filter
Voltage Regulation: Supported
Mains Interference Suppression: Supported
Fuse Type: T500mA

Environmental Requirements
Operating Temperature: 0 °C to 40 °C
Relative Humidity: 20–65%
Maximum Internal Temperature Threshold: 85 °C

Dimensions and Weight
Processor Width: 440 mm
Processor Depth: 192 mm
Processor Height: 44 mm
Processor Net Weight: 2.5–2.6 kg
Processor Gross Weight: 4 kg
Processor Box Dimensions: 59 x 9 x 31 cm
Microphone Net Weight: 0.8 kg
Microphone Gross Weight: 1 kg
Microphone Box Dimensions: 24 x 16 x 8 cm
La Remote Net Weight: 1.0 kg
La Remote Gross Weight: 1.2 kg
La Remote Width: 105 mm
La Remote Length: 187 mm
La Remote Maximum Height: 62.38 mm

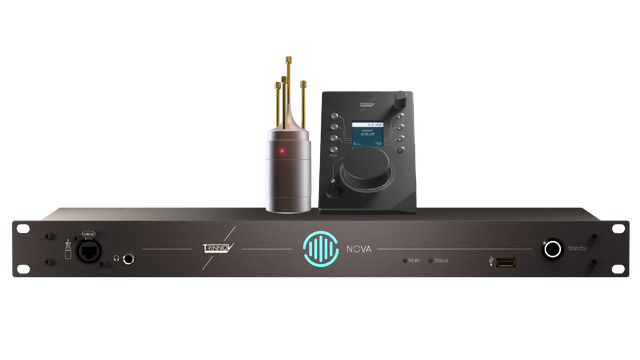

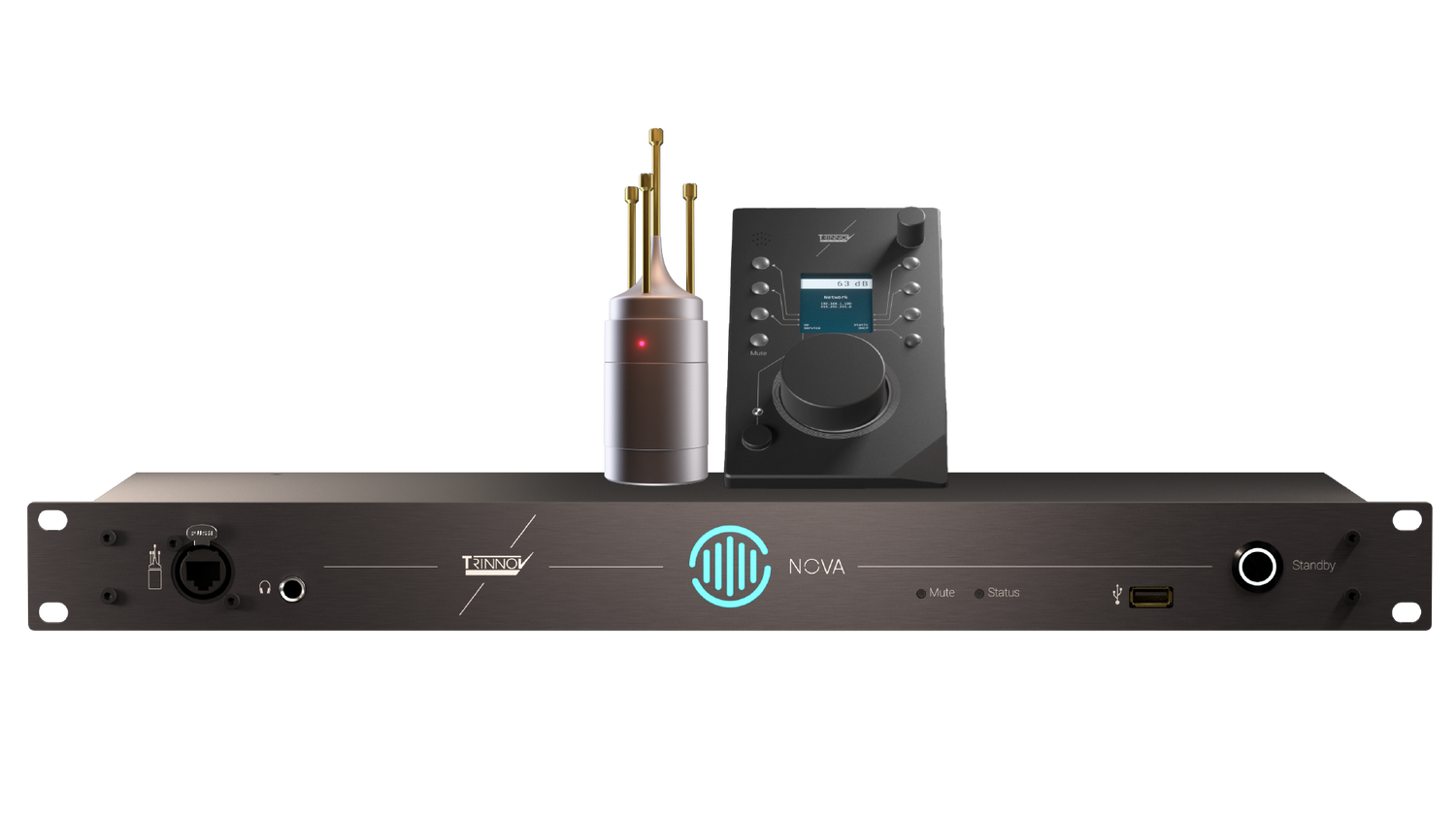

Included Components
Digital Audio Processor: 1
3D Microphone ETH: 1
La Remote: 1
Optimization Channel Pairs: 2
Processor Protection Bag: 1
Power Cord: 1
Cat5e Network Cable: 1
Quick Start Guide: 1
Microphone Cable: 10 m
Microphone Stand Adapter: 1
Microphone Shock Mount: 1
