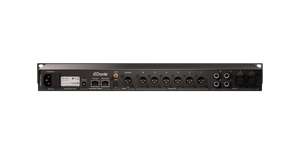

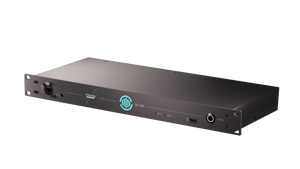

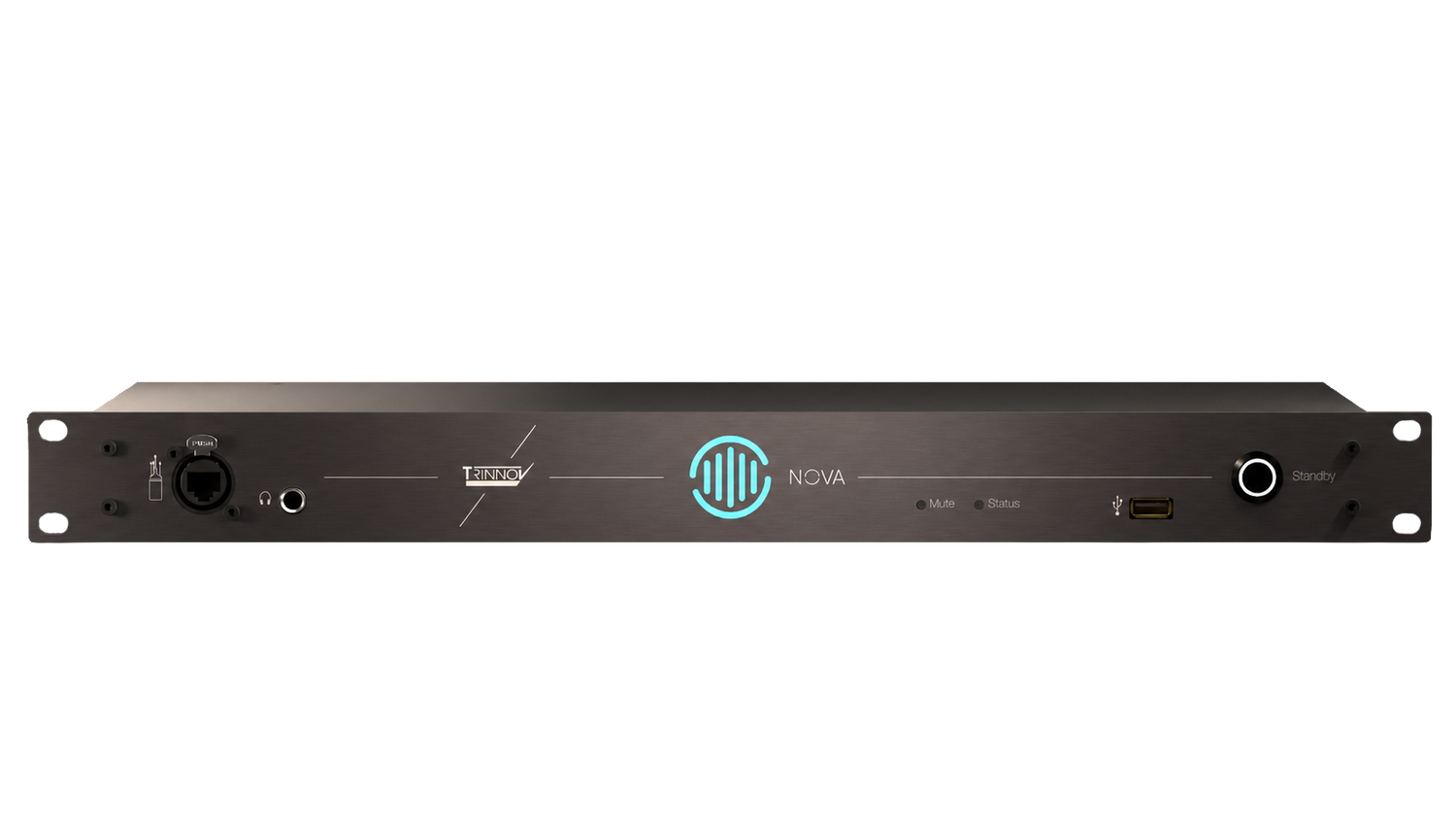

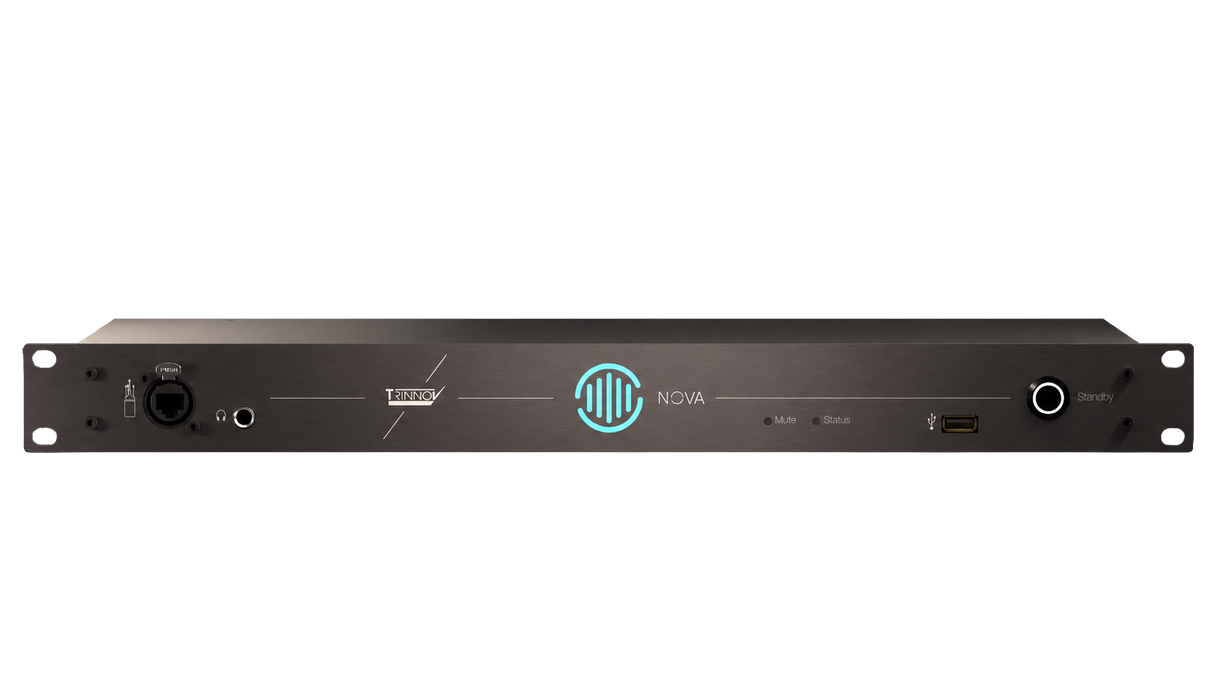

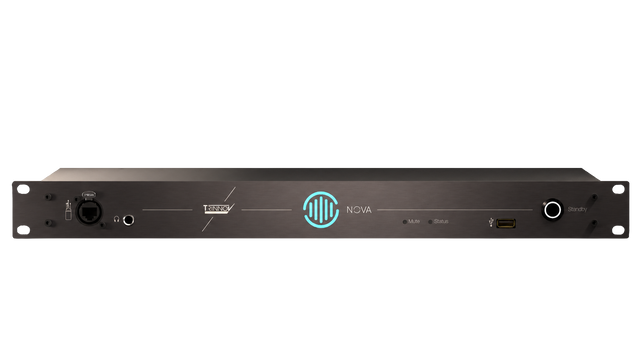

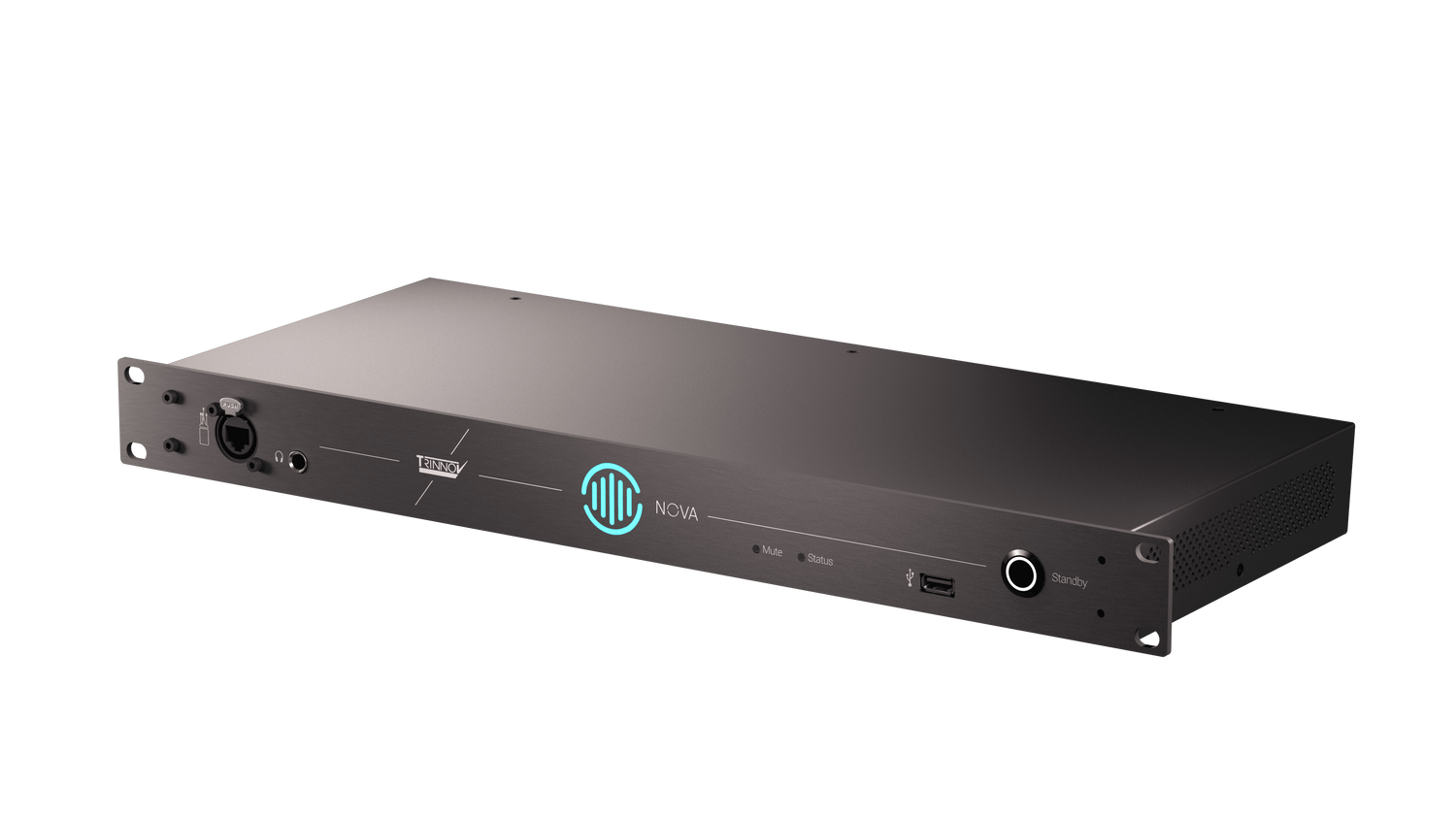

NOVA Processor

Trinnov Optimizer
Corrects loudspeaker and room behavior to deliver more accurate, consistent monitoring.

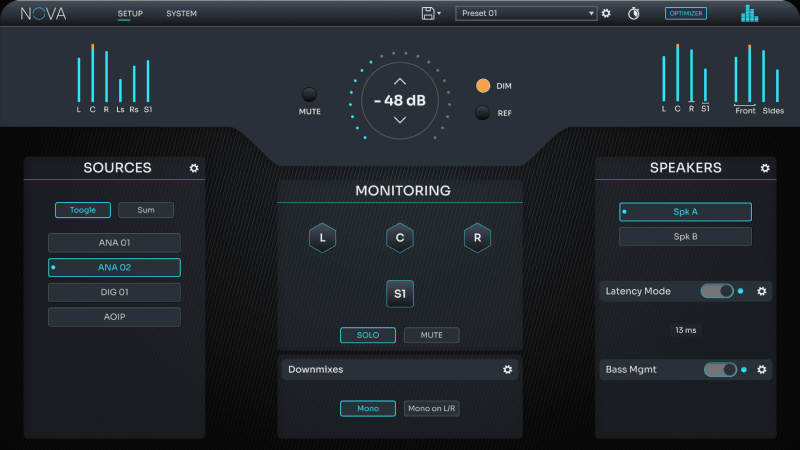

Monitor Controller
Provides central control for source selection, speaker switching, volume, mute, solo, and other monitoring functions.

Flexible Audio Interface
Combines analog, digital, and network audio connections in a single studio processor.

Dante Connectivity
Integrates easily with Dante-based studio networks for flexible audio routing.

Expandable Optimization
Starts with stereo optimization and can be expanded to support larger monitoring systems.

Immersive Monitoring
Supports stereo, multichannel, and immersive speaker configurations for modern production workflows.

Bass Management
Manages the integration between main speakers and subwoofers for smoother, more controlled low-frequency reproduction.

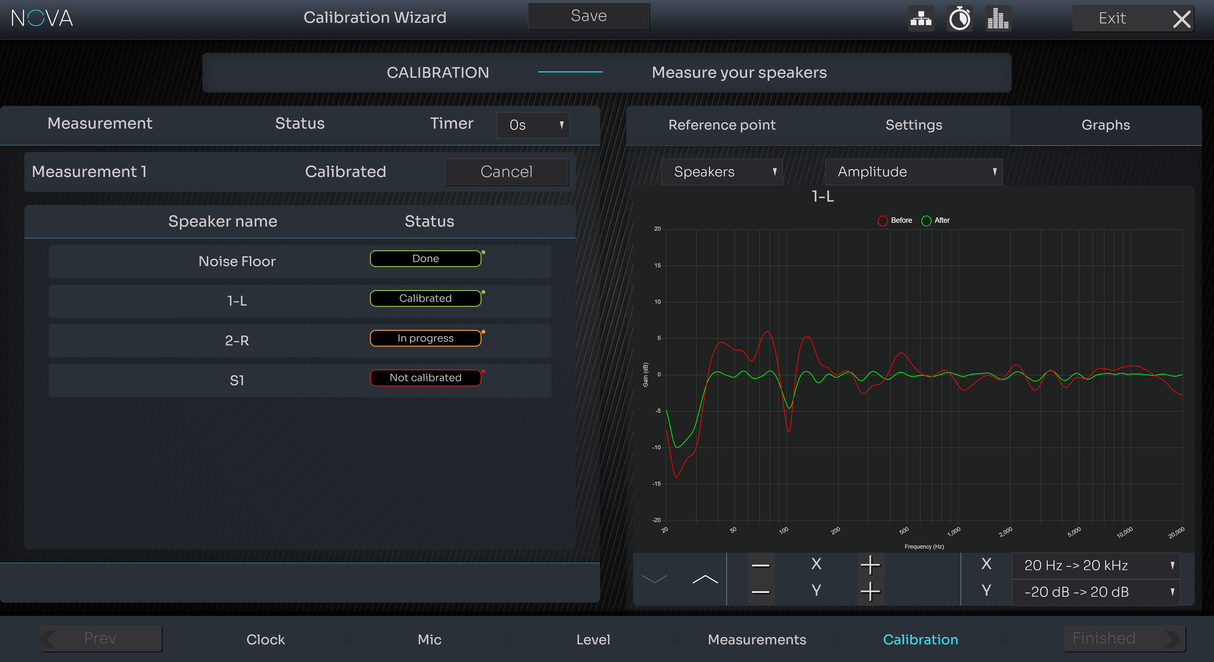

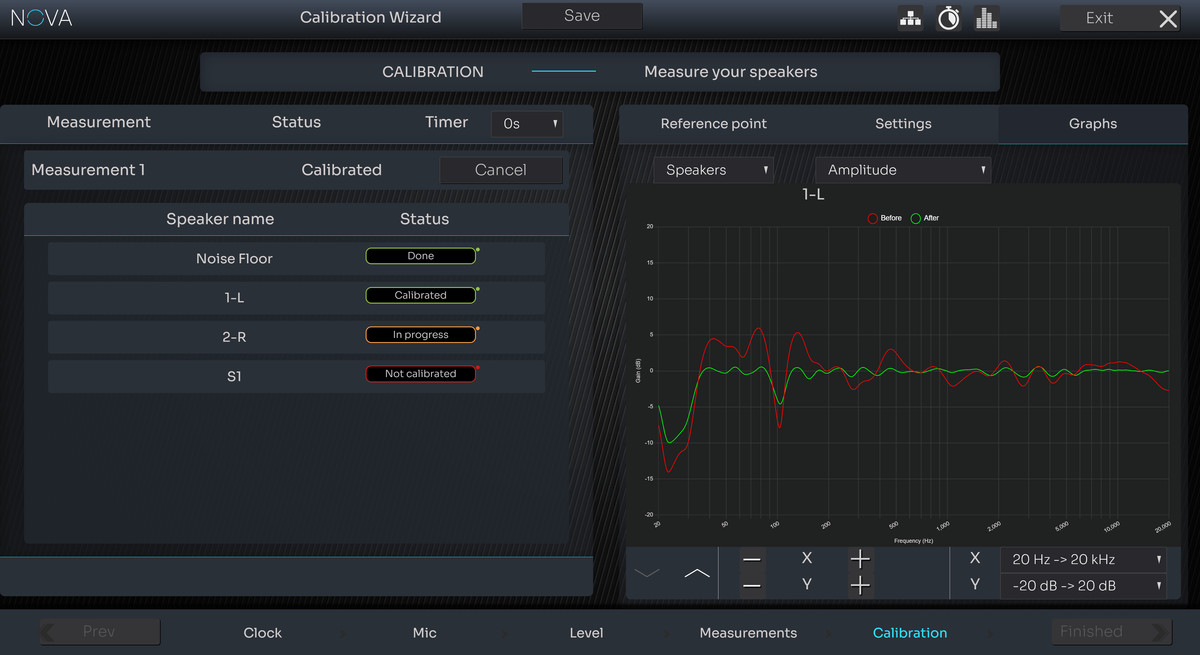

Automatic Room Calibration
Works with the Trinnov 3D microphone to measure the monitoring environment and create optimized correction automatically.

Multipoint Calibration
Uses measurements from multiple listening positions to improve consistency across a wider listening area.

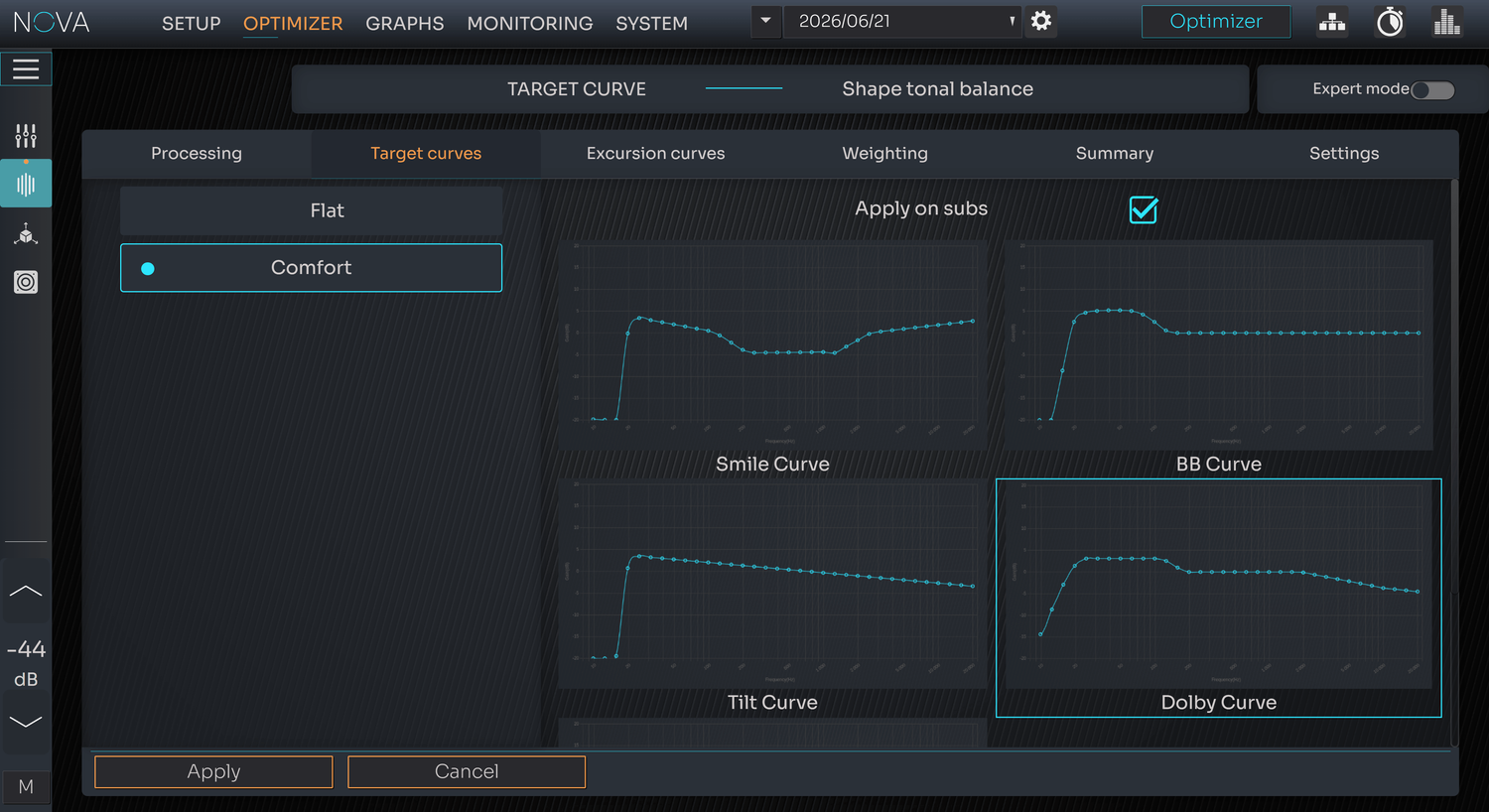

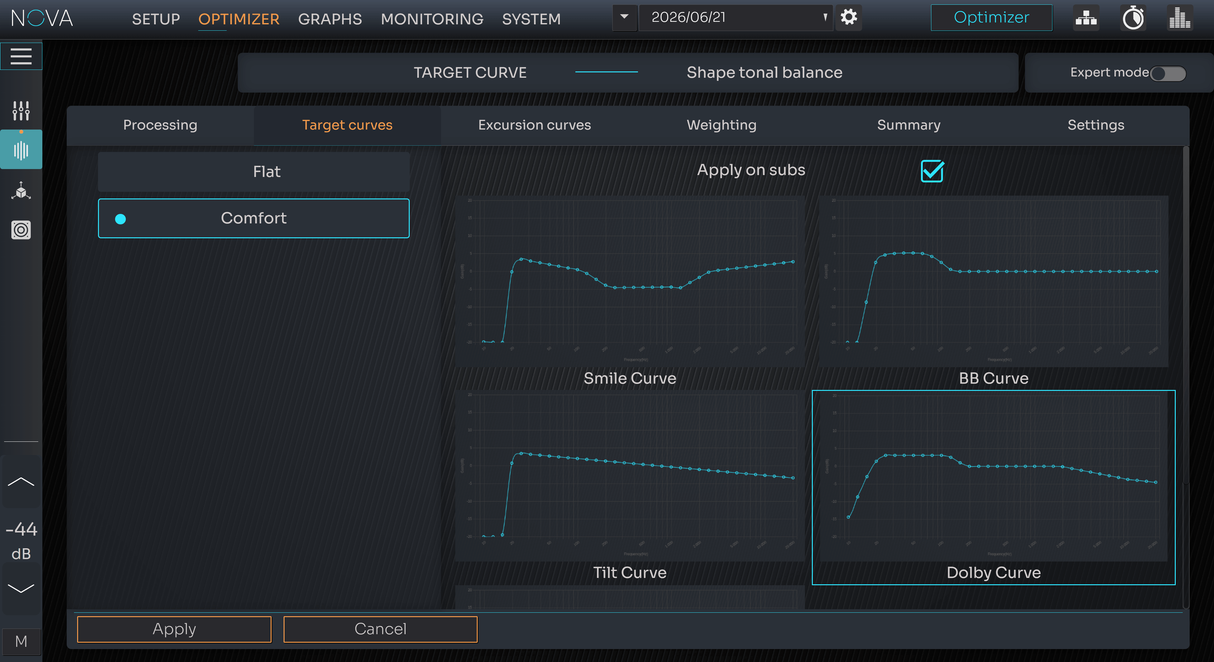

Target Curve Control
Lets users shape the desired tonal balance while the Optimizer calculates the required correction.

Advanced Acoustic Analysis
Provides detailed measurement graphs for evaluating speaker and room performance before and after correction.

Headphone Monitoring
Includes dedicated headphone monitoring with independent level and source control.

Downmix Monitoring
Makes it easy to check how multichannel content translates to simpler playback formats.

Direct Outputs
Routes clean, unprocessed signals to external recorders, meters, or other studio equipment.

Preset Management
Stores complete monitoring configurations so different setups can be recalled quickly.

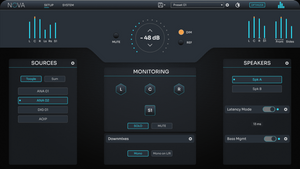

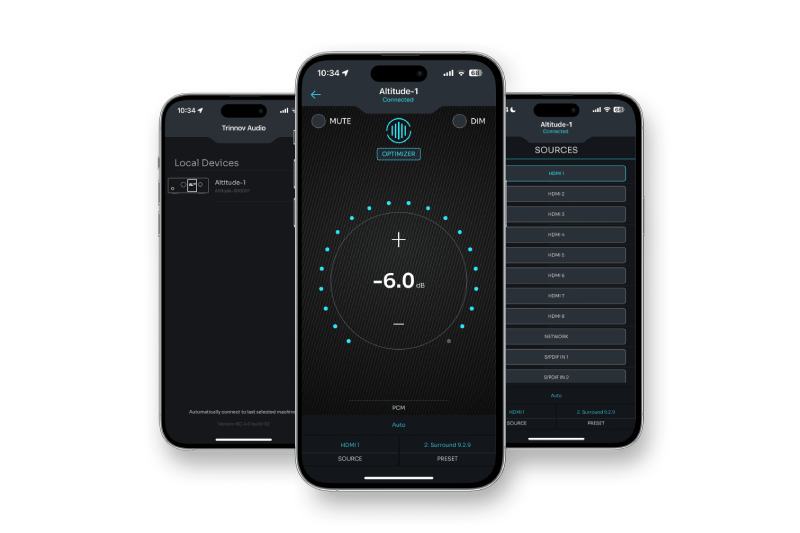

Trinnov App Control
Provides an intuitive interface for setup, calibration, monitoring, and system management.

La Remote Support
Works with Trinnov La Remote for fast hands-on control of essential monitoring functions.

EUCON Integration
Supports compatible professional control surfaces for streamlined studio operation.

Stream Deck Control
Can be controlled from compatible Stream Deck systems for customizable workflow shortcuts.

Fanless Design
Operates without a cooling fan to help maintain a quiet studio environment.

General Specifications
Device Type: Compact digital audio processor
Rack Format: 1U, 19-inch
Cooling: Fanless
Room Optimization: Trinnov Optimizer
Optimization Channels: 2 channels standard; expandable up to 12 channels
Maximum Immersive Layout: 7.1.4
Control: Trinnov App
Control Compatibility: Eucon S1, S3, S6; Elgato Stream Deck plugin

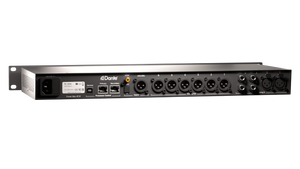

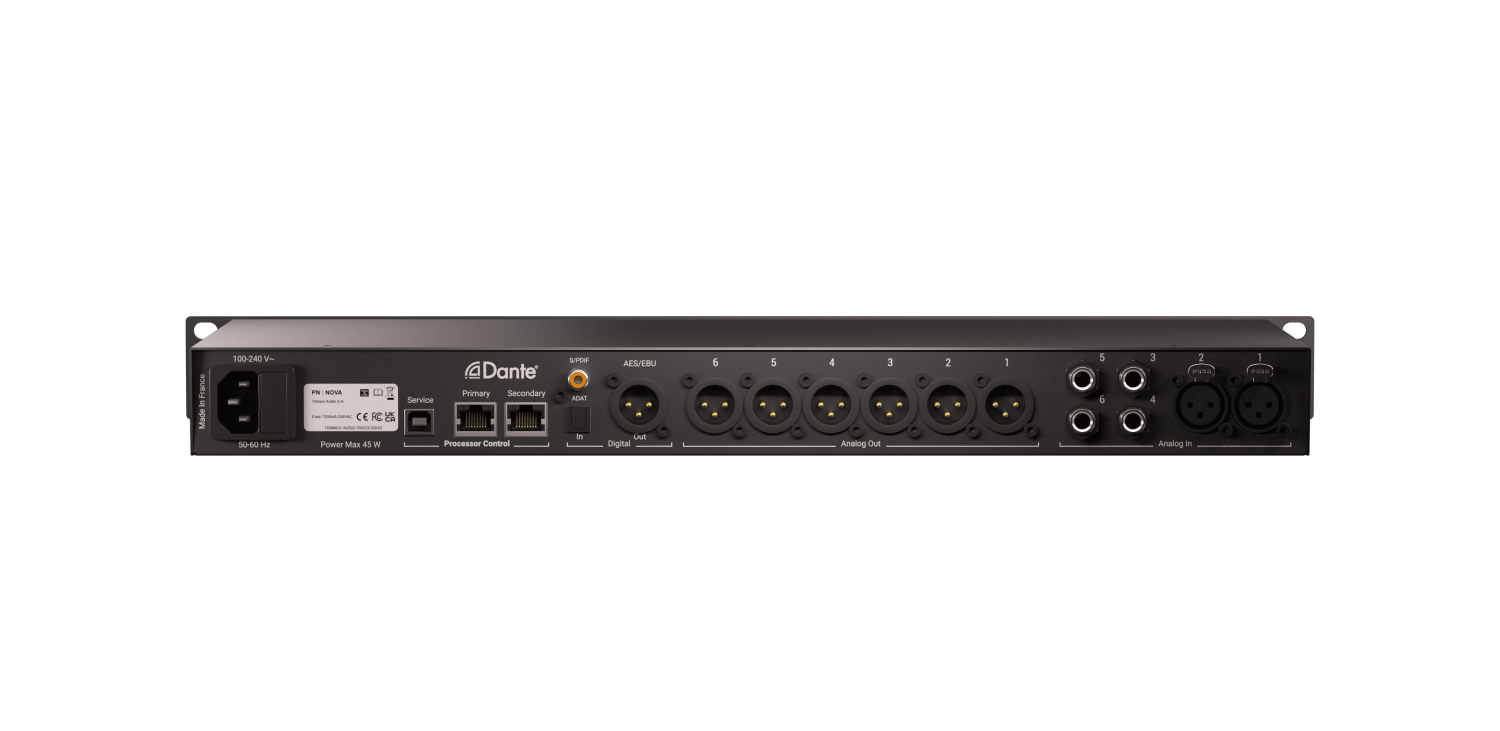

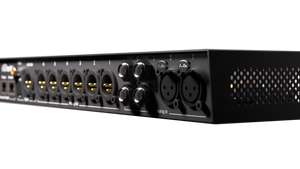

Analog Audio

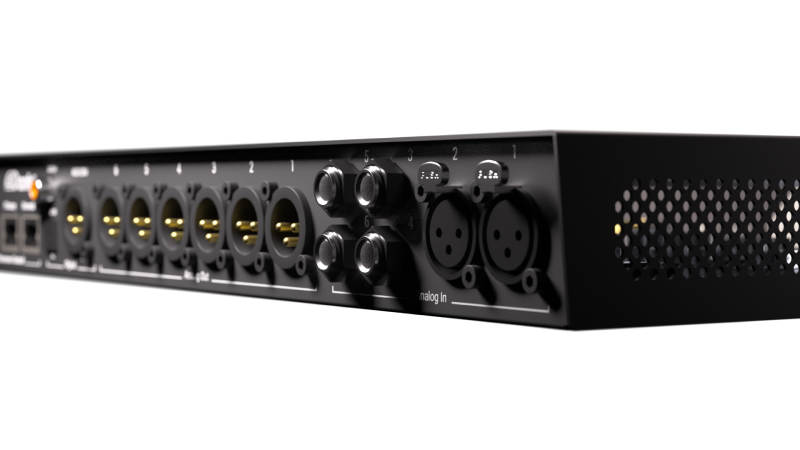

Analog Inputs: 2 × XLR, 4 × 1/4-inch TRS
Analog Outputs: 6 × balanced XLR
Headphone Output: Dedicated front-panel output
Headphone DAC: Dedicated headphone-optimized DACs

Digital Audio
Coaxial Digital Input: S/PDIF
Optical Digital Input: S/PDIF or ADAT
Digital Output: AES/EBU
Dante Audio Interface: 16 inputs × 16 outputs
Supported Sample Rates: 44.1 kHz to 192 kHz
Default Sample Rate: 48 kHz
ADAT SMUX: 96 kHz supported

Network Connectivity

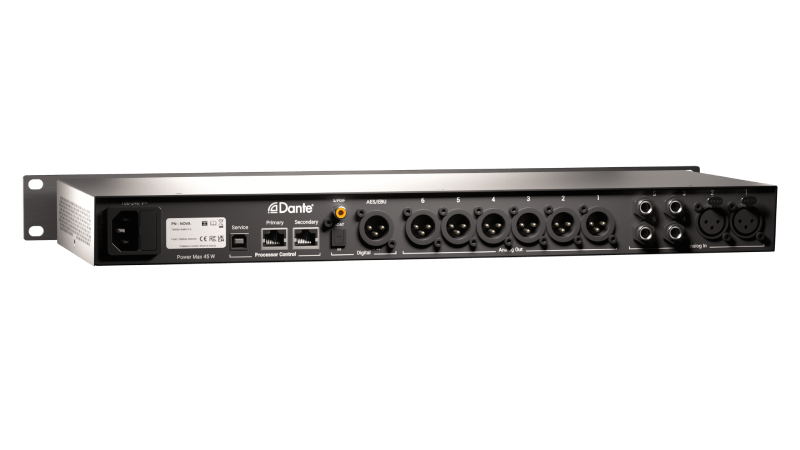

Ethernet Ports: 2 × RJ45
Ethernet Speeds: 100 Mbps, 1000 Mbps
Network Modes: Switched, Redundant, Isolated
Maximum Ethernet Cable Length: 100 m with Cat 6e
Dante Connectivity: Supported
Network Configuration: DHCP, link-local fallback, fixed IPv4

Optimization
Acoustic Correction: Amplitude and phase
Delay Alignment: Supported
Level Alignment: Supported
Filter Types: IIR, FIR
IIR Filters per Channel: 30 default
IIR Frequency Range: 20 Hz to 300 Hz default
FIR Filter Length: 100 ms default
Room Smoothing Methods: Modulus, Square Modulus
Target Curves: Supported
Excursion Curves: Supported
Adaptive Limiter: Supported
Bass Management: Supported
Default Bass Management Crossover: 80 Hz Linkwitz-Riley, 24 dB/octave
Hardware Bypass: Supported
Software Bypass: Supported
Typical Optimizer Latency: Approximately 20 ms

Monitoring Functions
Speaker Sets: Optimized and non-optimized
Speaker Mute: Individual
Speaker Solo: Individual
Downmix Monitoring: Supported
Direct Outputs: Unity gain, unprocessed, zero-processing-delay routing
Reference Level Recall: Supported
Dim: Supported
Mute: Supported
Headphone Auto-Mute of Main Monitors: Supported
Presets: Source configuration, speaker configuration, routing, measurements, filters, optimization settings

Electrical
AC Input: 100–240 V AC
Power Inlet: IEC C14
Fuse: T500mA
Power Supply: Internal switch-mode
Mains Filtering: Built-in
Voltage Regulation: Supported

Environmental Requirements
Operating Temperature: 0 °C to 40 °C
Operating Relative Humidity: 20–65%

Dimensions and Weight
Net Weight: 2.6 kg / 5.7 lb
