SERPENT AUDIO

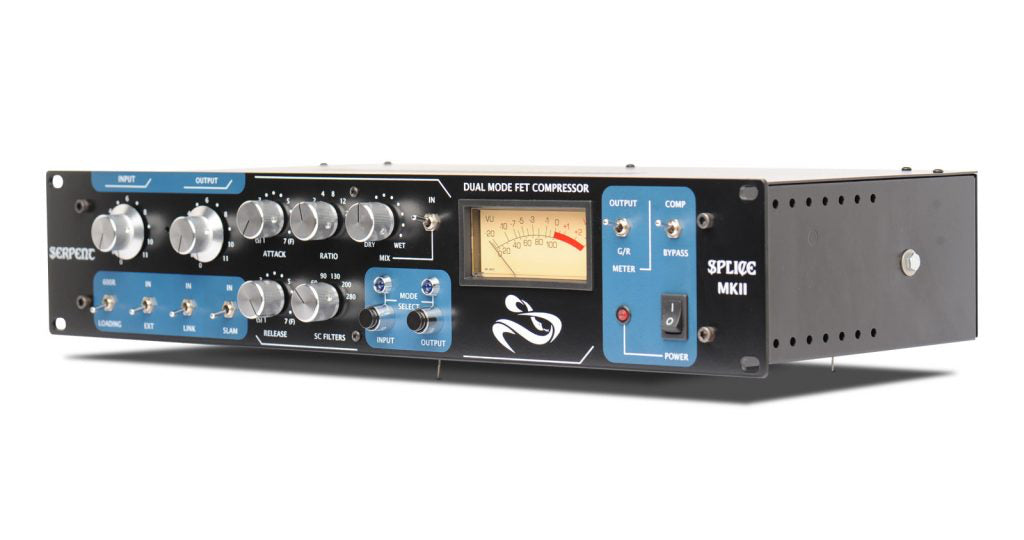

Splice MKII Fet

Single-channel FET compression, blend control, Blue/Black mode switching, stereo link, external sidechain, SC filter, slam mode, VU meter toggle.


$4,245.00 CAD
Shipping calculated at checkout.

Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Serpent Audio SPLICE MKII is a high-quality, single-channel FET compressor built for professional audio production. It supports both mono use and stereo pairing with a second unit. A standout feature of the SPLICE MKII is its ability to switch between classic Blackface and Blue Stripe circuit styles, or combine them to shape unique tonal characteristics. This flexibility makes it suitable for a range of mixing and tracking tasks.

Designed with hands-on control in mind, the unit includes a blend knob for internal parallel compression, a set of stepped compression ratios, and fully variable attack and release settings. Additional tools like sidechain filtering, external sidechain input, and a high-distortion "Slam" mode give engineers creative options for dialing in character and control. With transformer-balanced input and output paths, solid build quality, and intuitive layout, the SPLICE MKII fits seamlessly into a professional workflow.

Features

Classic Compression Modes
Switch between vintage-style Blackface and Blue Stripe circuits or blend both for unique sounds.

Mono or Stereo Operation
Use as a single-channel unit or link two for stereo compression.

All-Analog FET Compression
Delivers punchy and musical dynamic control with a classic analog feel.

Variable Input and Output Controls
Shape the signal gain before and after compression easily.

Stepped Ratio Control
Choose from multiple compression ratios, including a soft bypass mode.

Attack and Release Control
Fine-tune how quickly compression starts and stops for dynamic shaping.

Sidechain High-Pass Filter
Prevent low-end frequencies from over-triggering the compressor.

Built-in Parallel Compression
Blend dry and compressed signals directly using the Mix knob, with no extra routing.

VU Metering with Switchable Modes
View either output level or gain reduction on a traditional VU meter.

Mode Switching with LED Indicators
Instantly see and hear which audio circuit (Blackface or Blue Stripe) is active for input and output.

True Relay Hardwire Bypass
Instantly compare processed and unprocessed audio with no coloration.

External Sidechain Input
Trigger compression using an external source for advanced creative control.

Stereo Link Capability
Link two units together with simple cabling for consistent stereo performance.

Slam Mode (All Buttons In)
Engage high-distortion compression for aggressive sound shaping.

600 Ohm Loading Switch
Optimize output impedance for compatibility with vintage or modern gear.

Specifications

General Specifications
Device Type: Dual FET Compressor
Channels: Single channel (mono); stereo capable with second unit
Compression Type: FET
Circuit Modes: Selectable Blackface and Blue Stripe; mix-and-match mode
Gain Reduction Element: FET
THD+N (20Hz–20kHz): Typically 0.5%
Signal-to-Noise Ratio: >80 dBu
Construction: 100% Designed and built in the USA

Gain
Gain: 45 dB (±1 dBu) with compression disabled (Ratio set to “BP”)

Input/Output
Input Type: Constant 600Ω Input Attenuator, Floating Transformer Balanced
Maximum Input Level: +30 dBu (with compression engaged, input fully clockwise)
Output Type: Floating Transformer Balanced
Maximum Output Level: +24 dBu
Output Impedance (Mix Enabled): <100Ω, Electronically Balanced
Output Load: 150Ω minimum
External Send Output: <100Ω, Transformer-like Floating, Electronically Balanced
External Return Input: 22kΩ, Electronically Balanced TRS
Supports Balanced and Unbalanced Signals

Controls
Input: Variable rotary potentiometer
Output: Variable rotary potentiometer
Attack Time: 800 µs (slowest) to 20 µs (fastest)
Release Time: 1.1 s (slowest) to 50 ms (fastest), stepped control
Compression Ratios: 2:1, 4:1, 8:1, 12:1, 20:1
Bypass Mode: “BP” soft bypass disables compression
Sidechain Filters: OFF, 60Hz, 90Hz, 130Hz, 200Hz, 280Hz
Mix/Blend: Fully variable dry/wet parallel compression control
Power Switch: On/Off toggle with red LED indicator
Comp/Bypass: True hardwire relay bypass toggle
VU Meter Modes: Output (+4 dBu = 0 VU) / Gain Reduction
VU Calibration: Front panel adjustment slot
Mode Switching: Selectable Blackface or Blue Stripe (Input/Output), defaults to Blackface
600R Loading: Selectable output termination for vintage/modern gear

Stereo and External Features
Link In: Stereo linking with second unit via unbalanced TRS cables
External Sidechain: Send/Return XLR loop with toggle activation
Slam Mode: High-distortion “All Buttons In” mode; functional with 4:1 or 20:1 ratios for classic sound

Form Factor
Form Factor: 19" Rackmount
Channels per Unit: 1 (mono)
Stereo Operation: Requires two linked units
