NEUTRIK  |  SKU: 20921

NC7MD-L-1

Audio Adaptors

7 Pin Nickel Chassis XLRM -D Size

$26.65 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

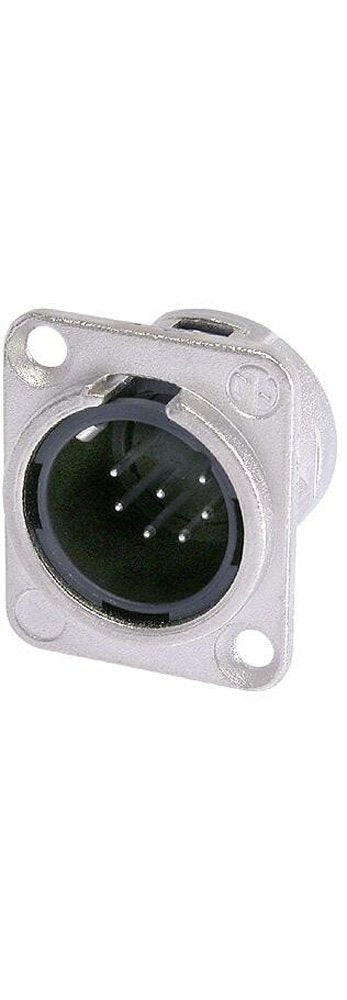

7 pole male receptacle, solder cups, Nickel housing, silver contacts Universal D-size metal body XLR panel mount series. UL recognized component.

Features

Robust "D" metal shell

Standardized D sized 24 mm panel cutout

Solder cups on 3 - 7 pole version

Specifications

Title: NC7MD-L-1
Connection Type: XLR
Gender: male

Electrical


Capacitance between contacts: ≤ 9 pF
Contact resistance: ≤ 5 mΩ
Dielectric strength: 1,5 kVdc
Insulation resistance: > 10 GΩ (initial)
Rated current per contact: 5 A
Rated voltage: < 50 V

Mechanical


Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 mating cycles
Wire size: max. 1.0 mm²
Wiresize: max. 18 AWG
Wiring: Solder contacts
Locking device: Latch lock
Chassis shape: D

Material


Contact plating: 2 µm Ag over 2 µm Ni
Contacts: Brass (CuZn39Pb3)
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: Steel Ck67
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
