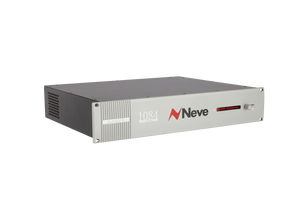

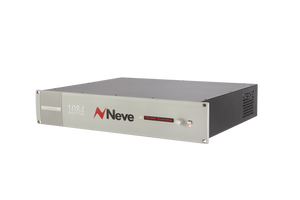

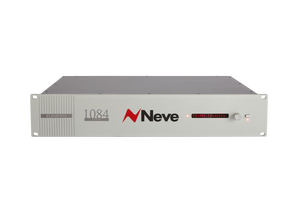

Elements 1084 EQ

Classic Neve 1084 Analogue EQ
Authentic inductor-based three-band equalization derived from the legendary 1084 design, delivering the distinctive tonal character associated with Neve console circuitry.

Eight Channels of Equalization
Eight independent channels of analogue EQ allow multiple signals to be processed within a single rackmount unit.

Three-Band Tonal Control
Dedicated high, mid and low-frequency bands offer flexible tonal shaping, from broad adjustments to more focused equalization.

Selectable High-Frequency Shelving
Adjustable high-frequency shelving provides smooth control over the upper frequency range.

Flexible Midrange Equalization
A peaking midrange band with selectable centre frequencies and switchable High Q allows more focused tonal adjustments.

Low-Frequency Shelving
Selectable low-frequency shelving provides broad control over bass frequencies.

High-Pass and Low-Pass Filters
Independent selectable filters help manage unwanted low-frequency and high-frequency content.

Authentic Analogue Signal Processing
Physical Neve analogue circuitry handles the audio processing, while software provides digital control rather than emulating the sound.

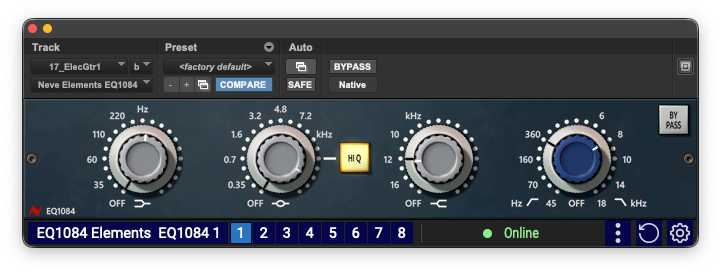

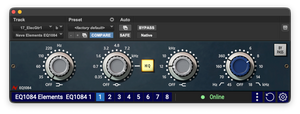

DAW Integration and Session Recall
The Element Control Plugin provides direct access to hardware settings from compatible DAWs, with session recall and parameter automation.

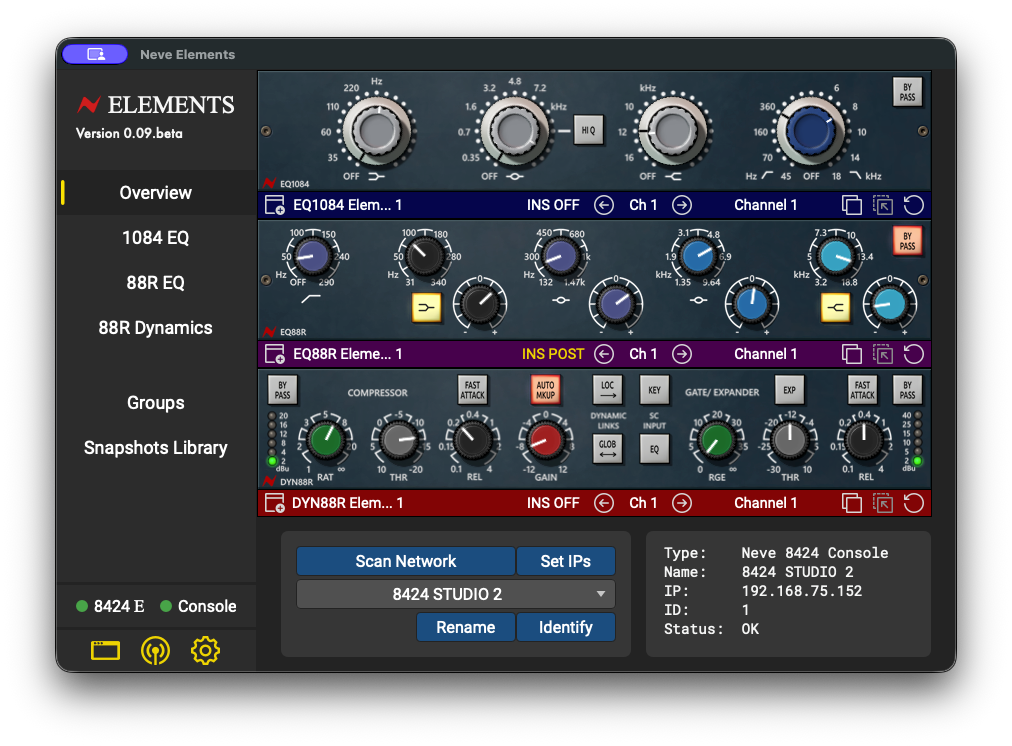

Neve Elements App Control
An alternative graphical control interface provides access to processor settings outside the DAW.

Intelligent Insert Matrix
Dedicated insert send and return connections allow external processors to be integrated, with digitally controlled insert positioning in the signal path.

Flexible Multichannel Control
Configurable single, multiple and grouped views simplify the management of several processing channels.

Snapshots and Undo History
Stored snapshots and a 64-step undo system allow settings to be recovered, revisited and adjusted with greater flexibility.

Standalone Operation and Console Integration
Operates independently with existing studio equipment or integrates with a Neve 8424E console for control from its surface.

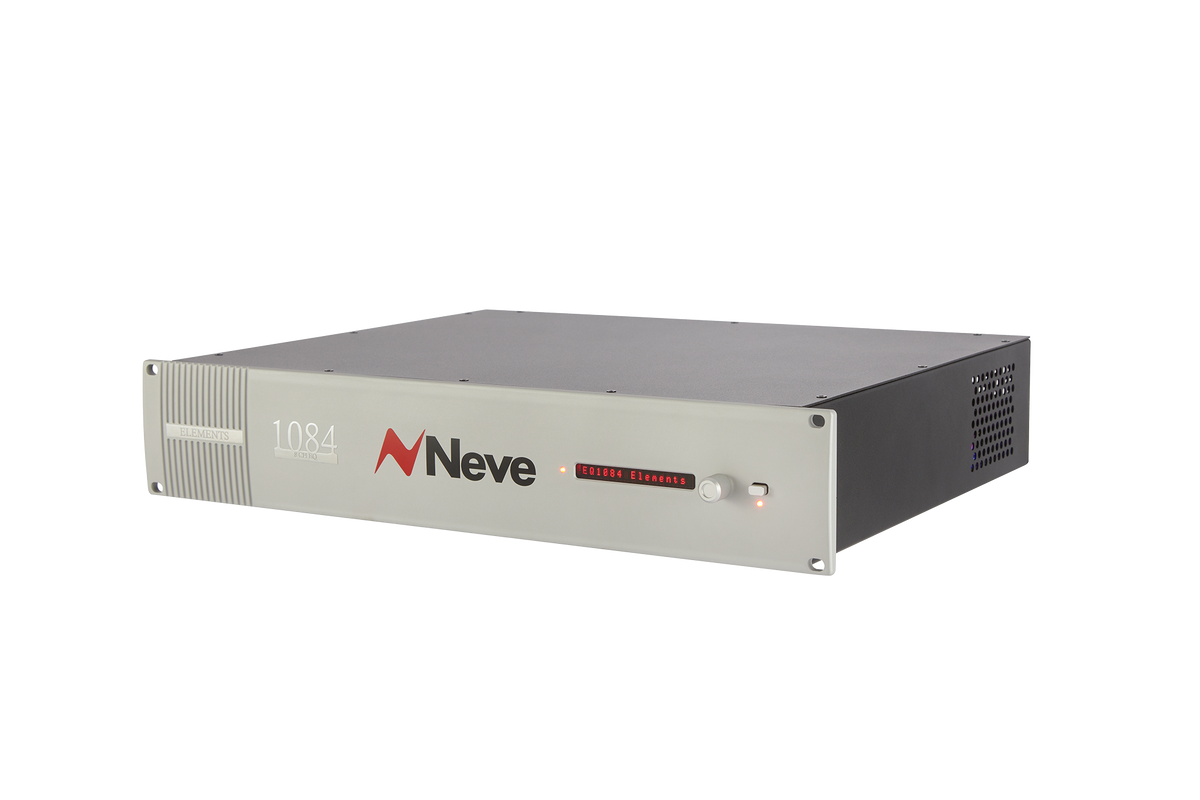

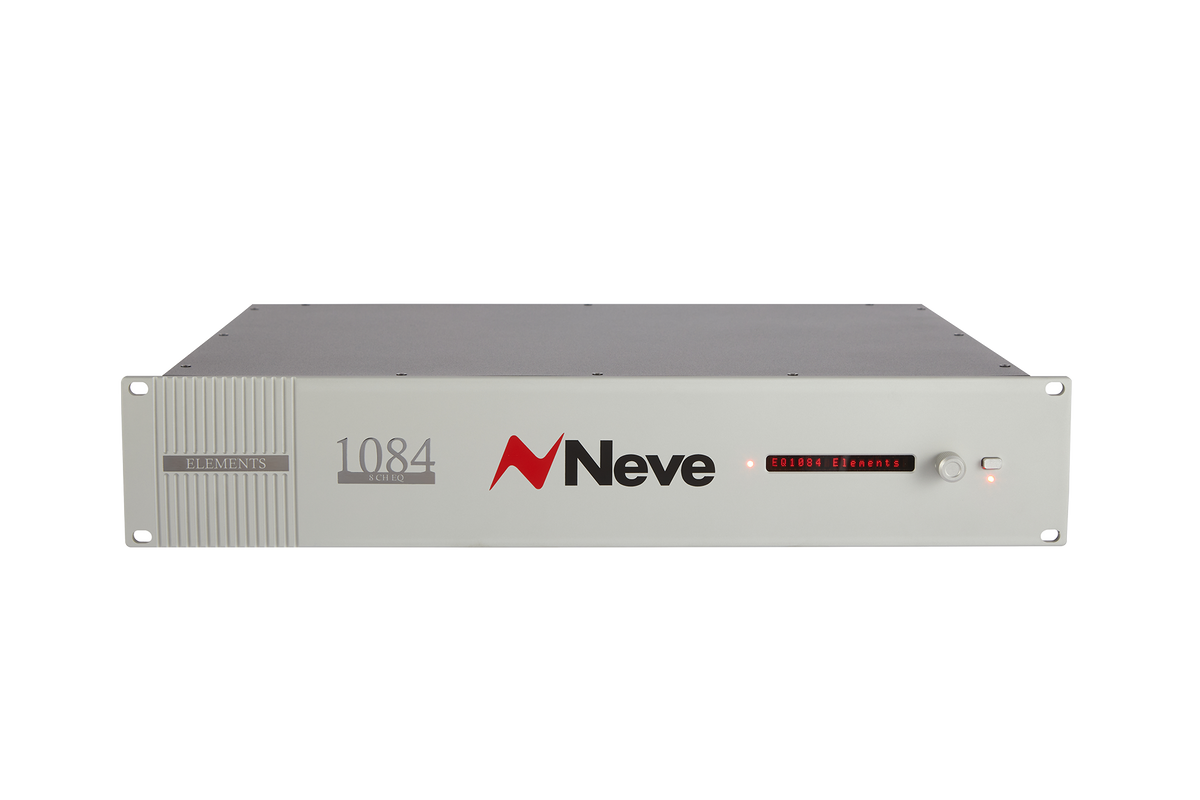

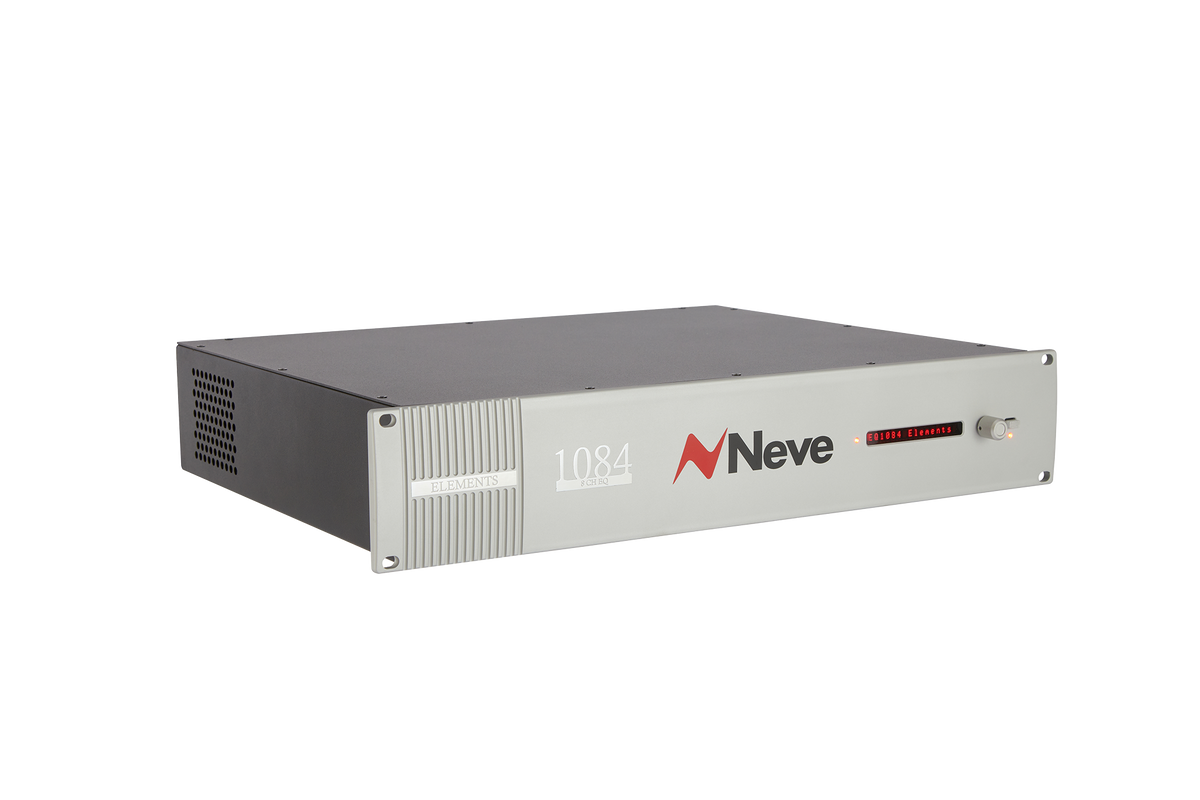

Compact Rackmount Design
The 2U, 19-inch enclosure accommodates eight channels of analogue equalization while conserving rack space.

General Specifications
Product Type: Eight-channel analogue equalizer
EQ Circuitry: Inductor-based three-band analogue EQ
Channels: 8
Rack Format: 19-inch, 2U
Operation: Standalone or integrated with Neve 8424E console
Control Architecture: Analogue audio processing with digital software control

High-Frequency Equalization
Filter Type: Shelving
Gain Range: ±16 dB
Selectable Frequencies: 10 kHz, 12 kHz, 16 kHz

Mid-Frequency Equalization
Filter Type: Peaking
Gain Range: ±12 dB or ±18 dB
Q Control: Switchable High Q
Selectable Centre Frequencies: 0.36 kHz, 0.7 kHz, 1.6 kHz, 3.2 kHz, 4.8 kHz, 7.2 kHz

Low-Frequency Equalization
Filter Type: Shelving
Gain Range: ±16 dB
Selectable Frequencies: 35 Hz, 60 Hz, 110 Hz, 220 Hz

High-Pass Filter
Slope: 18 dB/octave
Selectable Frequencies: 50 Hz, 80 Hz, 160 Hz, 300 Hz

Low-Pass Filter
Slope: 18 dB/octave
Selectable Frequencies: 6 kHz, 8 kHz, 10 kHz, 18 kHz

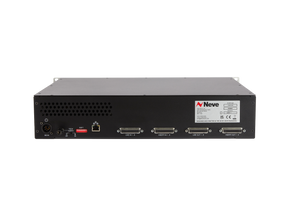

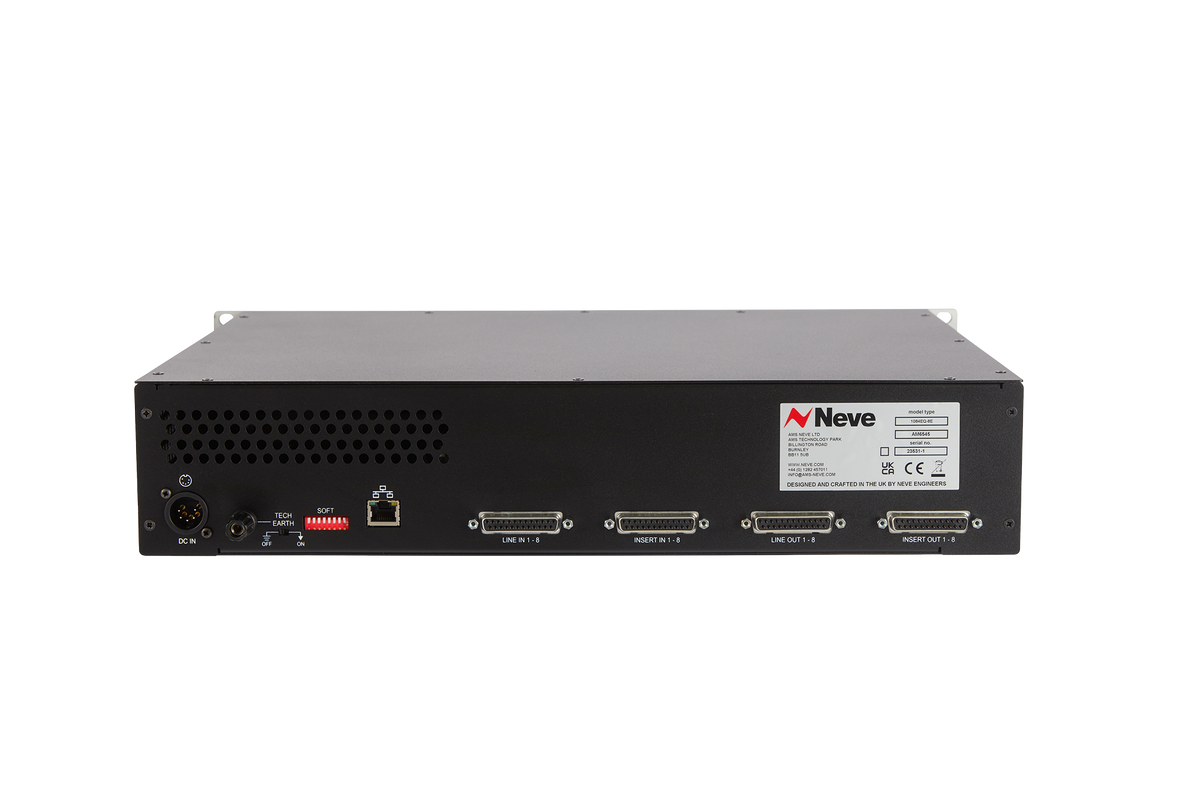

Audio Connectivity
Line Input: 25-way D-sub
Line Output: 25-way D-sub
Insert Input: 25-way D-sub
Insert Output: 25-way D-sub
Insert Management: Intelligent insert matrix with digitally controlled positioning

Network and Software Control
Network Connection: Ethernet
IP Configuration: DHCP or manually assigned IP address
DAW Control: Element Control Plugin
Plugin Formats: AAX, AU, VST3
Additional Control: Neve Elements App
Session Recall: Supported
Parameter Automation: Supported
Channel Grouping: Supported for processors of the same type
Control Views: Single, multiple and grouped
Undo History: 64 steps
Snapshots: Supported
Console Integration: Neve 8424E

Dimensions
Width: 483 mm
Height: 89 mm
Length: 361 mm
