AMS NEVE

Elements 88R Dynamics

Name: Elements 88R Dynamics
Brand: AMS NEVE
SKU: 62462
Availability: InStock

ID: 62462

Eight-channel analogue VCA dynamics processor, compression, limiting, gating, expansion, DAW control, session recall, sidechain inputs

Shipping calculated at checkout.

Want an alert when this item is on sale?

Delivery & Shipping

Free shipping is available on eligible orders over $200 CAD. Remote regions and oversized or overweight items may be subject to additional shipping charges.

For full details, please review our View details here.

Financing

Flexiti

Enjoy flexible financing options, including 0% financing on selected products. Quick application and convenient payment plans available.
Click here for more info.

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

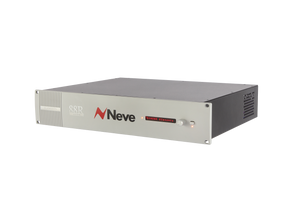

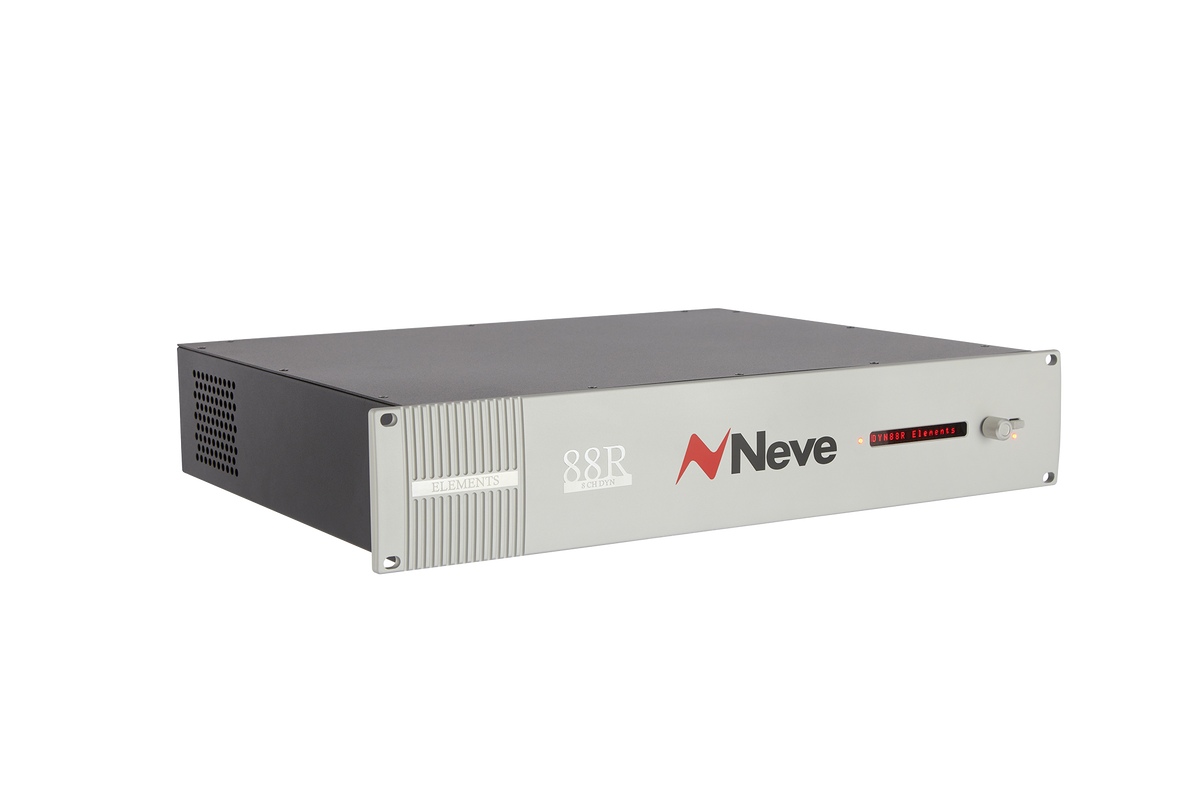

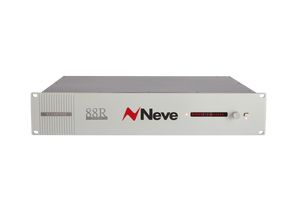

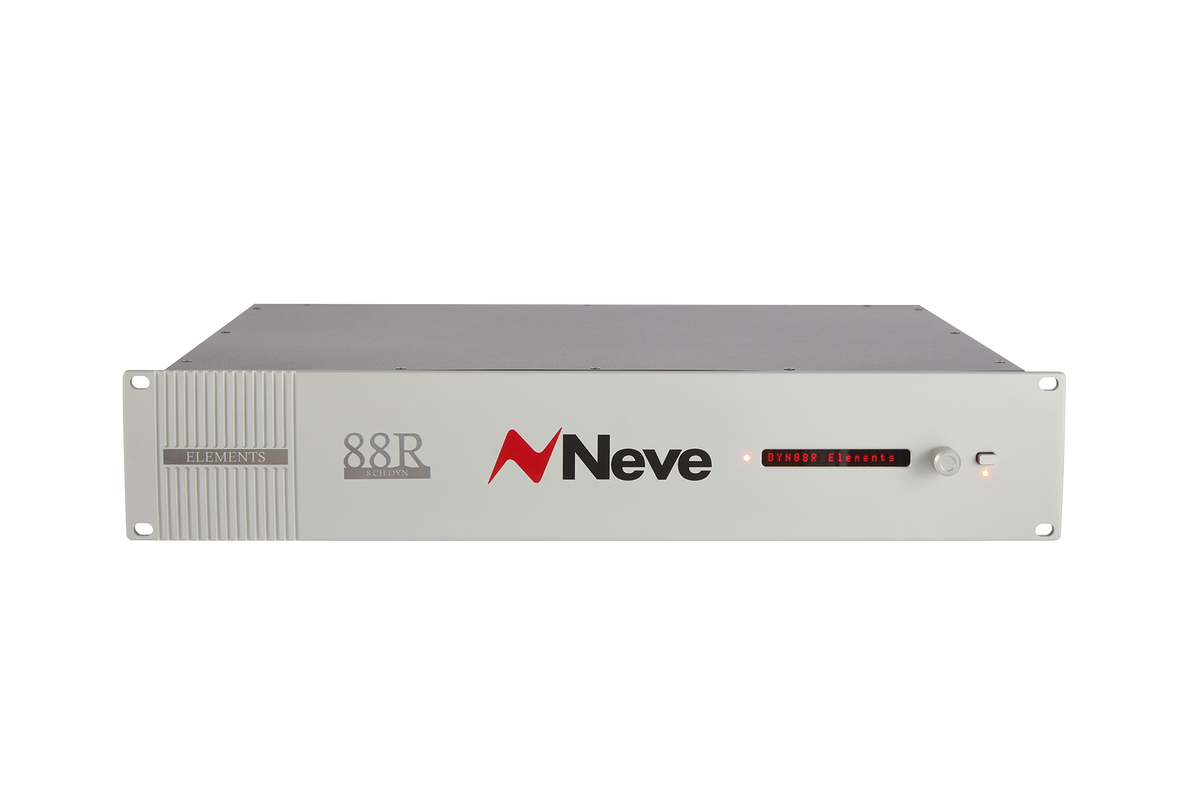

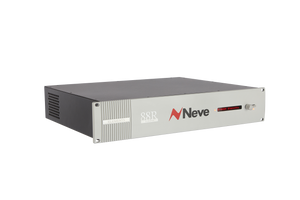

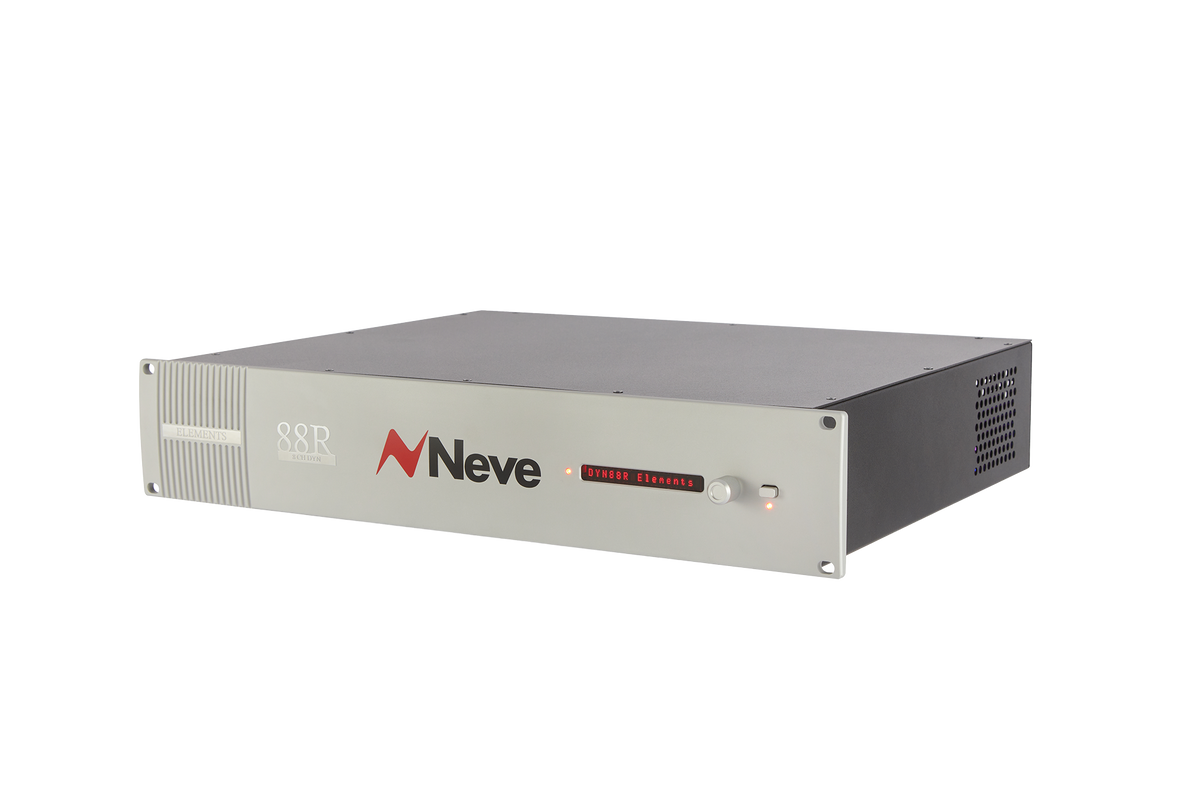

The Neve Elements 88R Dynamics brings the powerful dynamics processing of the flagship Neve 88R analogue console into a standalone, eight-channel rackmount unit. Featuring authentic Neve VCA circuitry, it combines compression, limiting, gating and expansion to provide precise control over dynamic range while retaining the character of genuine analogue processing.

Each channel offers a comprehensive set of dynamics controls, including adjustable compressor ratios and thresholds, selectable attack speeds, release times and make-up gain. The gate and expander section provides additional control over unwanted noise and dynamic behaviour, making the 88R Dynamics a versatile choice for recording, mixing and multichannel processing applications.

As part of the Neve Elements range, the 88R Dynamics combines physical analogue circuitry with software-based control. The Element Control Plugin provides access to hardware settings directly from a DAW, with session recall and automation support. The processor also operates independently of a Neve console and can integrate with existing analogue consoles, audio interfaces and patch bays. Its compact 2U design delivers eight channels of authentic 88R dynamics processing without occupying an entire console.

Features

Authentic Neve 88R Dynamics Circuitry
Based on the dynamics architecture of the flagship Neve 88R console, delivering genuine analogue VCA processing rather than software emulation.

Eight Channels of Analogue Processing
Eight channels of dynamics processing in a compact rackmount format, suitable for multichannel recording and mixing workflows.

Compressor and Limiter
Adjustable compression ratios ranging from gentle dynamic control to limiting, allowing precise management of signal levels.

Gate and Expander
Integrated gating and expansion functions provide control over low-level signals and unwanted noise.

Selectable Attack Speeds
Fast attack switching on both the compressor and gate/expander sections provides flexibility when controlling transients and dynamic behaviour.

Adjustable Release Times
Independent release controls for compression and gating/expansion allow the dynamics response to be tailored to the source material.

Manual and Automatic Make-Up Gain
Adjustable post-compression gain or automatic make-up gain compensates for level changes caused by compression.

External Sidechain Key Input
Dedicated sidechain key connections support external signal triggering for dynamics processing.

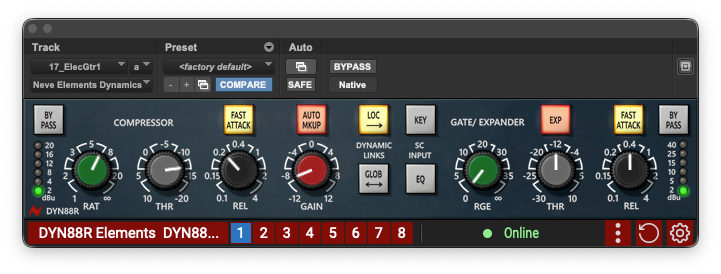

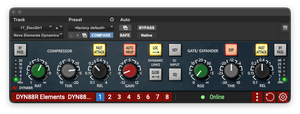

DAW Plugin Control
The Element Control Plugin provides graphical control of the analogue hardware directly from a compatible DAW.

Session Recall and Automation
Processor settings can be recalled with DAW sessions, while automation enables changes to the analogue hardware during production.

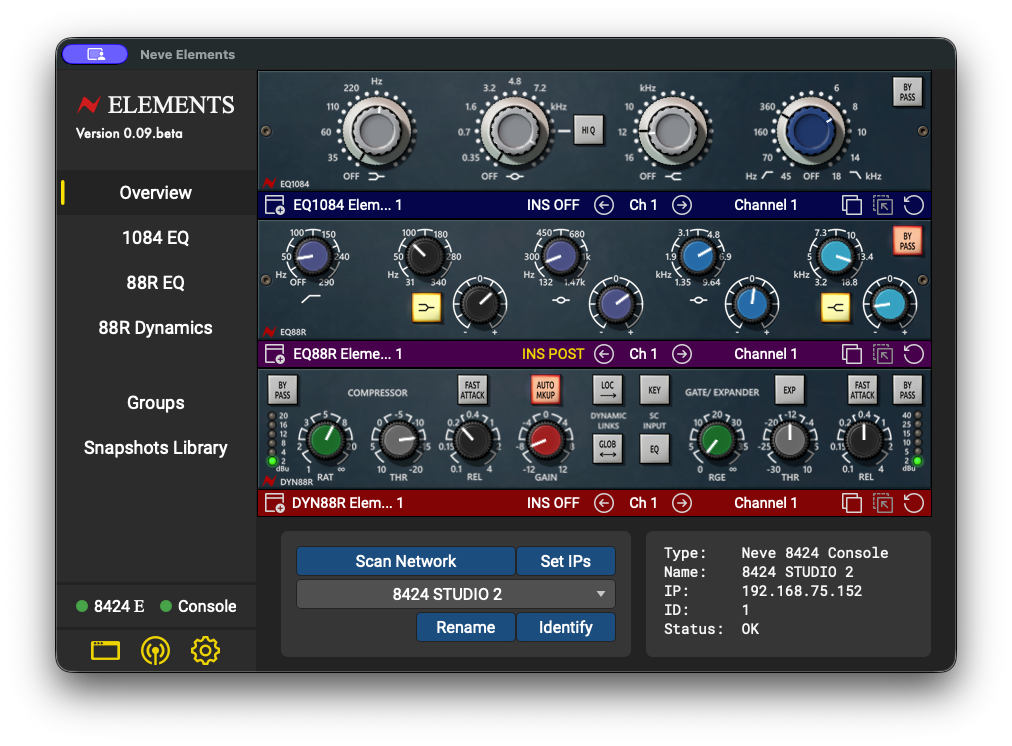

Neve Elements App Control
Access processor settings through the Neve Elements App without relying exclusively on the DAW plugin.

Intelligent Insert Matrix
Insert send and return connections with digitally controlled insert positioning allow existing outboard equipment to be integrated into the signal path.

Flexible Channel Grouping
Group processors of the same type and switch between single, multiple and grouped views for efficient multichannel control.

Snapshots and Undo History
Stored snapshots and a 64-step undo system make it easier to revisit settings and recover previous configurations.

Standalone Operation and Console Integration
Works independently with existing studio equipment and supports integration with the Neve 8424E console for control from its surface.

Specifications

General Specifications
Processor Type: Analogue VCA dynamics processor
Channels: 8
Dynamics Functions: Compressor, limiter, gate, expander
Circuit Architecture: Neve 88R console dynamics circuitry
Processing: Analogue circuitry with digital control
Form Factor: 2U, 19-inch rackmount
Operation: Standalone or integrated with Neve 8424E console

Gate / Expander
Modes: Gate, Expander
Range (RGE): 0 dB to ∞
Threshold (THR): -30 dB to +10 dB
Release Time (REL): 0.1 to 4 seconds
Gate/Expander Selection: EXP switch
Attack Time, Slow: 1.5 ms for 40 dB of range
Attack Time, Fast: 100 µs for 40 dB of range
Attack Mode Selection: FAST ATTACK switch

Compressor / Limiter
Modes: Compression, Limiting
Ratio (RAT): 1:1 (off) to ∞:1 (limiting)
Threshold (THR): +10 dB to -20 dB
Release Time (REL): 0.1 to 4 seconds
Attack Time, Slow: 3 to 30 ms, programme controlled
Attack Time, Fast: 3 ms for 20 dB of gain reduction
Attack Mode Selection: FAST ATTACK switch
Post-Compressor Make-Up Gain: 0 to +16 dB
Automatic Make-Up Gain: Supported
Manual Make-Up Gain: Disabled when automatic make-up gain is active

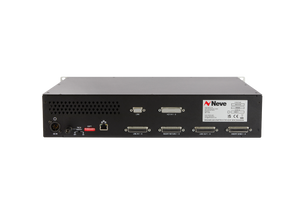

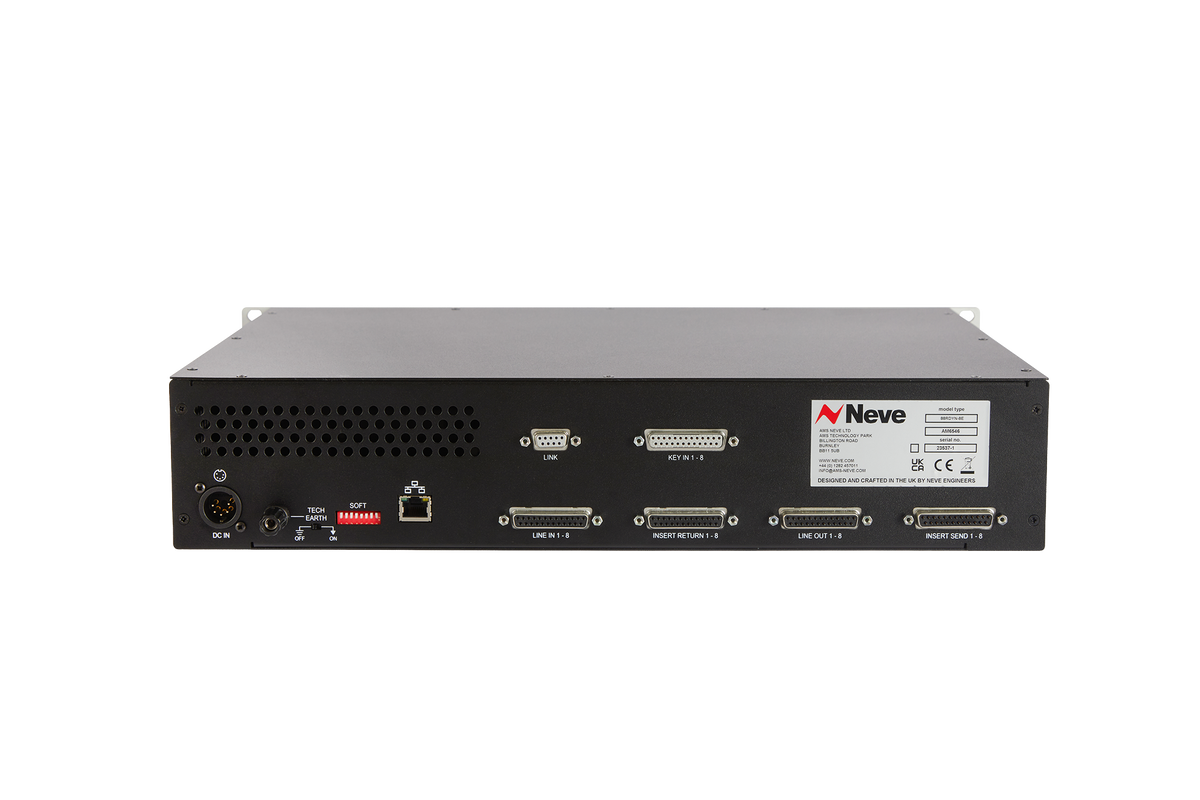

Audio Connectivity
Audio Connections: D-sub
External Sidechain Key Input: 25-way D-sub
Additional Sidechain Key Input: 9-pin D-sub
Insert Connections: Insert send and return
Insert Routing: Intelligent insert matrix with digitally controlled positioning

Control and Software
Hardware Control: Software-controlled analogue circuitry
DAW Integration: Element Control Plugin
Supported Plugin Formats: AAX, AU, VST3
Additional Control: Neve Elements App
DAW Session Recall: Supported
DAW Automation: Supported
Channel Grouping: Supported for processors of the same type
Control Views: Single, multiple and grouped
Snapshots: Supported
Undo History: 64 steps
Network Connection: Ethernet
IP Configuration: DHCP or manually assigned IP address

Dimensions
Width: 483 mm
Height: 89 mm
Depth: 361 mm
