DBX  |  SKU: 307

231S

Graphic EQs

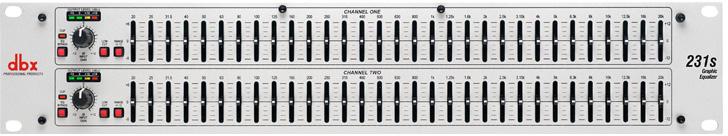

The dbx 231s includes two 31-band channels of 1/3-octave equalization, 12 dB input gain, switchable 6 dB or 12 dB boost/cut range, 20mm nonconductive sliders.

$449.99 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

When the pros need an EQ, they turn to dbx. With a proven track record that spans four decades, dbx EQs are the industry standard for touring, studios, and audio installations. With the dbx heritage of revered pro EQs, the 231s meets the needs of the most demanding sound reinforcement environments, while offering the simplicity of straightforward controls.

From its extended 10Hz to 50kHz frequency response and 112 dB dynamic range to the quality componentry and meticulous attention to detail, the 231s offers exceptional sound and rugged reliability that guarantees you will always sound your best.

Sure to find a home in the studio, on tour and with installed sound venues, the dbx 231s is destined to take its rightful place in the lineage of great dbx signal processors that are the professional's choice in signal processing. With such affordable quality, there's no longer any excuse for compromising your sound.

Features

Dual 31-band, 1/3-octave Constant Q frequency bands

Switchable boost/cut ranges of ±6 or ±12 dB

Front panel bypass switch

±12 dB input gain range

4-segment LED ladders for monitoring output levels

XLR and TRS Inpts and Outputs

Frequency Response of <10Hz to >50kHz

Dynamic range of greater than 108dB

Specifications

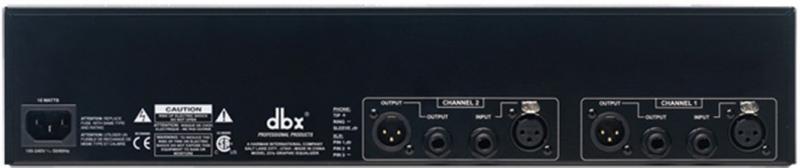

Input Connectors : 1/4" TRS, female XLR (pin 2 hot)

Input Type : Electronically balanced/unbalanced, RF filtered

Input Impedance : Balanced 40k ohm, unbalanced 20k ohm

Max Input : >+21dBu balanced or unbalanced

CMRR : >40dB, typically >55dB at 1kHz

Output Connectors : 1/4" TRS, male XLR (pin 2 hot)

Output Type : Impedance-balanced/unbalanced, RF filtered

Output Impedance : Balanced 100 ohm, unbalanced 50 ohm

Max Output : >+21dBu balanced/unbalanced into 2k ohm or greater; >+18dBm balanced/unbalanced (into 600 ohm)

Bandwidth : 20Hz to 20kHz, +0.5/-1dB

Frequency Response : <10Hz to >50kHz, +0.5/-3dB

Dynamic Range : Typically >112dB

Signal to Noise Ratio : Typically >95dB

THD+Noise : <0.003%

Interchannel Crosstalk : <-90dB, 20Hz to 20kHz

Bypass Switch : Bypasses the graphic equalizer section in the signal path

Low cut Switch : Activates the 50Hz 12dB/octave high-pass filter

Range Switch : Selects either +/- 6dB or +/-12dB slider boost/cut range

Operating Voltage : 100-240VAC 50/60Hz

Power Consumption : 15W

Power Connector : IEC receptacle

Unit Weight : 6.2 lbs.(2.81 kg)

Shipping Weight : 7.9 lbs.(3.58kg)

Dimensions : 3.5" (8.9cm) H x 6"(15.24cm) D x 19" (48.26cm) W
