PRESONUS  |  SKU: 24388

CDL-12P

Powered Speakers

12" LF driver, 8x2" HF array, 2000W peak, 130 dB SPL, 120 degree x 15 degree coverage, DSP presets, flyable, pole-mountable, lightweight, constant directivity

$1,549.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

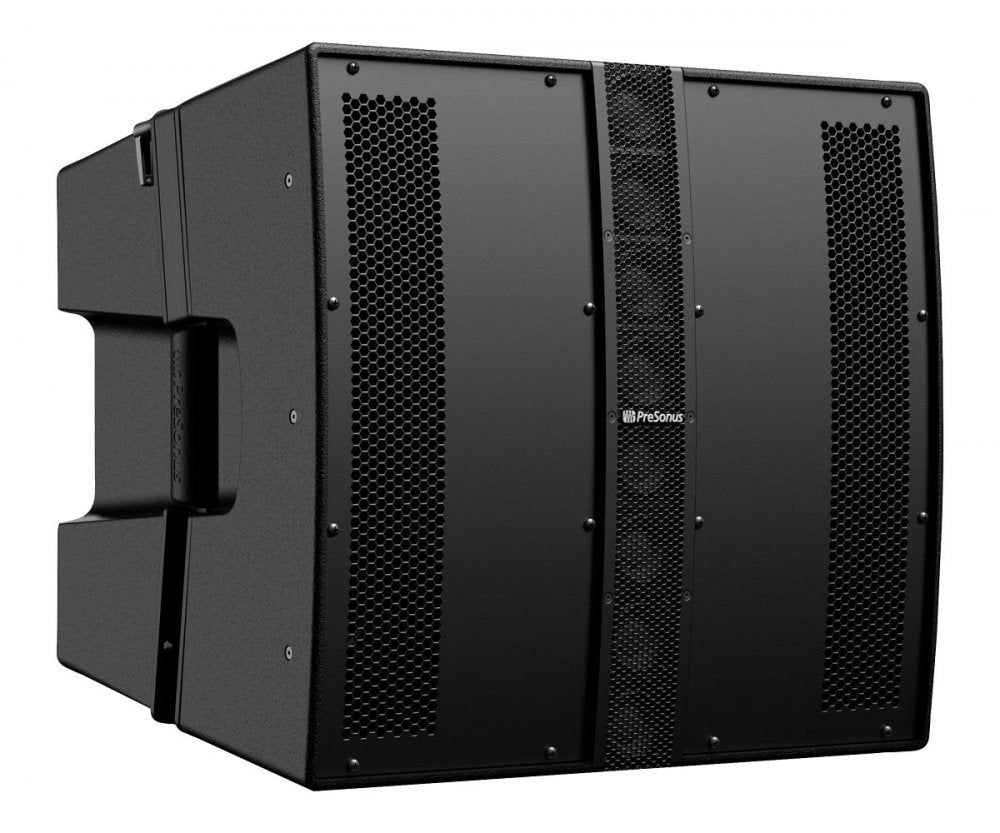

The PreSonus CDL12P Constant Directivity Loudspeaker brings professional-grade performance to portable and mobile sound reinforcement. Designed for touring bands, DJs, and installation professionals who demand consistency and clarity, the CDL12P combines a 12-inch woofer with eight 2-inch high-frequency drivers in a hybrid point-source/line-array configuration. This unique, patent-pending design ensures a tight 120 degree horizontal x 15 degree vertical dispersion with consistent SPL across the listening area - ideal for delivering clear speech and natural music reproduction in any venue.

Each CDL12P is bi-amplified with 500W for both the low and high-frequency sections, powered by efficient Class D amplifiers. A low crossover point of 420 Hz minimizes phase interference and comb filtering, making arrays of up to six CDL12Ps sound smooth and coherent across the entire frequency range. Onboard DSP presets streamline configuration, with options for array modes, subwoofer pairing (including CDL18s, ULT18, and AIR18s), and high-pass filtering. The lightweight, rugged plastic enclosure and integrated rigging hardware make it easy to deploy in flown or pole-mounted setups.

Whether used solo or in a stacked array, the CDL12P excels in mobile or fixed applications that require high-output, high-fidelity sound. With its powerful sound, precise coverage, and user-friendly setup, it's a smart solution for audio professionals who need the sonic benefits of a line array in a compact, flexible form.

Features

Hybrid point-source and line-array design for even sound coverage

120 degree horizontal and scalable 15 degree vertical dispersion

12" woofer and eight 2" HF drivers for clear, consistent audio

Dual 500W Class D amplifiers with onboard DSP presets

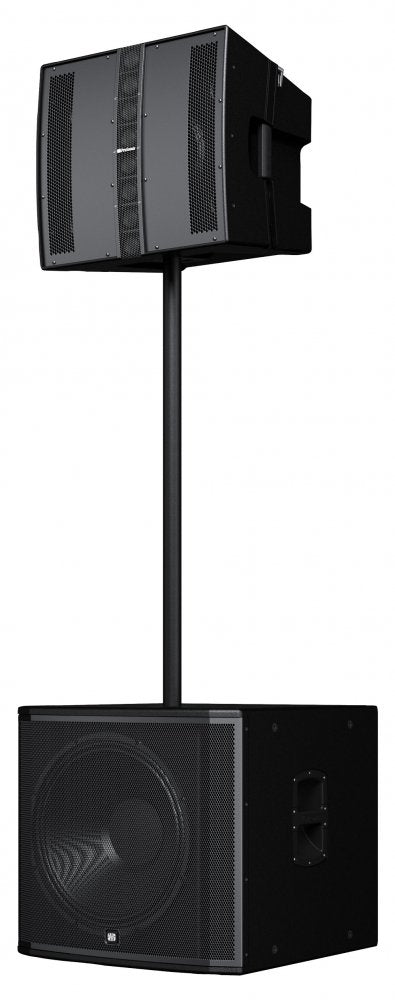

Easy rigging and dual-angle pole mounting for flexible setups

Durable, lightweight enclosure ideal for portable applications

Optimized crossover at 420 Hz for smooth frequency blending

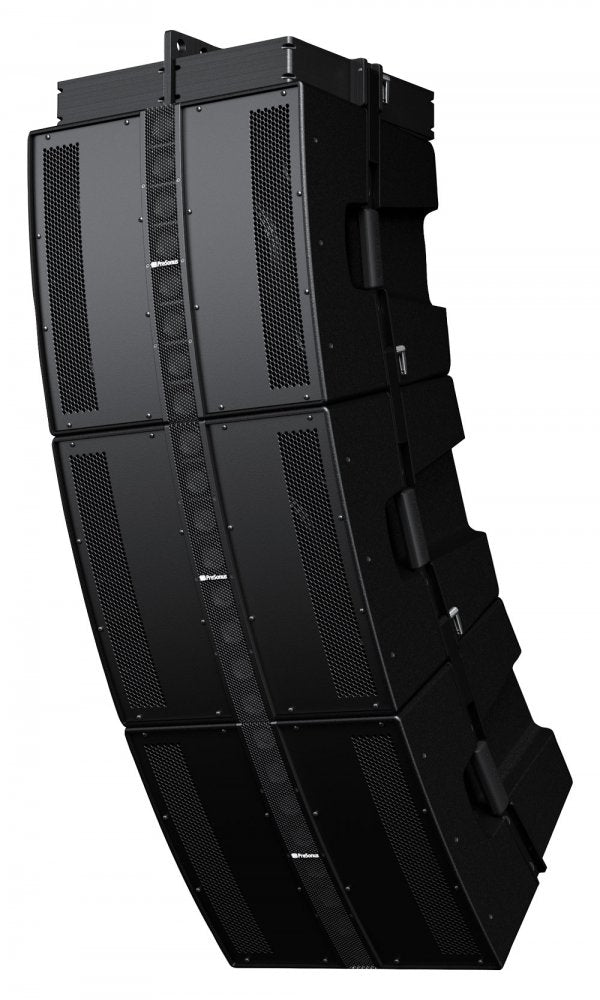

Supports arraying up to six units for scalable sound reinforcement

Specifications

General Specifications

Product Name: CDL12P Constant Directivity Sound Reinforcement Loudspeaker

Series: CDL

Product Type: Active 2 Way Full Range Loudspeaker

Color: Black

Speaker Type: Hybrid Point Source Line Array

Power Cable: Locking AC In and Out

Voltage Requirements: 100 to 240 VAC 50 to 60 Hz

Power and Amplification

Amplifier Type: Class D

Total Power Output: 2000W Peak 1000W Program 500W RMS

LF Power: 1000W Peak 500W Program 250W RMS

HF Power: 1000W Peak 500W Program 250W RMS

Power Consumption: 4.2A

Cooling: Free Air Convection

Input Output Connections

Inputs: 1 XLR

Line Out: 1 Direct Line Out XLR

Line Input Impedance: 40 kOhms

Driver Specifications

LF Transducer: 12 inch with 2.5 inch Voice Coil

HF Transducers: 8 x 2 inch Cones with 1 inch Voice Coils

Performance

Peak SPL: 130 dB

Total Harmonic Distortion: Less than 0.05 percent 20 Hz to 20 kHz

Amplifier Dynamic Range: 119 dB A Weighted

Coverage Pattern: 120 degrees Horizontal x 15 degrees Vertical

Crossover Frequency: 420 Hz

DSP and Controls

Onboard DSP Features: High Pass Filter Array Mode 1 to 6 Boxes Sub Mode Off CDL18s ULT18 AIR18s

Audio Controls: Preset Select for Array Count High Pass Filter On Off Subwoofer Configuration

Cabinet and Construction

Cabinet Material: 15 mm Eucalyptus Plywood

Grille Material: Powder Coated Steel

Handles: 2 Side

Suspension: Integrated Rigging 10 to 1 Load Rated

Pole Socket: Dual Position 0 degrees and 7.5 degrees

Protection Features

Amplifier Protection: Over Current DC Over Under Voltage Over Temperature High Frequency

Transducer Protection: Limiter

Dimensions

Width: 20.5 inches

Height: 18.5 inches

Depth: 18.25 inches
