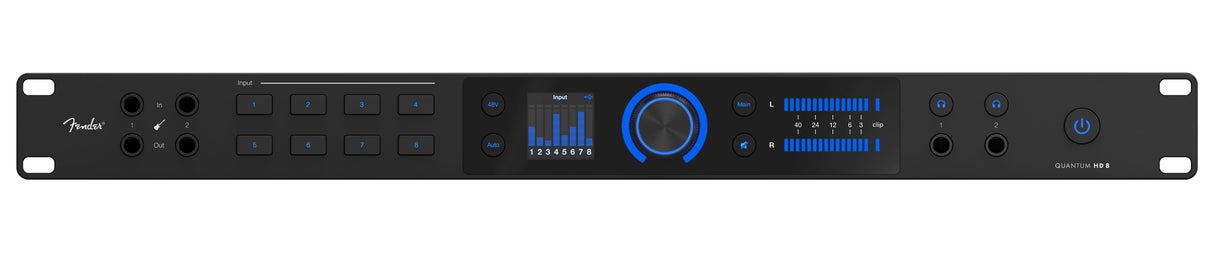

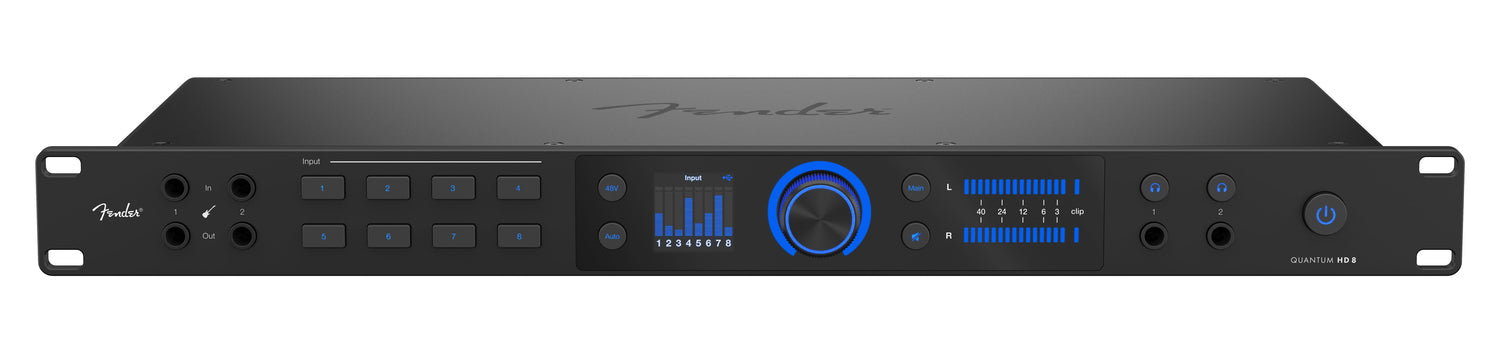

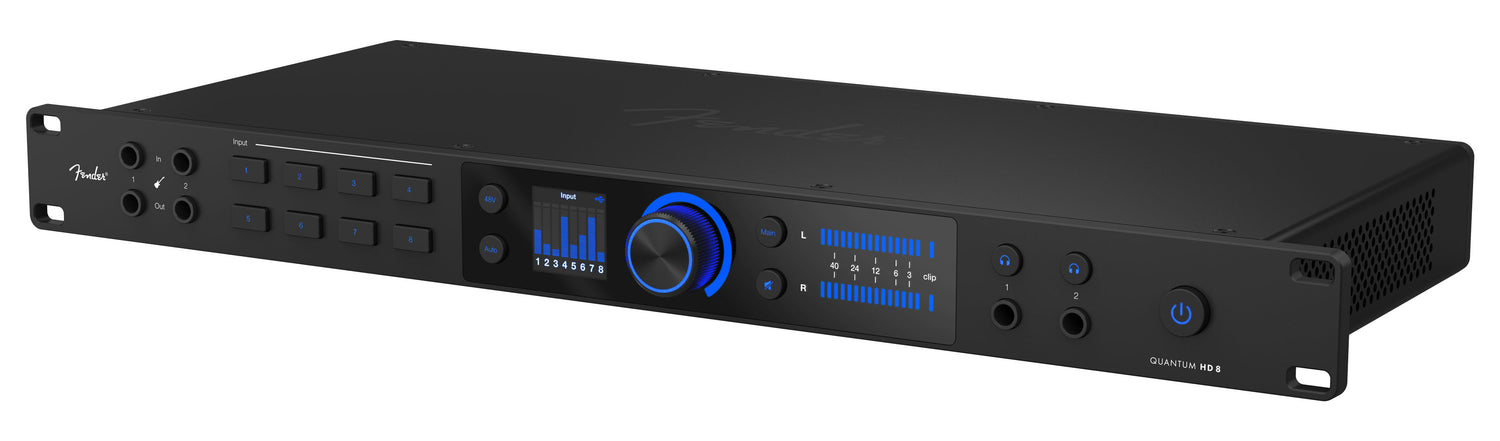

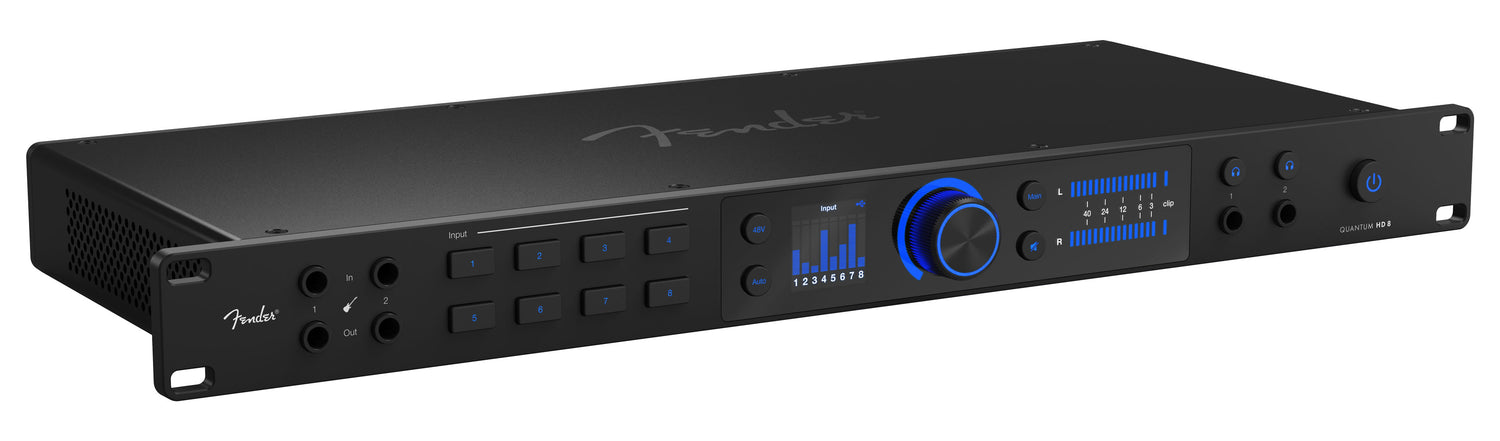

Fender Quantum HD8

Recording Hardware

26x30 USB-C interface, 32-bit/192kHz, MAX-HD preamps with 75 dB gain, ADAT & S/PDIF I/O, re-amp outs, auto gain, DSP mixer, loopback, Studio Pro included.

$1,649.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Fender Quantum HD 8 is a premium 26-in / 30-out USB-C audio interface designed for professional studios, full-band tracking sessions, and creators who need expansive connectivity without sacrificing audio quality. Equipped with 32-bit / 192 kHz converters, ultra-low-latency drivers, and powerful MAX-HD mic preamps, the HD 8 ensures every performance is captured with unmatched clarity, depth, and headroom.

With +75 dB of gain, the MAX-HD preamps accommodate everything from whisper-quiet ribbon mics to high-output condensers which offers transparent, low-noise results with zero compromise. Two Fender-designed front-facing instrument inputs are purpose-tuned for guitar and bass, making direct tracking clean and accurate right out of the box. The addition of Auto Gain simplifies setup, while re-amp outputs allow you to send clean DI tracks back through amps or pedal chains for creative tone shaping.

For multi-instrument setups or hybrid environments, the HD 8 features expanded digital I/O, including 16 ADAT channels, S/PDIF, and standalone ADAT preamp mode, giving you the flexibility to integrate external preamps, mixers, and other digital gear. Built-in DSP monitor mixing and loopback functionality make it easy to manage livestreams, podcast routing, and complex cue mixes.

Features

High-Fidelity 26 x 30 Interface
Delivers pristine audio with 32-bit / 192 kHz conversion and ultra-low-latency USB-C performance.

Powerful MAX-HD Mic Preamps
Provides up to +75 dB of clean gain for detailed, transparent microphone recording.

Optimized Guitar and Bass Inputs
Front-panel Fender instrument inputs offer plug-and-play clarity for electric instruments.

Auto Gain Setup
Automatically sets input levels, streamlining the recording process.

Re-Amp Outputs
Route signals through amps and pedals to explore new tones and textures.

DSP Mixer and Loopback
Easily manage monitor mixes or integrate streaming and podcasting workflows.

Expanded Digital I/O
Connects to more gear with 16 ADAT channels, S/PDIF, and ADAT standalone preamp mode.

Full Remote Control
Adjust preamps, phantom power, and routing from your desktop, mobile device, or DAW using Universal Control or Fender Studio Pro.

Bundled Pro Software
Includes a perpetual license for Fender Studio Pro, a full-featured DAW with built-in amps and effects.

Made for Full-Band Sessions
Perfect for large-scale projects, multi-instrument setups, and professional studio environments.

Specifications

General Specifications
Device Type: 26x30 USB-C Audio Interface
AD/DA Conversion: 32-bit / 44.1, 48, 88.2, 96, 176.4, 192 kHz
Low-Latency Drivers: Ultra-low-latency custom USB-C drivers
Control Integration: Fender Studio Pro and Universal Control (mobile, desktop, DAW)
DSP Mixer: Integrated hardware monitor mixer with loopback
Auto Gain: Supported
Re-Amp Outputs: Dedicated re-amp outputs for amp/pedal integration
Phantom Power: 48V (remotely controllable)
ADAT Preamp Standalone Mode: Supported
Design Use Case: Large project studios, full-band sessions, professional musicians

Gain
Mic Preamp Gain Range: 0 to +75 dB
Auto Gain: Enabled for mic channels
Instrument Input Gain: Fixed (Fender-optimized)

Microphone Inputs
Preamps: MAX-HD
Quantity: 8
Gain: 0 to +75 dB
Transparency: Low-noise, professional-quality design
Phantom Power: 48V

Instrument Inputs
Quantity: 2 (front-facing)
Type: Fender-optimized ¼-inch
Impedance: High (guitar/bass optimized)
Design: Plug-and-play clarity for guitar and bass

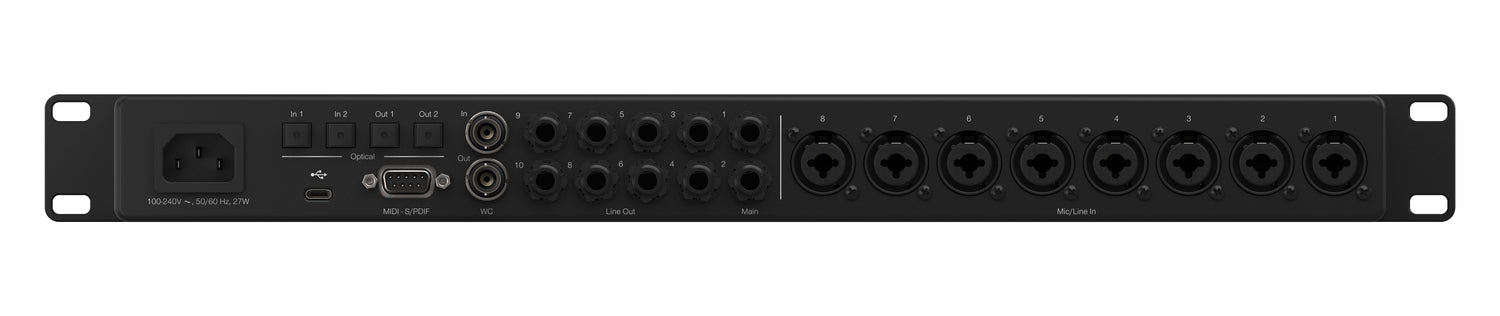

Digital I/O
ADAT Optical Input: 2 ports (16 channels @ 48 kHz)
ADAT Optical Output: 2 ports (16 channels @ 48 kHz)
ADAT Preamp Standalone Mode: Enabled
S/PDIF I/O: 2 channels

Analog Outputs
Main Line Outputs: Balanced TRS
Re-Amp Outputs: Dedicated outputs for amp/pedal re-recording
Monitoring: DSP-based hardware mixer with loopback

Headphone Output
DSP Monitoring: Enabled
Loopback: Enabled

Software
Included DAW: Fender Studio Pro (Perpetual License)
Software Control: Routing, preamp gain, phantom power, Auto Gain, loopback, DSP mixer
