RADIAL ENGINEERING

DiNET DAN-RX2

Dante network receiver, Ethercon input with stereo XLR analog outputs


$689.99 CAD
Shipping calculated at checkout.

Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Robust digital audio distribution The DAN-RX2 is a road-worthy digital receiver capable of delivering two channels of analog audio to any location from a Dante or AES-67 compliant network. Balanced XLR outputs include a ground lift and a separate headphone amp with its own level control is included for local testing or personal monitoring. The RJ45 network connection is compatible with Neutrik etherCON connector carriers to prevent accidental disconnection and protect cable terminations. Redundant powering is available for critical applications by using the included external power supply and Power over Ethernet (PoE) simultaneously, and the DAN-RX2 can be mounted in 19" equipment racks with the optional SA series rackmount adaptor kit.

Features

Stereo analog output device for Dante networks

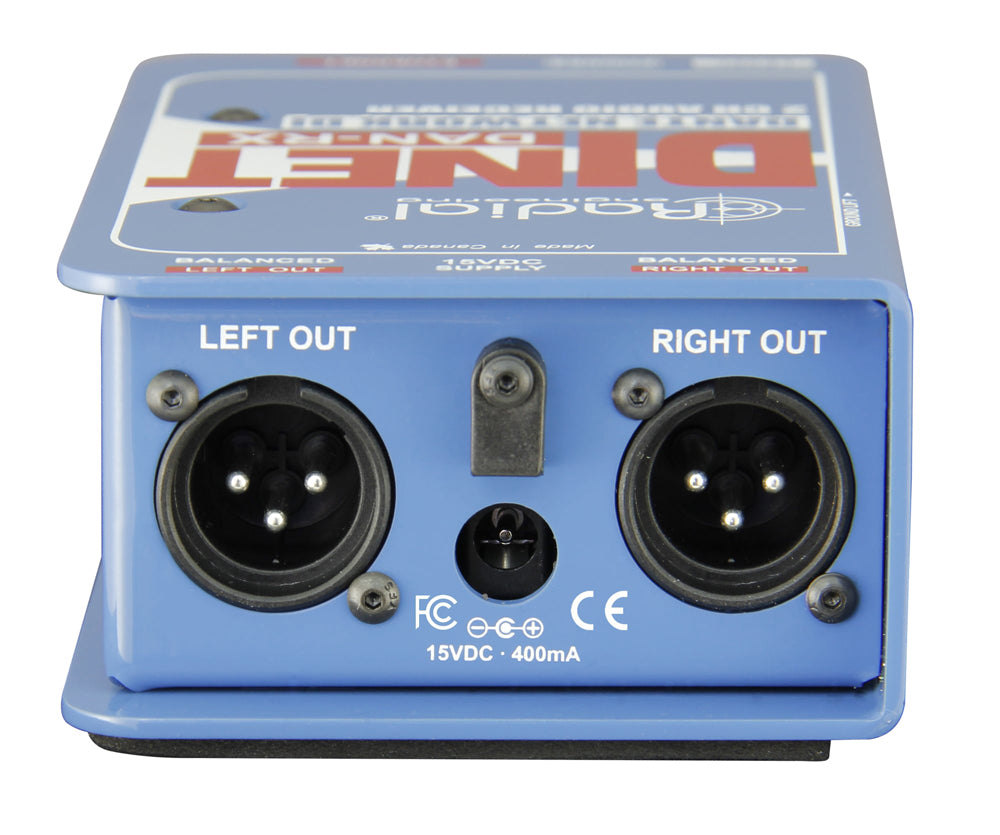

Balanced XLR outputs for connection at mic or line level

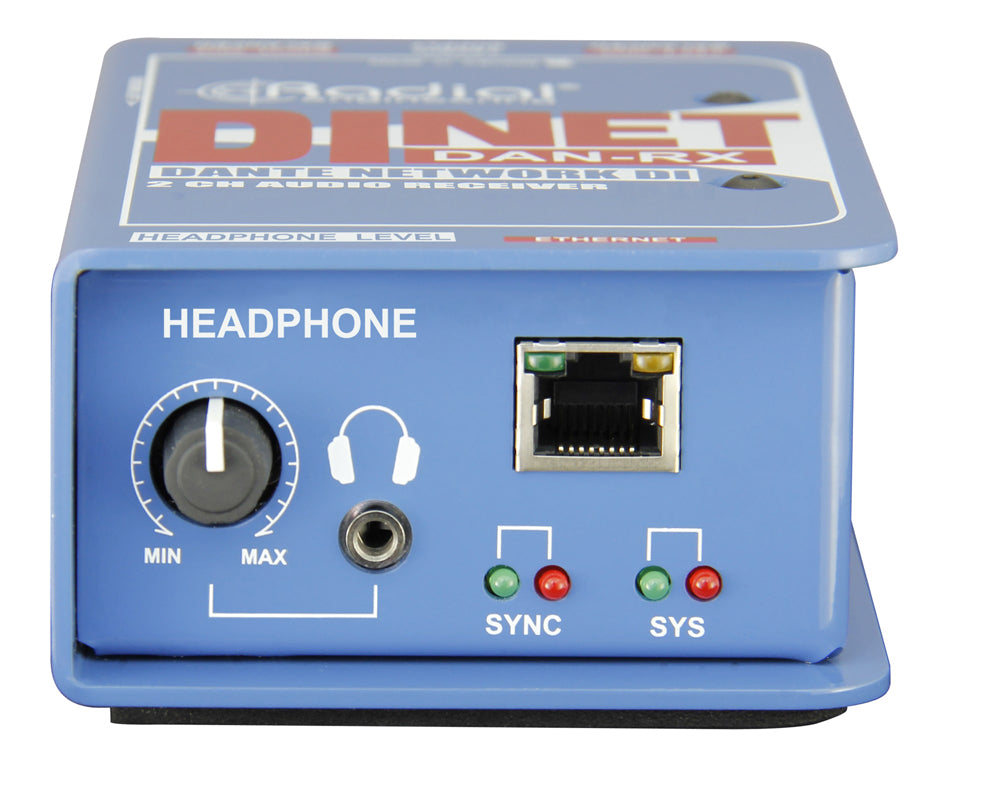

Built-in headphone amplifier for personal monitoring

24bit/96kHz digital to analog conversion

Compliant to AES67 specifications

Specifications

Specifications


Audio circuit type: High current balanced active output device
Number of channels: 2
Frequency response: 20Hz-20kHz
Dynamic range: >100dB
Gain: +18dBu max @ 0dBFS
Total harmonic distortion: 0.007% @ -6dBFS
Output Impedance: 150
Noise: 44.1kHz, 48kHz, 88.2kHz, and 96kHz

Features


Input Connectors: 2x XLR male, 1x 3.5mm & 2x 1/4" headphone out
Output Connectors: 2x XLR male, 1x 3.5mm & 2x 1/4" headphone out
Extras: Bit Depth: 24 bit; Idle Channel Noise: -108dB; Channel Separation: >75dB; Power Consumption: 1.25W; Power over Ethernet (PoE): Class 1 IEEE 802.3af

General


Construction: 14-gauge steel
Finish: Durable powder coat
Size (L x W x D): 4.5" x 2" x 6" (121 x 6 x 147mm)
Power: 15VDC 400mA (included) or PoE
Conditions: For use in dry locations only between 5C and 40C
