RADIAL ENGINEERING

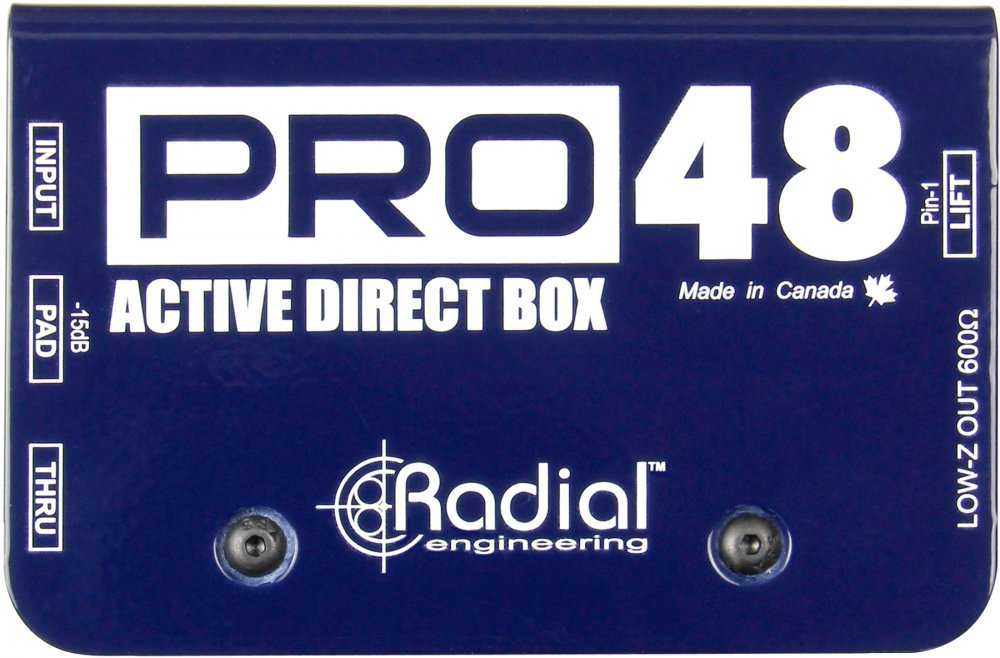

Pro48

Active DI for acoustic guitar & bass, 48V phantom powered


$154.99 CAD
Shipping calculated at checkout.

Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Radial Pro48 is a compact high-performance 48V phantom powered active direct box designed specifically for todays high output instruments.

The Pro48's innovative internal switching power supply significantly increases headroom producing less distortion while yielding a smooth, linear response that extends from 20Hz to well above 40kHz. This results in natural, uncolored signal that is as good or better than DI boxes costing several times more. The superior performance makes the Pro48 an ideal candidate for use with battery powered active basses and acoustic guitars that tend to overload other direct boxes.

The compact Pro48 is built road-ready with 14 gauge steel throughout. A unique book-end™ design creates a protective zones around the switches and connectors while the internal I-beam construction assures outside stress will not torque the PC board and deteriorate solder connections. A full bottom no-slip pads adds mechanical isolation and electrical insulation to further extend the Pro48's lifespan.

Exceptional sonic performance, great natural tone and an affordable price tag! The Radial Pro48 truly represents a breakthrough in value.

Features

High performance active direct box

Increased dynamic range and headroom

48V phantom powered with switching supply

Ideal for acoustic guitar and bass

Specifications

Audio circuit type : Proprietary analog circuit with low-noise op-amp

Frequency response : 20Hz ~ 20kHz (± 1.5 dB)

Dynamic range : 99dB

Noise floor : -82dB below 0dBu

Equivalent input noise : -86dBu

Maximum input : +9dBu

Phase deviation : +28º at 20Hz | +1º at 1kHz | -2º at 20kHz

Total harmonic distortion : 0.001% @ 0 dBu

Inter-modulation distortion : 0.002% @ 0 dBu

Input impedance : 220k - ¼" input

Output impedance : 600 - XLR output


Features

Input pad : -15dB

Ground lift : Disconnects pin-1 at XLR output

XLR configuration : AES standard (pin-2 hot)


General

Power : 48V phantom - proprietary digital switching

Construction : 14 gauge steel chassis and outer shell

Finish : Durable powder coat

Size: (W x H x D) Size: 2.75" x 4.25" x 1.75" (70 x 108 x 44mm)

Weight : 1.2 lb (544 g)

FCC approval : Complies with section 15 of the FCC Rules

Conditions : For use in dry locations only between 5C and 40C
