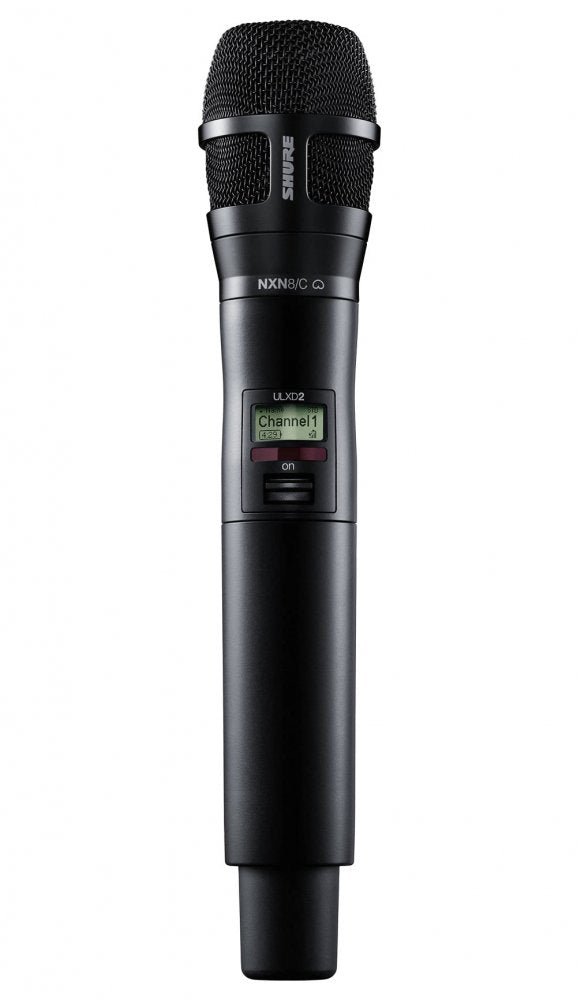

ULXD2/N8CB-G57

Nexadyne 8/C Capsule with Revonic Technology: Dual-diaphragm dynamic design delivers condenser-like clarity with cardioid focus and reduced proximity effect.

Clear and Detailed Vocal Sound: Produces natural highs and vivid clarity with minimal handling noise, thanks to its internal dual-transducer layout.

Wide Tuning Range: Operates across 470"608 MHz with a 138 MHz range, ideal for use in various regional environments.

Interchangeable Capsule Design: Compatible with Shure capsules like KSM9, SM58, Beta 58A, and more, offering flexible sound tailoring.

24-bit/48 kHz Digital Audio: Delivers pristine, low-latency audio over a 330' range-perfect for live sound, worship, and presentations.

Secure AES-256 Encryption: Protects signal integrity in high-security or interference-prone environments.

Automatic Gain Ranging: Self-adjusts input levels for optimal sound without manual settings.

Selectable RF Output Power: Choose between 1, 10, or 20 mW to increase range or maximize simultaneous channel use.

Durable Aluminum Housing: Lightweight and tour-ready with integrated pop protection and moisture rejection features.

Easy Sync and Control: IR sync with backlit LCD for quick access to frequency, group, RF output, and battery status.

Battery Options: Runs up to 11 hours on AA batteries or 8.5 hours with the SB900B rechargeable battery.

Smart Charging Support: Compatible with SBC200 and SBC220 charging docks for efficient and network-integrated battery management.

General Specifications

Model: ULXD2/N8CB-G57

Wireless Technology: Digital UHF

Compatibility: Shure ULX-D Digital Wireless Systems

Capsule: Nexadyne 8/C Cardioid Dynamic

Polar Pattern: Cardioid

Capsule Technology: Shure Revonic Dual-Engine Transducer

Construction: Rugged aluminum housing

Color: Black

Dimensions: 10.1 x 2 in (256 x 51 mm)

Weight: 12 oz (340 g)

Audio & Transmission

Audio Resolution: 24-bit / 48 kHz

Frequency Range: G57 band (470 to 608 MHz)

Tuning Bandwidth: 138 MHz

RF Output Power: Selectable 1 / 10 / 20 mW

Max Operating Range: 100 m (328.1 ft)

Latency: < 2.9 ms

Sensitivity: -54 dBV/Pa (at 1 kHz)

Frequency Response: 50 Hz to 20 kHz (30 Hz to 20 kHz system dependent)

Microphone Features

Microphone Type: Dynamic

Capsule Characteristics: Dual-transducer dynamic with Revonic technology

Enhanced isolation from mechanical vibration (no need for traditional shockmounts)

Condenser-like clarity with controlled proximity effect

Integrated multi-stage pop protection grille

Optimized capsule for minimal bleed and plosive rejection

Interchangeable Capsule Design: Yes (compatible with other Shure capsules)

User Interface & Controls

Display: Backlit LCD

Menu Access: Frequency, group/channel, mute, lock, RF output, battery status

Sync Method: IR (Infrared)

Mute Mode: Power button doubles as mute with RF lock

Lockouts: Frequency and power lock

Encryption & Gain Management

Encryption: AES 256-bit

Gain Adjustment: Automatic (Shure Gain Ranging)

Gain Range: 0 to +21 dB (3 dB steps)

Power & Battery Options

Battery Types: 2 x AA (included) " up to 11 hours, 1 x SB900B Li-ion Rechargeable (not included) - up to 8.5 hours

Charging Options: SBC200 Dual Docking Charger (not included), SBC220 Network Charger (not included)

Charging Features: Dockable external contacts, precision metering, zero memory effect
