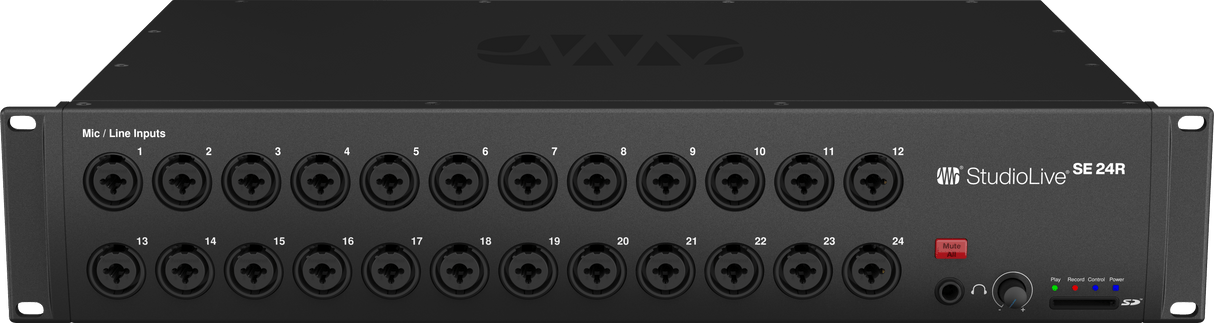

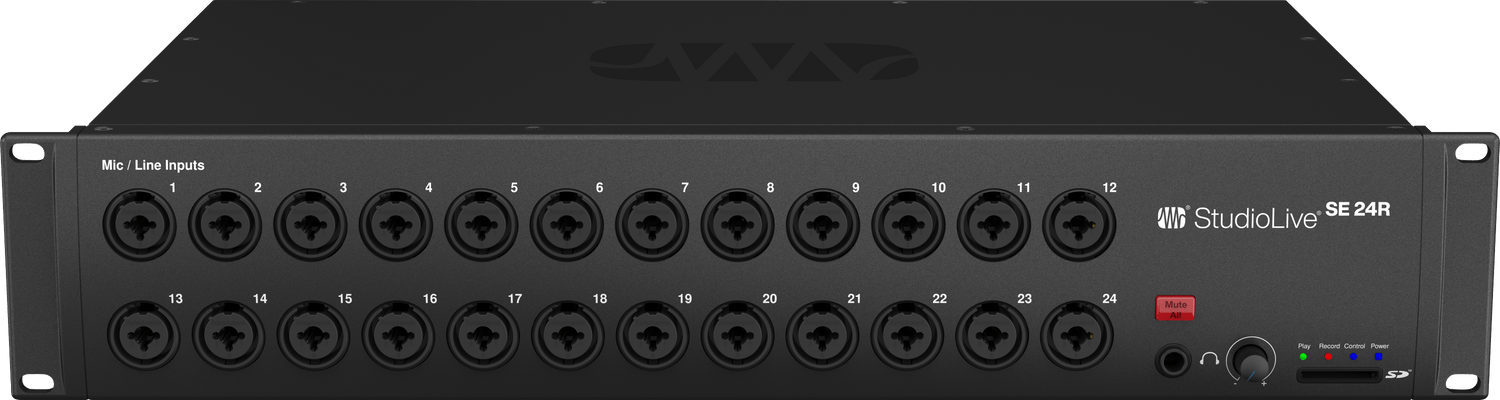

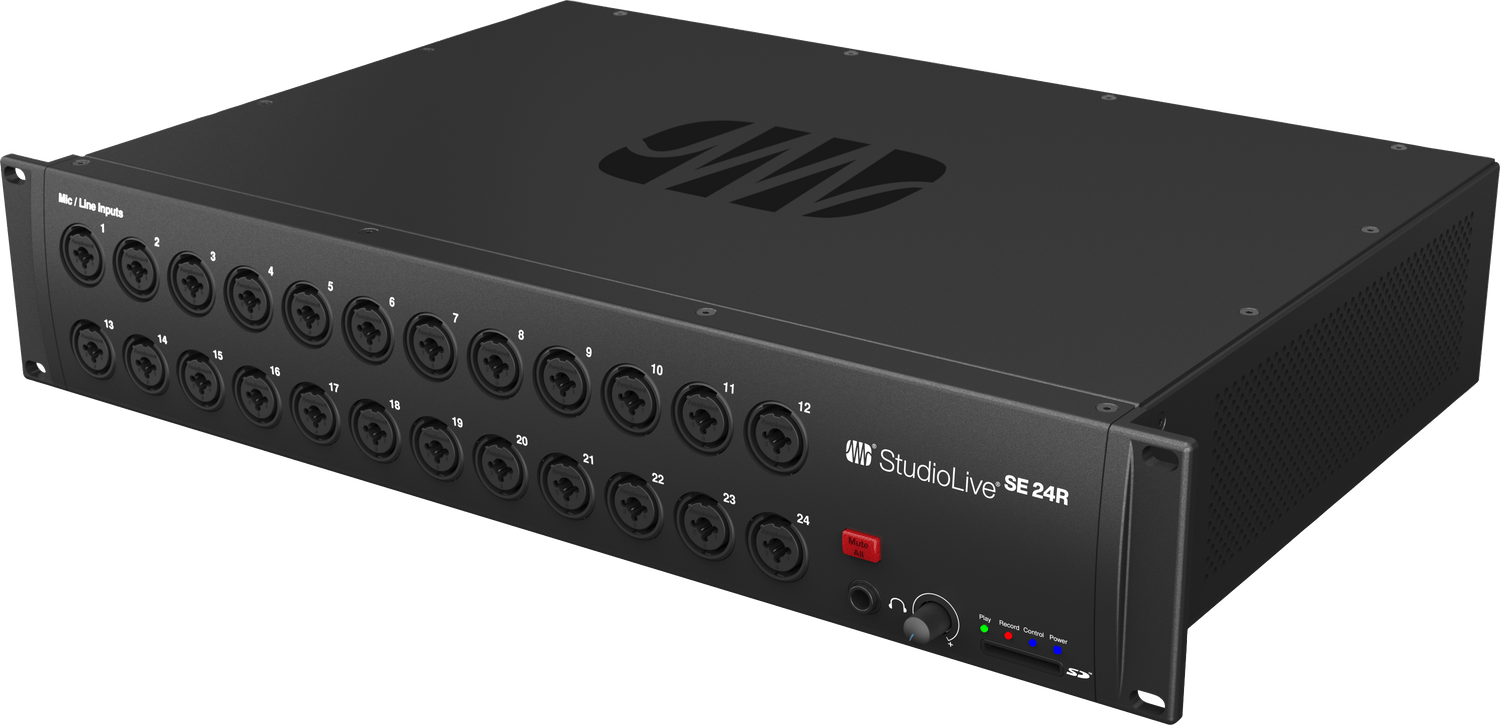

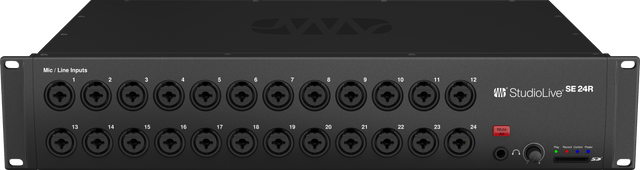

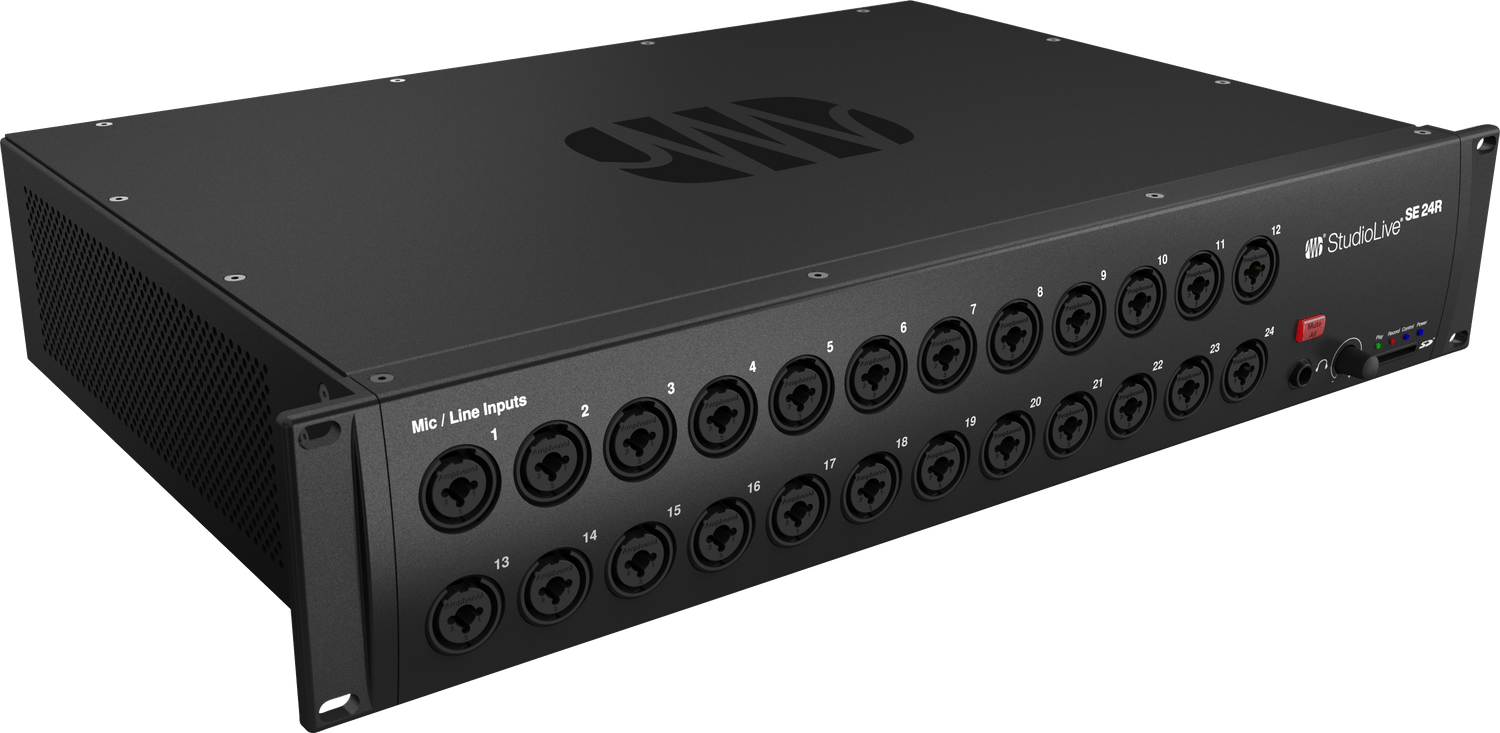

StudioLive Series III SE 24R

Large-Scale Mixing Power
Handles complex live shows and recording sessions with extensive channel capacity and flexible routing options.

Recallable XMAX-R Preamps
Delivers clean, consistent sound with preamps that can be saved and instantly recalled for any session.

Flexible Mix Configuration
Mix outputs can be set up as auxes, subgroups, or matrix mixes to fit live sound, monitors, or broadcast needs.

Dedicated Subgroups and FX
Built-in subgroups and effects mixes make it easy to shape your sound and manage multiple sources smoothly.

Advanced DCA Control
Control multiple channels together with simple group faders for faster, more efficient mixing.

Integrated Multitrack Recording
Record full performances directly to a computer with seamless multitrack audio over USB.

Onboard SD Recording
Capture stereo recordings straight to an SD card without needing extra equipment.

Virtual Soundcheck Integration
Play back recorded tracks through the mixer to fine-tune your mix before the show.

Milan-Certified AVB Networking
Connect effortlessly with compatible consoles and stageboxes for expandable, plug-and-play systems.

Per-Channel Source Switching
Choose between analog, USB, SD, or network audio sources on each channel for flexible hybrid setups.

Wireless Remote Control
Mix and adjust settings from anywhere using Universal Control on your computer or tablet.

Personal Monitor Mixing
Performers can control their own monitor mixes easily using the QMix-UC app.

Standalone and Stagebox Modes
Use it as a full mixer, dedicated monitor mixer, or remote stagebox to match your setup.

Fender Studio Pro Integration
Enjoy seamless recording workflows with direct preamp control and smooth switching between onboard and plug-in processing.

General Specifications
Device Type: Digital Rack Mixer
Channels: 40
Onboard Microphone Preamps: 24 XMAX-R Recallable
FlexMixes: 16 (Configurable as Aux, Subgroup, or Matrix)
Dedicated Subgroups: 4
Dedicated FX Mixes: 4
DCA Groups: 24
Operating Modes: Standalone, Monitor Mixer, Stagebox
Internal Processing: 32-bit Floating Point
Bit Depth: 24-bit
Reference Level (0 dBFS): +18 dBu
Total System Latency: 1.9 ms (Analog In to Analog Out, All Processing Active)
Color: Black

Audio Interface
USB Interface: 64x64, USB 2.0 Type-B
AVB Networking: Milan-Certified
Audio Network Ports: Locking XLR, Ethernet
Network Control Port: RJ-45
Per-Channel Source Switching: Analog, USB, SD, AVB

Microphone Preamps
Connection Type: Combo Locking XLR / 1/4" TRS
Gain Range: 0 dB to 60 dB (±1 dB)
Frequency Response: 20 Hz to 20 kHz (±0.5 dB at Unity Gain)
Input Impedance: 1 kΩ
Maximum Input Level: +12 dBu (Unity Gain)
Signal-to-Noise Ratio: 94 dB (A-Weighted, Unity Gain)
Total Harmonic Distortion: <0.005% (+4 dBu, 20 Hz–20 kHz, Unity Gain)
Common Mode Rejection Ratio: 65 dB (1 kHz at Unity Gain)
Phantom Power: +48 VDC (±2 VDC)

Line Inputs
Connection Type: RCA Female, Unbalanced (Stereo Pair)
Maximum Input Level: +12 dBu (±0.5 dBu)

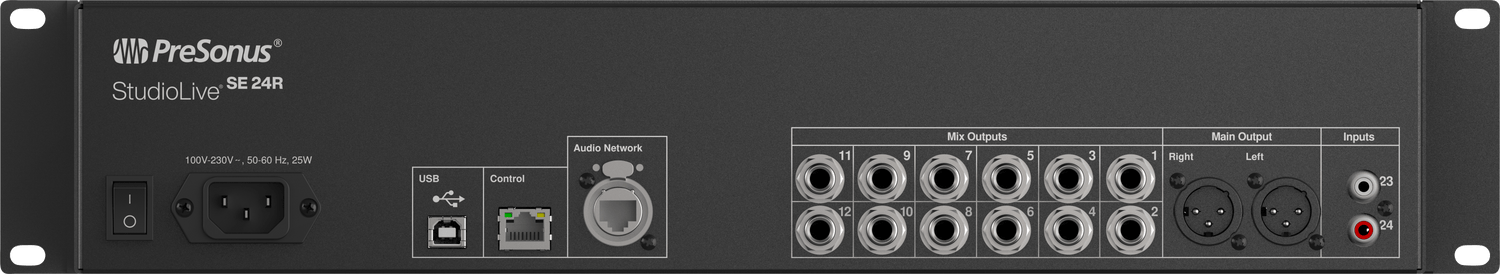

Outputs
Line Outputs Connection: 1/4" TRS, Balanced
Line Outputs Maximum Level: +18 dBu (±0.5 dBu)
Line Outputs Output Impedance: 100 Ω
XLR Outputs Maximum Level: +24 dBu (±0.5 dBu)
XLR Outputs Output Impedance: 100 Ω

Headphone Output
Connection: 1/4" TRS Active Stereo
Frequency Response: 20 Hz to 20 kHz (±0.5 dB)
Maximum Output: 100 mW per Channel @ 60 Ω
Signal-to-Noise Ratio: 96 dB (1 kHz, Maximum Gain, Unweighted)
Total Harmonic Distortion: 0.01% (1 kHz, Maximum Gain)

Digital Audio Performance
ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
Crosstalk (Adjacent Channels): -87 dB (20 Hz–20 kHz, Unweighted)
Supported Sample Rates: 44.1 kHz, 48 kHz

SD Recorder
Recording Format: Stereo WAV
Recording Bit Depth: 24-bit
Playback Bit Depth: 16-bit, 24-bit
Sampling Rates: 44.1 kHz, 48 kHz
Supported Media: FAT16 SD, FAT32 SDHC
Media Capacity: SD up to 2 GB, SDHC up to 32 GB

Power
Voltage Requirements: 100–230 VAC, 50–60 Hz
Rated Voltage: 120 V
Power Consumption: 35 W (Continuous)
Power Connection: IEC
Operating Temperature: 0°C to 40°C (32°F to 104°F)

Physical Specifications
Rack Space: 2U
Width: 19" (483 mm)
Height: 3.5" (90 mm)
Depth: 12" (305 mm)
Weight: 10.8 lbs (4.9 kg)
