SWITCHCRAFT

05BL5MX

Audio Adaptors

5-pin DIN male plug, 180° pin layout, solder cup termination, tin-plated contacts, soft plastic handle, 0.22" cable opening, RoHS compliant.

$18.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

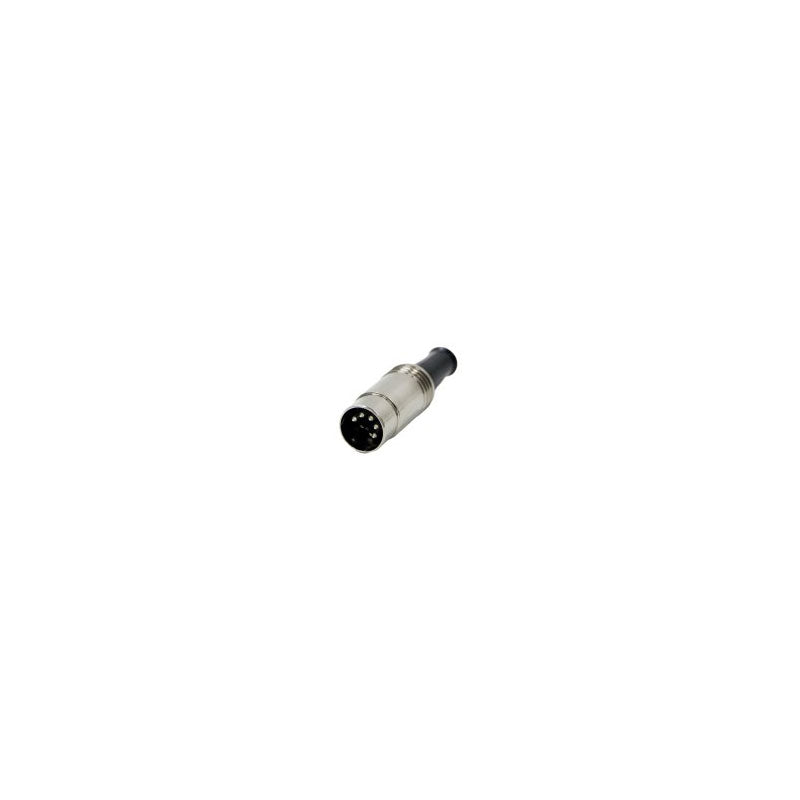

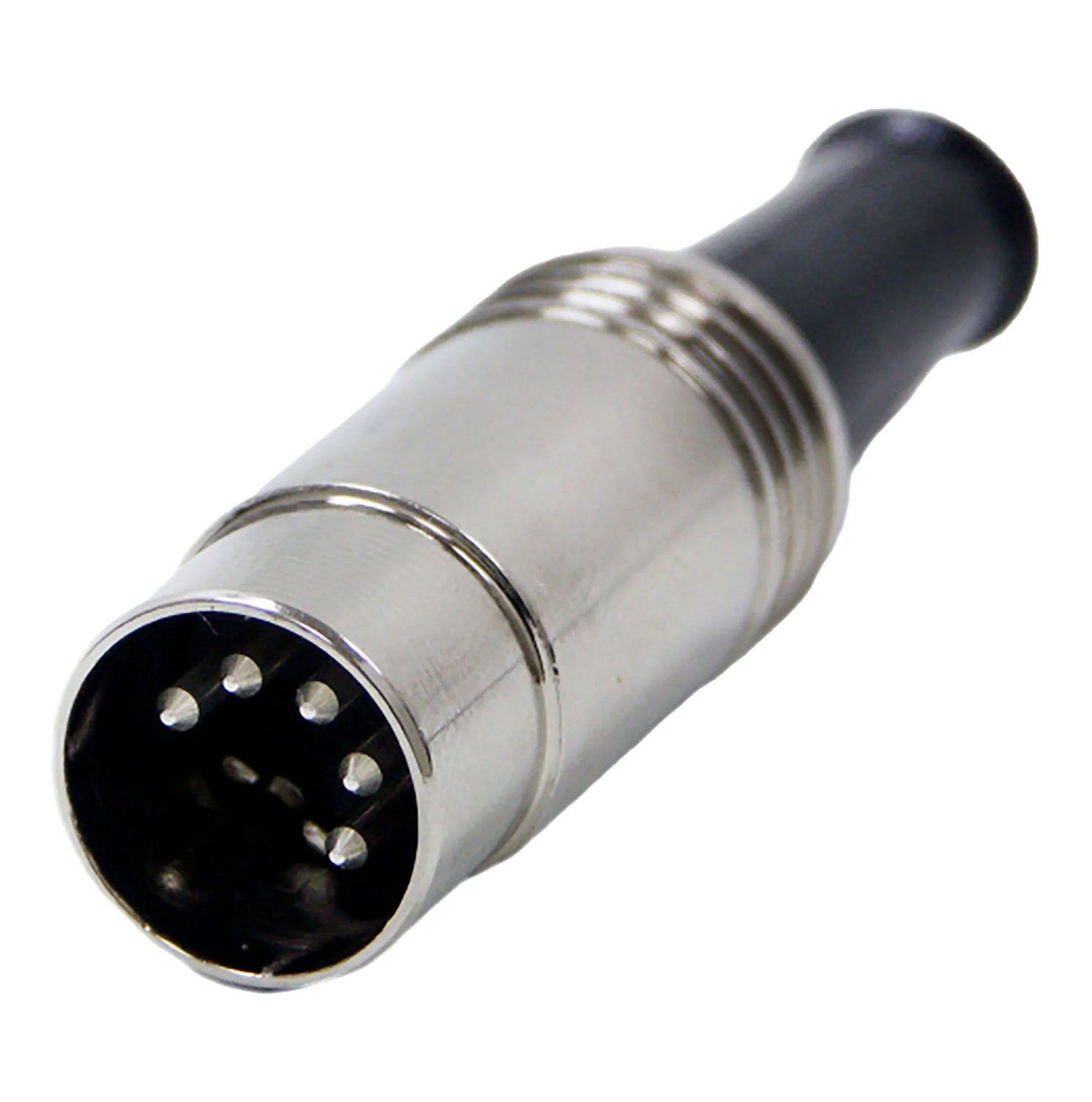

The Switchcraft 05BL5MX is a 5-pin male DIN cord plug connector, engineered for reliable performance in audio, data, and control signal applications. Featuring a 180° pin configuration and a ground key-rib for secure orientation, this connector is ideal for professional and industrial use where consistent, high-quality connectivity is essential.

Constructed with a nickel-plated copper alloy housing and tin-plated copper alloy contacts, the 05BL5MX ensures low contact resistance (0.01 Ohms) and excellent durability. Its solder cup termination supports 22 AWG wire, and the soft plastic handle provides flexible strain relief for cable protection. With a maximum jaw capacity of 0.22 inches (5.5 mm) and RoHS/REACH compliance, this connector meets modern environmental and safety standards. The connector comes pre-assembled and features a compact form factor, measuring approximately 58 mm (2.28") in length with a maximum diameter of 15 mm (0.59"), making it an efficient choice for tight spaces or portable setups.

Features

5-Pin Male DIN Connector

Standard 180° pin layout for reliable data and audio signal transmission.

Cable Mount Design

Cord-style connector with secure strain relief for flexible cable routing.

Ground Key-Rib Feature

Provides accurate orientation and grounding alignment for safe connections.

Solder Cup Termination

Accepts 22 AWG wires with easy solder points for strong electrical contact.

Durable Construction

Nickel-plated copper alloy housing with soft plastic handle for long-lasting performance.

RoHS & REACH Compliant

Meets modern environmental and safety standards for global applications.

Specifications

General Specifications

Product Type: DIN Cable Mount Connector

Series: 05BL5MX

Connector Type: Standard DIN

Number of Conductors: 5

Pin Configuration: 5 Pins at 180°

Mounting Type: Cord

Gender: Male

Special Feature: Ground Key-Rib

Color: Nickel

Handle Material: Soft Plastic

Packaging: Bulk

Electrical Specifications

Contact Resistance: 0.01 Ω

Dielectric Withstanding Voltage: 500 V

Current Rating: 3 Amps

Mechanical Specifications

Termination Style: Solder Cup (with 1.0 mm diameter, 1.5 mm deep pin holes for soldering)

Contact Size: 22 AWG

Operating Force: 9 lbs

Dimensional Specifications

Cable Opening: 0.22 in / 5.5 mm

Overall Length: 2.28 in / 58.0 mm

Body Diameter: 0.57 in / 14.5 mm

Neck Diameter: 0.35 in / 9.0 mm

Construction Materials

Housing: Copper Alloy, Nickel Plated

Flex Relief: Black Thermoplastic

Insert: Black Thermoplastic

Pins: Copper Alloy, Tin Plated

Cable Clamp: Steel, Nickel Plated

Screw: Steel, Nickel Plated

Compliance

RoHS: Compliant

REACH: Compliant
