WAVES

DSPro StageGrid 4000

Digital Stage Boxes

32 mic/line ins, 16 analog outs, 4 AES/EBU ins/outs, 2 headphone outs, word clock I/O, 44.1"96kHz, SoundGrid, redundant PSU, 4U rack, ultra-low latency

$8,099.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

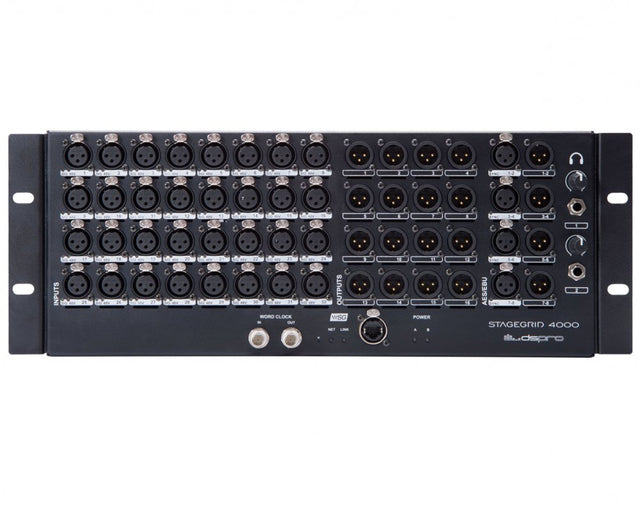

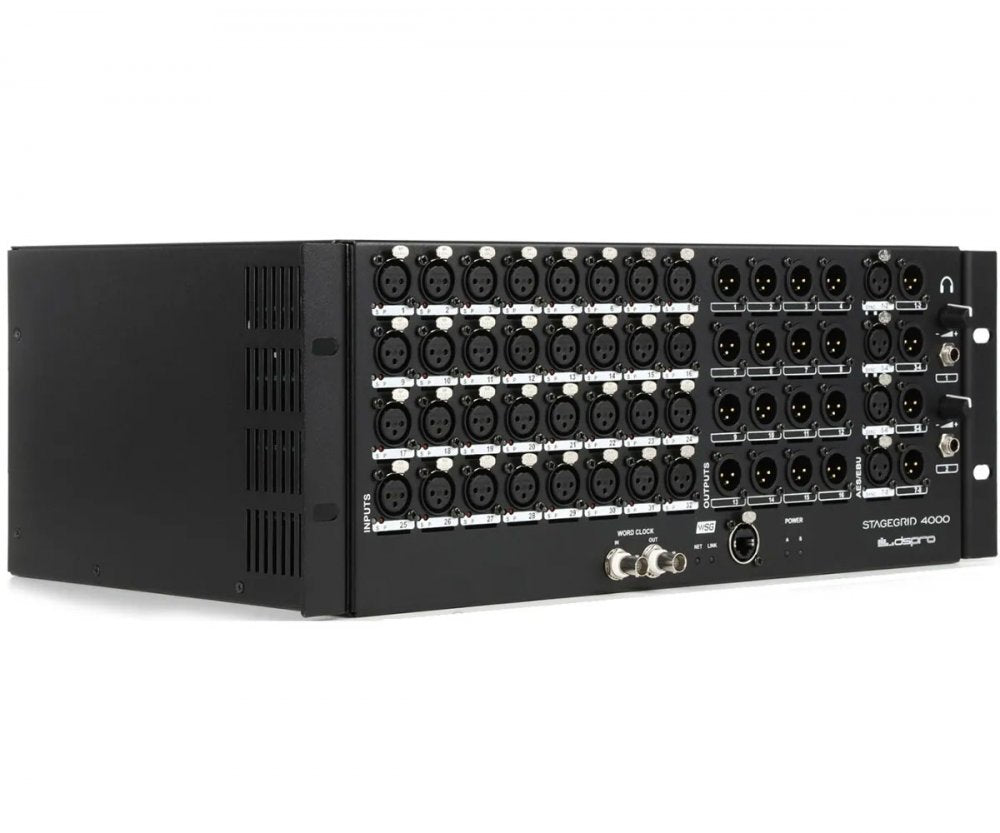

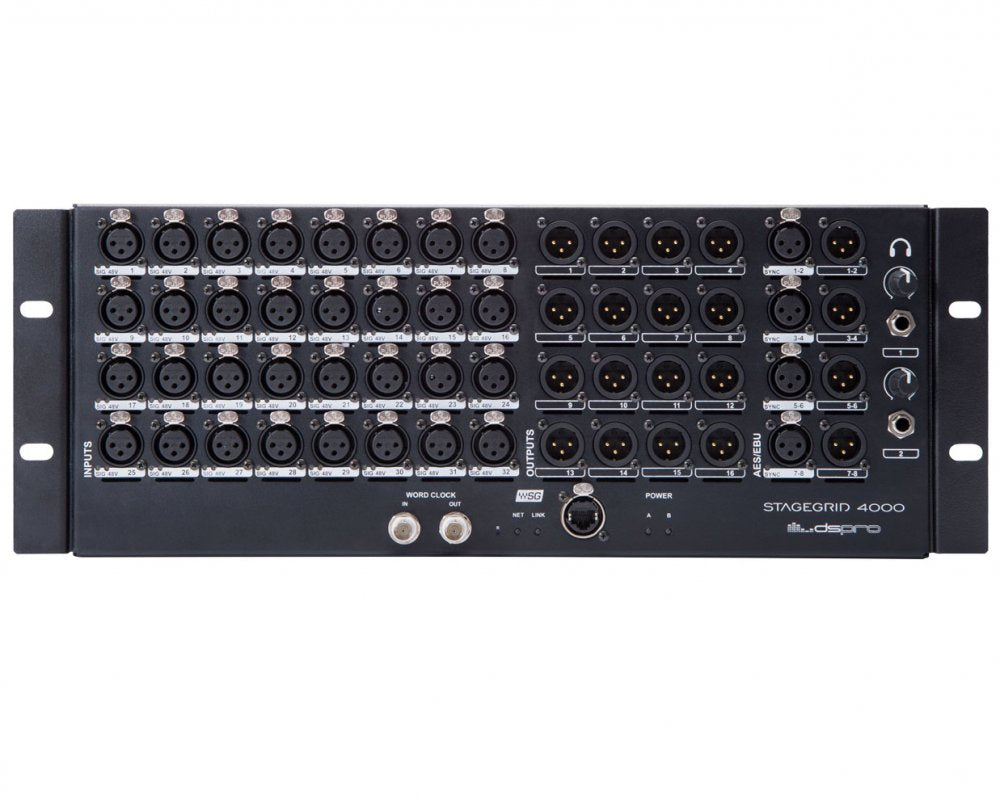

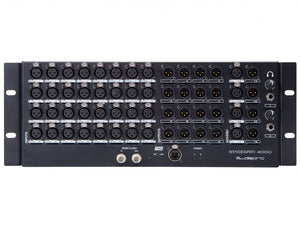

The DSPro StageGrid 4000 is a high-capacity SoundGrid stagebox designed to seamlessly integrate with the eMotion LV1 mixer and other components in the Waves ecosystem. Housed in a durable 4U rack-mountable chassis, it features 32 analog mic/line inputs, 16 analog outputs, and 4 stereo AES/EBU digital inputs and outputs, all with digitally controlled precision. Whether you're at front-of-house, on stage, or managing complex audio routing in broadcast or live settings, this unit offers robust and scalable connectivity backed by the speed and flexibility of SoundGrid technology.

Key to its professional-grade performance are the high-quality preamps that ensure dynamic, clear audio capture, two independent headphone outputs, and redundant AC power supplies for fail-safe operation during critical live shows. The Word Clock input/output (BNC) helps sync your entire system, while the Neutrik EtherCON port guarantees a solid Gigabit Ethernet link for SoundGrid network operations. With support for sample rates from 44.1 kHz to 96 kHz, the StageGrid 4000 brings both clarity and power to your live production toolkit.

Features

4U rack-mountable SoundGrid I/O unit

32 digitally controlled mic or line inputs (XLR)

16 balanced analog line outputs (XLR)

4 stereo AES or EBU digital inputs and 4 stereo AES or EBU digital outputs (XLR)

2 stereo headphone outputs with independent volume controls

Neutrik EtherCON port for SoundGrid compatibility

Word Clock input and output with BNC connectors

Redundant AC power supply for extra reliability

Supports sample rates of 44.1 kilohertz, 48 kilohertz, 88.2 kilohertz, and 96 kilohertz

Rugged and road-ready for live sound applications

Optimized for integration with Waves eMotion LV1 mixer

Specifications

General

32 analog mic or line inputs

16 analog line outputs

4 stereo AES or EBU digital inputs

4 stereo AES or EBU digital outputs

2 headphone outputs

1 SoundGrid Ethernet port (Gigabit)

Word Clock input and output (BNC)

Dual redundant power supply

Analog Inputs

Type: Balanced XLR mic or line

Impedance: 2860 ohms

Gain range: minus 4 decibels to plus 60 decibels

Max input level: 28 decibel units (at minus 4 decibel gain)

Dynamic range: 115 decibels (A-weighted, 20 decibel gain, 1 kilohertz)

Total harmonic distortion: 0.002 percent (at minus 1 decibel full scale, 20 decibel gain, 1 kilohertz)

Equivalent input noise: minus 128 decibel units (A-weighted, 60 decibel gain, 150 ohm source)

Frequency response: within plus minus 0.1 decibel from 20 hertz to 40 kilohertz at 96 kilohertz

Phase shift: less than 10 degrees at 20 kilohertz

Analog Outputs

Type: Balanced XLR

Output impedance: 50 ohms

Max output level: 24 decibel units (0 decibel full scale)

Dynamic range: 115 decibels (A-weighted, 1 kilohertz)

Total harmonic distortion: 0.002 percent (at minus 1 decibel full scale, A-weighted)

Frequency response: within plus minus 0.1 decibel from 20 to 40 kilohertz at 96 kilohertz

Phase shift: less than 5 degrees at 20 kilohertz

Digital I/O (AES/EBU)

Format: AES3 (2009)

Connectors: XLR-3 for input and output

Impedance: 110 ohms

Supported sample rates: 44.1, 48, 88.2, and 96 kilohertz

Headphone Outputs

Output power: 150 milliwatts per channel at 16 ohms

Dynamic range: 100 decibels

Network Interface

Interface: Gigabit Ethernet

Connector: Neutrik EtherCON

Word Clock

Connector: BNC

Impedance: 75 ohms

Voltage level: 5 volts TTL

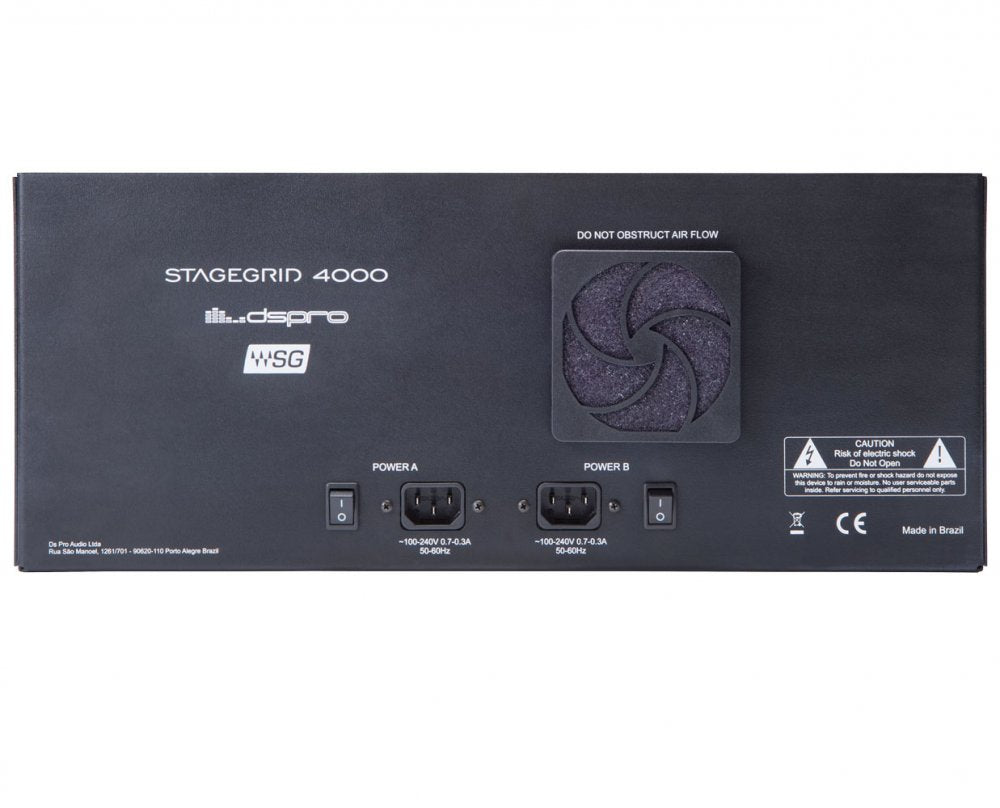

Power Supply

Voltage: 110 to 240 volts AC (auto-switching)

Frequency: 50 to 60 hertz

Power consumption: 60 watts

Dual redundant internal power supply

Environmental and Physical

Operating temperature: 0 to 40 degrees Celsius

Relative humidity: Up to 90 percent, non-condensing

Dimensions (width x height x depth): 430 mm x 176 mm x 300 mm

Weight: 7.89 kilograms
