eMotion LV32D

32 stereo or mono input channels for FOH and broadcast live mixing

16 stereo aux sends and 8 audio groups for flexible routing

Uses SoundGrid network for low-latency audio and plugin processing

Built-in eMo plug-ins: dynamics, EQ, filters, and signal generator

Run up to 8 plug-ins per channel (Waves or third-party)

32-bit floating point mix engine with latency as low as 0.8 ms

Compatible with up to four multitouch screens for hands-on control

Full support for scene recall, user presets, and custom layers

External insert support and A/B input switching

Works offline or online; portable or fixed system setups

Windows and macOS compatible

Ideal for complex stage setups, touring rigs, and live broadcasting

General Specifications

Mixer Type: Digital software mixer

Format: Downloadable software

Channel Count: 32 stereo/mono input channels, 28 bus/return channels

Audio Engine: 32-bit floating point

Latency: As low as 0.8 ms

Sample Rates: 44.1, 48, 88.2, 96 kHz

Compatibility: macOS 10.10.5 to 10.13 / Windows 8.1 or 10 (64-bit)

Audio Networking

Network Standard: SoundGrid infrastructure

External I/O: Patch up to 16 SoundGrid-compatible interfaces

Plugin Processing: External SoundGrid DSP server

Optional DSP Redundancy: Supported

Cable Support: Cat 5e, Cat 6, Cat 7

Channel Features

Plug-ins per Channel: Up to 8 SoundGrid-compatible plug-ins

Plug-in Formats: Waves and third-party

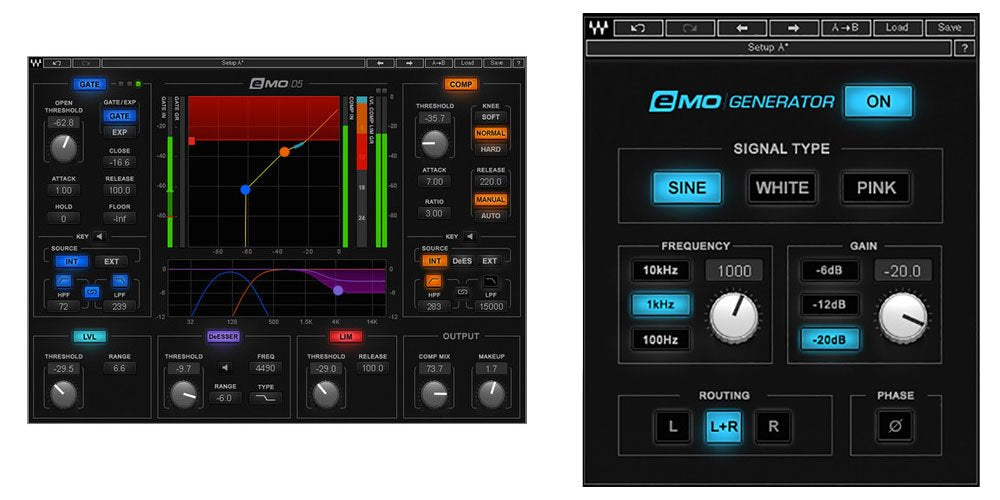

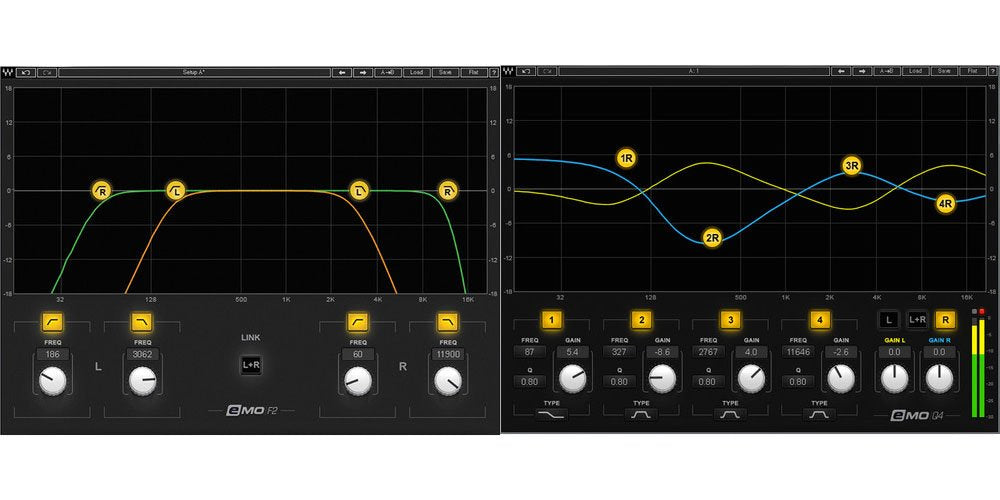

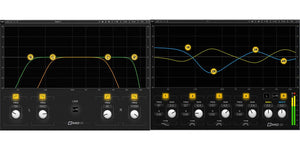

Built-in Plug-ins: eMo D5 Dynamics, F2 Filter, Generator, Q4 EQ

Group Buses: 8 audio groups

Aux Buses: 16 aux (mono/stereo)

Output Options: L/R/C/Mono panning, multiple outputs with digital trim

Stereo Imaging: Advanced imager with balance, rotation, width

Input Options: A/B switching, preamp control, digital trim

Delay Alignment: Output delay groups

Control Groups: 16 link control groups with DCA faders

DCA Spill: Supported

Control & Monitoring

User Interface: Touch-optimized with visual sliders

Display Support: Up to 4 multitouch screens

Control Surfaces: MIDI fader/knob, iPad app (DAW Remote HD), MIDI Show Control

Scenes: Up to 1000 scenes with recall filters and safe options

Metering: Full metering and clip indicators

Monitoring: Solo-in-place with auto solo-safe

User Customization: 8 assignable keys, custom layers (8 per mixer, 16 channels per layer)

Workflow & Features

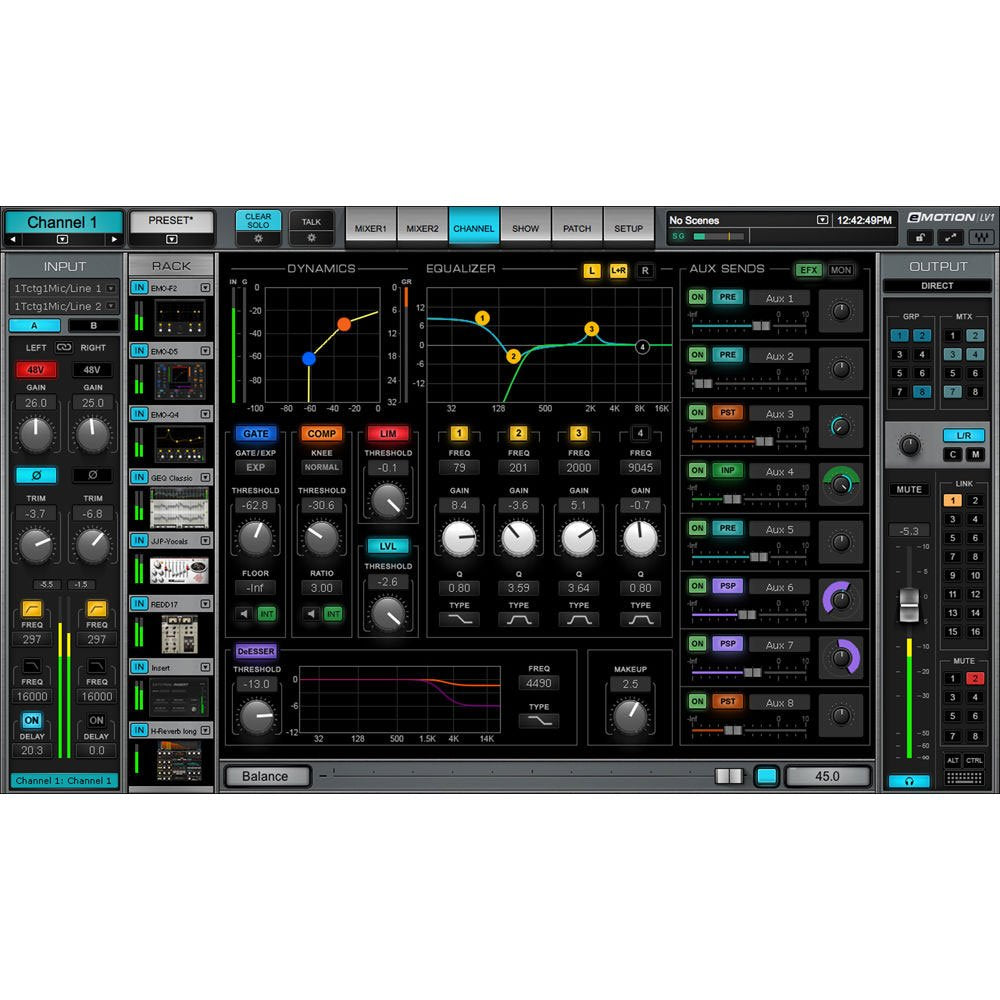

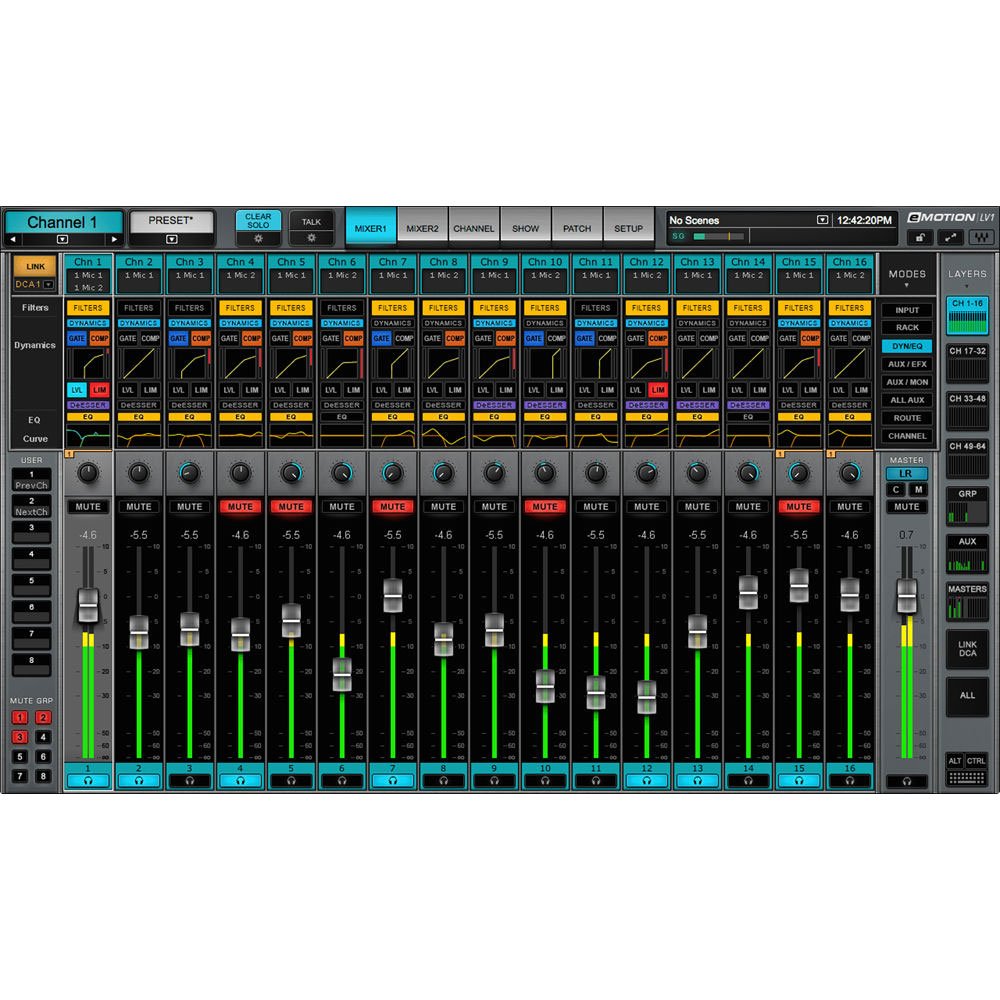

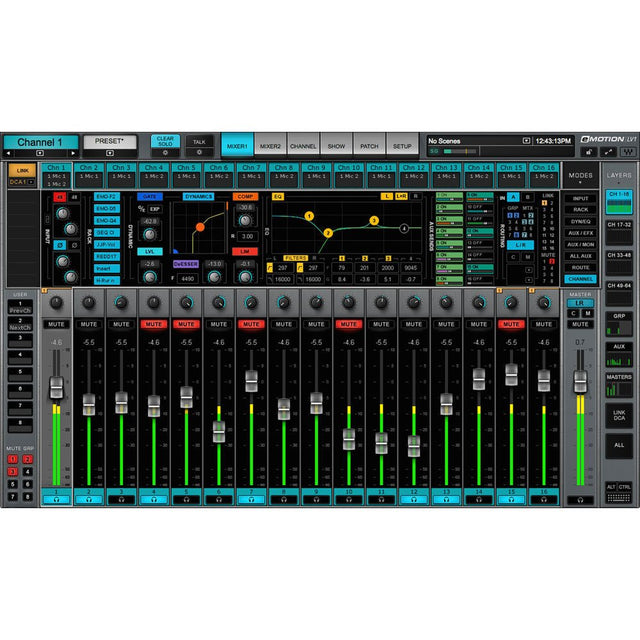

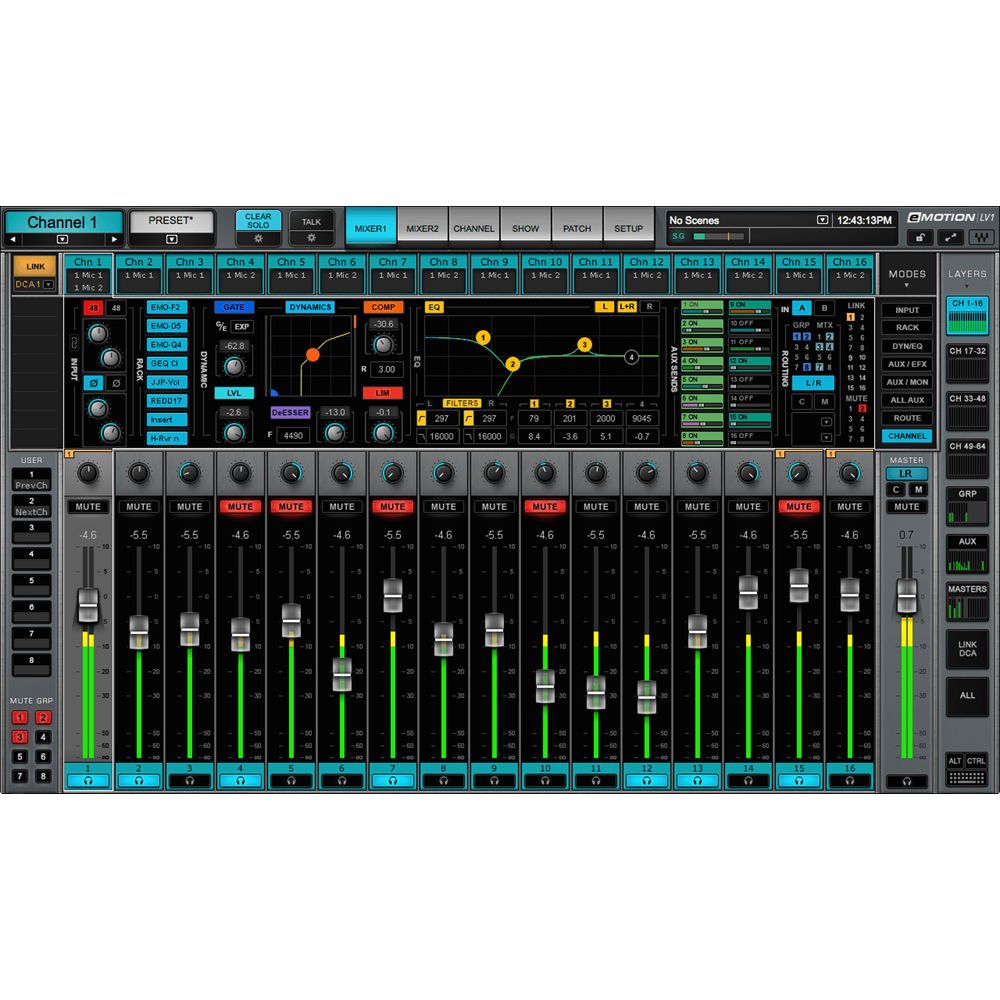

Control Windows: Mixer 1, Mixer 2, Channel, Show, Patch, Setup

Offline Mode: Full offline config and patching

Routing: External inserts, full FX rack support

Presets: Compatible with Waves MultiRack and StudioRack

Scene Automation: MIDI-triggered scene changes

Show Lock: Lock plug-ins, routing, and controls

System Requirements

macOS: CPU: Intel i5 or later, RAM: 6 GB, Resolution: 1280 x 768

Windows: CPU: Intel i3 or later, RAM: 8 GB, Resolution: 1280 x 768

Tablets: Windows 8.1/10 (64-bit), Intel i3 or later

Boot Camp: Supported for Windows on Mac

Included in the Box

Waves eMotion LV1 32 Channel Mixer Software (Download)

eMo D5 Dynamics Plug-In

eMo F2 Filter Plug-In

eMo Generator Plug-In

eMo Q4 Equalizer Plug-In

Usage

Ideal for FOH, broadcast, and monitor mixing with seamless studio integration and advanced SoundGrid DSP routing and control.
