DBX  |  SKU: 24108

131S

Graphic EQs

31-band 1/3-octave EQ, +/-6/12 dB range, 50Hz low-cut, XLR/TRS I/O, 10Hz-50kHz response, 112dB dynamic range, LED metering, rugged 1U build

$359.99 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

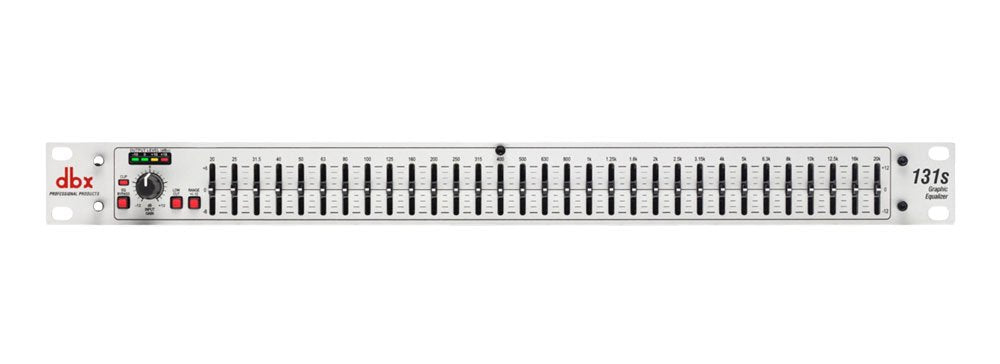

The dbx 131s is a professional 31-band, 1/3-octave graphic equalizer designed to deliver exceptional sound quality and rugged reliability. Built for the demands of live sound, studio, and installed audio systems, it combines intuitive operation with the precision and power dbx is known for. With a switchable +/-6 dB or +/-12 dB boost/cut range, +/-12 dB input gain, and a 50 Hz low-cut filter, the 131s provides powerful tone-shaping tools in a compact 1U rackmount format.

Equipped with nonconductive 20mm sliders, a front-panel bypass switch, and 4-segment LED output metering, the 131s ensures quick setup and real-time monitoring. Its extended frequency response from <10 Hz to >50 kHz, dynamic range over 108 dB, and low distortion (<0.003%) make it an ideal choice for professionals who need reliable, high-fidelity EQ in any application.

Features

Single 31-Band Graphic EQ: Provides 1/3-octave equalization for precision tone shaping and system tuning.

Switchable Boost/Cut Range: Choose between +/-6 dB or +/-12 dB for flexible control over EQ adjustments.

Wide Frequency Coverage: Operates from <10 Hz to >50 kHz with smooth response and accuracy.

High Dynamic Range: Over 108 dB of dynamic range and ultra-low distortion (<0.003%) for clean, professional sound.

Built-In Low-Cut Filter: Switchable 50 Hz high-pass filter helps eliminate unwanted low-end rumble.

Bypass Function: Instantly removes EQ from the signal path for quick A/B comparisons.

Clear Level Monitoring: LED output meters provide visual feedback of output levels.

Tour-Ready Build Quality: Rugged construction with nonconductive 20mm sliders for long-term reliability.

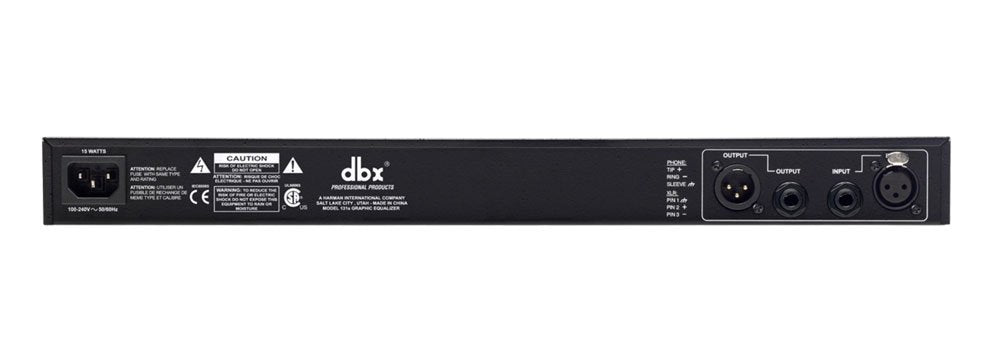

Flexible Connectivity: XLR and TRS inputs and outputs allow easy integration into any audio setup.

Universal Power Supply: Supports 100-240V AC operation for global compatibility.

Specifications

General Specifications

Product Type: Single-channel, 31-band graphic equalizer

Application: Studio, touring, installed sound

Band Type: Constant Q, 1/3-octave frequency bands

Bypass: Front panel bypass switch for signal path

Range Switch: Selectable +/-6 dB or +/-12 dB boost/cut

Input Gain Range: +/-12 dB

Output Level Metering: 4-segment LED ladder meters

Low-Cut Filter: 50 Hz, 12 dB/octave high-pass filter

Power Supply: 100"240 VAC, 50/60 Hz universal input

Power Consumption: 15 W

Power Connector: IEC receptacle

Audio Performance

Frequency Response: <10 Hz to >50 kHz (+0.5/-3 dB)

Bandwidth: 20 Hz to 20 kHz (+0.5/-1 dB)

Dynamic Range: >112 dB (typical)

Signal to Noise Ratio: >95 dB (typical)

THD + Noise: <0.003%

Interchannel Crosstalk: <-90 dB (20 Hz to 20 kHz)

CMRR: >40 dB (typical >55 dB @ 1 kHz)

Input Specifications

Connectors: 1/4" TRS, XLR female (pin 2 hot)

Type: Electronically balanced/unbalanced, RF filtered

Impedance: 40k ohms (balanced), 20k ohms (unbalanced)

Maximum Input Level: >+21 dBu (balanced/unbalanced)

Output Specifications

Connectors: 1/4" TRS, XLR male (pin 2 hot)

Type: Impedance-balanced/unbalanced, RF filtered

Impedance: 100 ohms (balanced), 50 ohms (unbalanced)

Maximum Output Level:

>+21 dBu into 2k ohms or greater

>+18 dBm into 600 ohms

Physical Specifications

Height: 1.75 in (4.4 cm)

Width: 19 in (48.26 cm)

Depth: 6 in (15.24 cm)

Unit Weight: 4.8 lbs (2.2 kg)

Shipping Weight: 6.2 lbs (2.8 kg)
